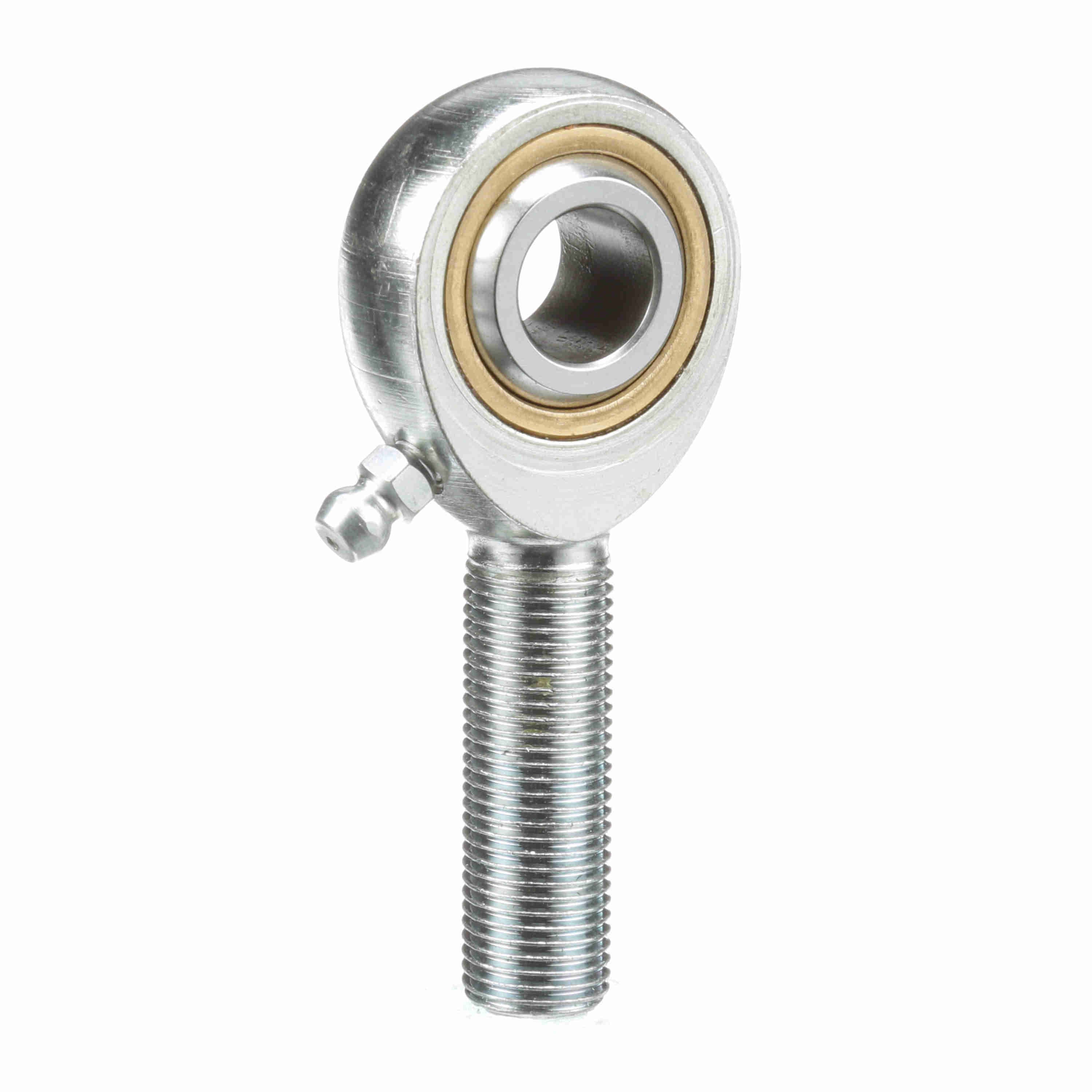

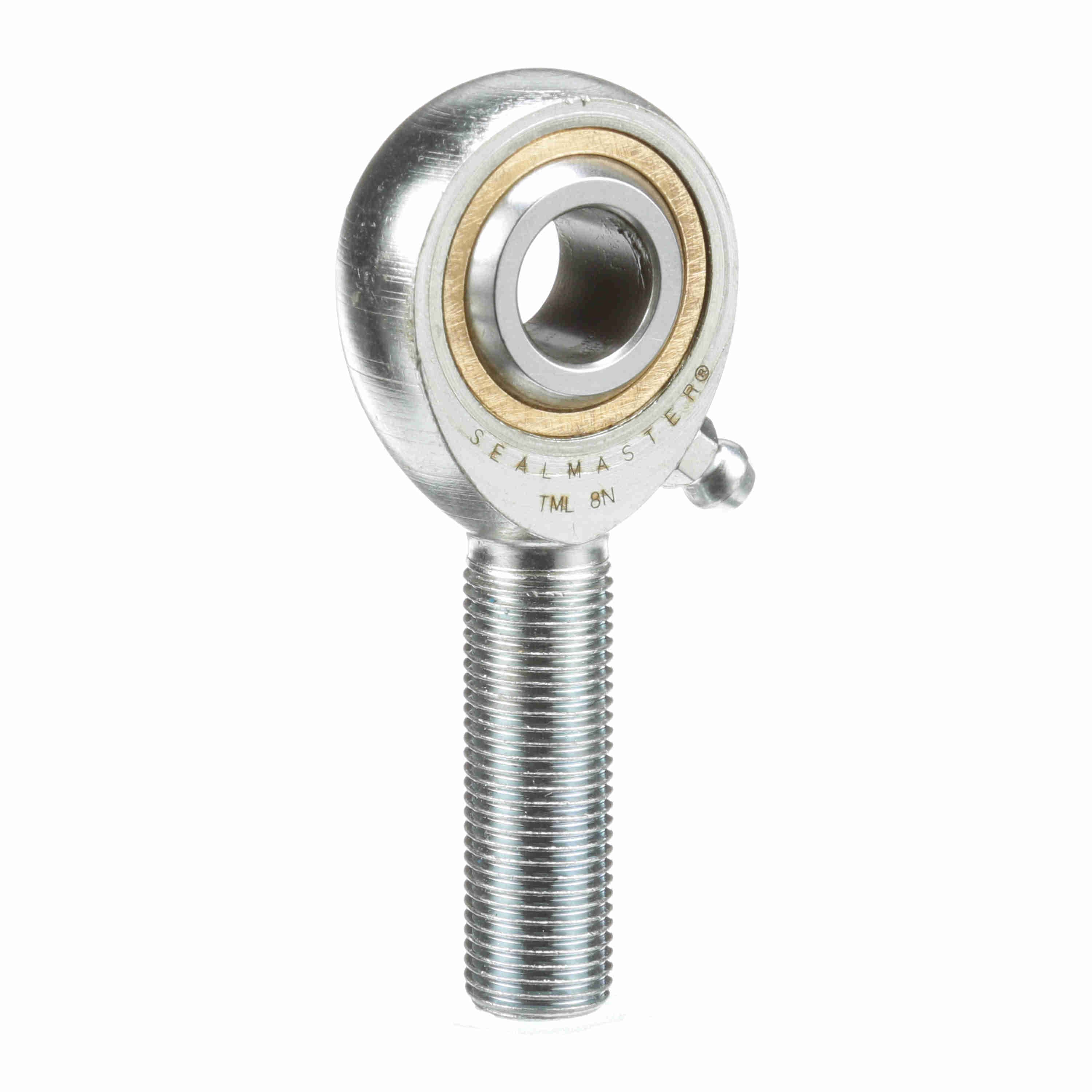

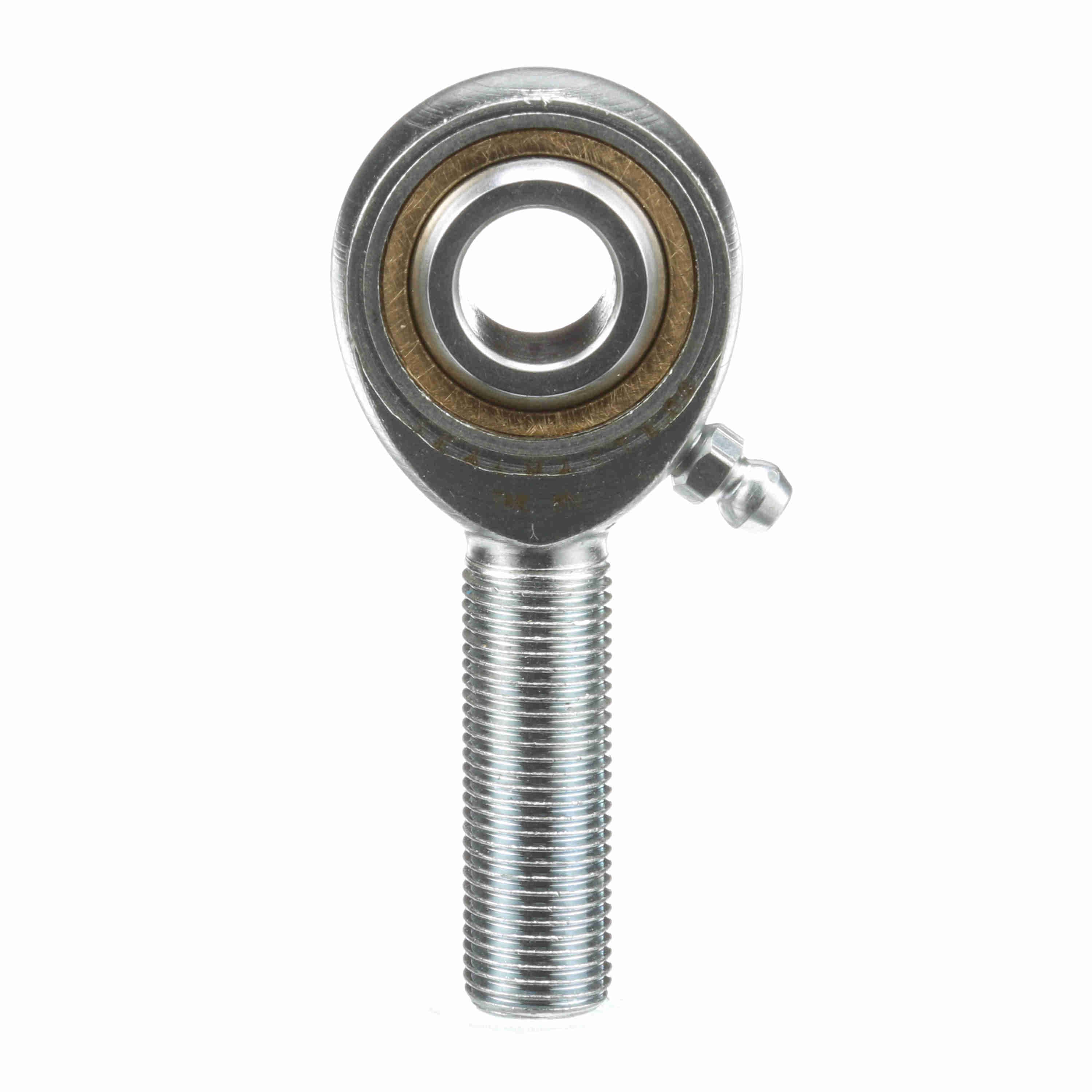

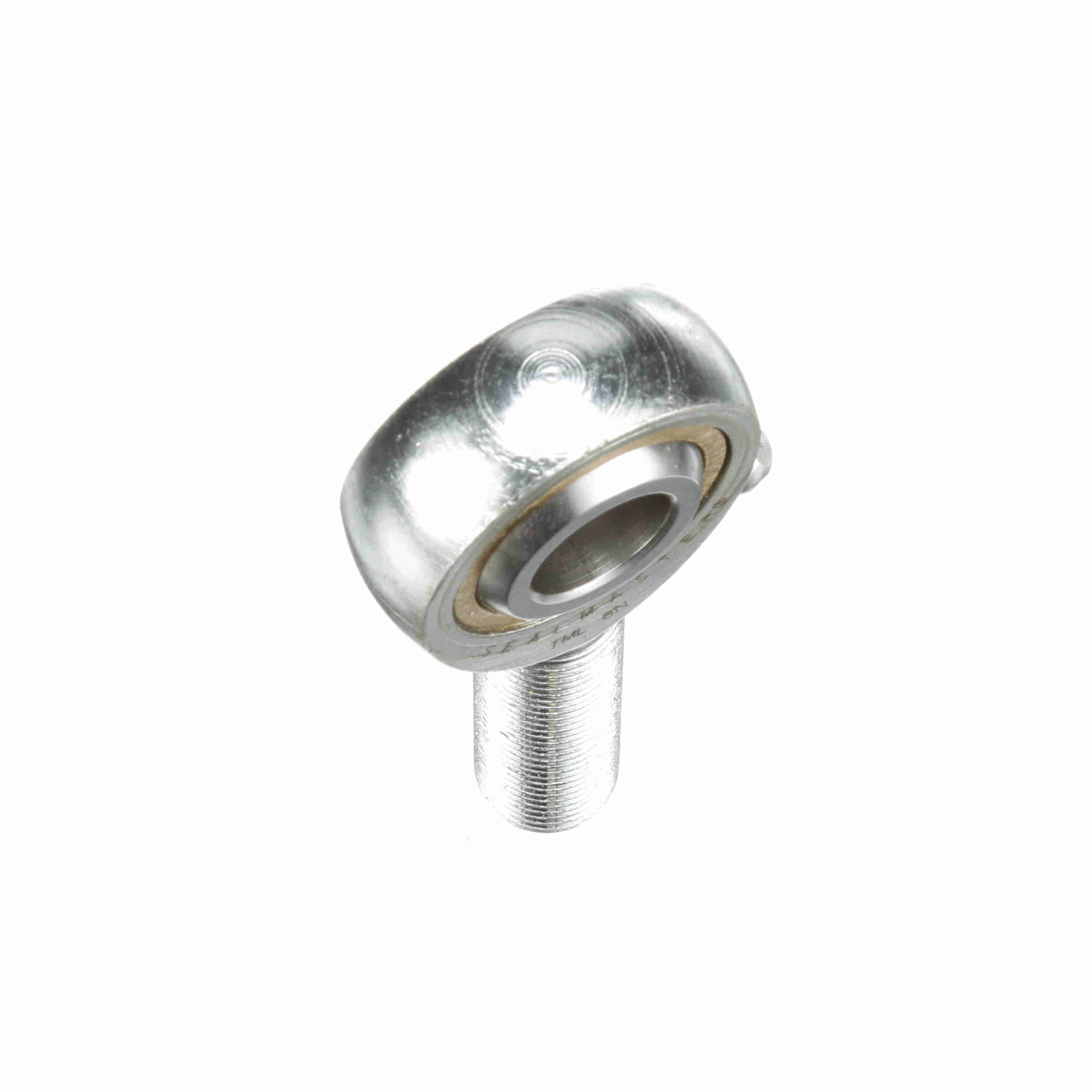

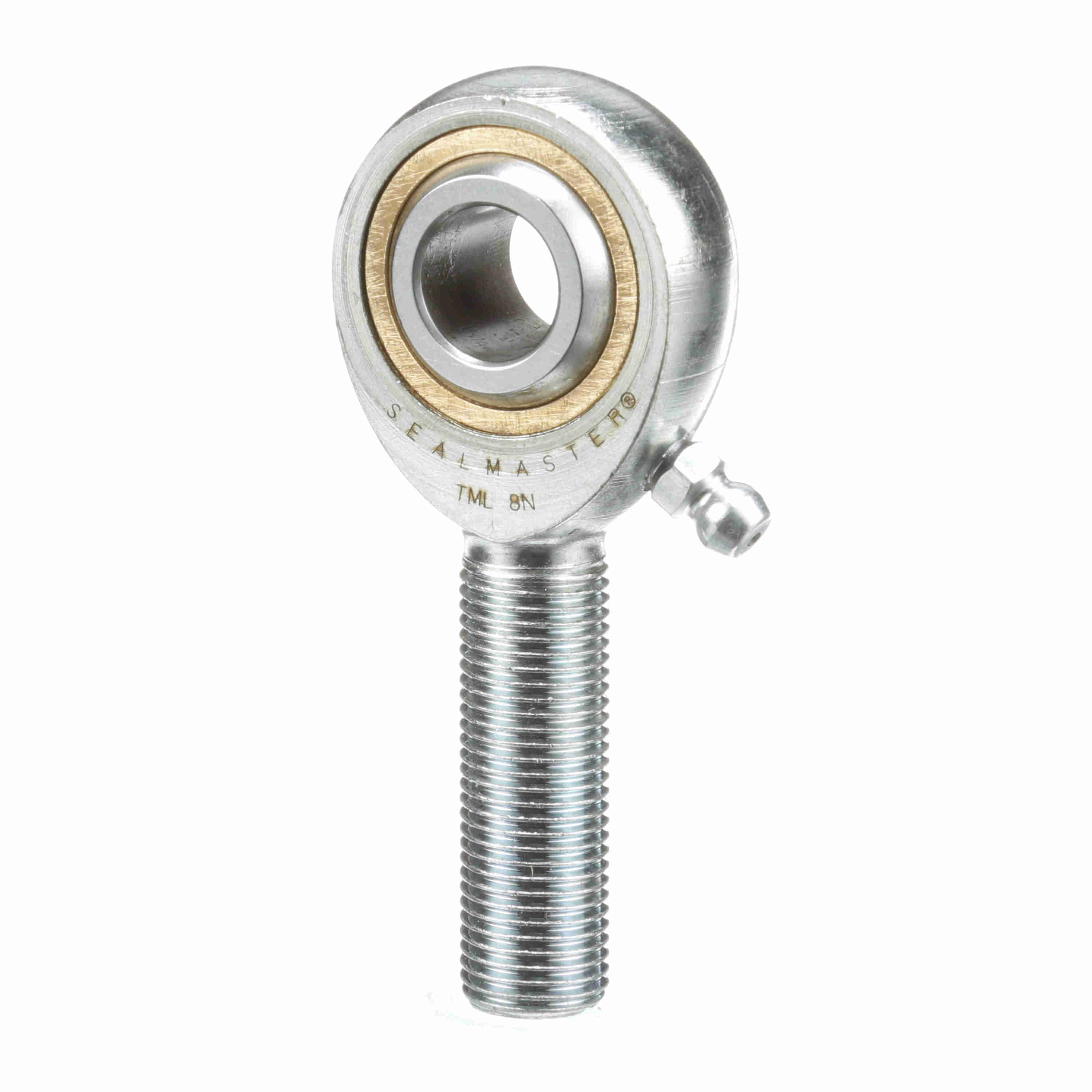

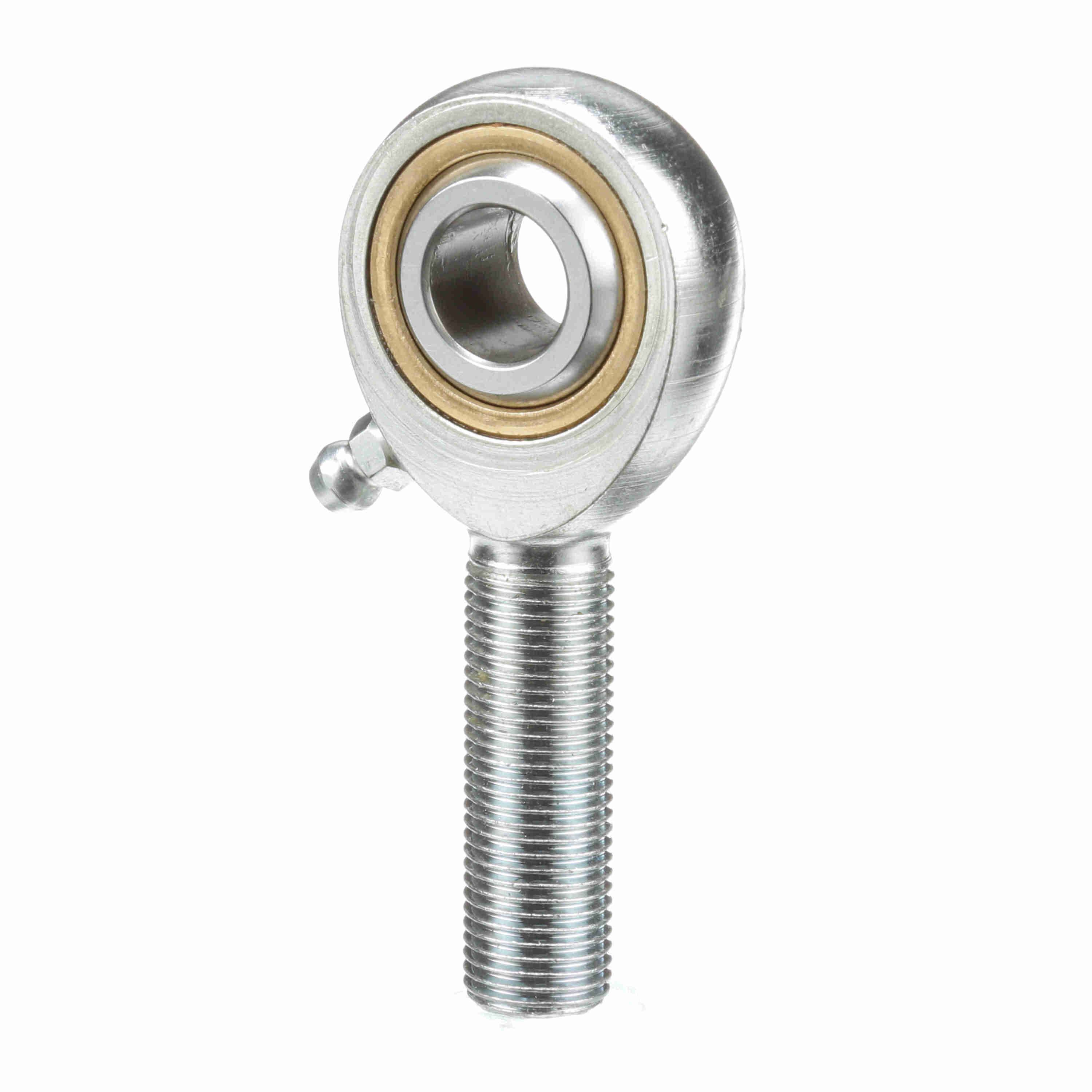

SEALMASTER ROD ENDS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1520801000 |
| Product Name | TML 8N |
| Brand | Sealmaster |
| Weight | 0.27 lb |
| Package Length | 3.15 in |
| Package Width | 1.95 in |
| Package Height | 0.7 in |
| Ball Width (in) | 0.625 in |
| Housing Width (in) | 0.5 in |
| Ball Diameter (in) | 0.937 in |
| Head Diameter (in) | 1.312 in |
| Thread Size | #1/2-20 |
| Thread Length (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $173.55 | — |
| 1.469 in |
| Ball Flat Diameter (in) | 0.698 in |
| Length to Center of Ball (in) | 2.44 in |
| Misalignment Angle - a Deg. +/- | 6 |
| Bearing Type | Rod End |
| Construction | Three-Piece Rod End with Zerk Fitting |
| Series | Commercial |
| Race Material | Bronze |
| Outer Material | Carbon Steel - Corrosion Resistant Plating |
| Thread Type | UNF |
| Lubrication Type | Grease |
| Product Selection Available SW | Y |
| Zerk Fitting SW | Y |
| Product Type | TM |
| Configuration | Male |
| Housing Style | Male Rod End |
| Ball Material | Alloy Steel - Heat Treated - Chrome Plated |
| Axial Load | 700 |
| Max Static Radial Load | 7,000 |
| Lubrication | Zerk Fitting |
| Type | Male Rod End |
| Thread | LH |
| Class | Commercial |
| Bore Size (in) | 0.5000 in |
| Lubrication Method | Fitting |
| Ability to Relubricate | Yes |
| Maximum Ambient Temperature (F) | 350 °F |
| HTC | 8483.30.8055 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106864 |
| Part NumberiManufacturer catalog number | 1520801000 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662288724278 |
| CategoryiCatalog classification | Bearings > Rod End Bearings |
