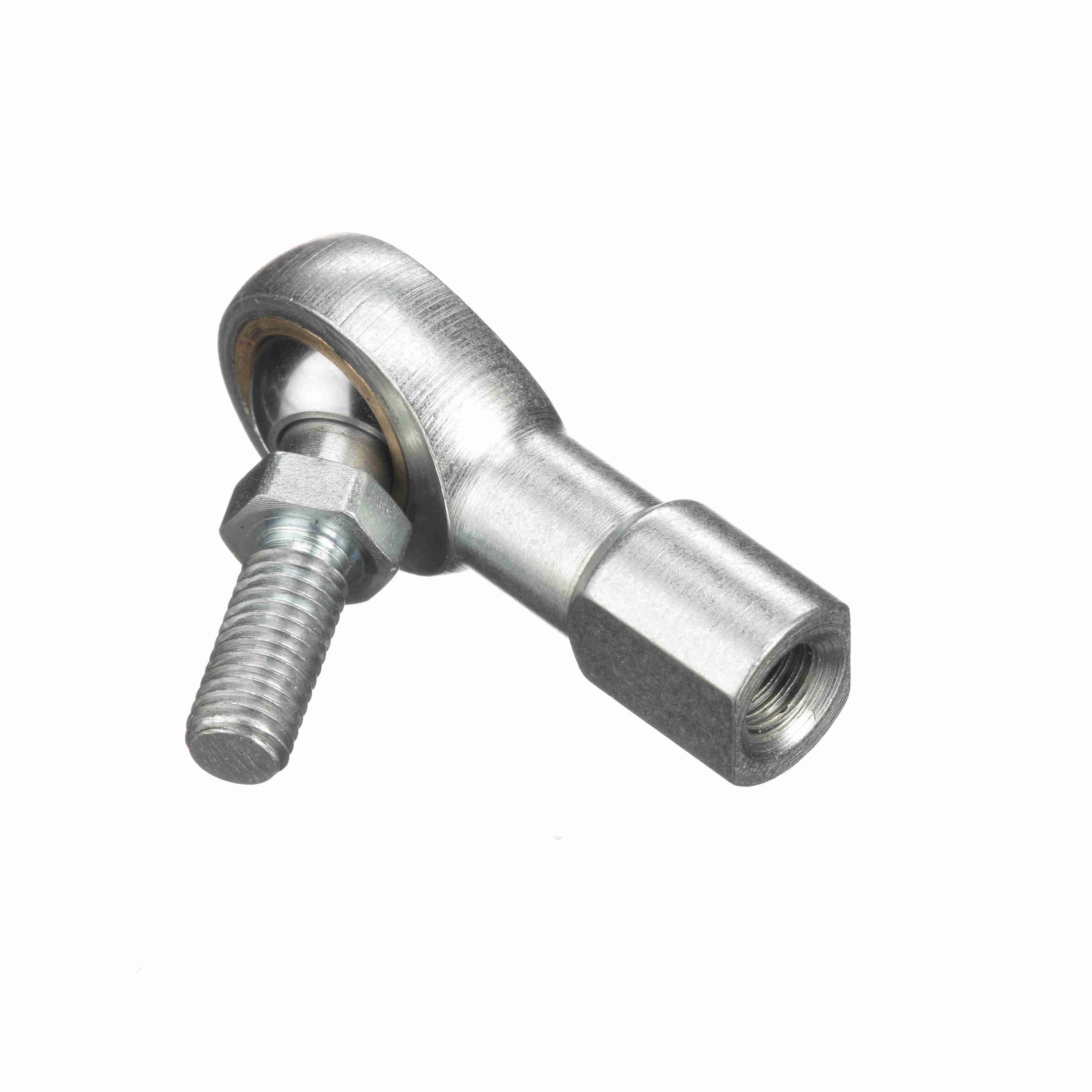

SEALMASTER ROD ENDS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1530608000 |
| Product Name | TFL 6Y |
| Brand | Sealmaster |
| Weight | 0.625 lb |
| Package Length | 2.6 in |
| Package Width | 2.25 in |
| Package Height | 1.15 in |
| Base Diameter (in) | 0.688 in |
| Head Diameter (in) | 1 in |
| Ball Diameter (in) | 0.718 in |
| Housing Width (in) | 0.406 in |
| Ball Flat Diameter (in) | 0.517 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $97.42 | — |
| Ball Width (in) |
| 0.5 in |
| Thread Length (in) | 0.906 in |
| Thread Size | #3/8-24 |
| Length to Center of Ball (in) | 1.63 in |
| Stud Length to Center of Ball (in) | 1.54 in |
| Stud Thread Length (in) | 0.8125 in |
| Stud Length to Hex (in) | 0.91 in |
| Housing Style | Female Rod End |
| Lubrication Type | Grease |
| Zerk Fitting SW | N |
| Configuration | Female |
| Axial Load | 445 |
| Outer Material | Carbon Steel - Corrosion Resistant Plating |
| Product Selection Available SW | N |
| Construction | Three-Piece Rod End with Y Stud |
| Product Type | TF |
| Across Wrench Flats | 0.562 |
| Bearing Type | Rod End |
| Thread Type | UNF |
| Ball Material | Alloy Steel - Heat Treated - Chrome Plated |
| Race Material | Bronze |
| Series | Commercial |
| Y Stud Material | Carbon Steel - corrosion resistant plating |
| Thread | LH |
| Type | Female Rod End |
| Max Static Radial Load | 4,450 |
| Misalignment Angle B3 | 22.6 |
| Lubrication | No Zerk Fitting |
| Bore Size (in) | 0.3750 in |
| Class | Commercial |
| Lubrication Method | No Fitting |
| Ability to Relubricate | None |
| Maximum Ambient Temperature (F) | 350 °F |
| HTC | 8483.30.8055 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106876 |
| Part NumberiManufacturer catalog number | 1530608000 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662288723806 |
| CategoryiCatalog classification | Bearings > Rod End Bearings |
