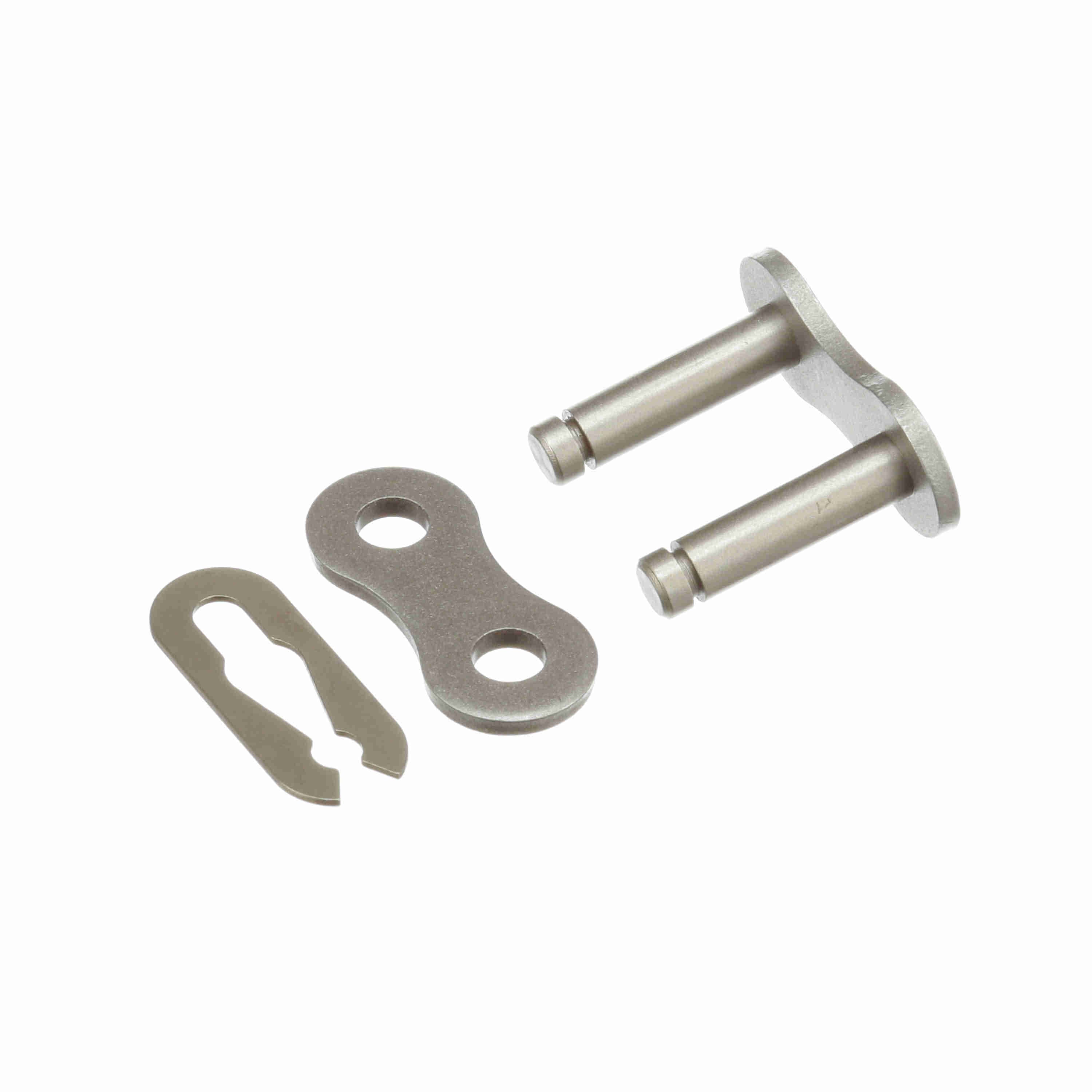

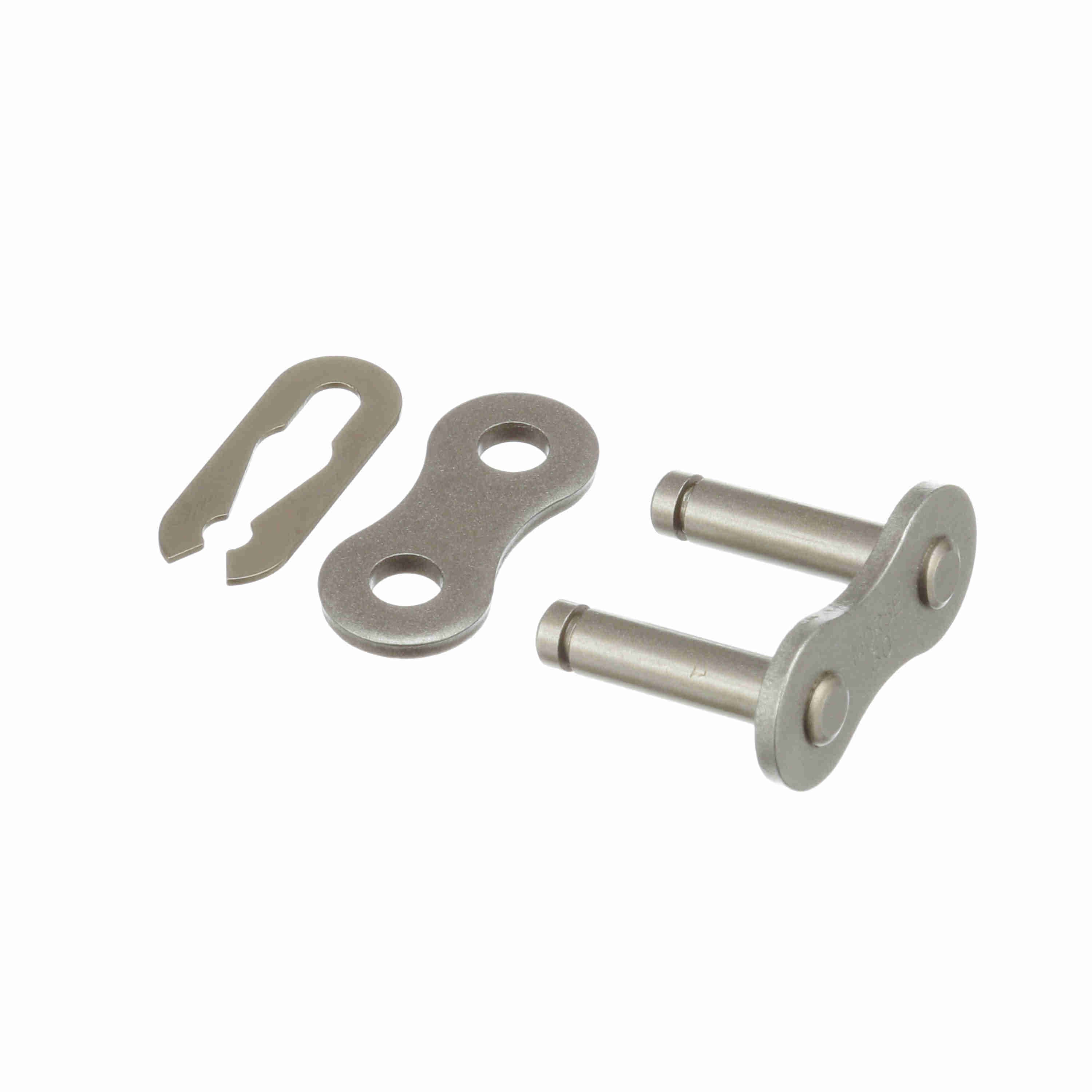

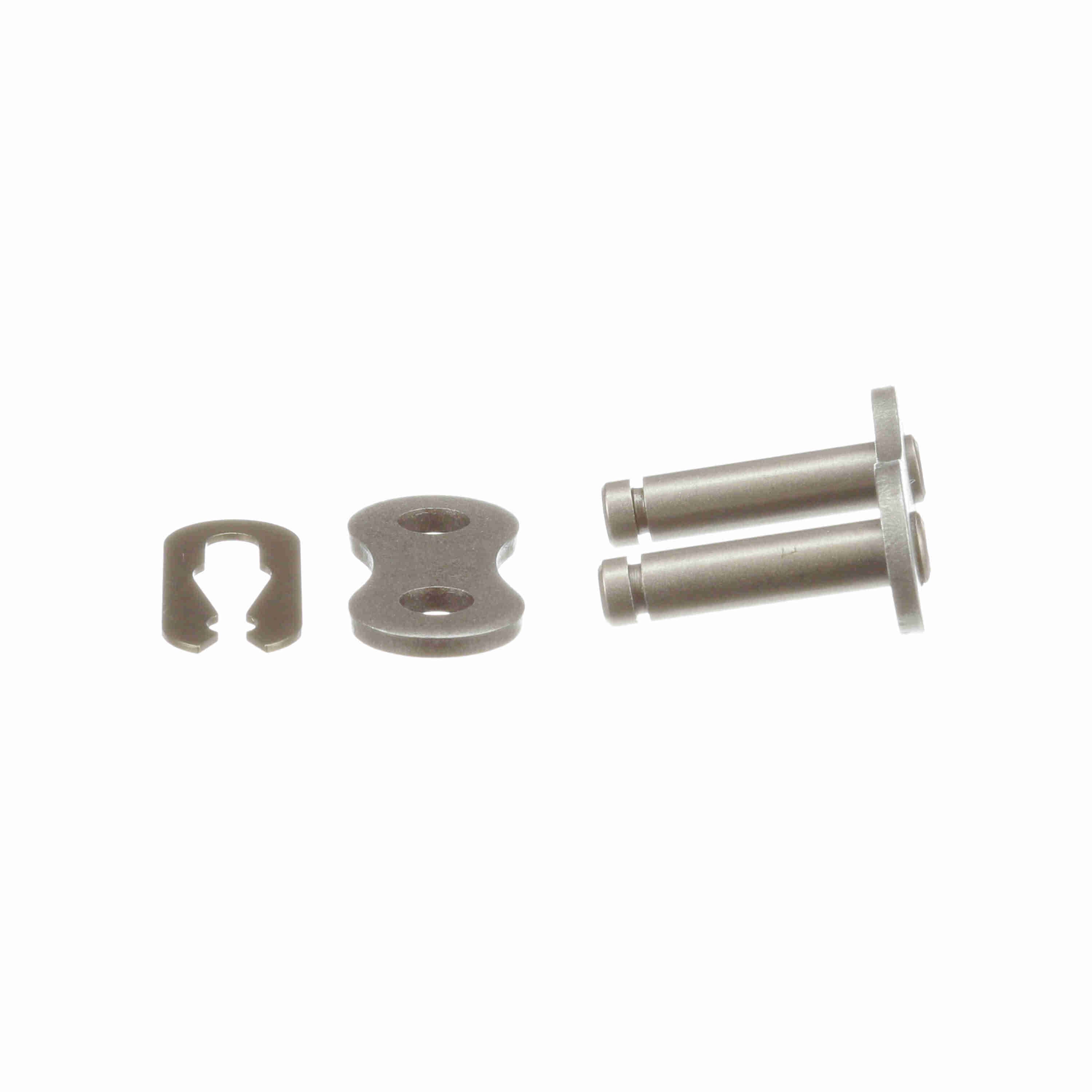

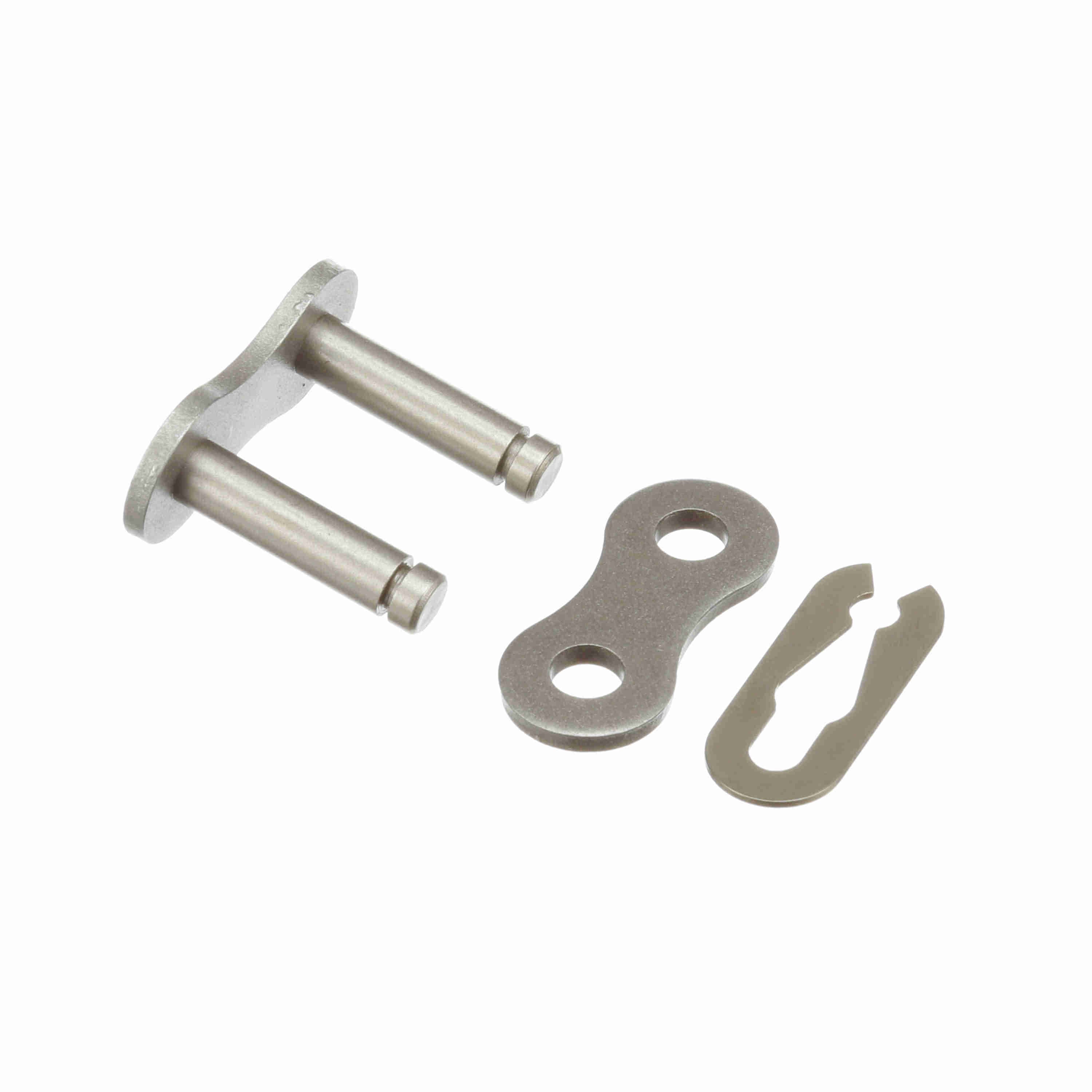

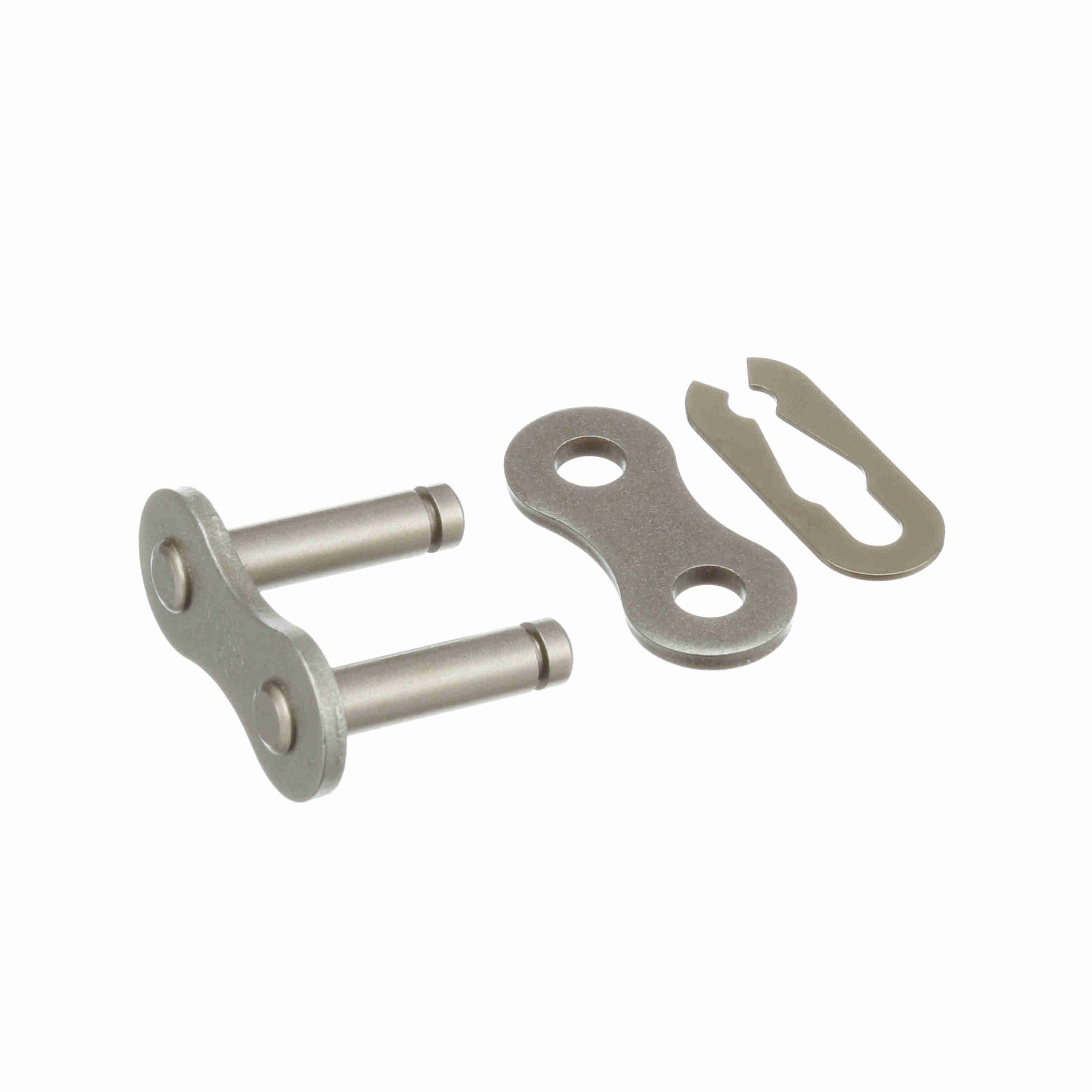

R1 ACCESS 35-60-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 156626 |
| Product Name | 60 C/L S/C S/F |
| Brand | Morse |
| Material | Steel |
| Weight | 0.06 lb |
| Package Length | 1.5 in |
| Package Width | 2.45 in |
| Package Height | 0.95 in |
| Number of Connecting Links Included | 25 |
| Chain Size | 60 |
| Connecting Link - Slip Fit | Spring Clip |
| Roller Width (in) | 0.5 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $9.77 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Number of Strands/Width |
| 1 |
| Roller Diameter (in) | 0.468 in |
| Pin Diameter (in) | 0.234 in |
| Chain Pitch (in) | 0.75 in |
| Product Type | Roller Chain |
| Chain Type | Standard |
| Chain Construction | Spring Clip |
| Link Type | Connecting Link |
| Overall Width/Pin Length (in) | 0.99 in |
| Side Plate Configuration | Hourglass |
| Inside Plate Height (in) | 0.7 in |
| Plate Thickness (in) | 0.094 in |
| HTC | 7315.19.0000 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-106947 |
| Part NumberiManufacturer catalog number | 156626 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288401308 |
| CategoryiCatalog classification | Power Transmission > Chain Accessories |
