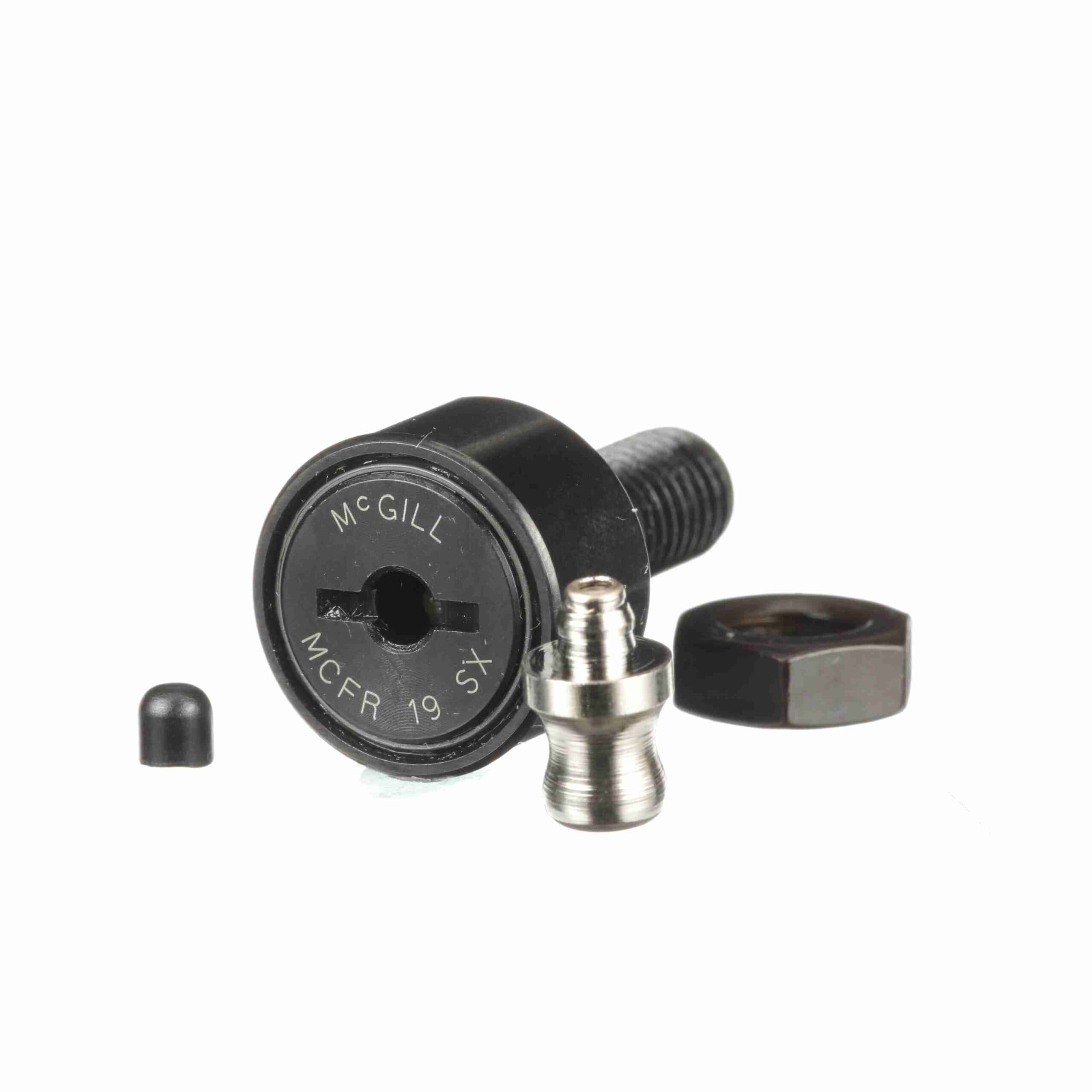

McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - MCFRE 19 SX
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1619161101 |
| Product Name | MCFRE 19 SX |
| Brand | McGill |
| Material | Bearing Steel, Black Oxide Finish |
| Weight | 0.07 lb |
| Package Length | 1.75 in |
| Package Width | 1 in |
| Package Height | 1.75 in |
| Limiting Speed | 16 |
| Rolling Element | Needle Roller - Caged |
| O.D. Configuration | Cylindrical |
| Adjustment | Eccentric Bushing |
| Hex/Slot |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Screwdriver Slot |
| Series | Metric CAMROL® |
| Dynamic Track Roller Load Rating (N) | 3, 730 N |
| Sealing | Sealed |
| Dynamic Radial Rating | 839 |
| Tolerance Class | P0 Equivalent |
| Static Track Roller Load Rating | 4 |
| Platform | CAMROL® |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107120 |
| Part NumberiManufacturer catalog number | 1619161101 |
| BrandiManufacturer or product brand | McGill |
| CategoryiCatalog classification | Bearings > Cam Followers |
