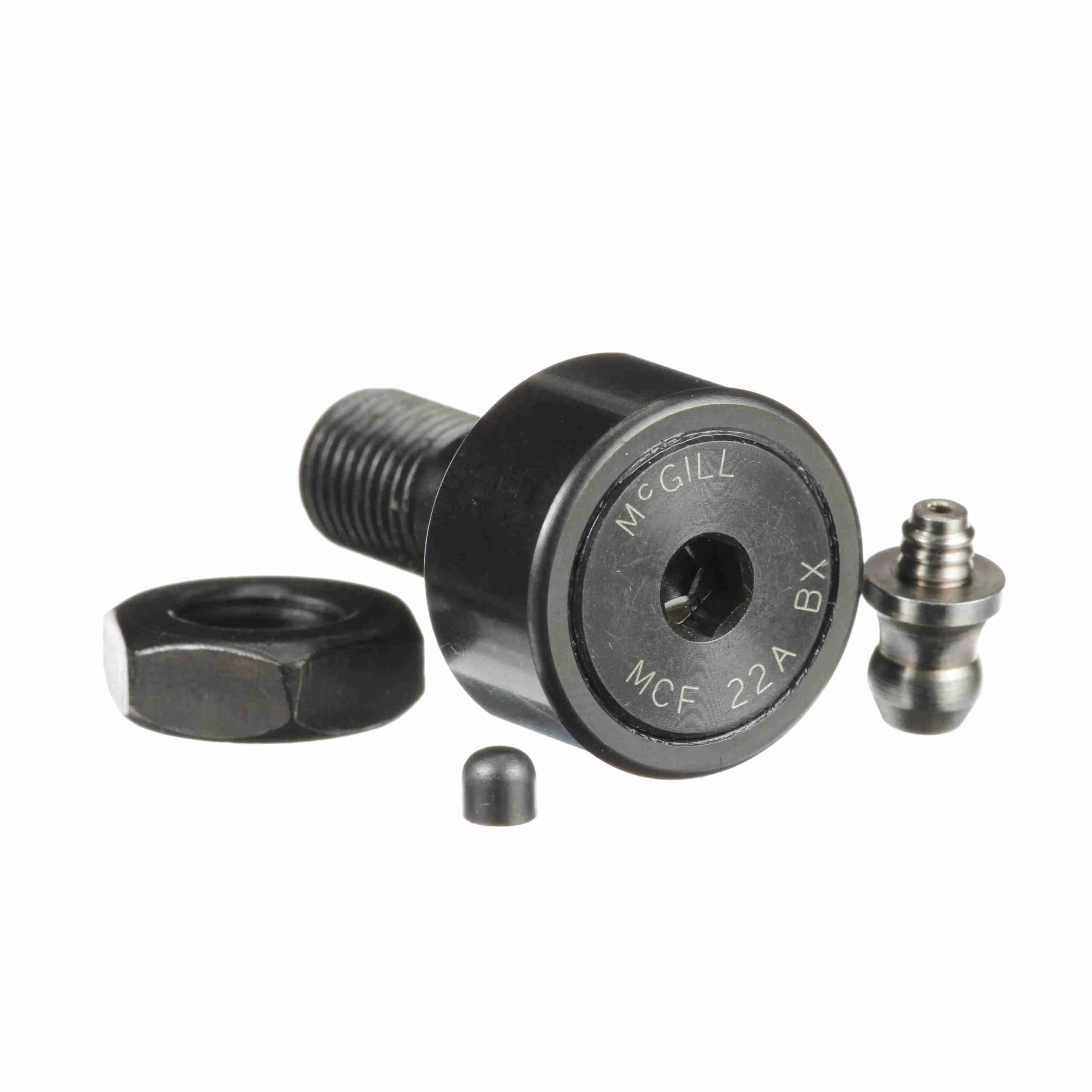

McGill CAMROL® Cylindrical Metric Cam Follower - Stud Mount Roller - Hex Hole - MCF 22A BX
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1622012500 |
| Product Name | MCF 22A BX |
| Brand | McGill |
| Material | Bearing Steel, Black Oxide Finish |
| Weight | 0.15 lb |
| Package Length | 1.5 in |
| Package Width | 1.2 in |
| Package Height | 0.6 in |
| Adjustment | None |
| Dynamic Track Roller Load Rating (N) | 7, 850 N |
| Sealing | Unsealed |
| Dynamic Radial Rating | 2 |
| Rolling Element |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Needle Roller - Full Complement |
| Limiting Speed | 9 |
| Hex/Slot | Hex Hole |
| Series | Metric CAMROL® |
| O.D. Configuration | Cylindrical |
| Tolerance Class | P0 Equivalent |
| Roller Shape | Cylindrical |
| Static Track Roller Load Rating | 10 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107132 |
| Part NumberiManufacturer catalog number | 1622012500 |
| BrandiManufacturer or product brand | McGill |
| CategoryiCatalog classification | Bearings > Cam Followers |
