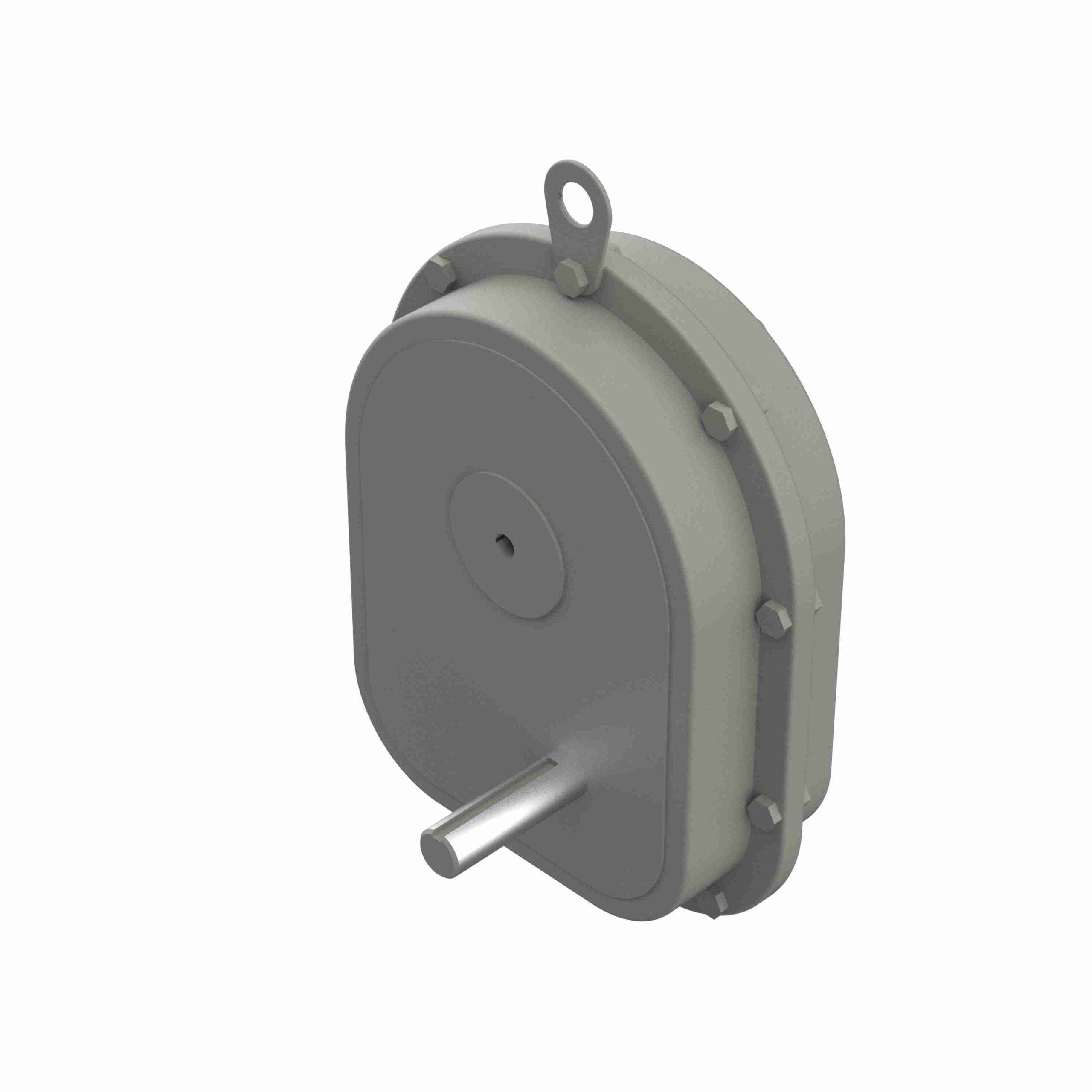

Browning Rotating Biological Contactor Drives Cast Iron Rotating Biological Contactor Drive - 415SMT148
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1725050 |
| Product Name | 415SMT148 |
| Brand | Browning |
| Weight | 1 lb |
| Package Length | 26 in |
| Package Width | 32 in |
| Package Height | 20 in |
| Input Torque | 36.013 in-Lbs @1750 input rpm, 1 HP |
| Ratio | 148:1 |
| Input Speed | 1750 |
| Output Speed | 11.8243243243243 |
| Efficiency | 80 |
| Input Style |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Tapered |
| Mounting Style | Shaft mount |
| Gear Type | Helical / spur |
| Ratio Range | 100:1 to 250:1 |
| Reducer Size | 415 |
| Housing Width (in) | 15.55 in |
| Standards met | AGMA |
| Housing Length (in) | 40.375 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107534 |
| Part NumberiManufacturer catalog number | 1725050 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Gearing > Shaft Mounted Gearing |
