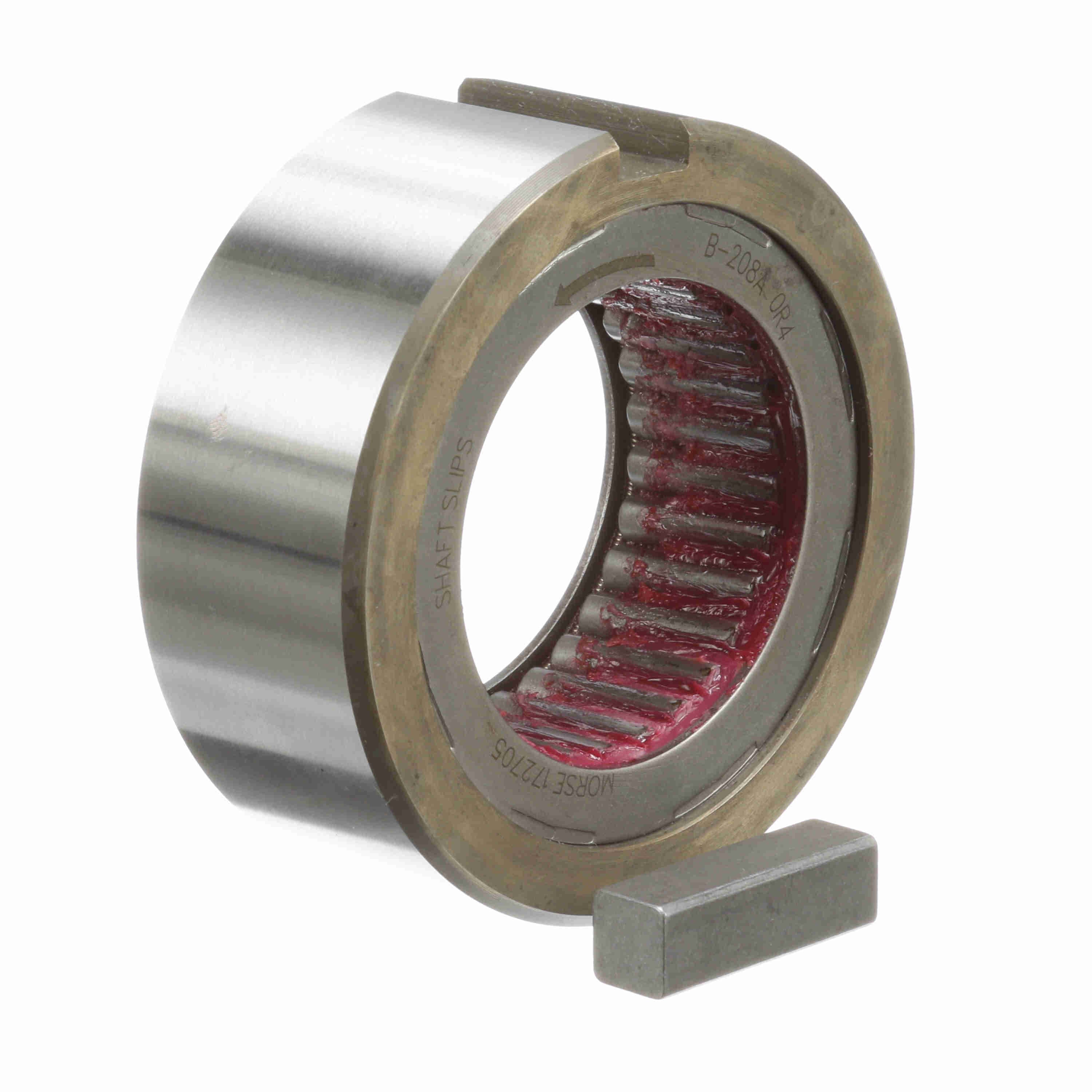

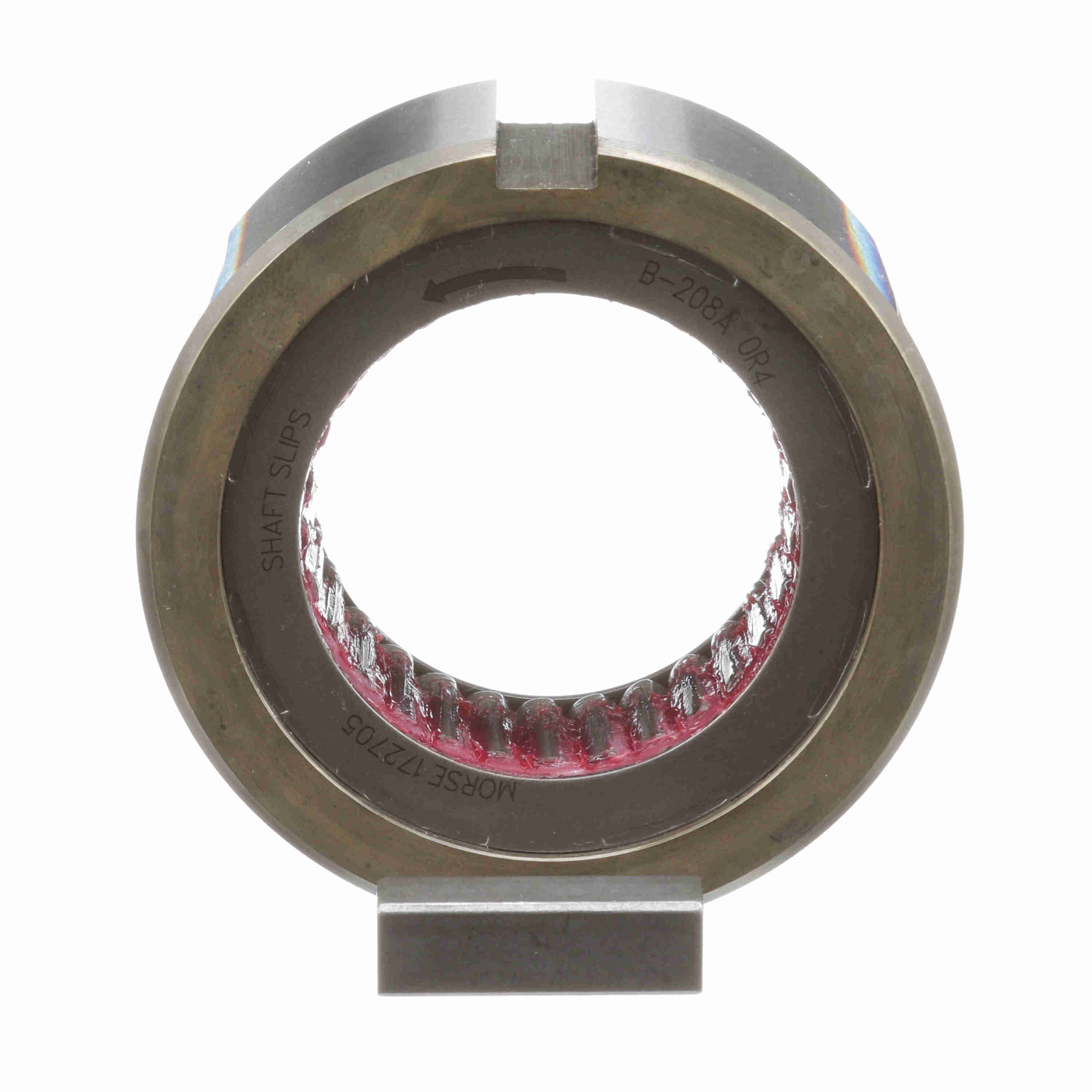

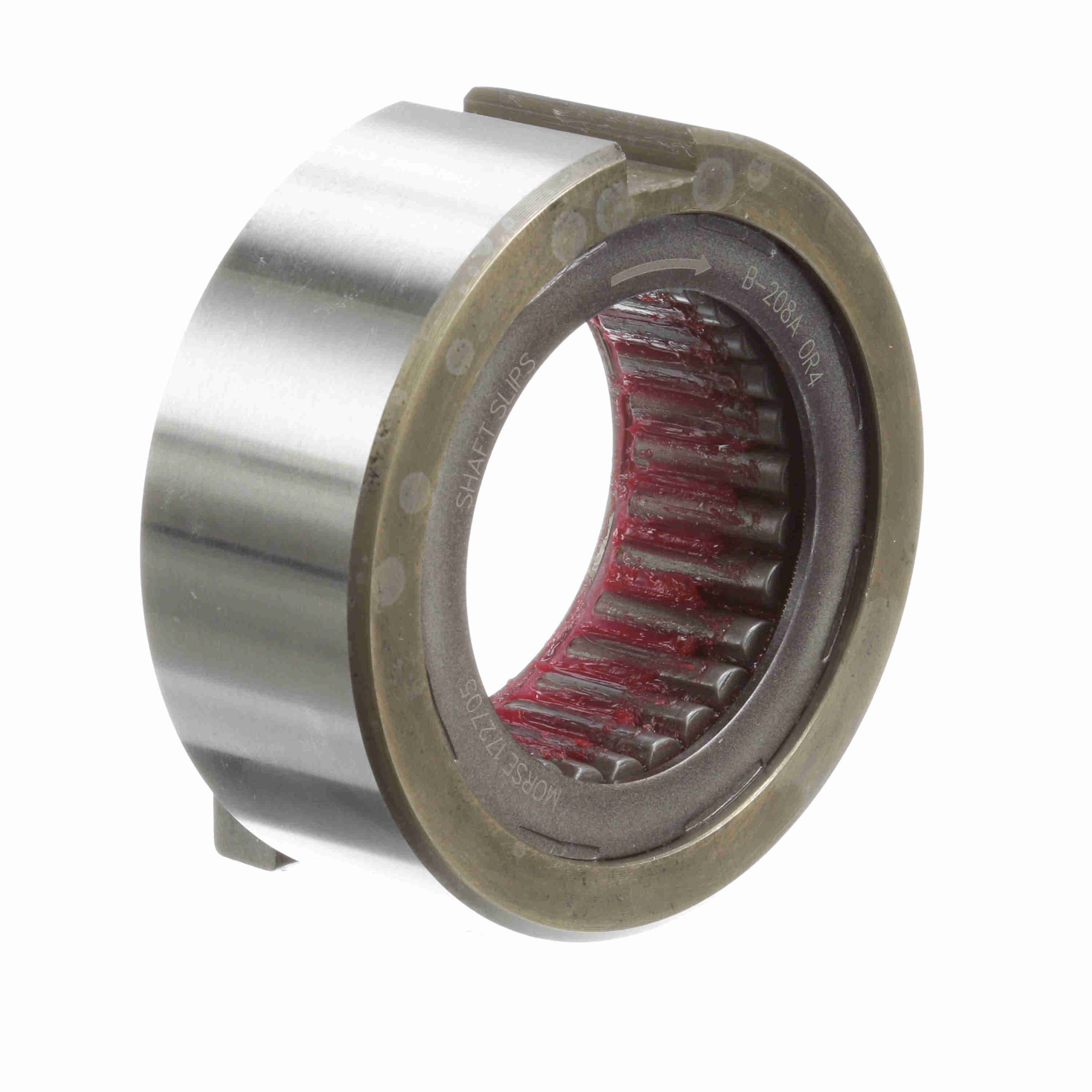

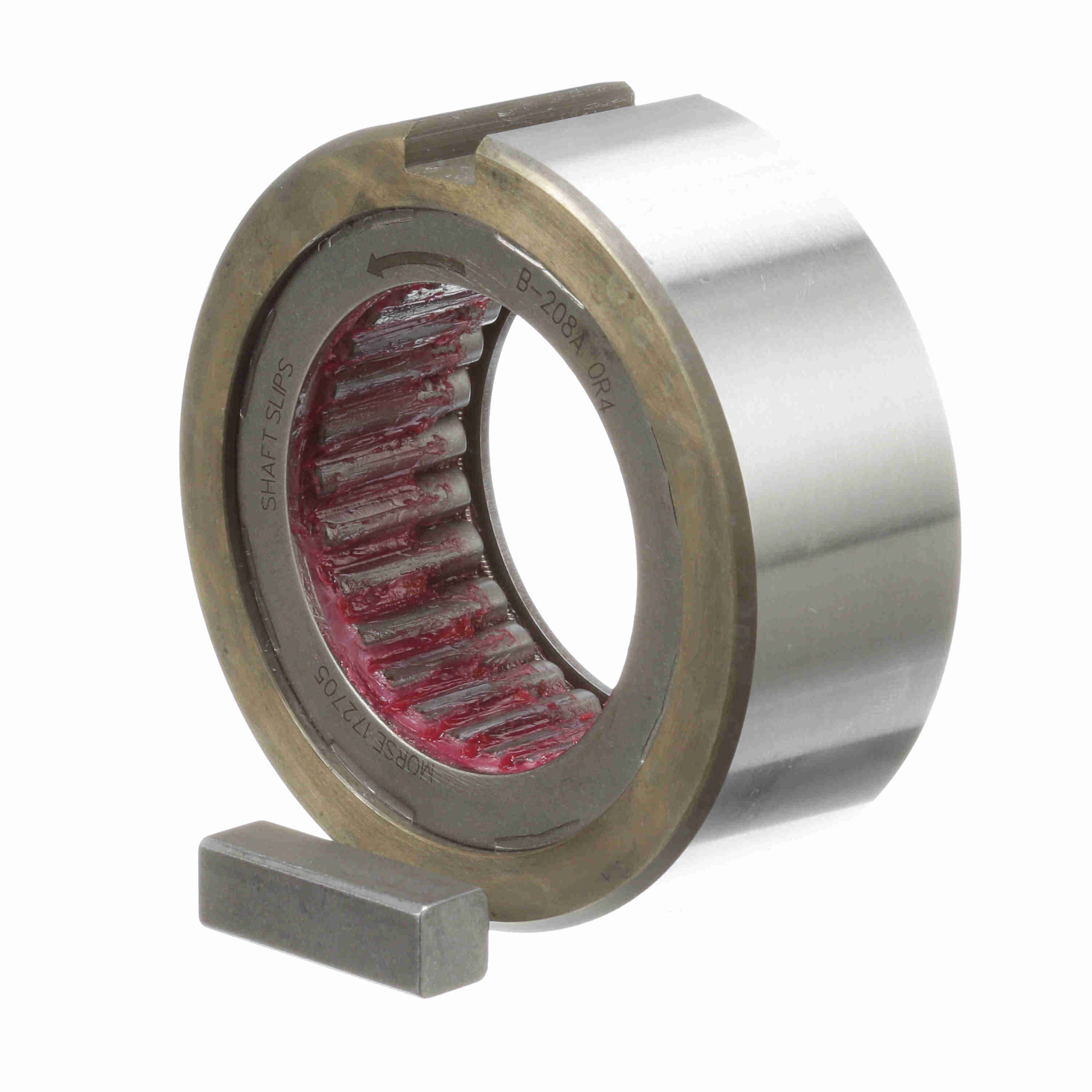

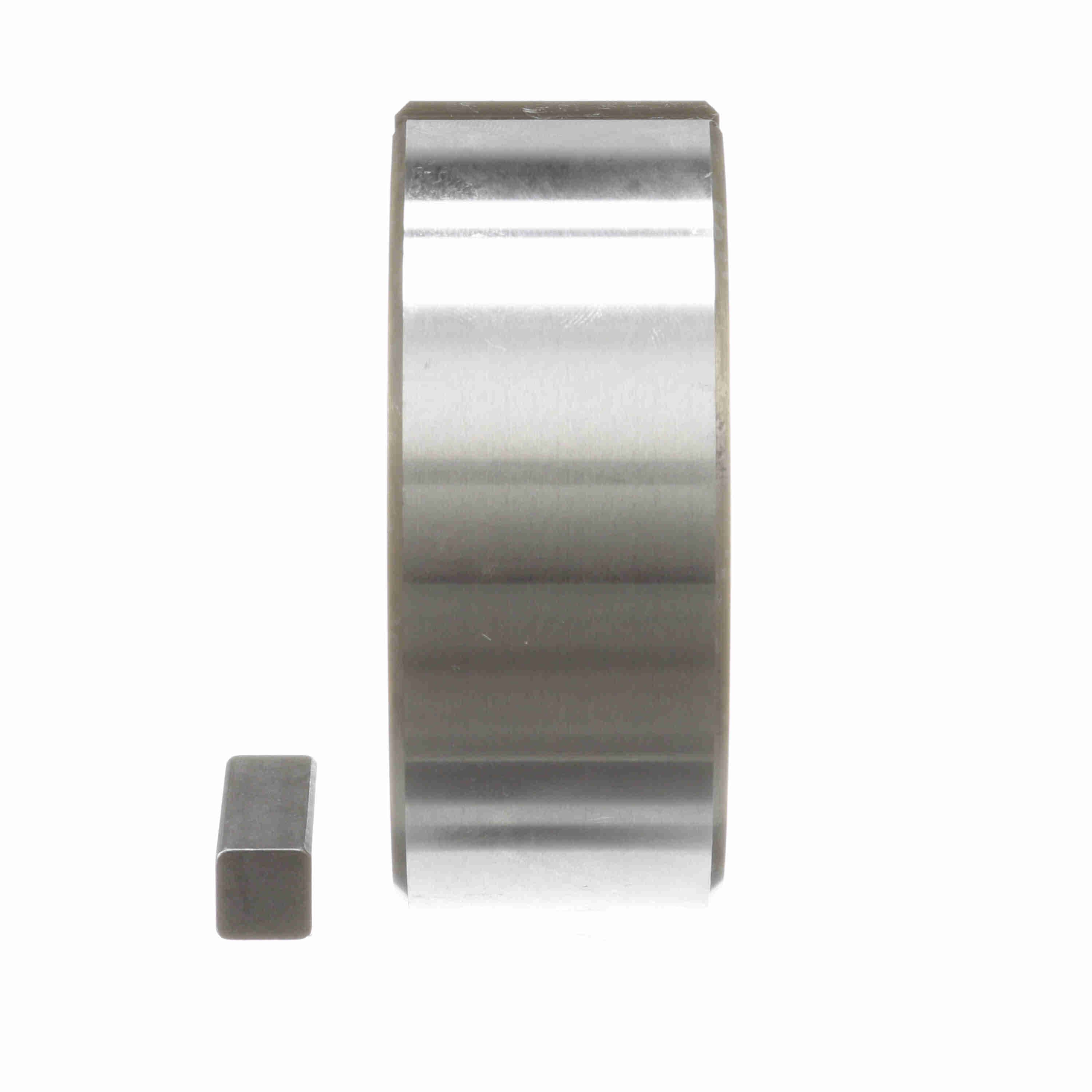

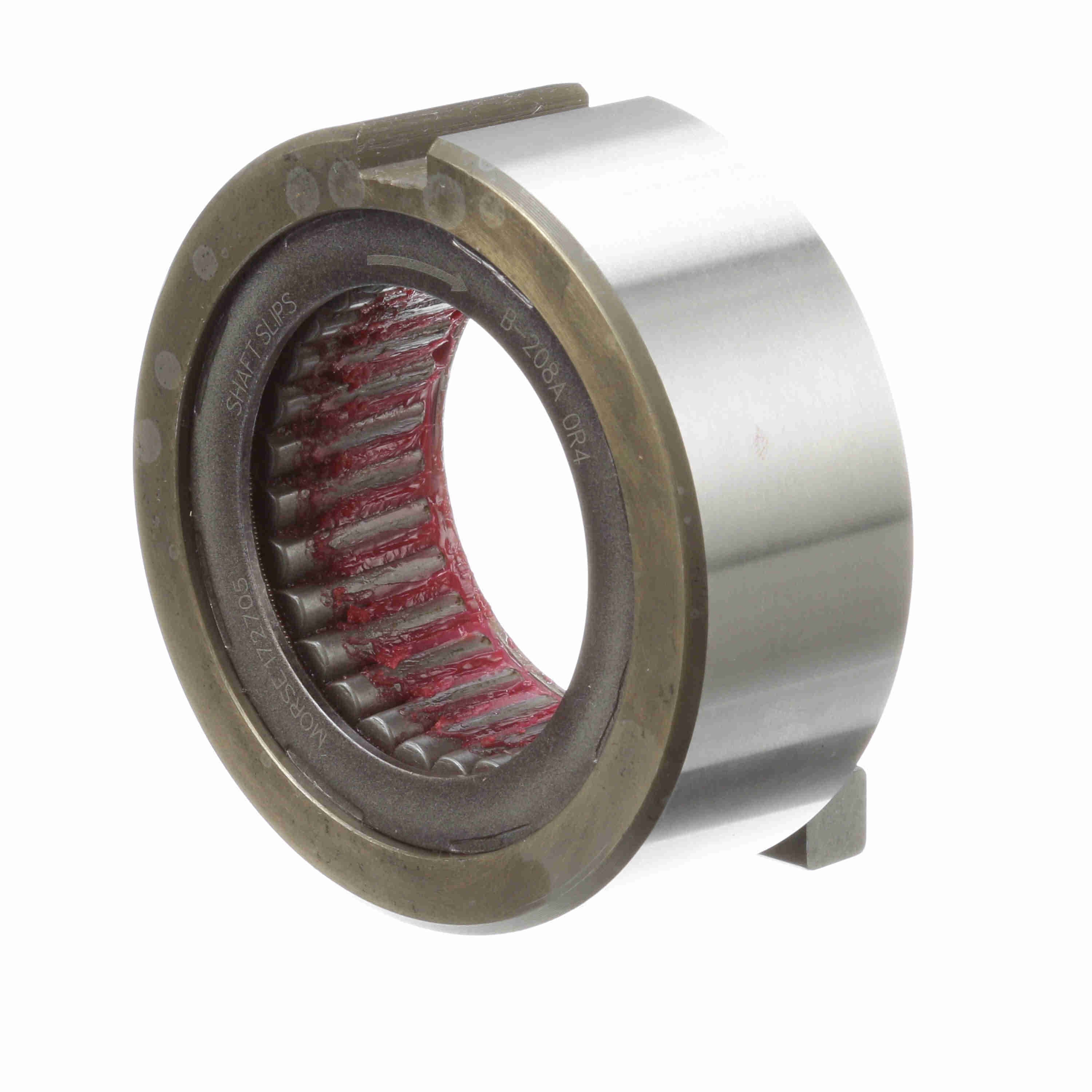

B200 SERIES CLUTCH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 172705 |
| Product Name | B208A CL |
| Brand | Morse |
| Weight | 1.74 lb |
| Package Length | 4.8 in |
| Package Width | 4.2 in |
| Package Height | 2.2 in |
| Key Size | 3/8 x 3/16 in |
| Overall Width (in) | 1.25 in |
| Std Package Quantity | 1 |
| Type | Mechanical Clutches |
| RPM Max. - Inner Race (shaft) | 1,800 |
| Model |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $559.30 | — |
| 10+ | $519.00 | 7% off |
| B208A |
| Overall Diameter (in) | 3.1476 in |
| Bearing Size to Use with Clutch | 208 |
| Add'l Bearing Support Requirement | Yes |
| Backstopping Clutch | Yes |
| Indexing Clutch | Yes |
| Overrunning Clutch | Yes |
| Rated Torque Capacity (ft.-lbs.) | 405 |
| Product Type | B200 Series |
| Bore Size (in) | 1.841 in |
| HTC | 8483.60.4040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107564 |
| Part NumberiManufacturer catalog number | 172705 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288407973 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
