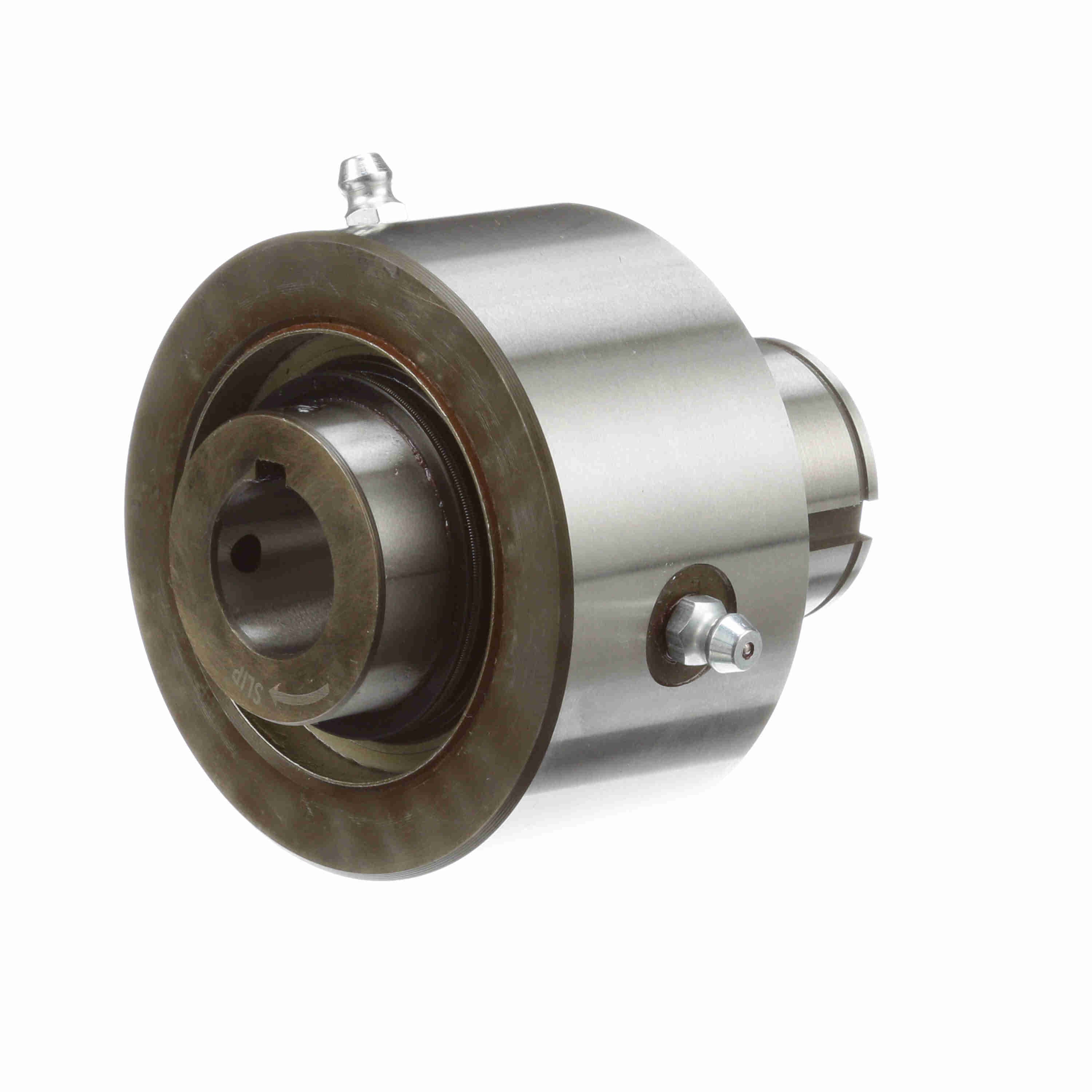

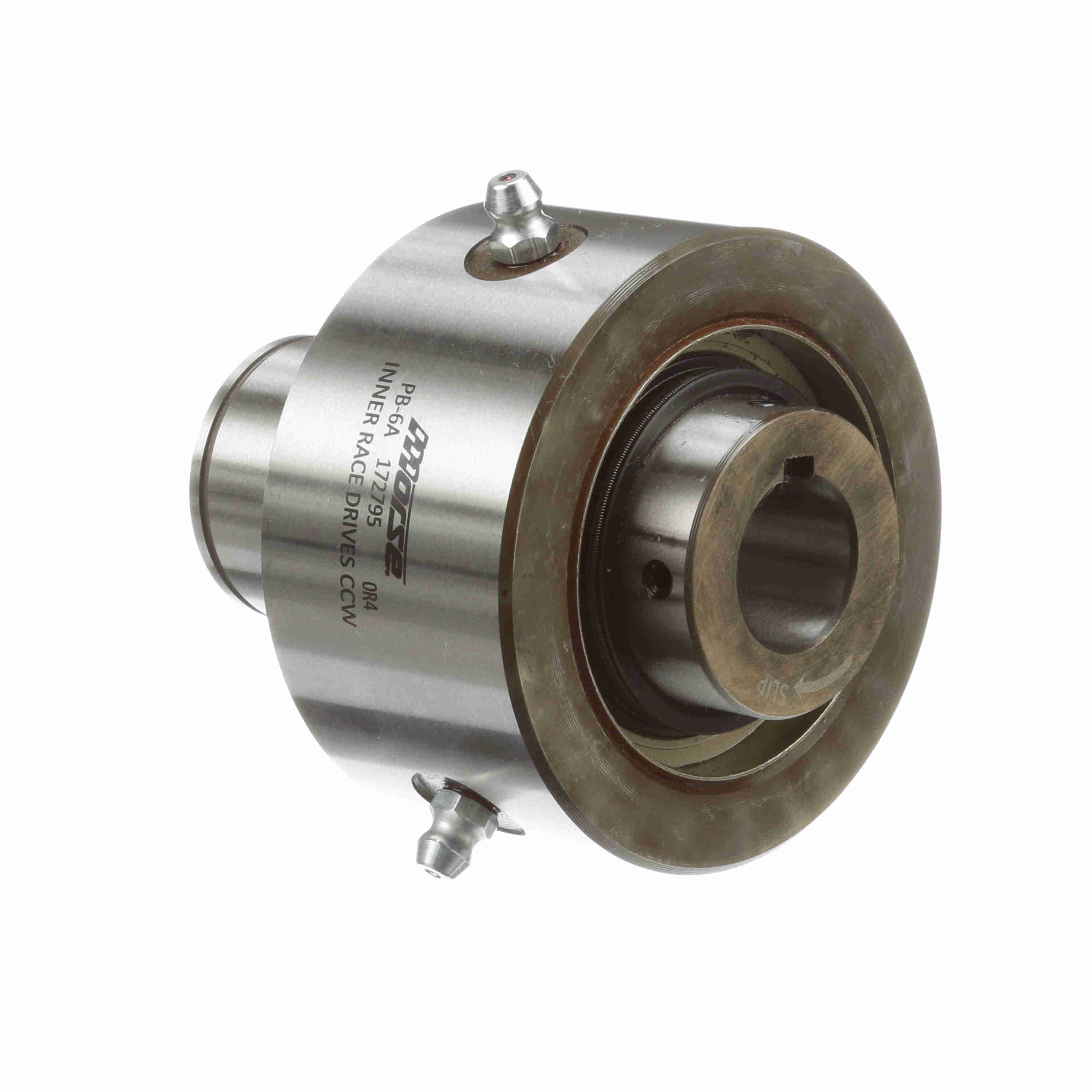

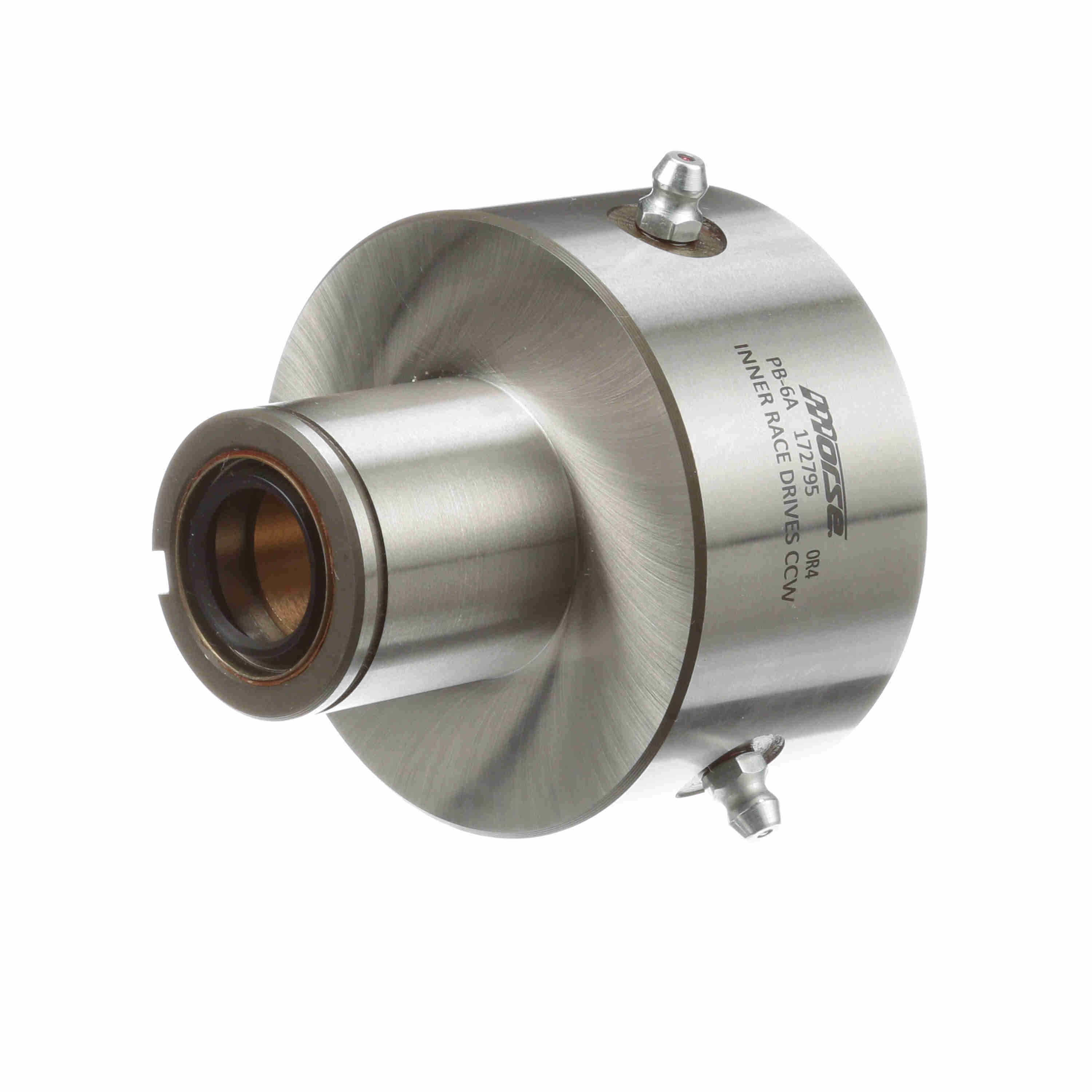

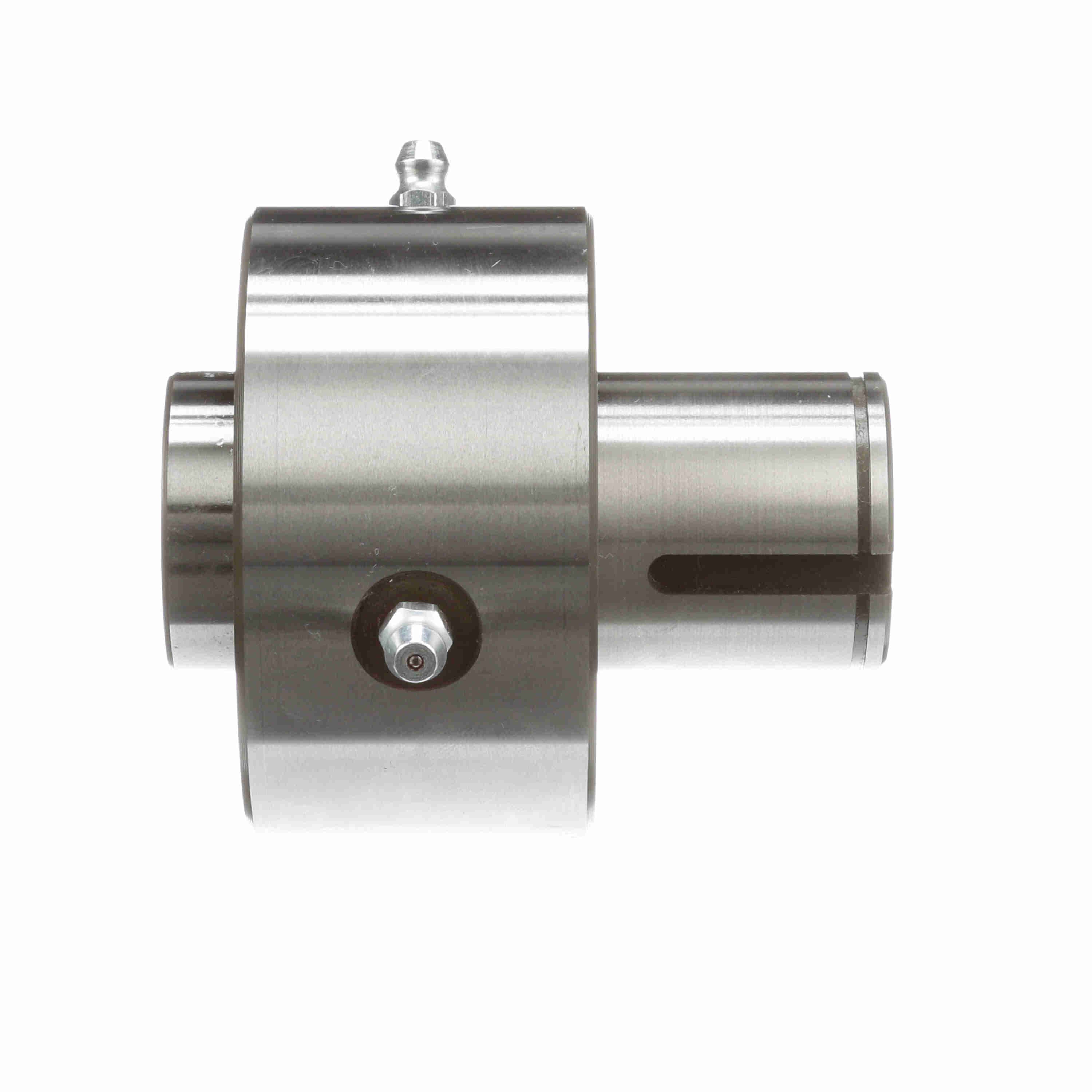

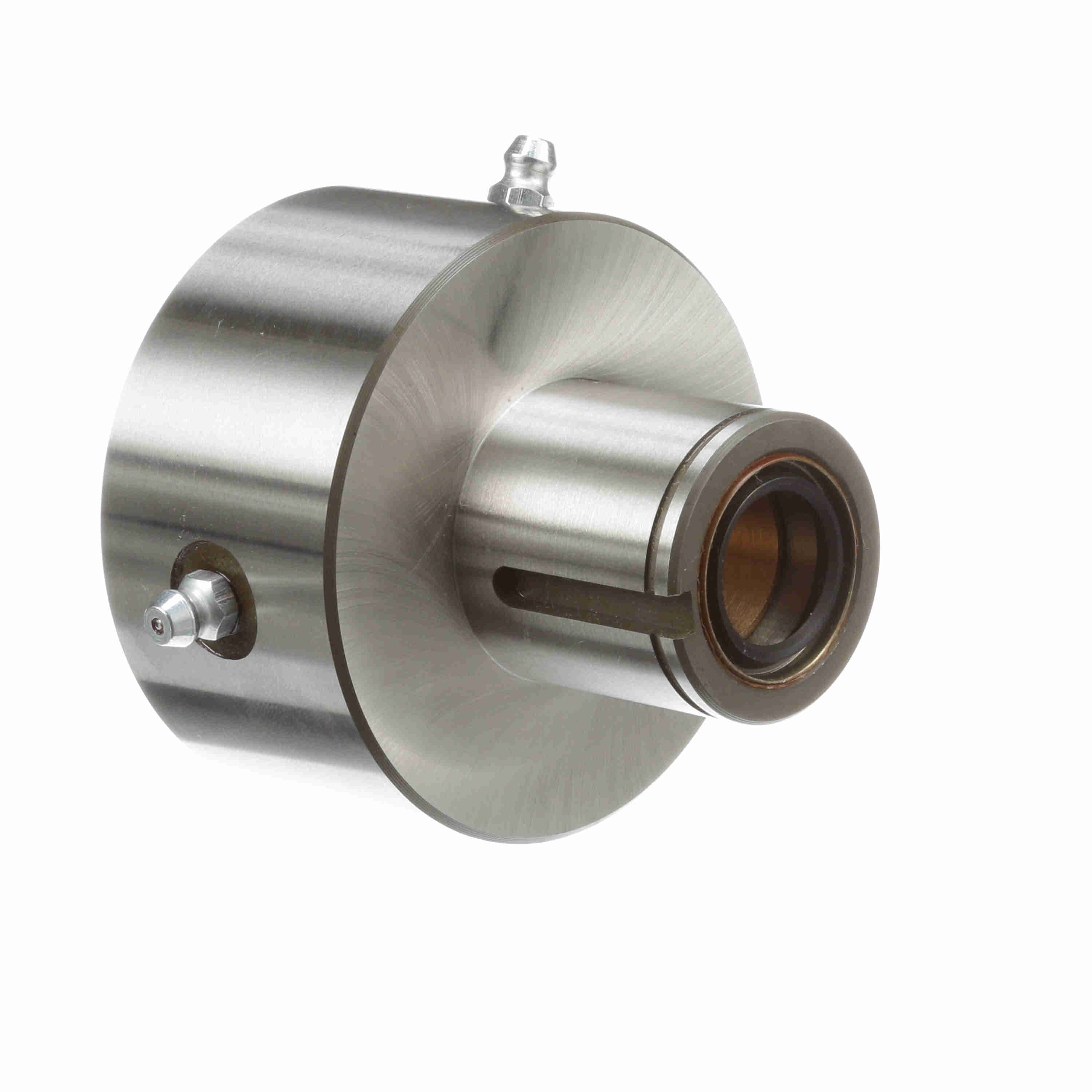

PB CLUTCH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 172795 |
| Product Name | PB-6A CLUTCH .750B LH |
| Brand | Morse |
| Weight | 3.025 lb |
| Package Length | 4.7 in |
| Package Width | 4.3 in |
| Package Height | 4.2 in |
| Length to Snap Ring Groove (in) | 1.625 in |
| Lubrication Type | Grease |
| Length to Groove | 1.215/1.220 |
| RPM Max. - Inner Race | 1800 |
| Hub Diameter (in) | 1.375 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $1867.60 | — |
| 10+ | $1731.89 | 7% off |
| Type |
| CAM Clutches |
| Mounting Diameter (in) | 1.375/1.374 in |
| Overall Diameter (in) | 2.875 in |
| Keyway Length (in) | 1 in |
| Keyway | 3/16 x 3/32 |
| Key for Bore Size | 3/16 x 3/32 |
| Overall Width (in) | 3.1875 in |
| Model | PB-6A |
| RPM Max. - Outer Race | 900 |
| Mounting Length (in) | 1.3125 in |
| Snap Ring (Not Furnished) | RS137 |
| Configuration | LH |
| Groove Width | .048/.068 |
| Groove Diameter | 1.327/1.319 |
| Major Diameter Width (in) | 1.5625 in |
| Add'l Bearing Support Requirement | No |
| Backstopping Clutch | Yes |
| Product Type | PB Series |
| Bore Size (in) | 0.75 in |
| Rated Torque Capacity (ft.-lbs.) | 300 |
| Overrunning Clutch | Yes |
| Indexing Clutch | Yes |
| HTC | 8483.60.4040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107569 |
| Part NumberiManufacturer catalog number | 172795 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288408086 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
