SEALMASTER SPHERICALS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1800501000 |

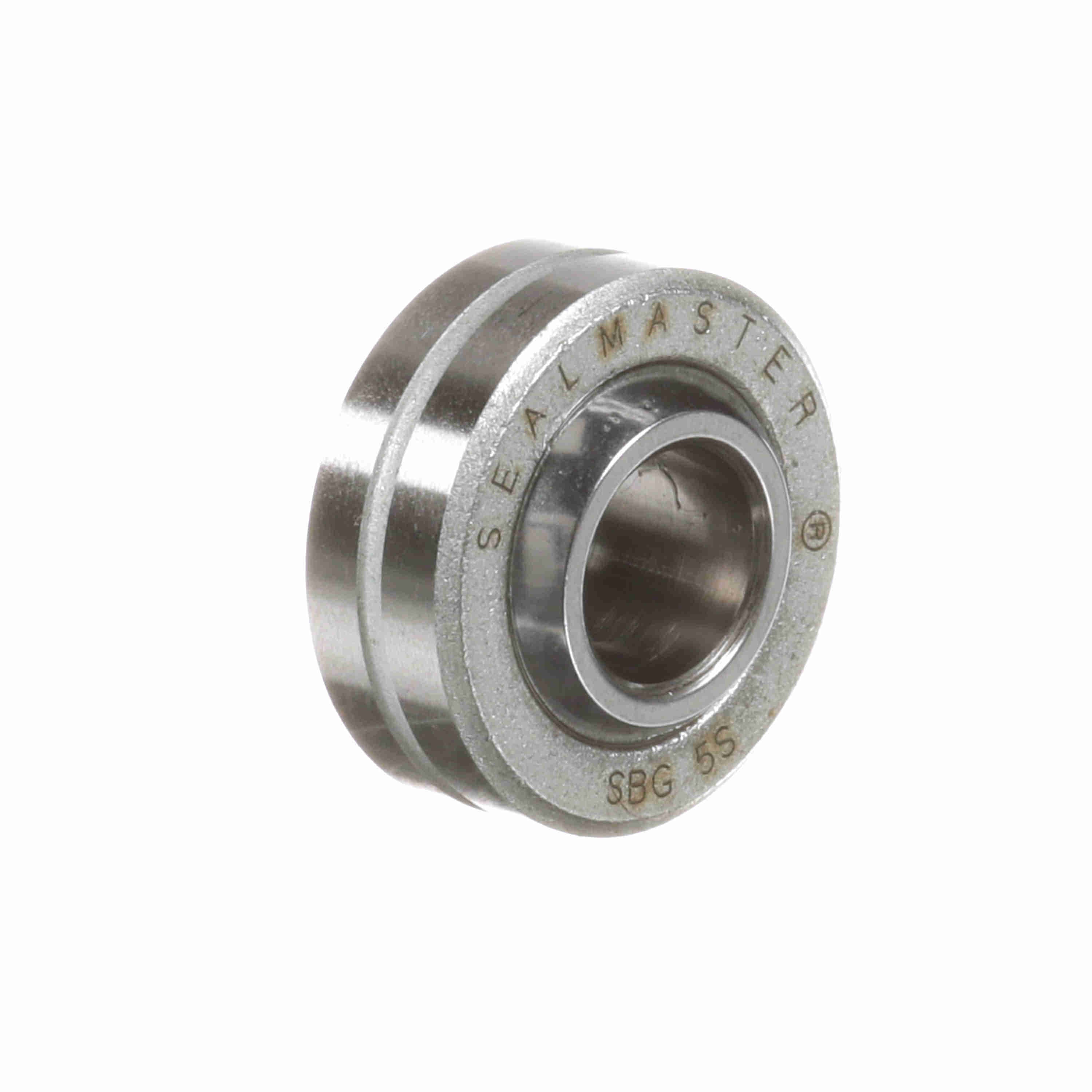

| Product Name | SBG 5S |
| Brand | Sealmaster |
| Weight | 0.03 lb |
| Package Length | 2.57 in |
| Package Width | 1.25 in |
| Package Height | 2.7 in |
| Chamfer | 0.025 |
| Ball Diameter (in) | 0.562 in |
| Ball Width (in) | 0.375 in |
| Outside Diameter (in) | 0.75 in |
| Ball Flat Diameter (in) | 0.419 in |
| Race Width (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $132.75 | — |
| 0.281 in |
| Lubrication System | Thru OD |
| Type | Plain Spherical |
| Seal Type | Unsealed |
| Series | SBG-S |
| Misalignment Angle B3 | 26 |
| Max Static Radial Load | 13,900 |
| Lubrication Type | Grease |
| Misalignment Angle | +/-12 |
| Ball Material | Alloy Steel - Heat Treated - Chrome Plated |
| Outer Material | Alloy Steel - Corrosion Resistant Plating |
| Race Material | 4130 Alloy Steel - heat treated - corrosion resistant plating |
| Product Type | SBG |
| Axial Load | 2,780 |
| Misalignment Angle B1 | +/-8 |
| Race Material Product Selection | Heat-Treated Steel |
| Lubrication | Lubrication Hole - No Zerk Fitting |
| Construction | Two Piece |
| Ability to Relubricate | Yes |
| Bore Size (in) | 0.3125 in |
| Class | Precision |
| Maximum Ambient Temperature (F) | 350 °F |
| HTC | 8483.30.8070 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107593 |
| Part NumberiManufacturer catalog number | 1800501000 |
| BrandiManufacturer or product brand | Sealmaster |
| UPCiUniversal Product Code | 662288722526 |
| CategoryiCatalog classification | Bearings > Spherical Bearings |
