TORQ/PRO
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 187821 |

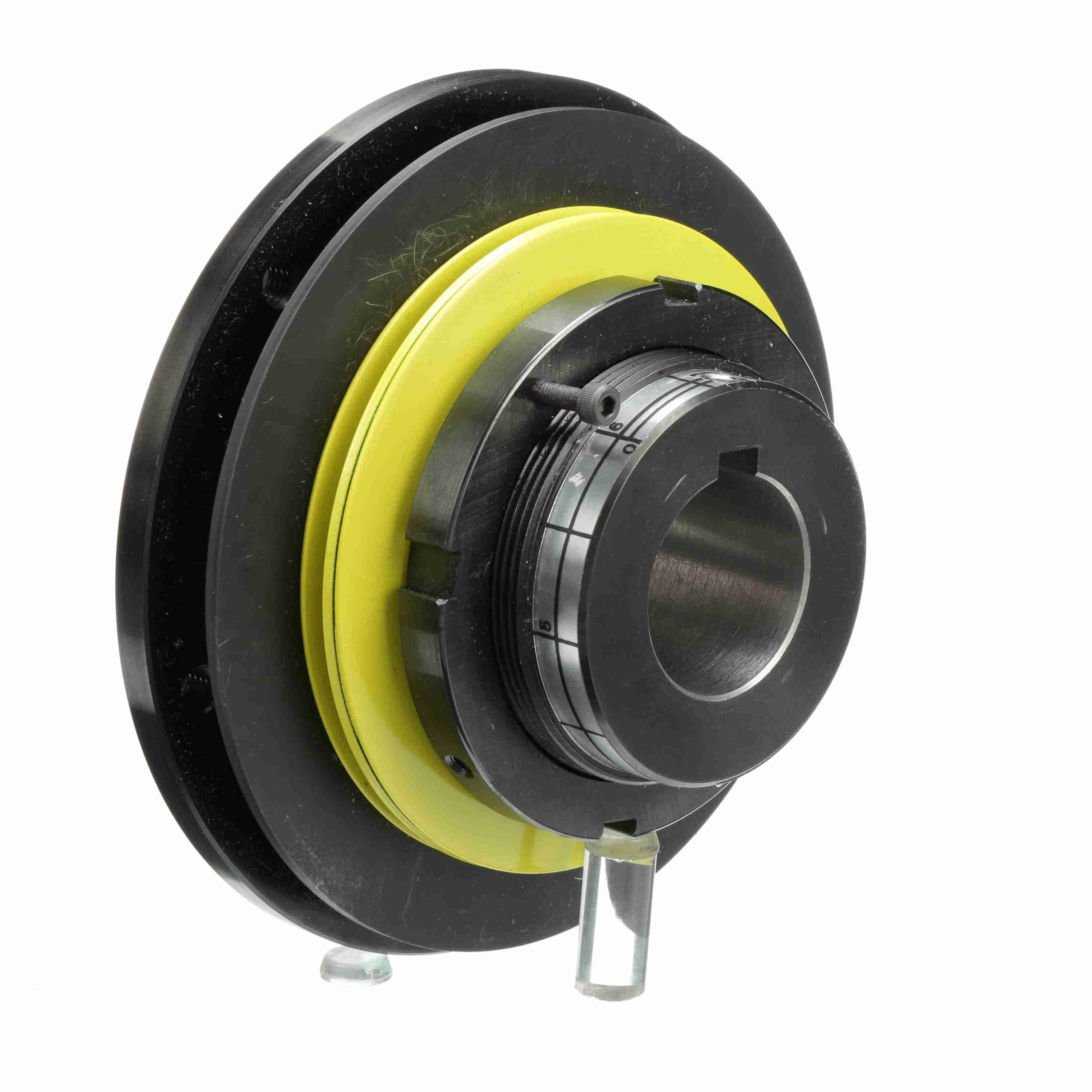

| Product Name | TP50HX 1 7/16 |
| Brand | Browning |
| Weight | 13 lb |
| Package Length | 6.25 in |
| Package Width | 6.25 in |
| Package Height | 3.5 in |
| Hub Diameter (in) | 2.76 in |
| Torque [Min] (N-m) | 196.055 |
| Outside Diameter (in) | 6.25 in |
| Number of Bolt Holes | 6 |
| Nominal Bore (in) | 1.4375 in |
| Bore Size (mm) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $4623.67 | — |
| 10+ | $4404.55 | 5% off |
| 36.5125 mm |
| Disconnect Method | Ball Detent |
| Type | Torque Overload Devices |
| Recovery Style | Jog |
| Series / Model | TP50H |
| Clutch size code | 50 |
| Reset Type | Automatic |
| Speed Limit | 300 |
| Backlash | Small |
| Outside Diameter (mm) | 158.75 mm |
| Total Length (in) | 3.19 in |
| Spring Diameter | 4.59 |
| Total Length (mm) | 81.026 mm |
| Bolt Hole Thread Size (in) | 5/16 | 18 in |
| Sensor Plate | Yes |
| Sensor Travel | 0.11 |
| Disc Spring Color | Orange |
| Unit Accuracy | 0.1 |
| Nut Diameter (in) | 3.86 in |
| Torq/Pro Sprockets | STP50 |
| Bore Size (in) | 1.4375 in |
| Bore Shape | Straight Bore |
| Detection Method | Ball Detent |
| Mounting Bolt Circle Diameter | 5.5 |
| Flange Diameter (in) | 4.8 in |
| Product Type | Torq Pro Torque Limiter |
| Bore (Max) (in) | 1.4375 in |
| Torque [Max] (N-m) | 539.575 |
| Torque Capacity [Min] (lb-ft) | 144.583333333333 |
| Torque Capacity [Max] (lb-ft) | 397.916666666667 |
| Torque Capacity [Max] (in-lb) | 4,775 |
| Torque Capacity [Min] (in-lb) | 1,735 |
| Max RPM | 300 |
| Bore (Min) (in) | 1.4375 in |
| HTC | 8483.60.8000 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107705 |
| Part NumberiManufacturer catalog number | 187821 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662288442806 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
