K-F FAST STANDARD
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

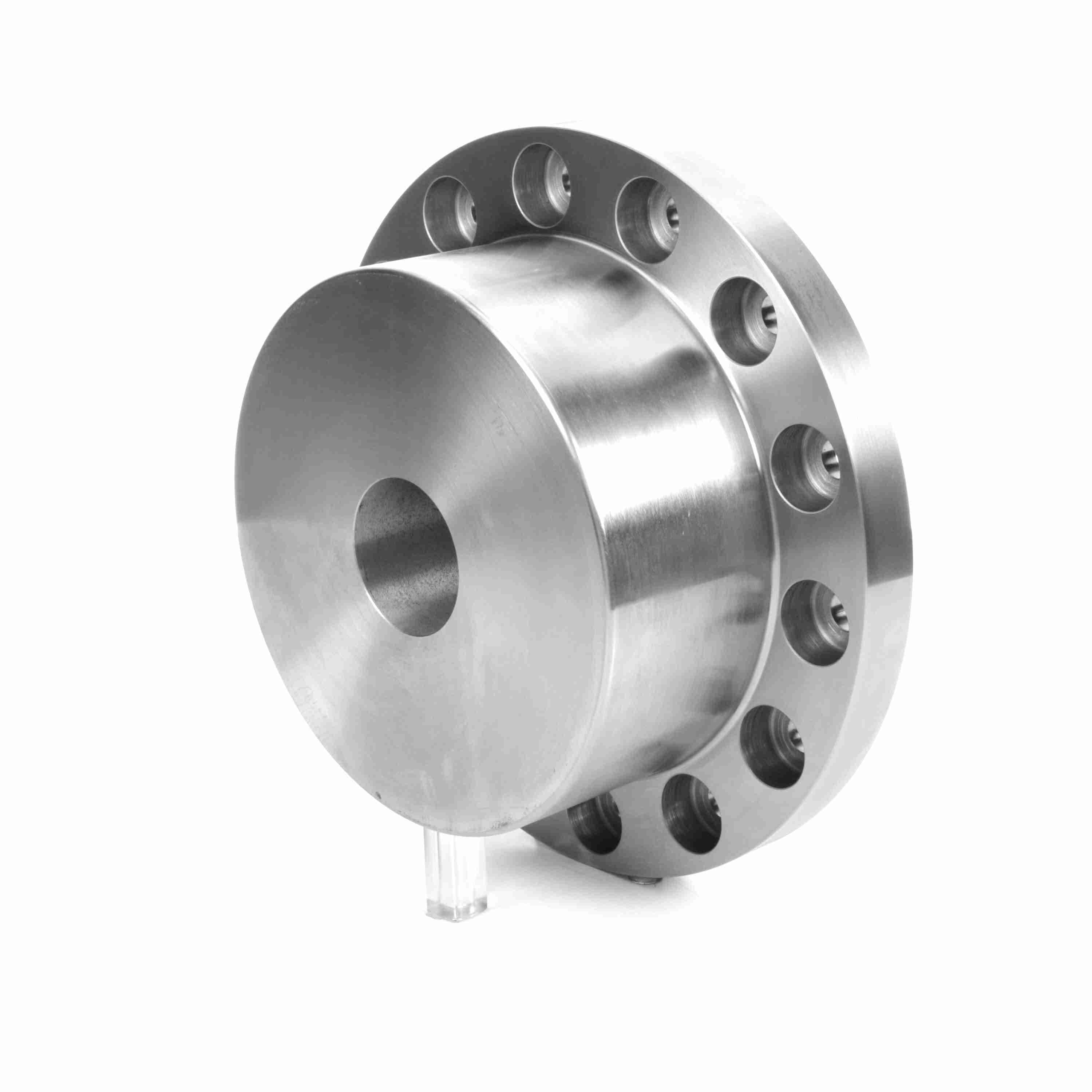

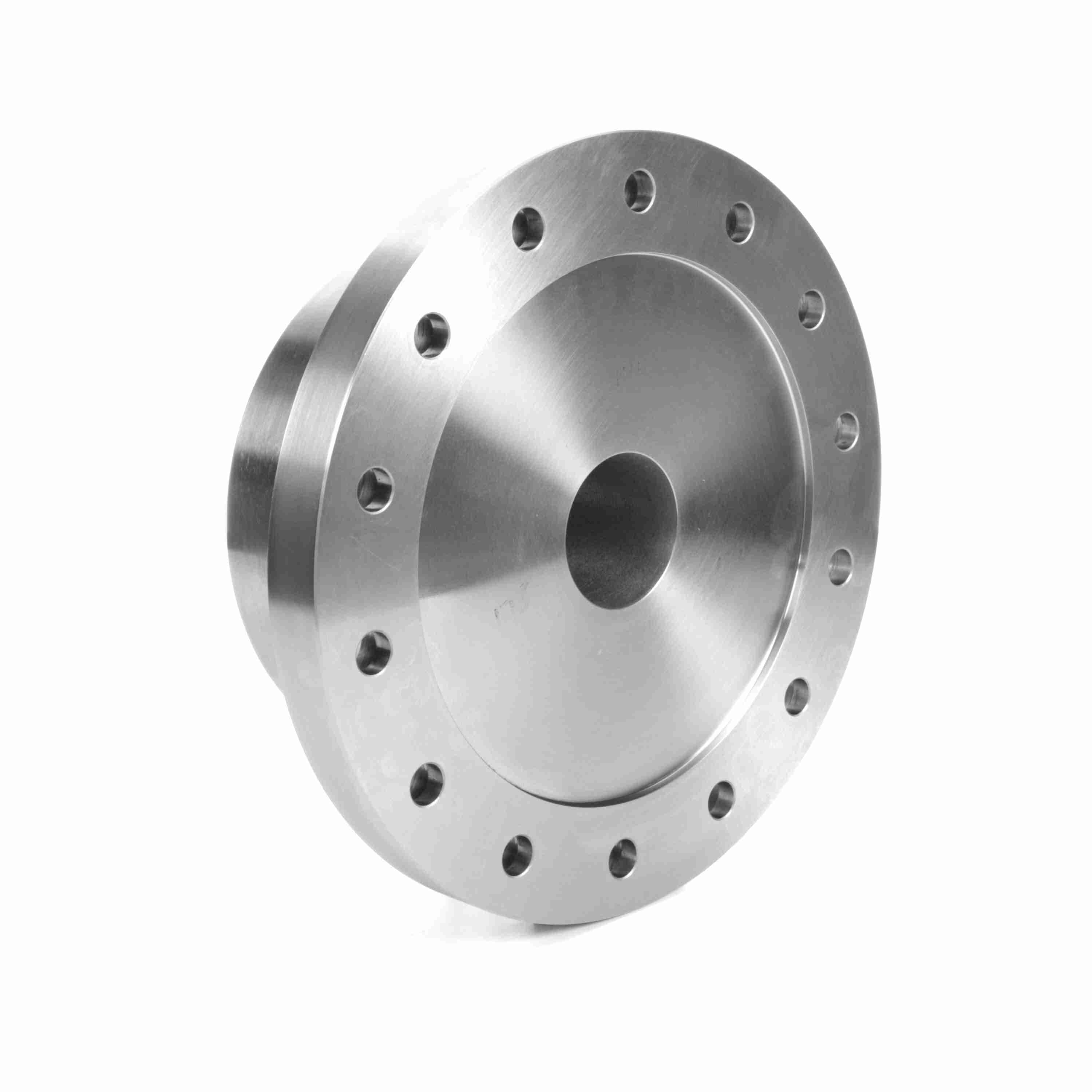

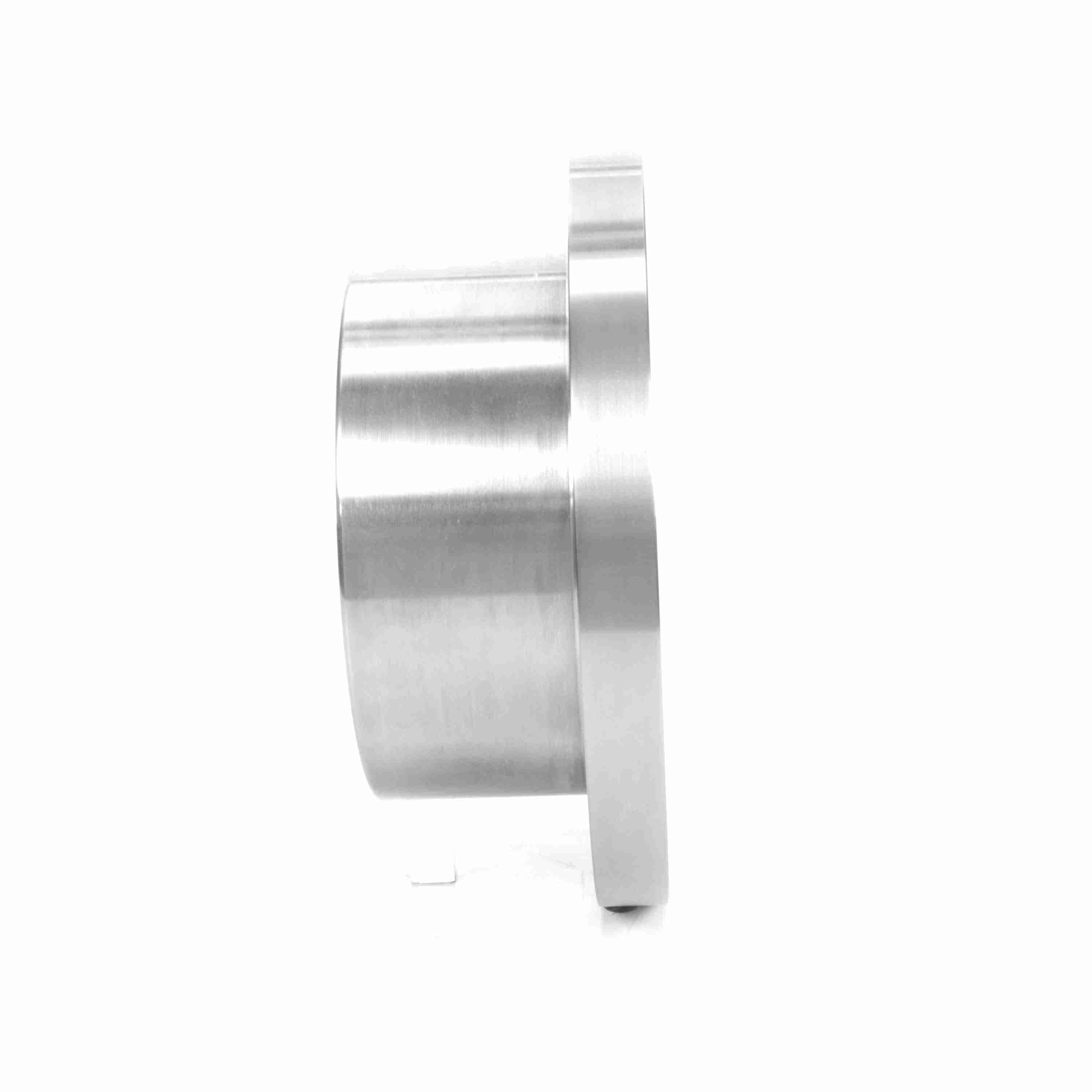

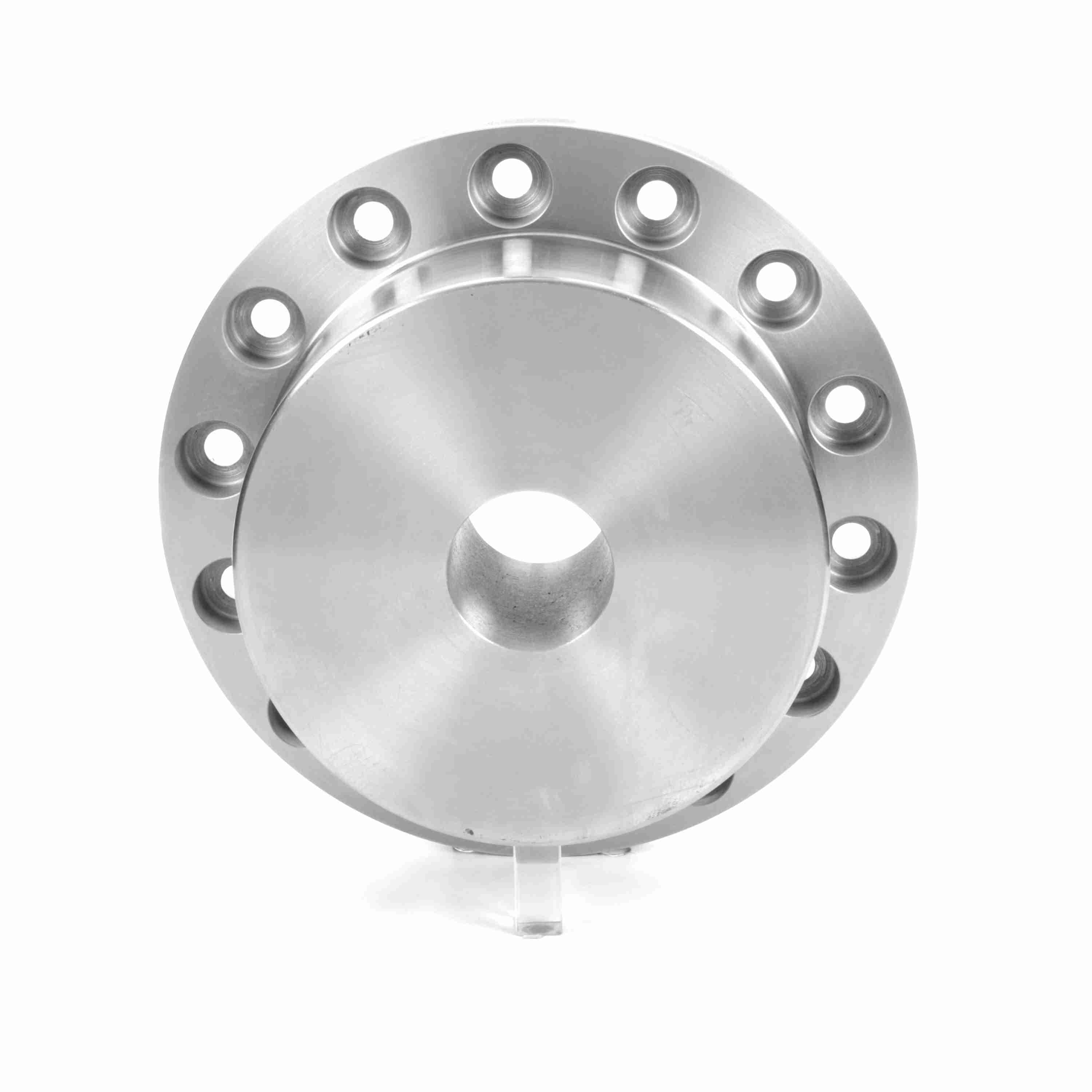

| Part Number | 1960608 |
| Product Name | 4 SB RHUB |
| Brand | Kop-Flex |
| Material | Carbon Steel |
| Weight | 89.1 lb |
| Package Length | 12.75 in |
| Package Width | 12.75 in |
| Package Height | 12.75 in |
| Bolt Type | Shrouded |
| Bore Size Max (in) | 6.38 in |
| Bore Type | Rough Bore |
| Component Type | Rigid Hub |
| Configuration |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1899.73 | — |
| Gear |
| Coupling Size | 4 |
| Coupling Type | Gear Coupling |
| Hub Diameter (in) | 9 in |
| Length Through Bore (in) | 4.4375 in |
| Length Through Bore (mm) | 112.7125 mm |
| Lube/Non-Lube | Lubricated |
| Max Bore w/standard key for Rigid Hub | 6.375 in |
| Measurement System | Imperial |
| Model | Series H |
| Outside Diameter (in) | 12.5 in |
| Size Code | 4 |
| Sleeve Outside Diameter (in) | 12.5 in |
| Speed Max (rpm) | 5,260 rpm |
| Tooth Profile | Crowned |
| Torque Rating (in-lb) | 236,000 in/lbs |
| HTC | 8483.90.8010 |
| Country of Origin | China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-107928 |
| Part NumberiManufacturer catalog number | 1960608 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384110234 |
| CategoryiCatalog classification | Couplings |
