B5V SHEAVES 5-6 - 600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1969039 |

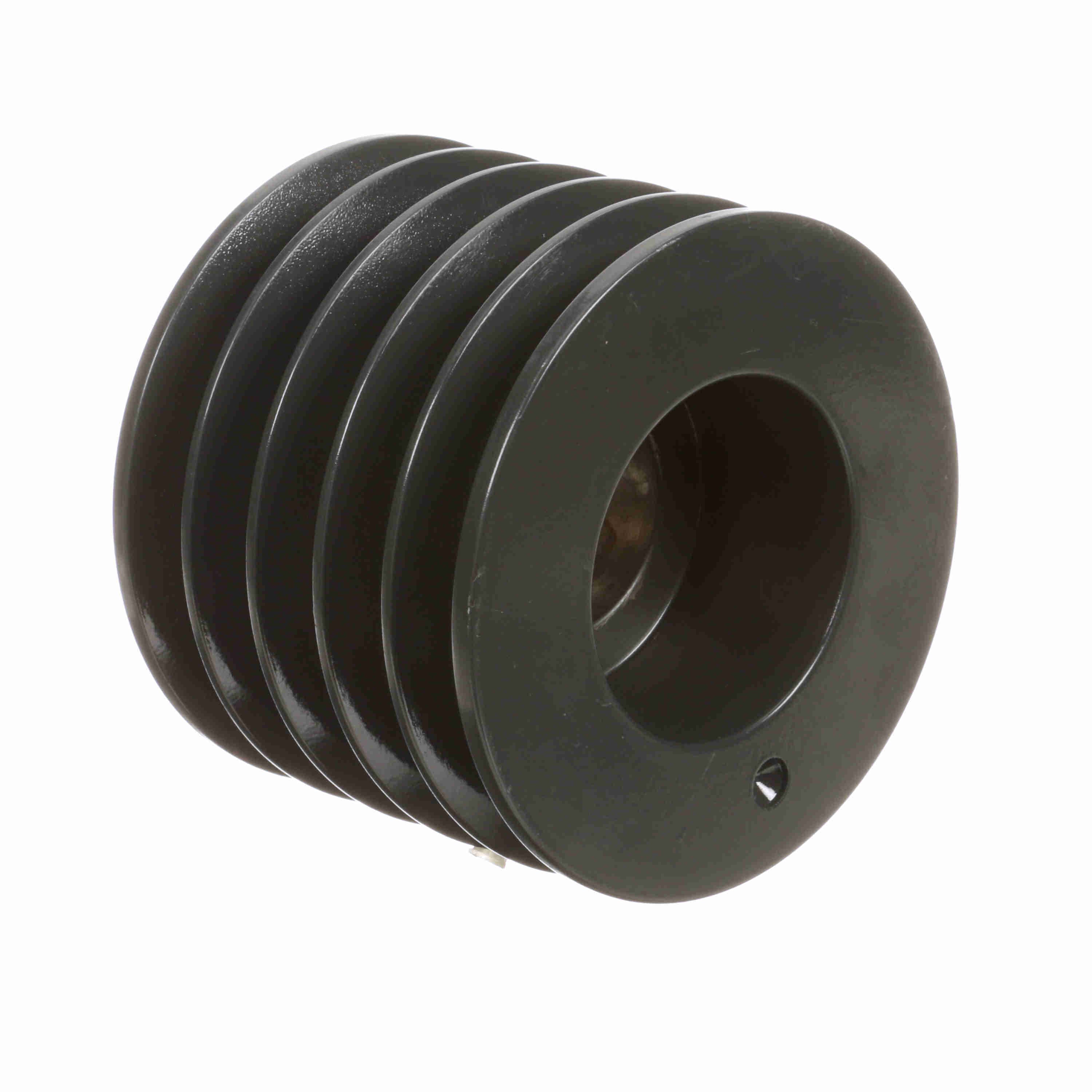

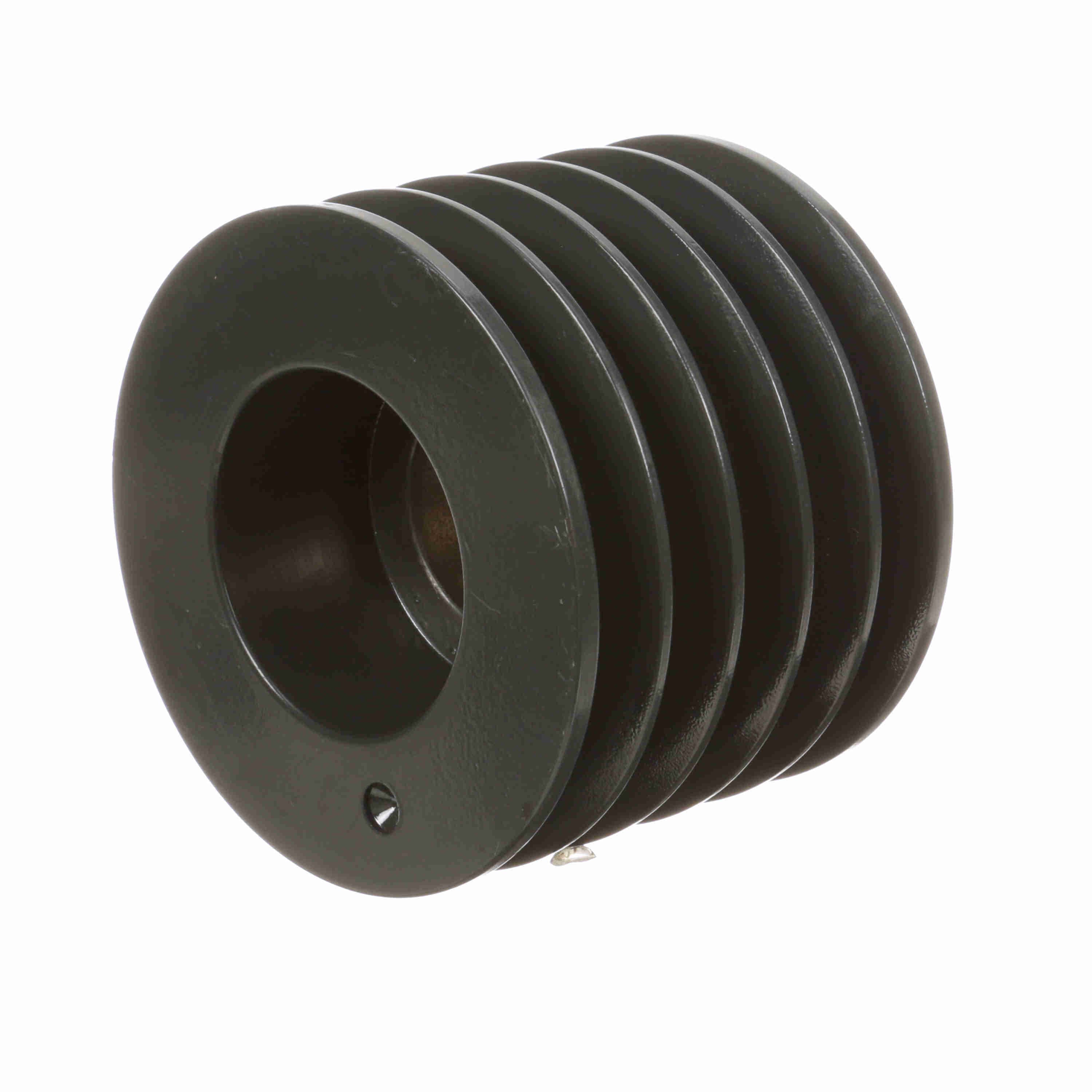

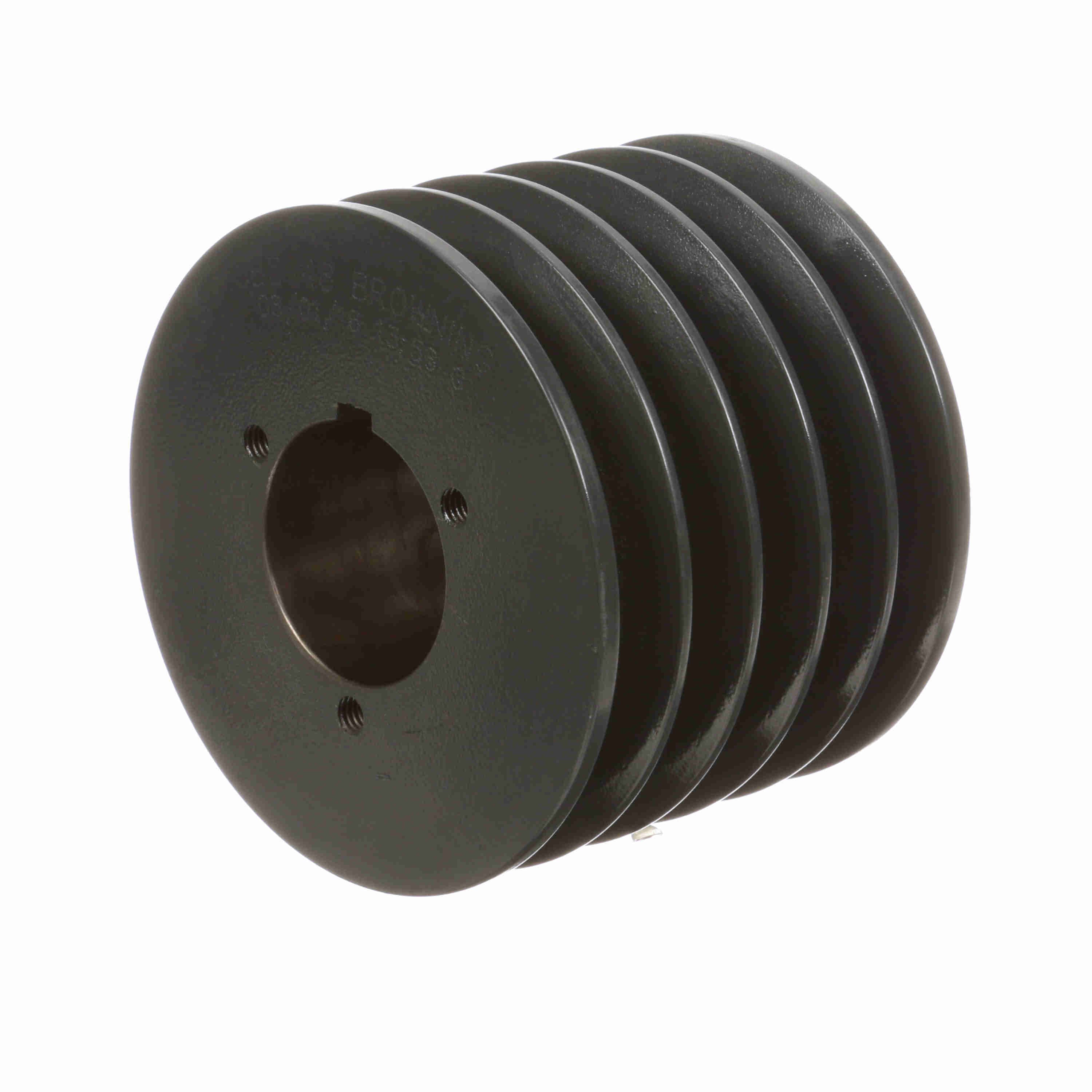

| Product Name | 5B5V48 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 11.85 lb |
| Package Length | 5.5 in |
| Package Width | 5.6 in |
| Package Height | 4.2 in |
| Bushing Used | P2 |
| Overall Length (in) | 4.703125 in |
| Number of Grooves | 5 |
| Datum Diameter (B) | 4.8 |
| Outside Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $664.94 | — |
| 5 – 9 | $622.73 | 6% off |
| 10+ | $609.41 | 8% off |
| 5.08 in |
| Pitch Diameter (B) | 5.1 |
| Pitch Diameter (5V) | 4.9 |
| Pulley Material | Cast Iron |
| Model Name | 5B5V-SheaveMaster |
| Datum Diameter (A) | 4.4 |
| Pitch Diameter (A) | 4.6 |
| Bore (Min) (in) | 0.75 in |
| Product Type | Multiple Sheaves |
| Belt Section | A, B, 5V |
| Bore Type | Split Taper Bushed |
| Bushing Bore Range | 0.750 - 1.750 |
| Keyway Size | .375 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-108125 |
| Part NumberiManufacturer catalog number | 1969039 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662460344409 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
