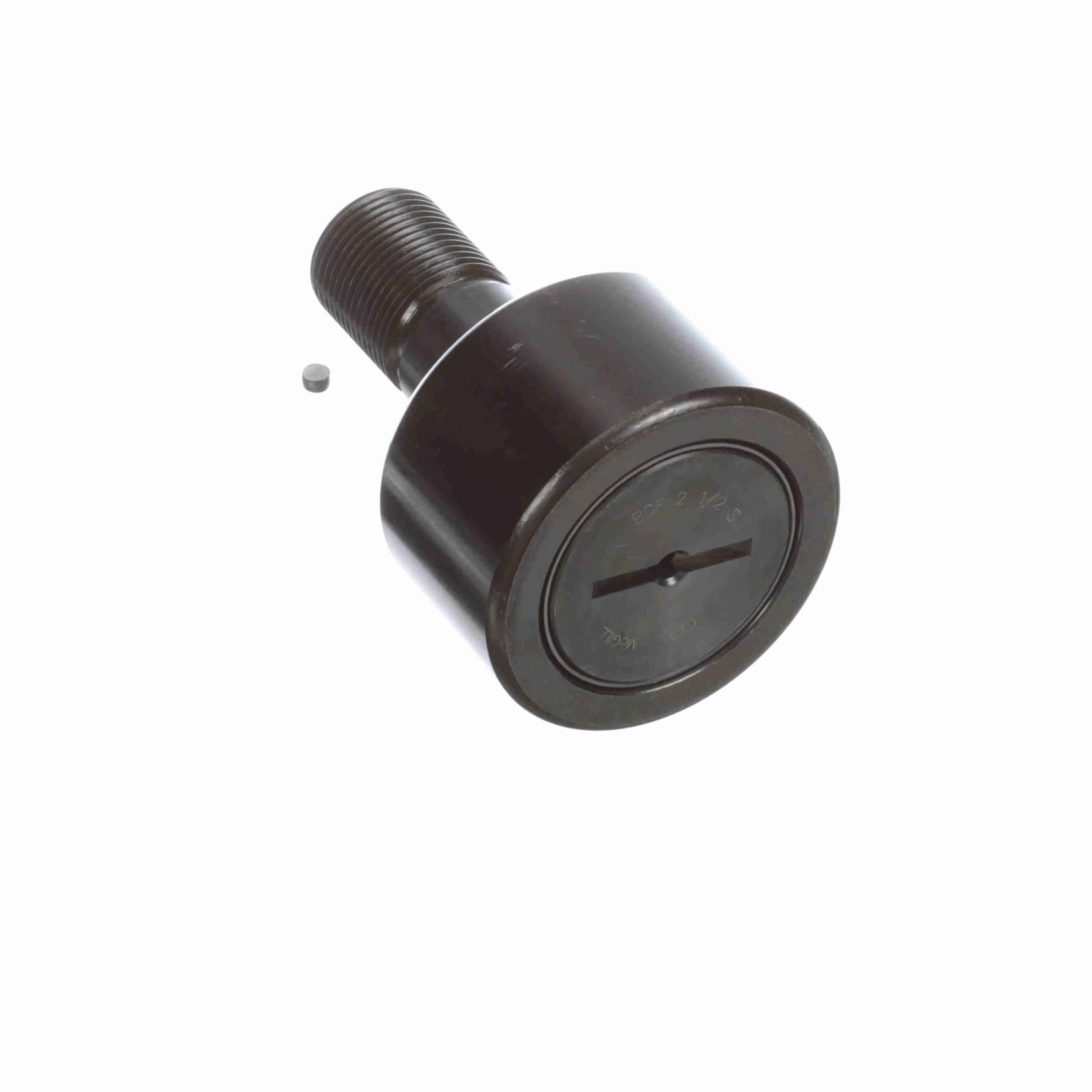

McGill CAMROL® Cylindrical Cam Follower - Stud Mount Roller - Screwdriver Slot - Sealed - BCF 2 1/2 S
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2245710000 |
| Product Name | BCF 2 1/2 S |
| Brand | McGill |
| Material | Bearing Steel, Black Oxide Finish |
| Weight | 2.28 lb |
| Package Length | 2.81 in |
| Package Width | 2.81 in |
| Package Height | 3.93 in |
| O.D. Configuration | Cylindrical |
| Rolling Element | Selflube Bushing |
| Series | Inch CAMROL® |
| Adjustment | None |
| Sealing |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Sealed |
| Hex/Slot | Screwdriver Slot |
| Roller Shape | Cylindrical |
| Platform | CAMROL® |
| Stud Type | Standard Stud |
| Tolerance Class | P0 Equivalent |
| Ability to Relubricate | Yes |
| Clamping Torque (in-lbf) | 2, 250 lbs |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-108903 |
| Part NumberiManufacturer catalog number | 2245710000 |
| BrandiManufacturer or product brand | McGill |
| CategoryiCatalog classification | Bearings > Cam Followers |
