MAX-C STK COUPLINGS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2270312 |

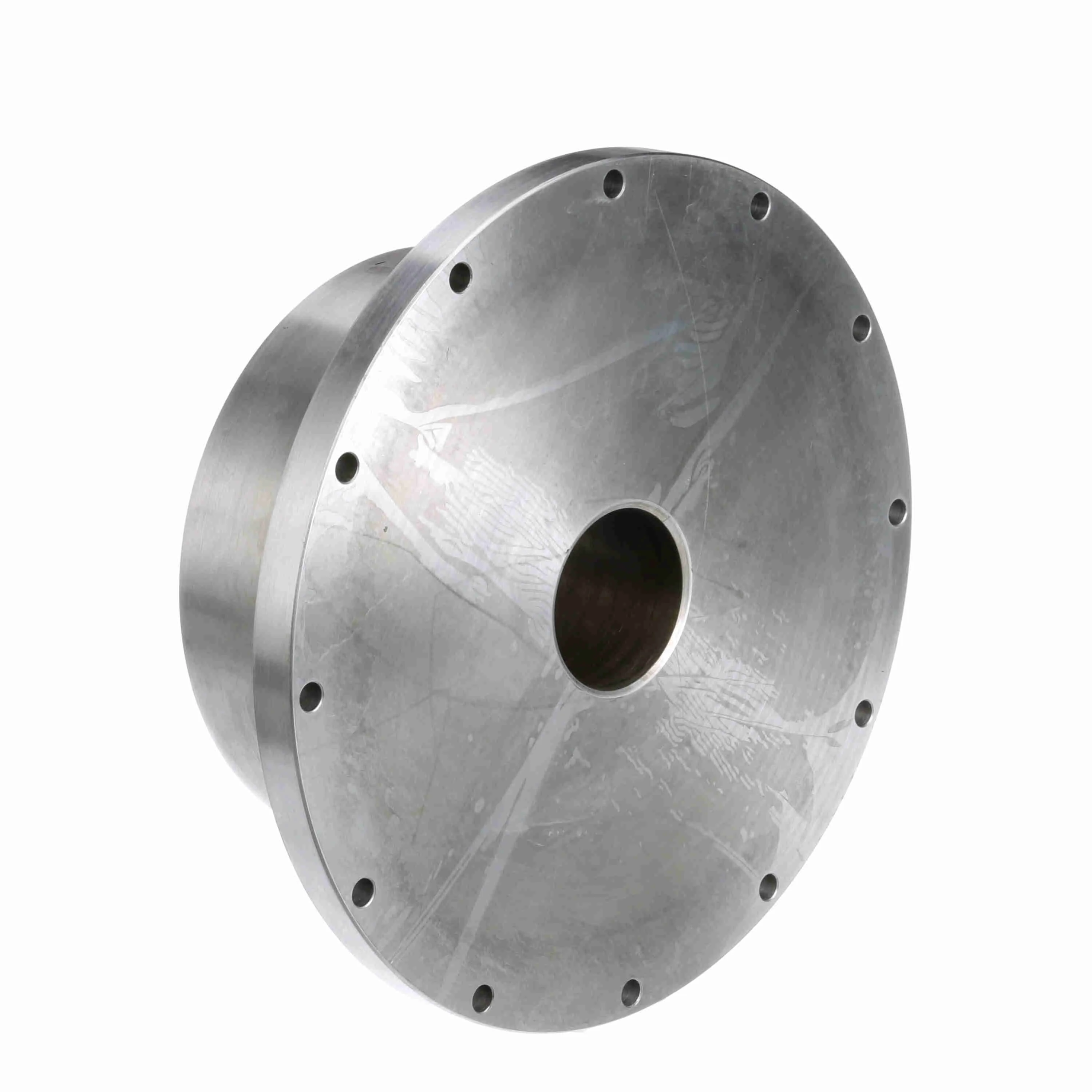

| Product Name | 45 K2 RHUB |
| Brand | Kop-Flex |
| Material | Carbon Steel |
| Weight | 290 lb |
| Package Length | 18.5 in |
| Package Width | 18.5 in |
| Package Height | 9 in |
| Bore Size Max (in) | 9.75 in |
| Bore Size Min (in) | 3.33 in |
| Bore Type | Rough Bore |
| Component Type | Rigid Hub |
| Coupling Size |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $8801.10 | — |
| 45 |
| Coupling Type | Elastomeric Coupling |
| Hub Diameter (in) | 14 in |
| Length Through Bore (in) | 6.25 in |
| Lube/Non-Lube | Non-Lubricated |
| Max Bore Flex Hub (in) | 6.75 in |
| Max Bore Rigid Hub (in) | 9.75 in |
| Measurement System | Imperial |
| Model | Max-C |
| Outside Diameter (in) | 9.59 in |
| Speed Max (rpm) | 2,120 rpm |
| Stock Rough Bore (in) | 9.75 in |
| Style | K2 |
| Torque Rating (in-lb) | 265,000 in/lbs |
| HTC | 8483.90.8010 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-108930 |
| Part NumberiManufacturer catalog number | 2270312 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384122398 |
| CategoryiCatalog classification | Couplings |
