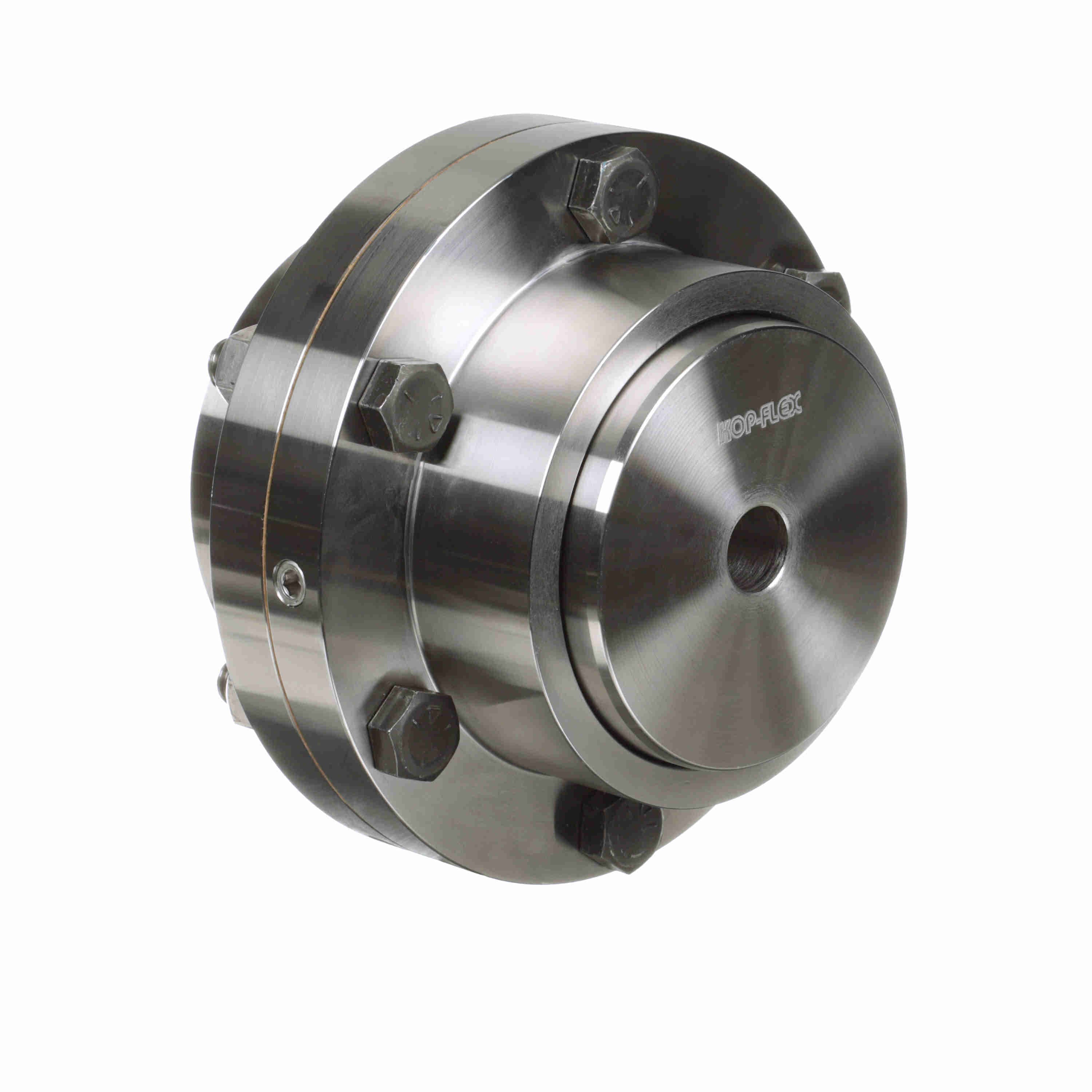

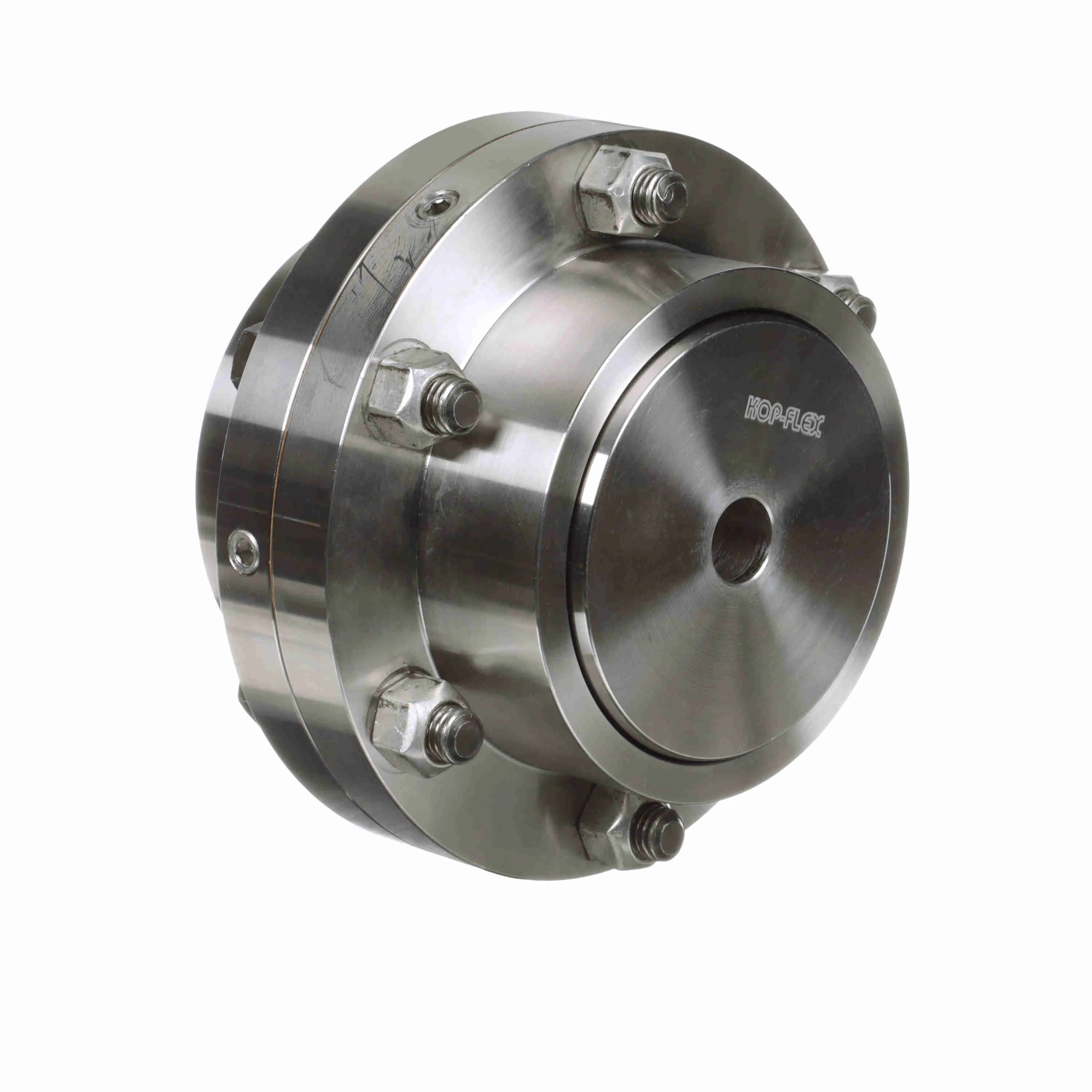

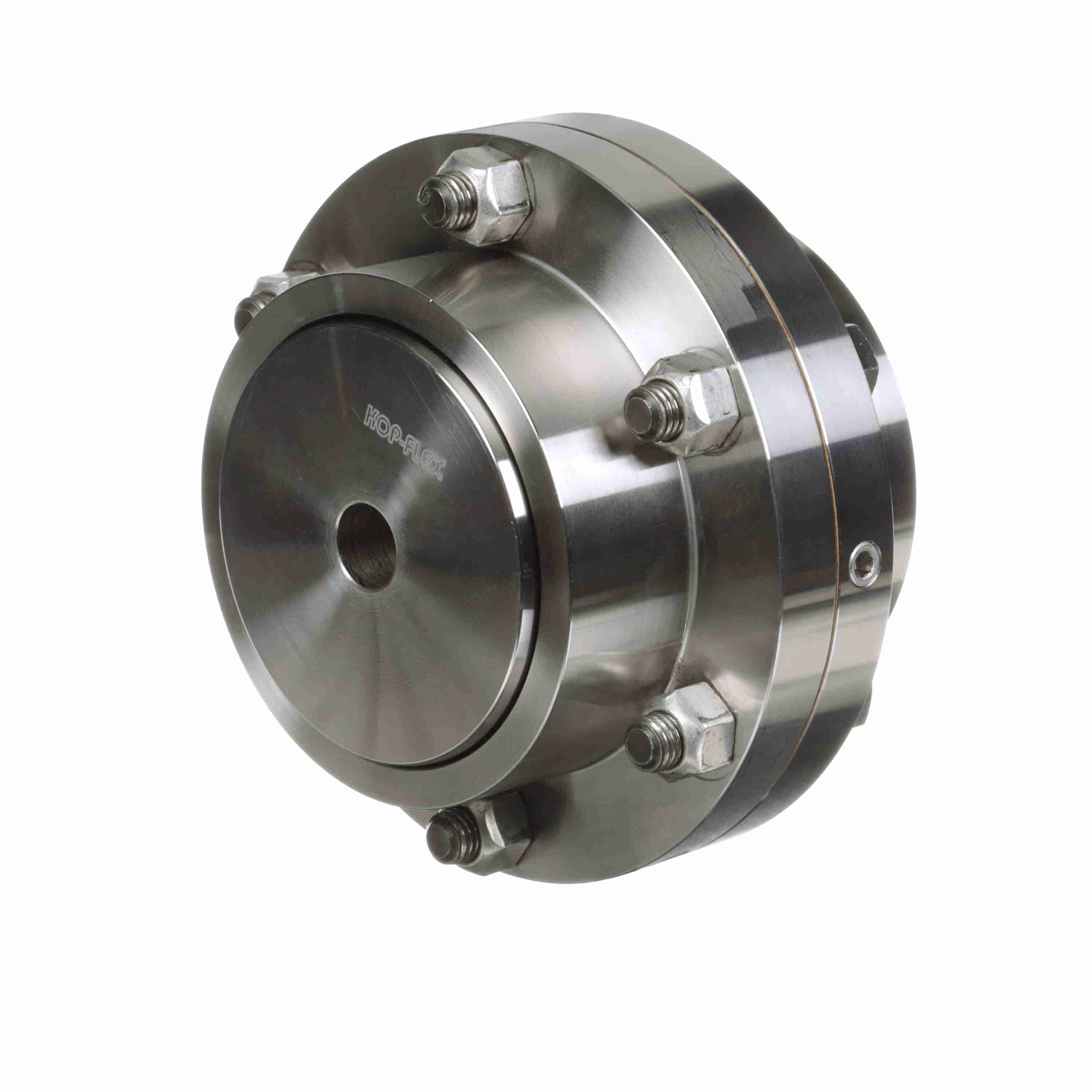

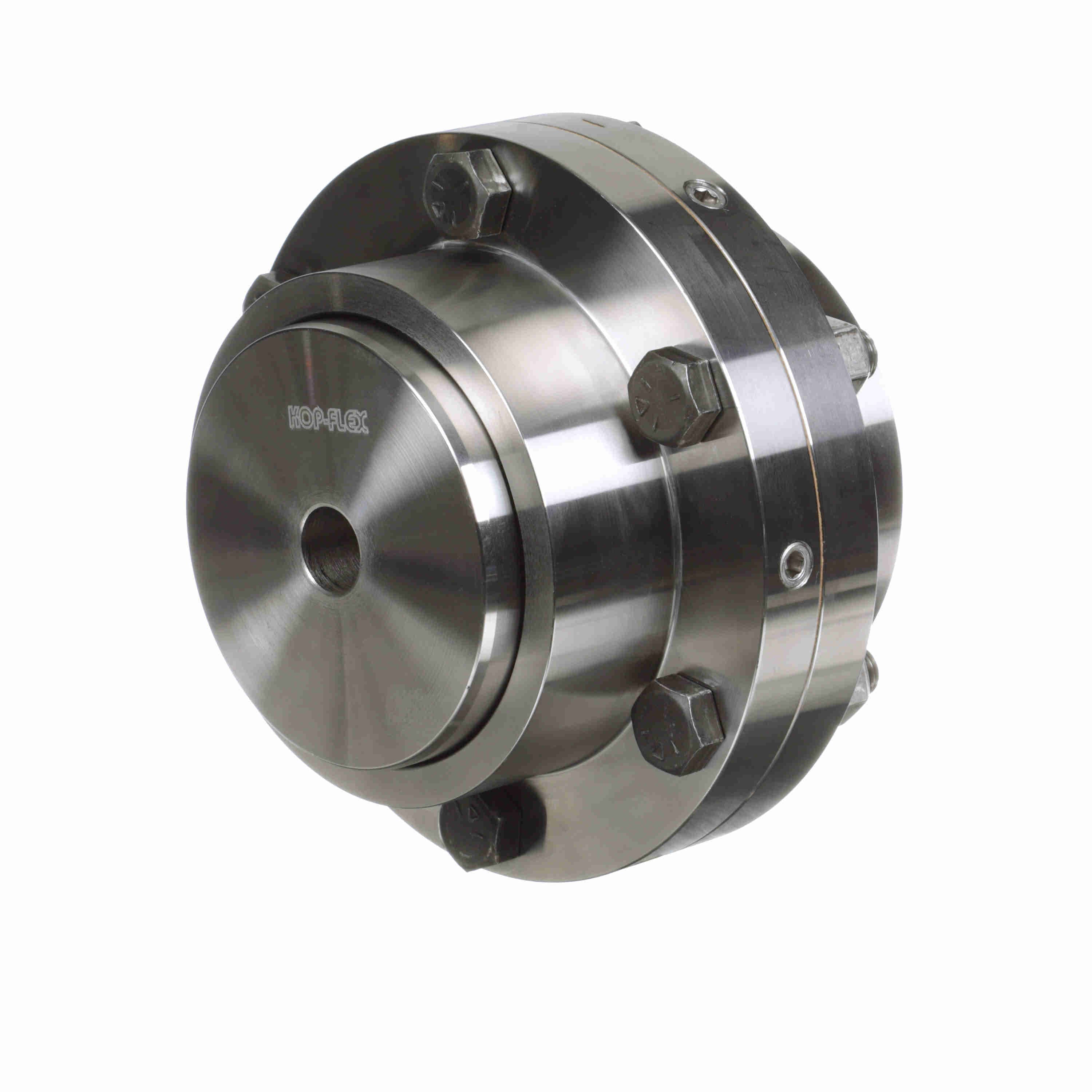

SERIES H PLUS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2274827 |
| Product Name | 3 1/2H EB FF |
| Brand | Kop-Flex |
| Material | Medium Carbon Steel |
| Weight | 131.06 lb |
| Bolt Circle | 9.5 in |
| Bolt Type | Exposed |
| Bore Size Max (in) | 4.5 in |
| Bore Type | Rough Bore |
| Compatible Bore Size [Min] (in) | 1.6875 in |
| Configuration | Full Flex |
| Coupling Size | 3.5 |
| Coupling Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $3344.02 | — |
| Gear Coupling |
| Fastener Quantity | 8 |
| Fastener Size | 3/4 x 3 3/8 |
| Features | Exposed Bolt / Full Flex Coupling |
| Hub Diameter (in) | 6.5 in |
| Includes | Hubs (2) Sleeves (2) Seals (2) |
| Length Through Bore (in) | 4.1875 in |
| Lube/Non-Lube | Lubricated |
| Maximum Operating Angular Misalignment | 1.5 ° |
| Measurement System | Imperial |
| Model Name | H1-7FF_Master |
| Outside Diameter (in) | 11 in |
| Overall Length (in) | 7.6875 in |
| Performance | Lubrication Hole |
| Rating HP @ 100 RPM | 235 |
| Sleeve Type | Flanged |
| Speed Max (rpm) | 6,000 rpm |
| Style | Series H |
| Temperature Range | -40 to +190 °F |
| Tooth Profile | Straight faced, Involute Stub Tooth |
| Torque [Max] (in-lb) | 296,000 in/lbs |
| Torque Rating (in-lb) | 148,000 in/lbs |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-109001 |
| Part NumberiManufacturer catalog number | 2274827 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384140057 |
| CategoryiCatalog classification | Couplings |
