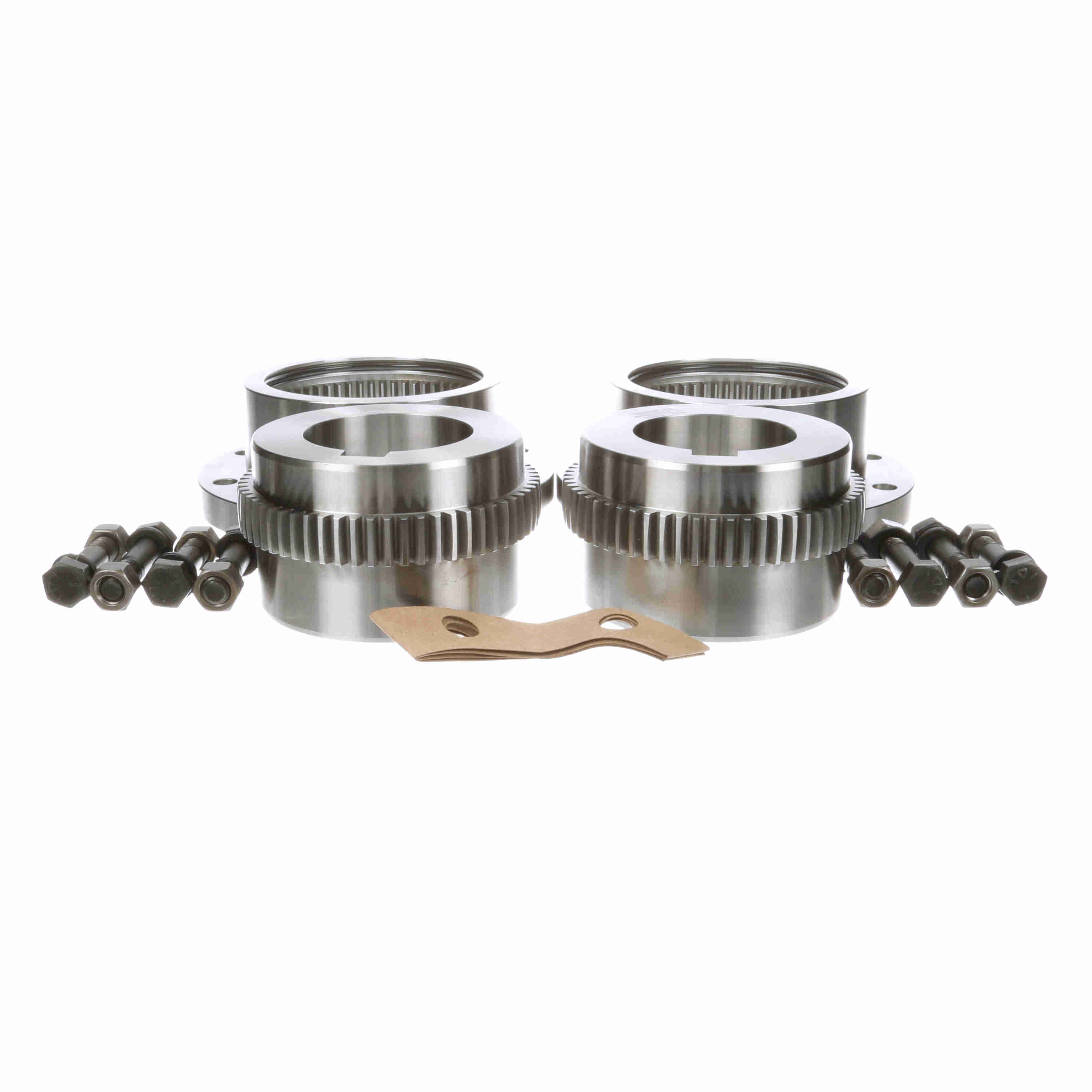

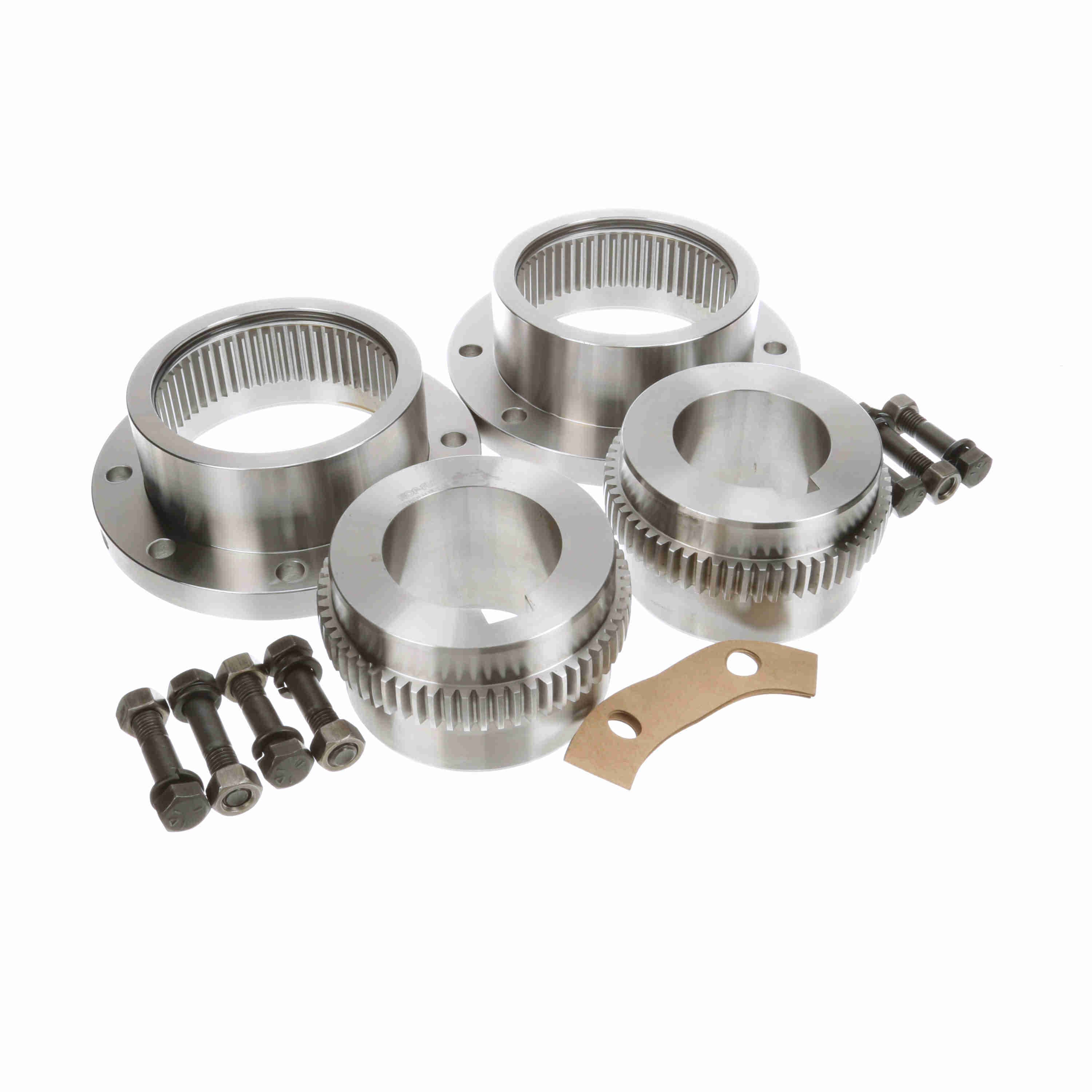

SERIES H PLUS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2274934 |
| Product Name | 3H EB FF FB |
| Brand | Kop-Flex |
| Material | Medium Carbon Steel |
| Weight | 67 lb |
| Package Length | 13 in |
| Package Width | 13 in |
| Package Height | 13.5 in |
| Bolt Circle | 8.125 in |
| Bolt Type | Exposed |
| Bore Size Max (in) | 4 in |
| Bore Type | Finished Bore |
| Compatible Bore Size [Min] (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $3752.77 | — |
| 1.125 in |
| Configuration | Full Flex |
| Coupling Size | 3 |
| Coupling Type | Gear Coupling |
| Fastener Quantity | 8 |
| Fastener Size | 5/8 x 2 3/4 |
| Length Through Bore (in) | 3.59375 in |
| Lube/Non-Lube | Lubricated |
| Measurement System | Imperial |
| Model Name | H1-7FF_Master |
| Outside Diameter (in) | 9.4375 in |
| Overall Length (in) | 6.5625 in |
| Rating HP @ 100 RPM | 160 |
| Sleeve Type | Flanged |
| Speed Max (rpm) | 6,800 rpm |
| Style | Series H |
| Tooth Profile | Straight faced, Involute Stub Tooth |
| Torque [Max] (in-lb) | 202,000 in/lbs |
| Torque Rating (in-lb) | 101,000 in/lbs |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-109012 |
| Part NumberiManufacturer catalog number | 2274934 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384146639 |
| CategoryiCatalog classification | Couplings |
