SERIES H PLUS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2284958 |

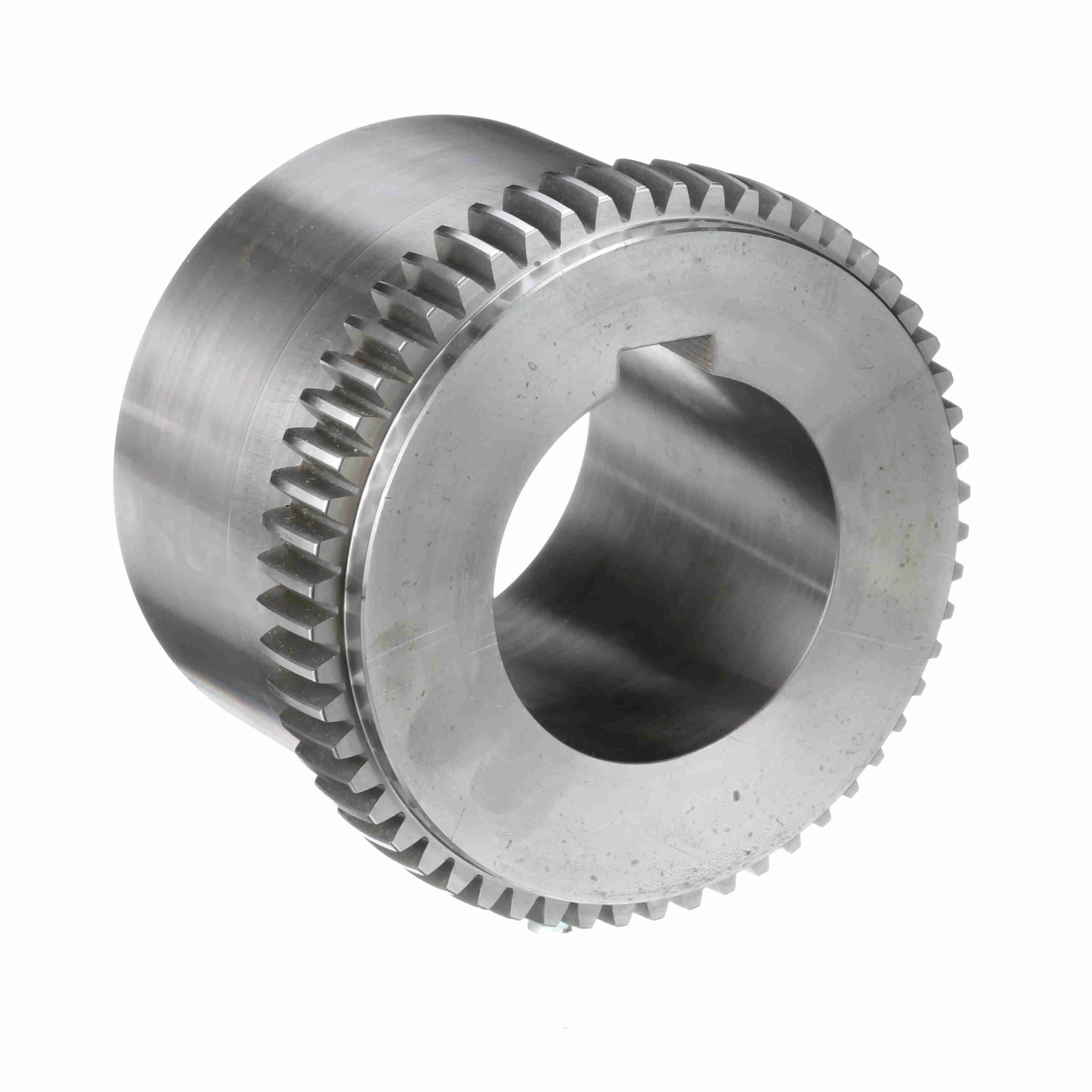

| Product Name | 5H MMHUB14 |
| Brand | Kop-Flex |
| Material | Carbon Steel |
| Weight | 89.198 lb |
| Bore Size Max (in) | 6.875 in |
| Bore Size Min (in) | 3 in |
| Bore Type | Taper Bore |
| Component Type | Mill Motor Hub |
| Configuration | Gear |
| Coupling Size | 5 |
| Coupling Type | Gear Coupling |
| Hub Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $5313.34 | — |
| 9.51 in |
| Length Through Bore (in) | 5 in |
| Length Through Bore (mm) | 127 mm |
| Lube/Non-Lube | Lubricated |
| Max Bore w/standard key | 6.875 in |
| Measurement System | Imperial |
| Model | Series H |
| Outside Diameter (in) | 15.3125 in |
| Size Code | 5 |
| Sleeve Outside Diameter (in) | 15.3125 in |
| Speed Max (rpm) | 4,300 rpm |
| Tooth Profile | Crowned |
| Torque Rating (in-lb) | 441,000 in/lbs |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-109264 |
| Part NumberiManufacturer catalog number | 2284958 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384460339 |
| CategoryiCatalog classification | Couplings |
