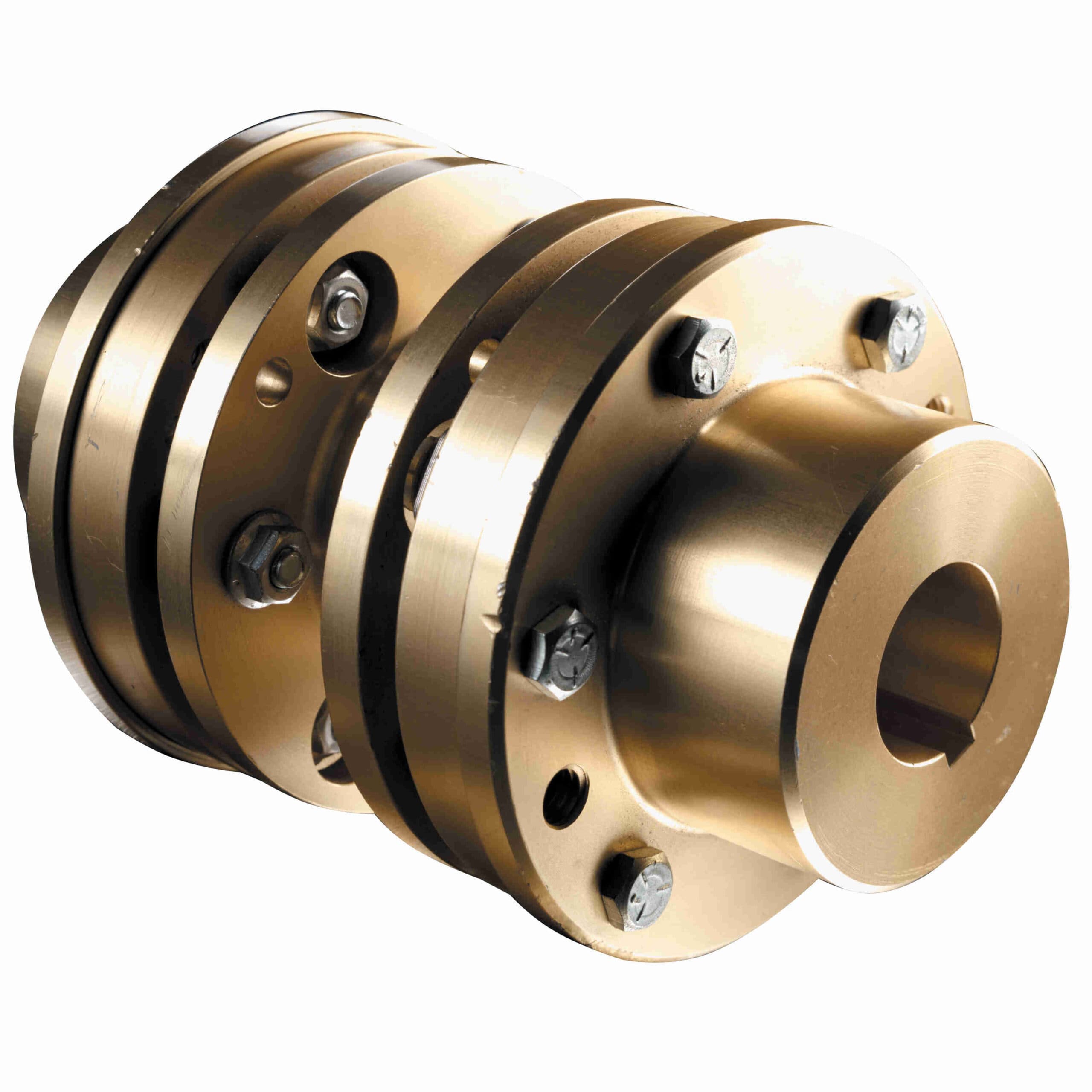

Kop-Flex Disc Coupling - Style KD2 - Size 453 - Finished Bore - 453 KD 2 SS900 FB
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2287506 |
| Product Name | 453 KD 2 SS900 FB |
| Brand | Kop-Flex |
| Package Width | 0 in |
| Axial Capacity (+/-) | 0.2 |
| Hub Material | Carbon Steel |
| Total WR2 (lb-in2) | 6, 180 psi |
| Bore Type | Finished Bore |
| Stock C Dimension | 9 |
| Total Length (Std Hub Post) (in) | 18.62 in |
| Configuration | 2 standard hubs |
| Style | KD2 |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Coupling Size |
| 453 |
| Outside Diameter (in) | 13.25 in |
| Torque Rating (in-lb) | 129, 000 in/lbs |
| Torque [Max] (ft-lb) | 21, 500 ft/lbs |
| Length Through Bore standard hub (in) | 4.81 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-109376 |
| Part NumberiManufacturer catalog number | 2287506 |
| BrandiManufacturer or product brand | Kop-Flex |
| CategoryiCatalog classification | Couplings > Disc Couplings |
