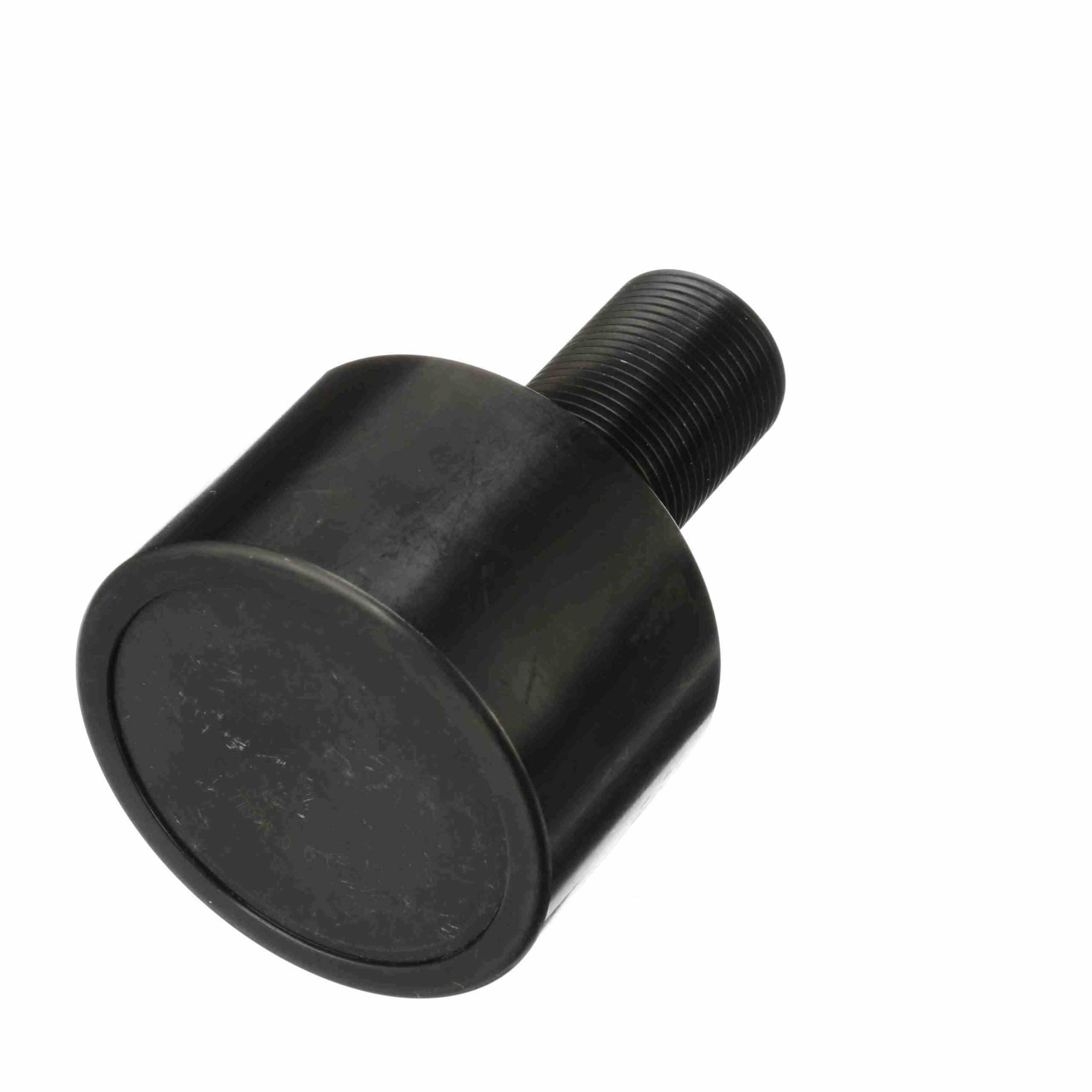

McGill TRAKROL® Cylindrical Track Roller - Stud Mount - Hex Hole - Sealed - PCF 3 LH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2304707000 |
| Product Name | PCF 3 LH |
| Brand | McGill |
| Material | Bearing Steel, Black Oxide Finish |
| Weight | 3.91 lb |
| Package Length | 3.25 in |
| Package Width | 3.25 in |
| Package Height | 4.5 in |
| Hex/Slot | Hex Hole |
| Adjustment | None |
| Limiting Speed | 950 |
| Series | TRAKROL® |
| Rolling Element |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Tapered Roller (TRAKROL) |
| O.D. Configuration | Cylindrical |
| Dynamic Radial Rating | 14 |
| Sealing | Sealed |
| Stud Type | Standard Stud |
| Dynamic Load Rating - both bearings | 14 |
| Tolerance Class | P0 Equivalent |
| Dynamic Load Rating (lb) | 14, 300 lb |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-109815 |
| Part NumberiManufacturer catalog number | 2304707000 |
| BrandiManufacturer or product brand | McGill |
| CategoryiCatalog classification | Bearings > Cam Followers |
