Belts

8VX1800

Name: 8VX1800
Brand: Browning
SKU: 2351948
Price: 1647.93 USD
Availability: OutOfStock

358 BELTS

Part Number2351948

GDS #GDS-110050

Product Type

Notched Belt

Material

EPDM

Type

Gripnotch Notched V-Belts

Belt Section

8VX

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

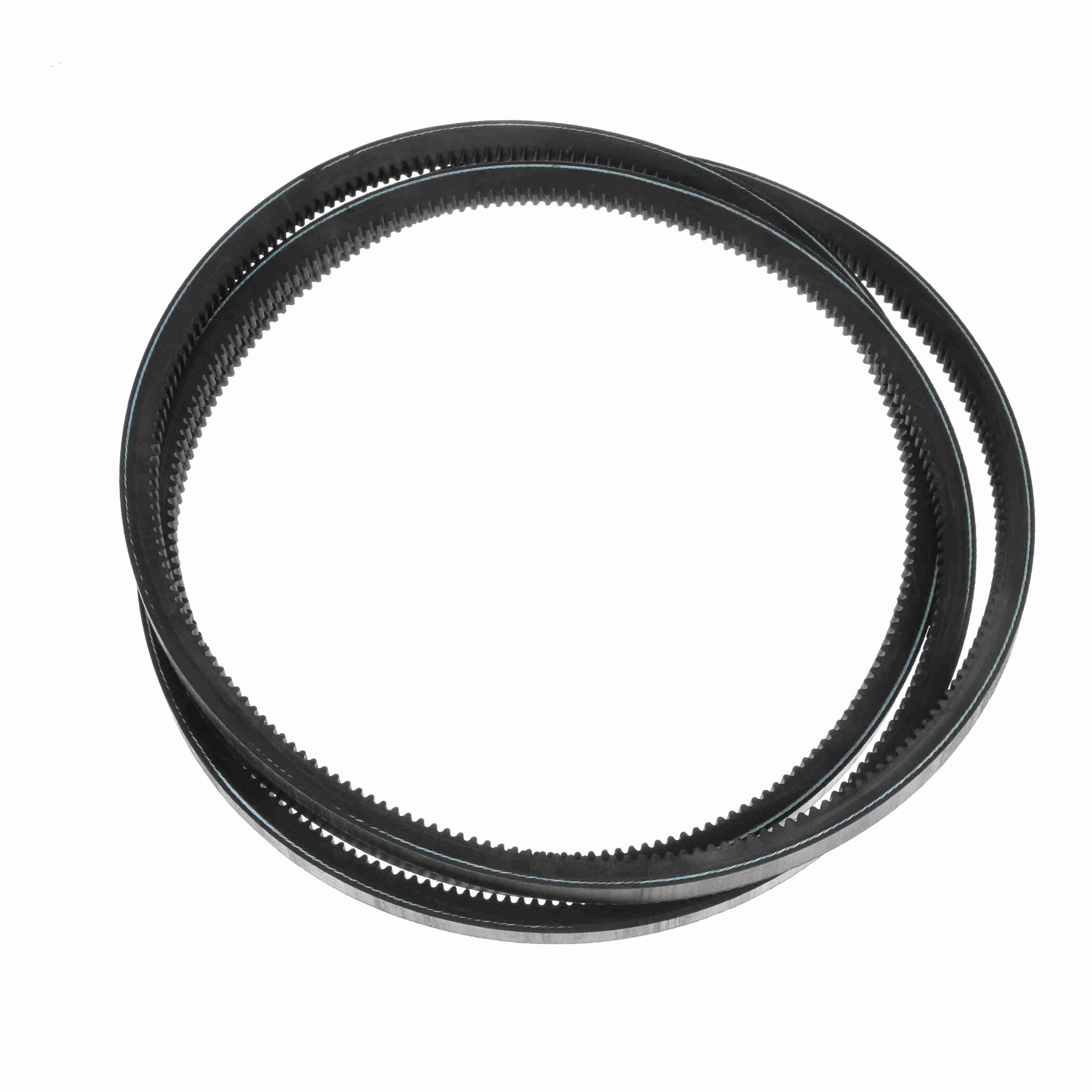

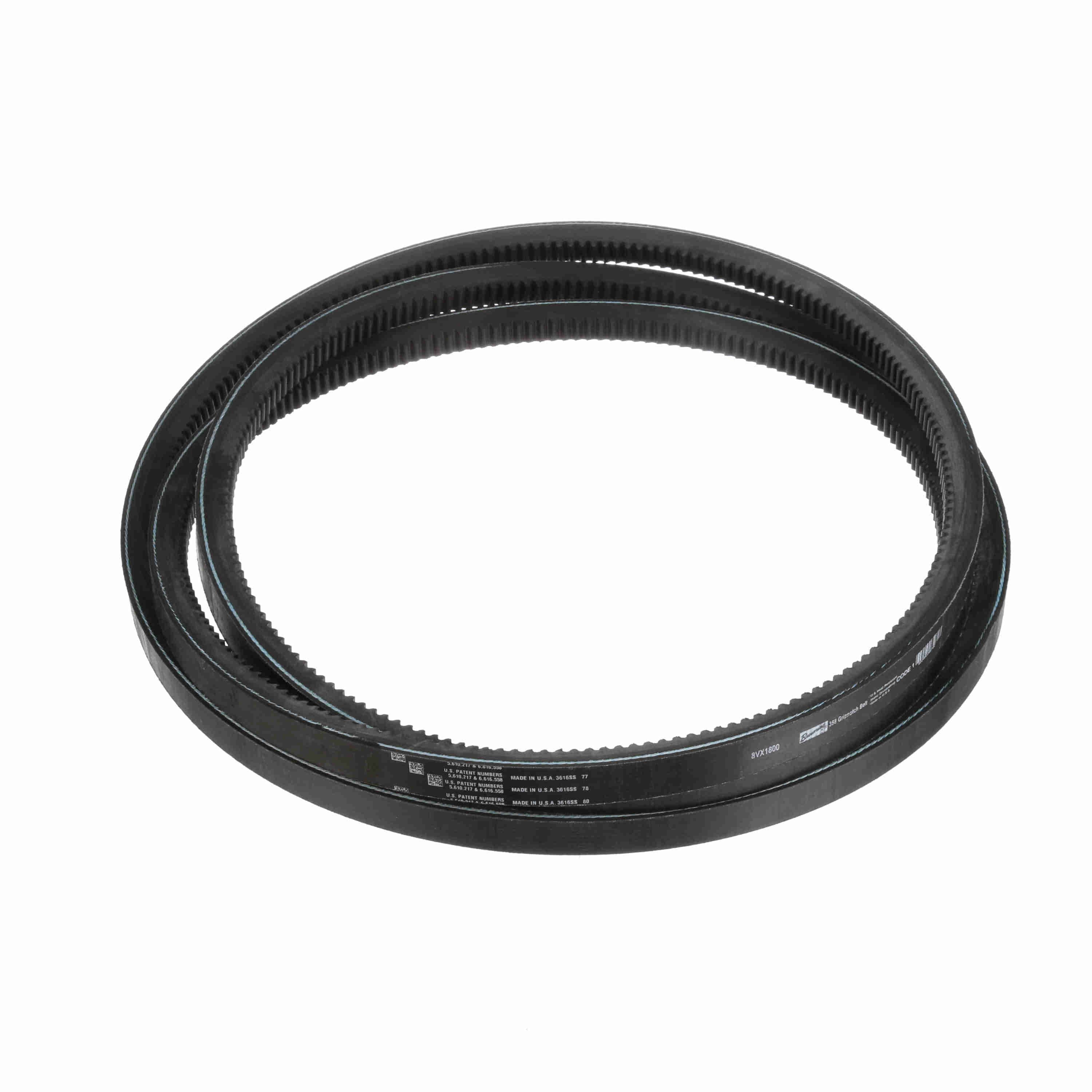

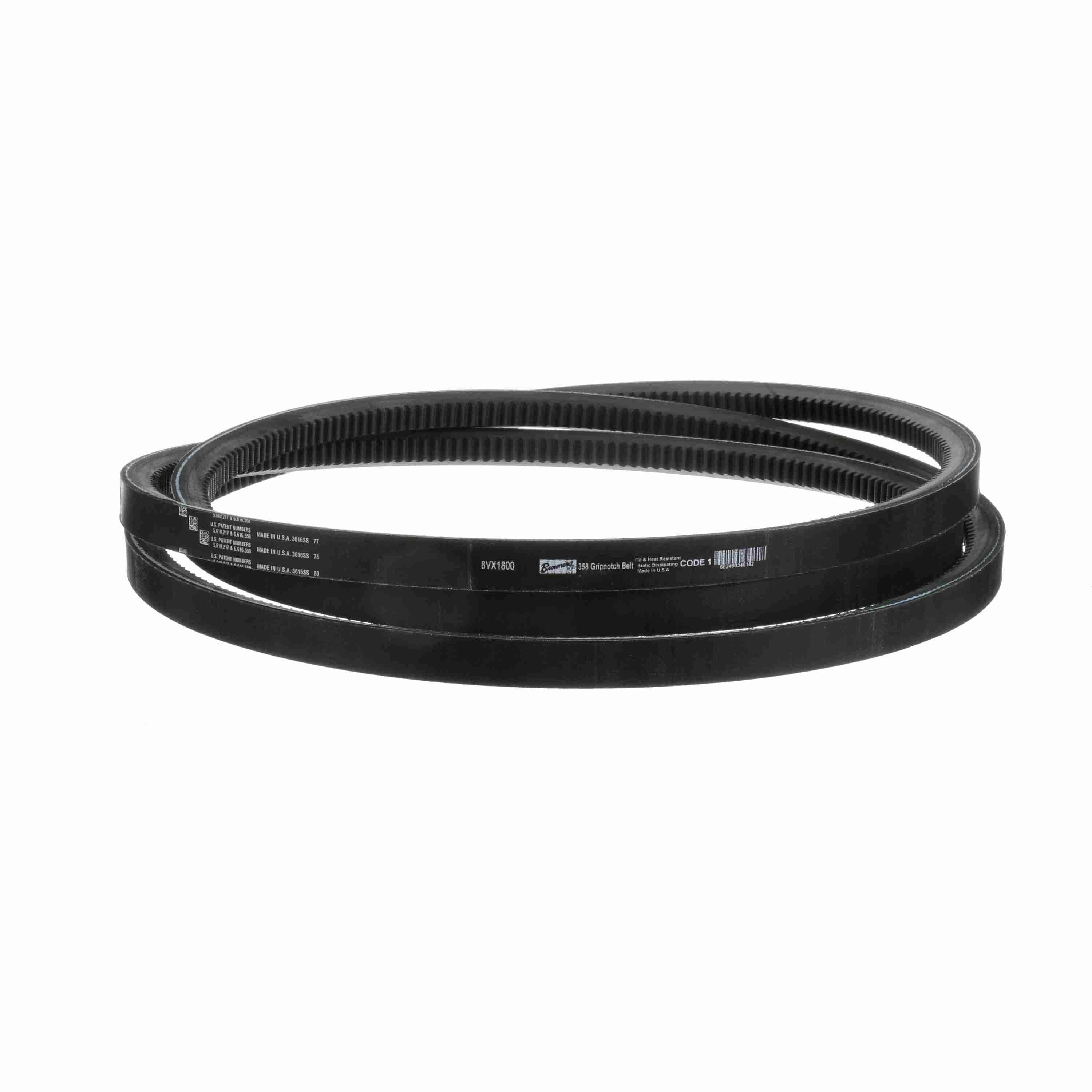

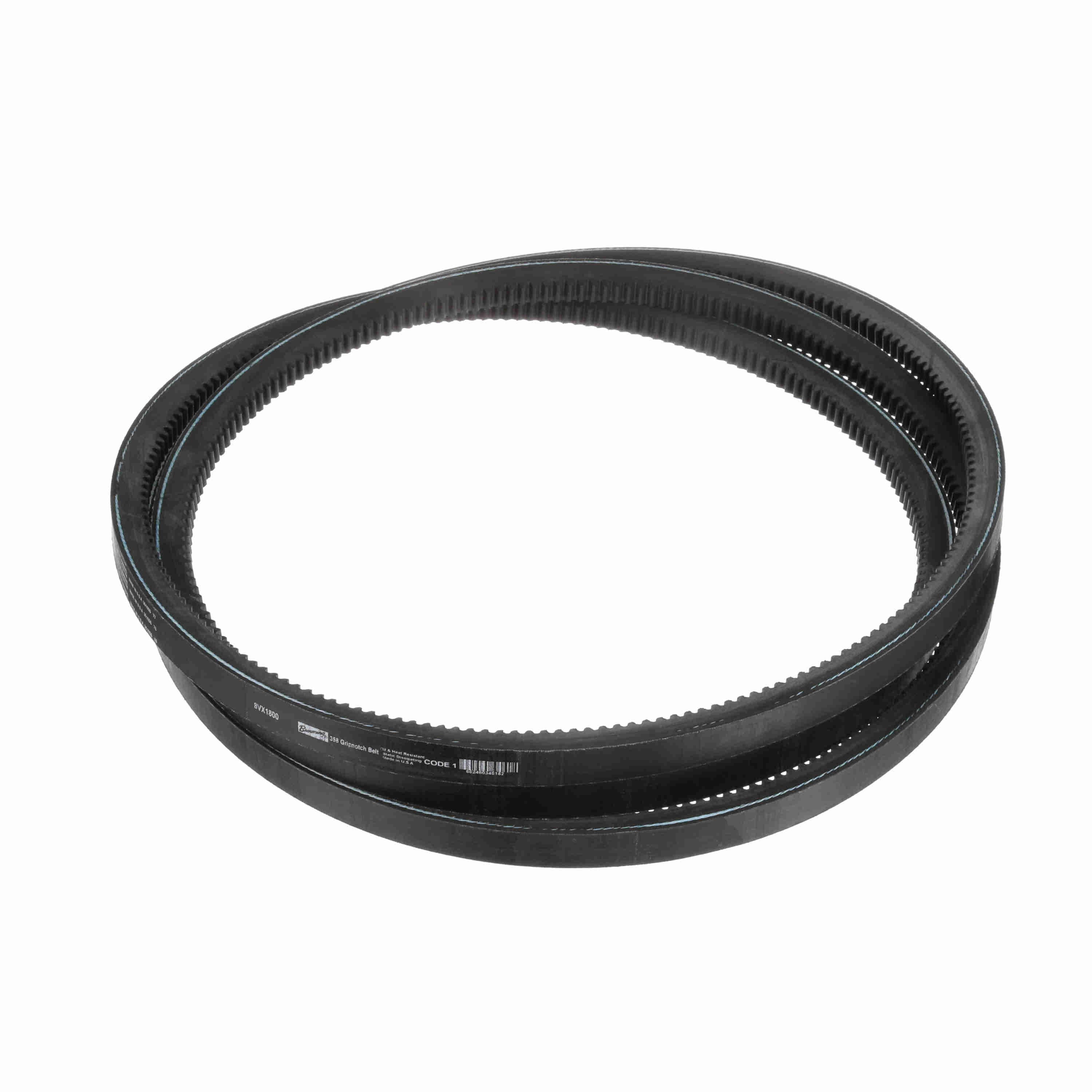

Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom; increased operating temperature range of -60F to 250F degrees.
More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts. This enables you to reduce drive cost.
Greater Horsepower allows for smaller drive sheaves - Using 358 Belts can allow for smaller drive components while still meeting the drive requirements , thus lowering the overall drive cost.
Close Belt tolerance - Browning Belts offer the "Code 1" Match belt system on all classical and "358" Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.

Part Number	2351948
Product Name	8VX1800
Brand	Browning
Material	EPDM
Weight	4.53 lb
Package Length	13.85 in
Package Width	13.25 in
Package Height	5.3 in
Type	Gripnotch Notched V-Belts
Belt Section	8VX
Efficiency (%)	0.98
Product Type	Notched Belt
Operating Temperature [Max] ºC

Quantity	Price Each	Save
1+	$1647.93	—

Datasheets, CAD drawings, and installation instructions are available on request.

GDS #iGDS internal part number	GDS-110050
Part NumberiManufacturer catalog number	2351948
BrandiManufacturer or product brand	Browning
UPCiUniversal Product Code	662460346182
CategoryiCatalog classification	Belts
