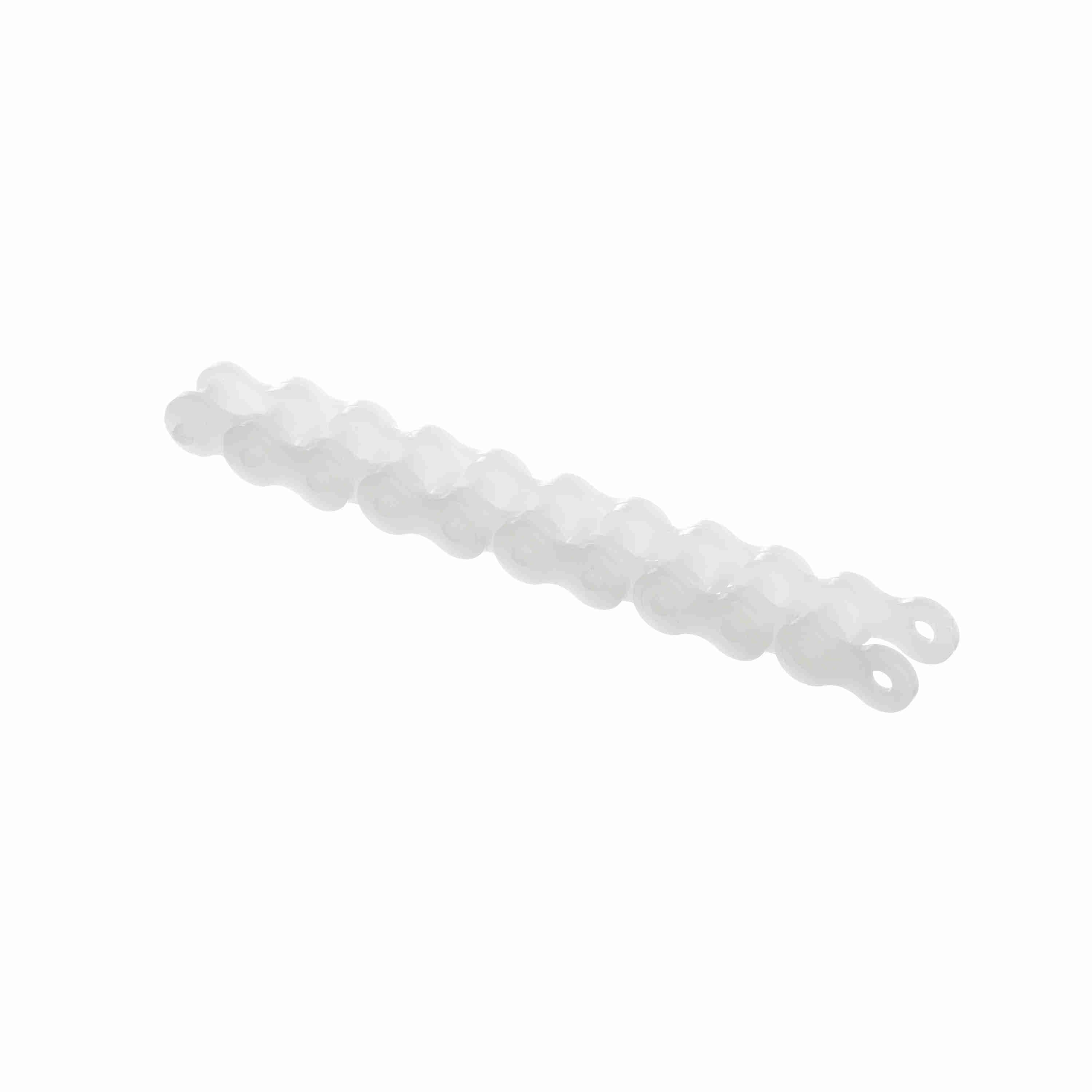

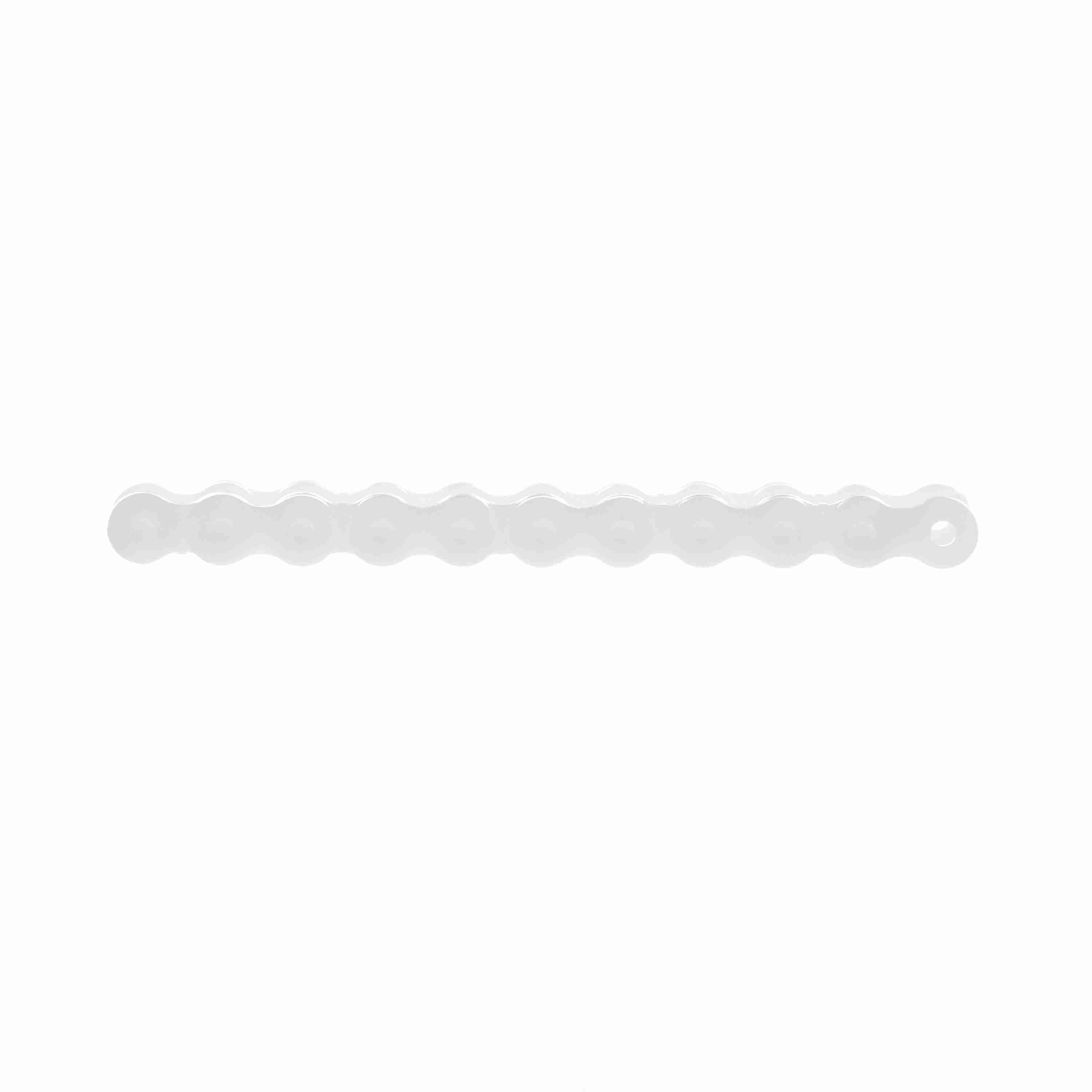

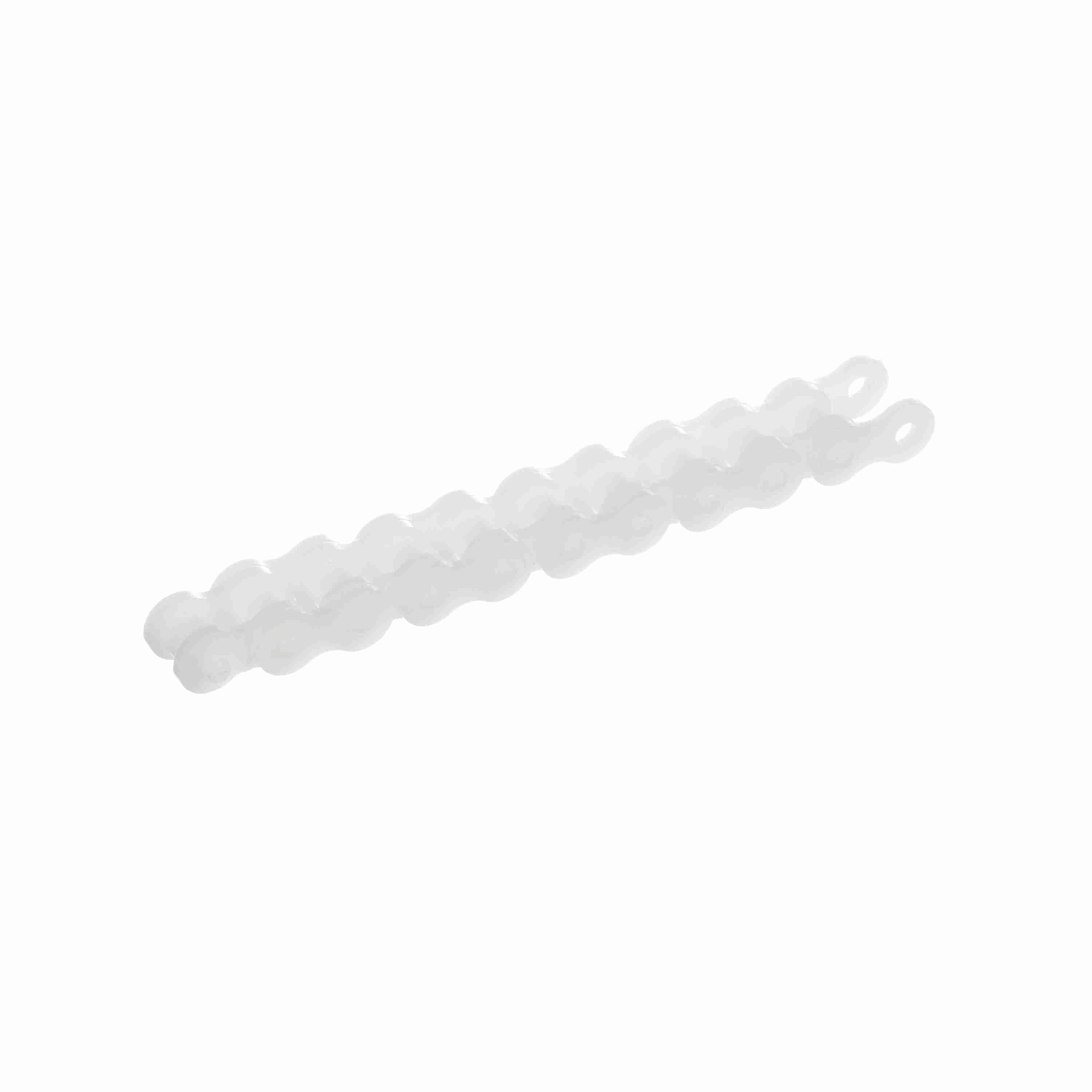

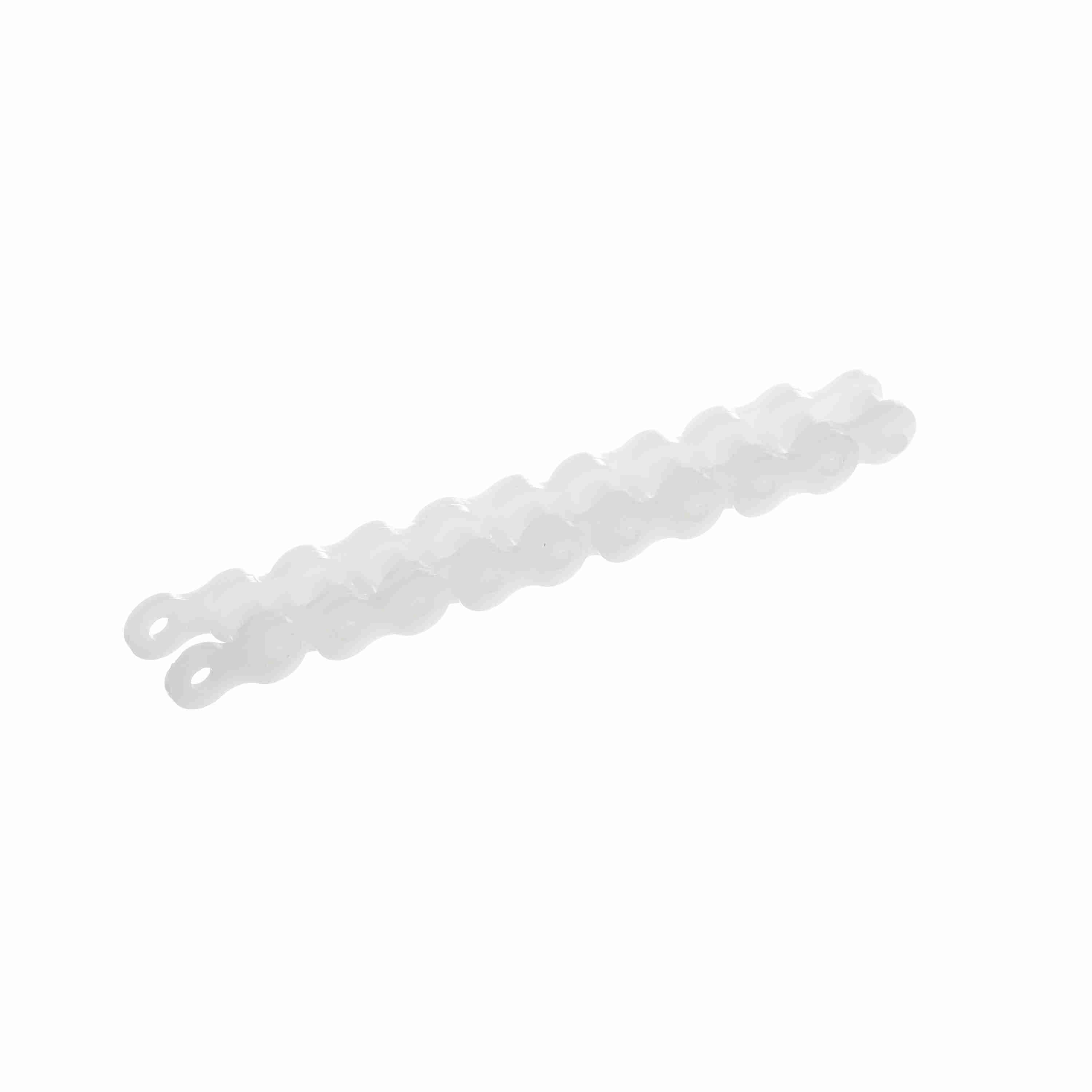

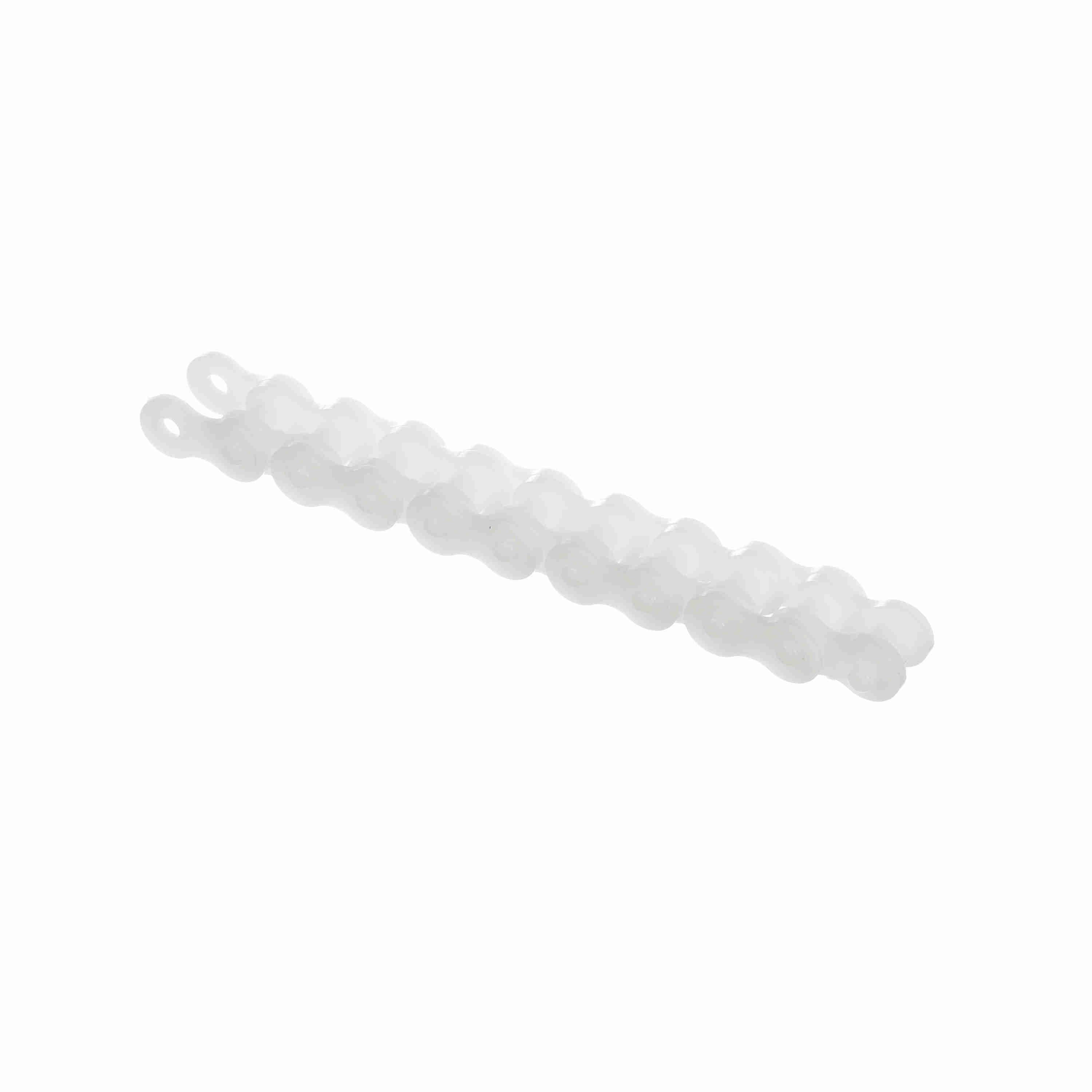

MORSE PLASTIC ROLLER CHAIN-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2362390 |
| Product Name | 40 DELRIN 10 FT |
| Brand | Morse |
| Material | Thermoplastic |
| Weight | 0.1015 lb |
| Package Length | 11.45 in |
| Package Width | 7.9 in |
| Package Height | 1.95 in |
| Number of Strands/Width | 1 |
| Chain Pitch (in) | 0.5 in |
| Roller Width (in) | 0.3125 in |
| Chain Family | 40 |
| Coating |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $136.29 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Uncoated |
| Roller Diameter (in) | 0.3125 in |
| Chain Construction | Snap together |
| Chain Type | Plastic |
| Pin Diameter (in) | 0.156 in |
| Standard Met | ANSI B29.1 |
| Measurement System | Imperial |
| Width Over Pins/Total Width (in) | 0.725 in |
| Minimum Tensile Strength (lbs) | 3,125 lb |
| Pin Length (in) | 0.725 in |
| Plate Thickness (in) | 0.088 in |
| Total Length (ft) | 10 ft |
| Base Catalog No | 40 |
| Inside Plate Height (in) | 0.46 in |
| HTC | 3926.90.6090 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-110142 |
| Part NumberiManufacturer catalog number | 2362390 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662460389677 |
| CategoryiCatalog classification | Roller Chain |
