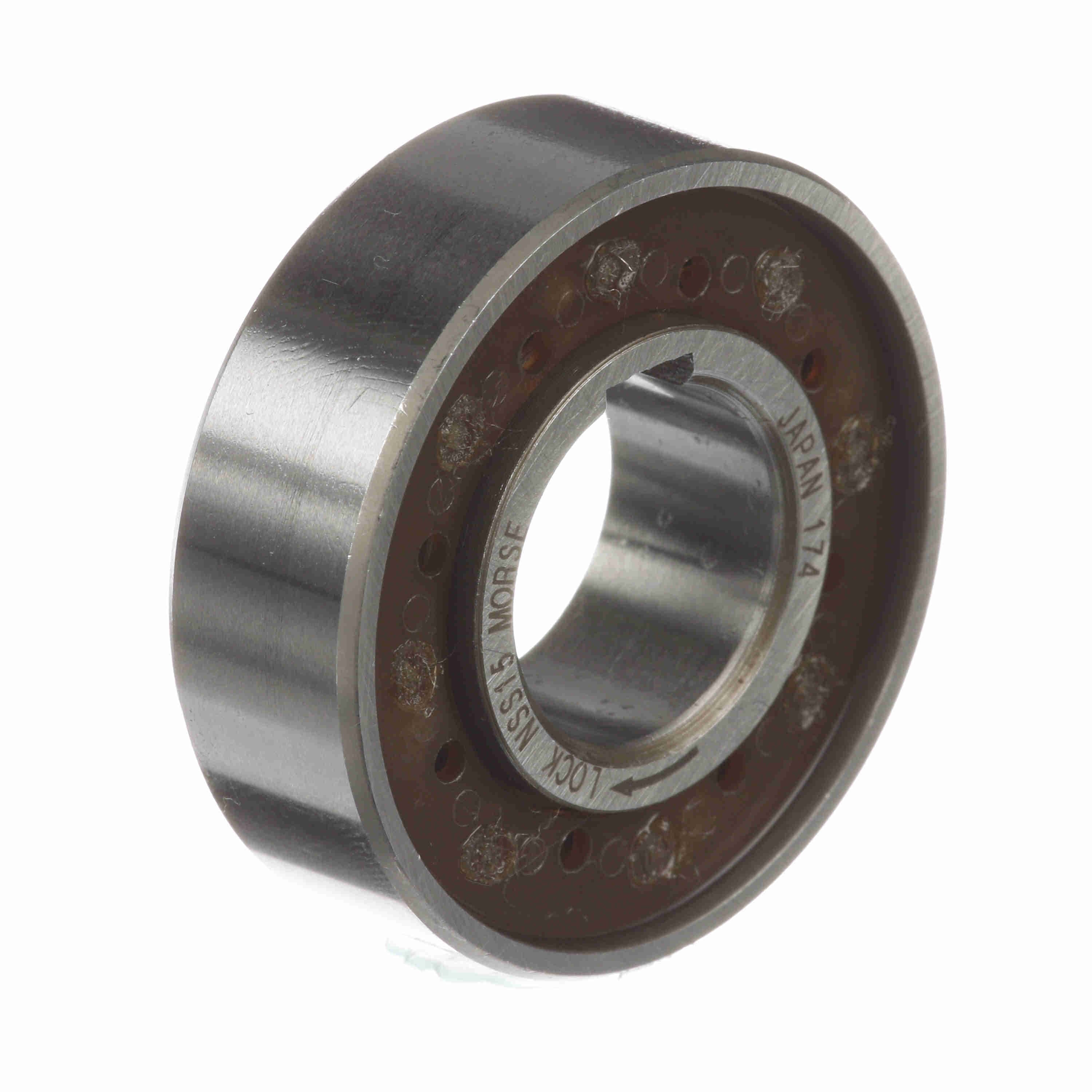

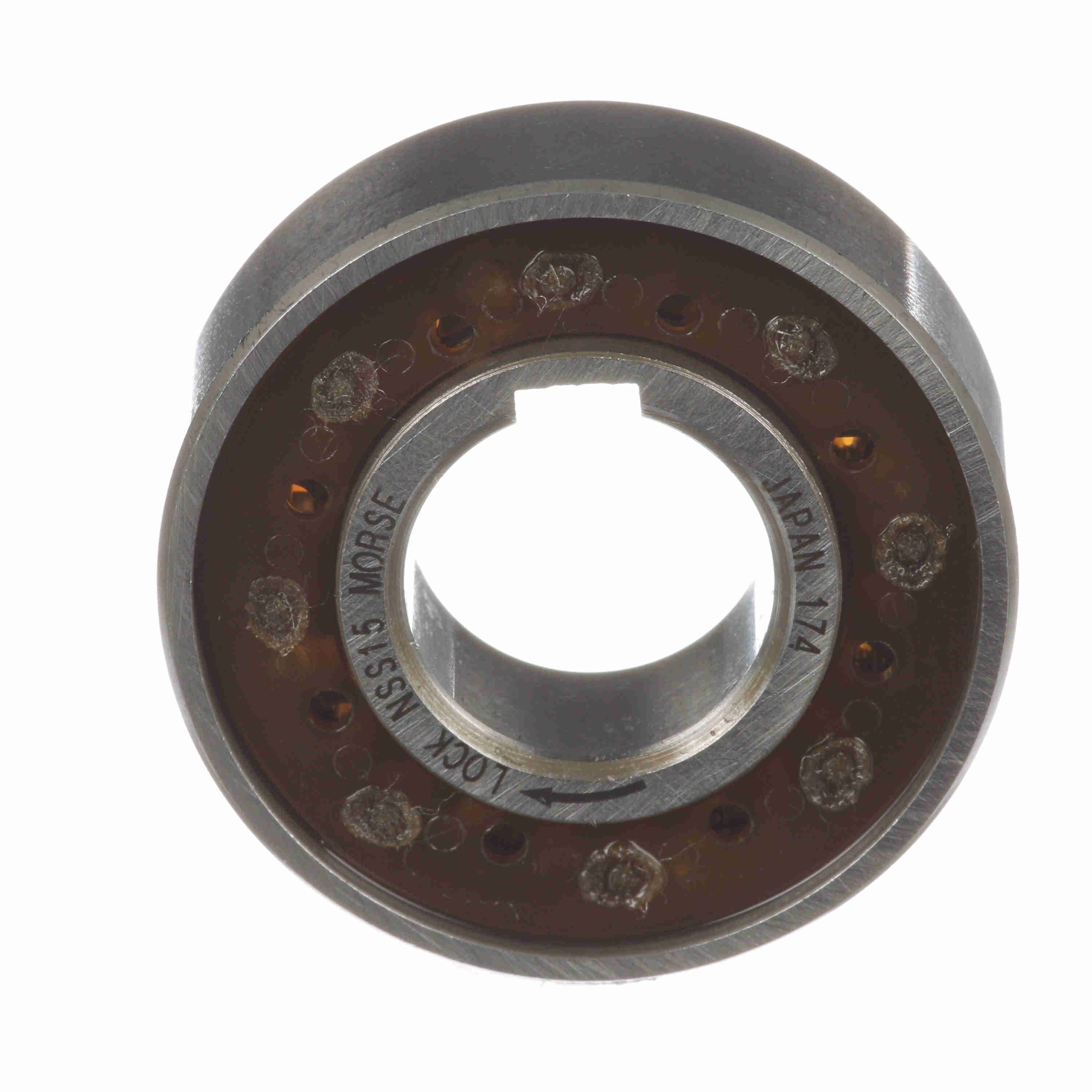

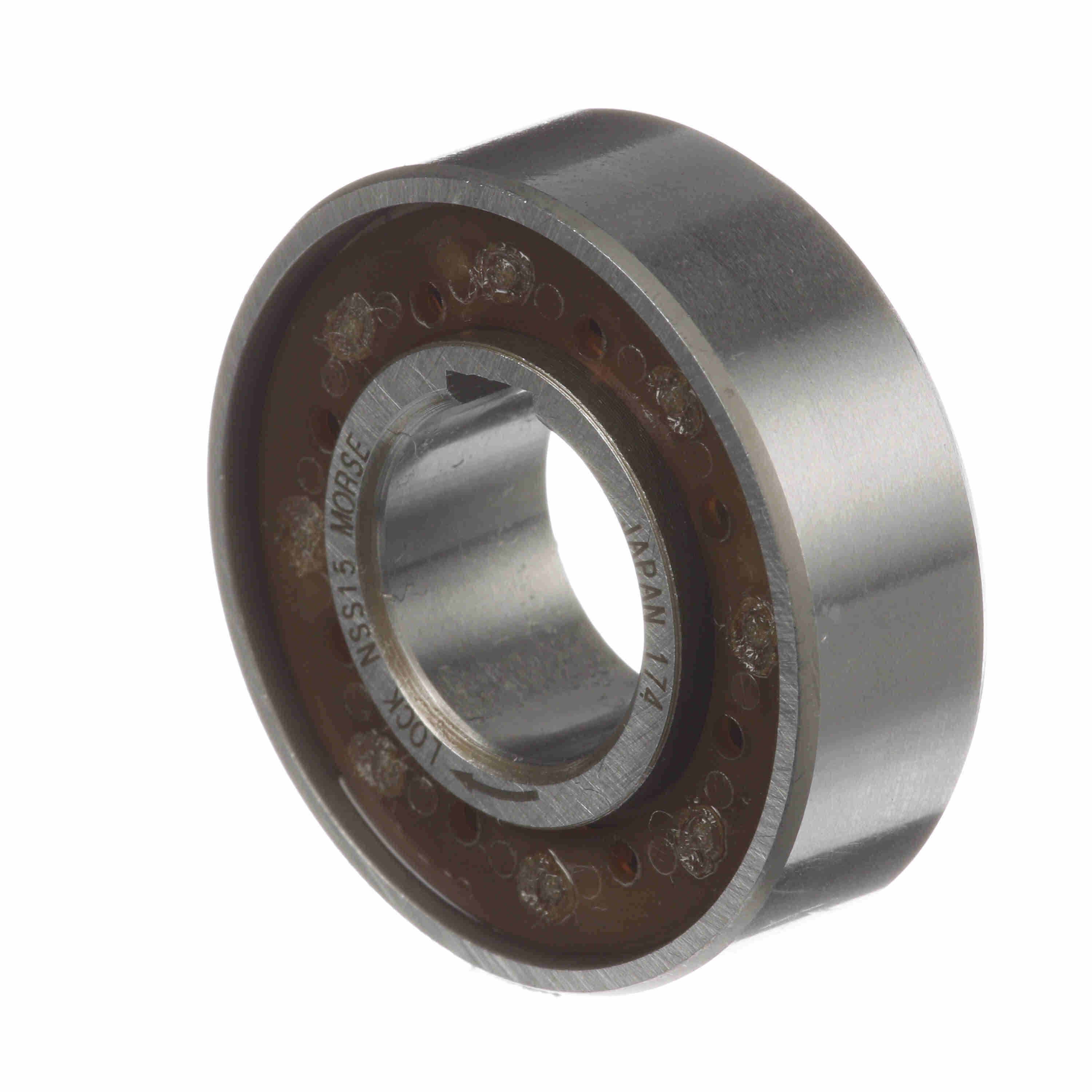

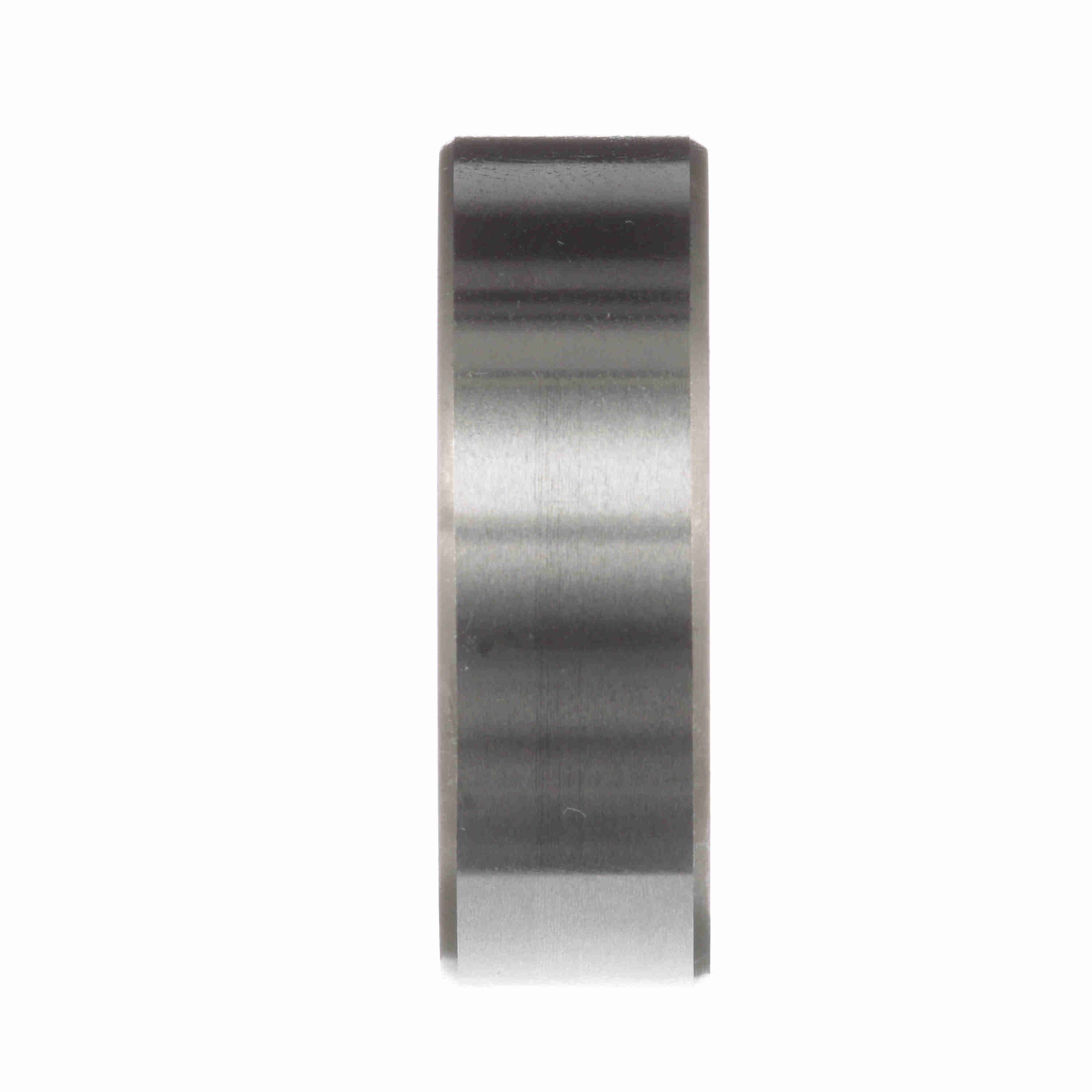

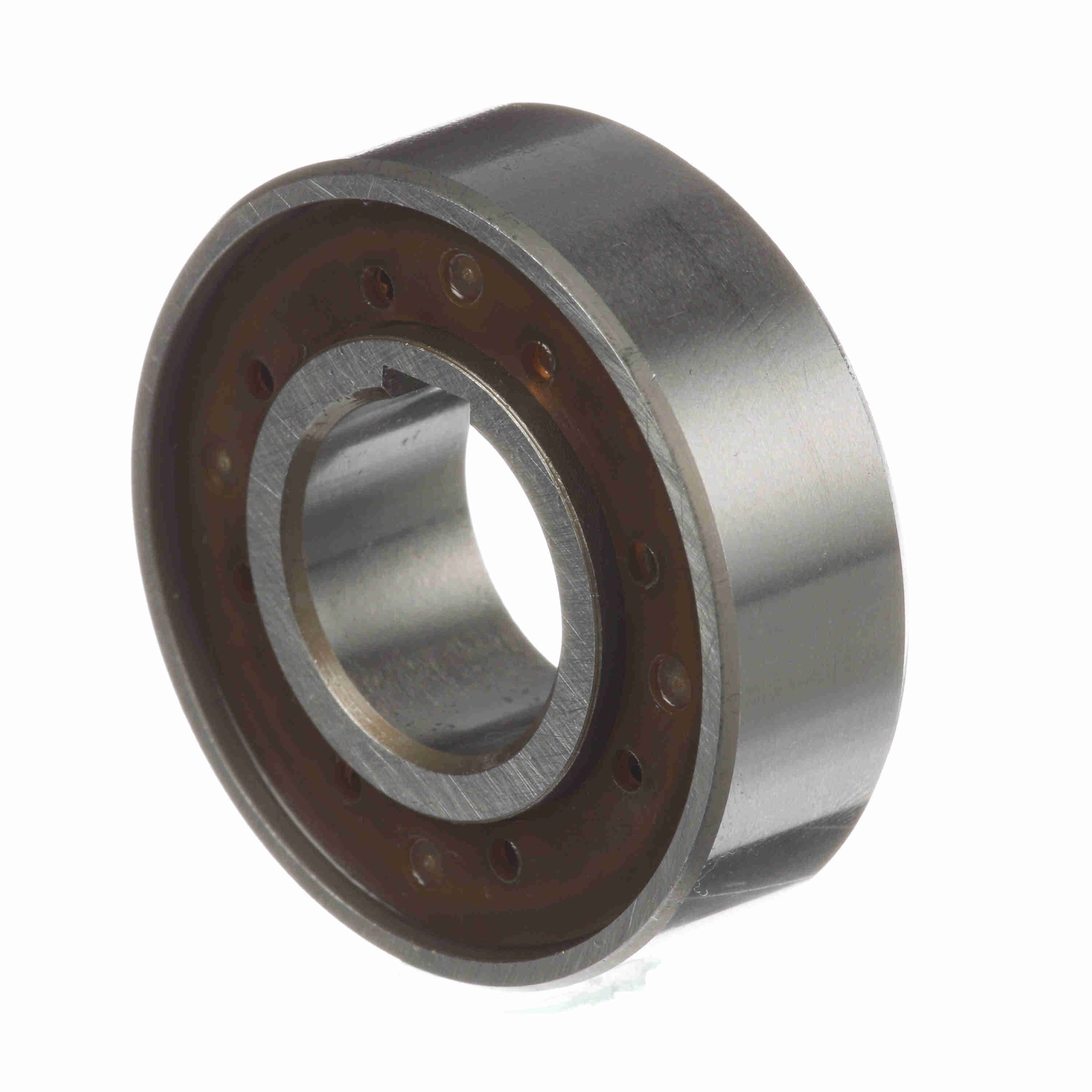

NSS SERIES CLUTCH-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2363224 |
| Product Name | NSS-15 CLUTCH |
| Brand | Morse |
| Weight | 0.55 lb |
| Package Length | 2.6 in |
| Package Width | 2.5 in |
| Package Height | 1.2 in |
| Maximum Overrunning Speed - Inner Race (rpm) | 3,500 |
| Drag Torque (N-m) | .01 |
| Keyway (in) | 0.20 x 0.05 in |
| Drag Torque (lb-in) | .0888 |
| Rated Torque Capacity (N-m) | 22 |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $797.54 | — |
| 10+ | $738.91 | 7% off |
| Lubrication Type |
| The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. |
| Model | NSS 15 |
| Type | CAM Clutches |
| Rated Torque Capacity (ft.-lbs.) | 16.2 |
| Keyway (mm) | 5 x 1.2 mm |
| Maximum Overrunning Speed - Outer Race (rpm) | 1,800 |
| Add'l Bearing Support Requirement | Yes |
| Overrunning Clutch | Yes |
| Product Type | NSS Series |
| Backstopping Clutch | No |
| Bore Size (mm) | 15 mm |
| Bore Size (in) | 0.590549 in |
| Indexing Clutch | Yes |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-110158 |
| Part NumberiManufacturer catalog number | 2363224 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662460387666 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
