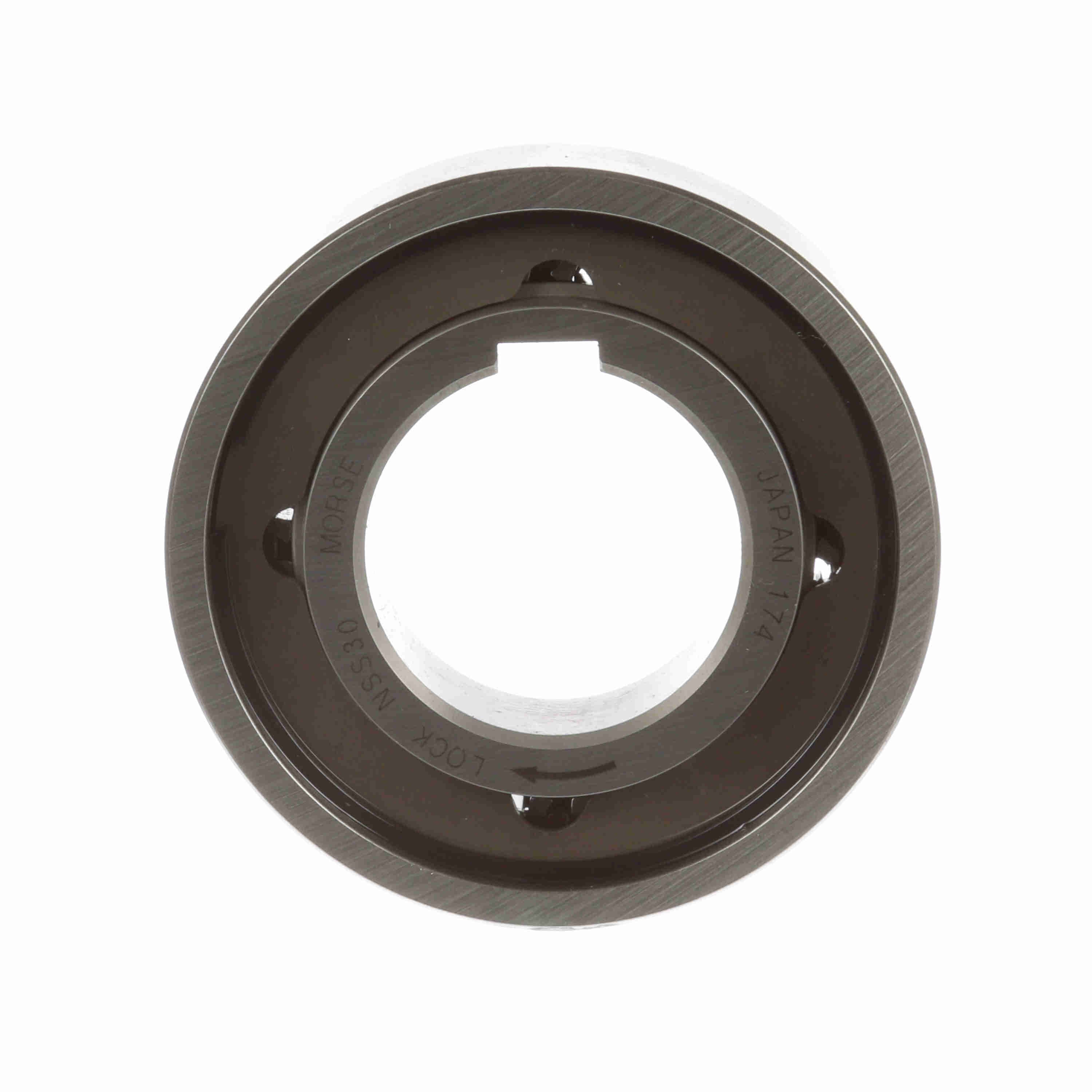

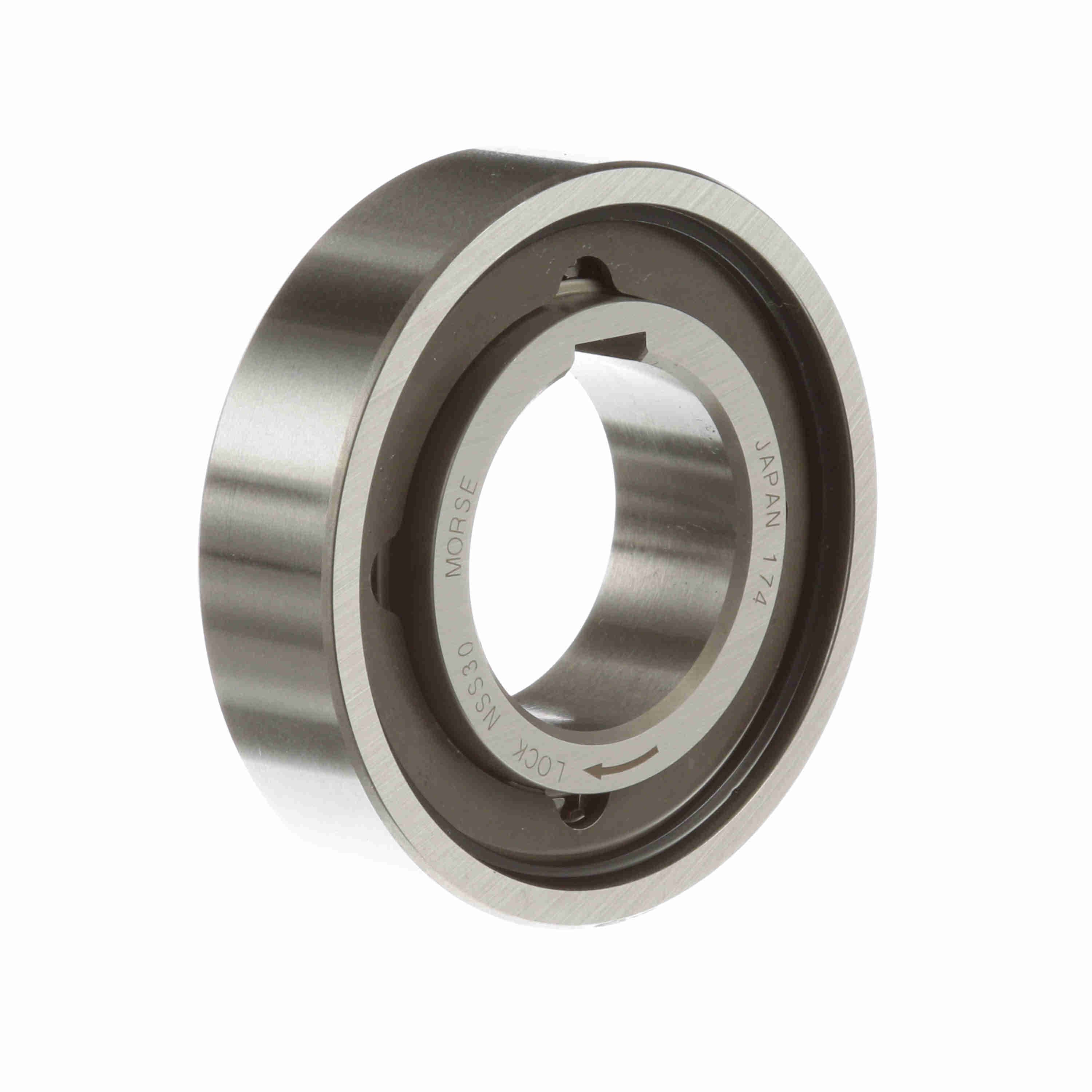

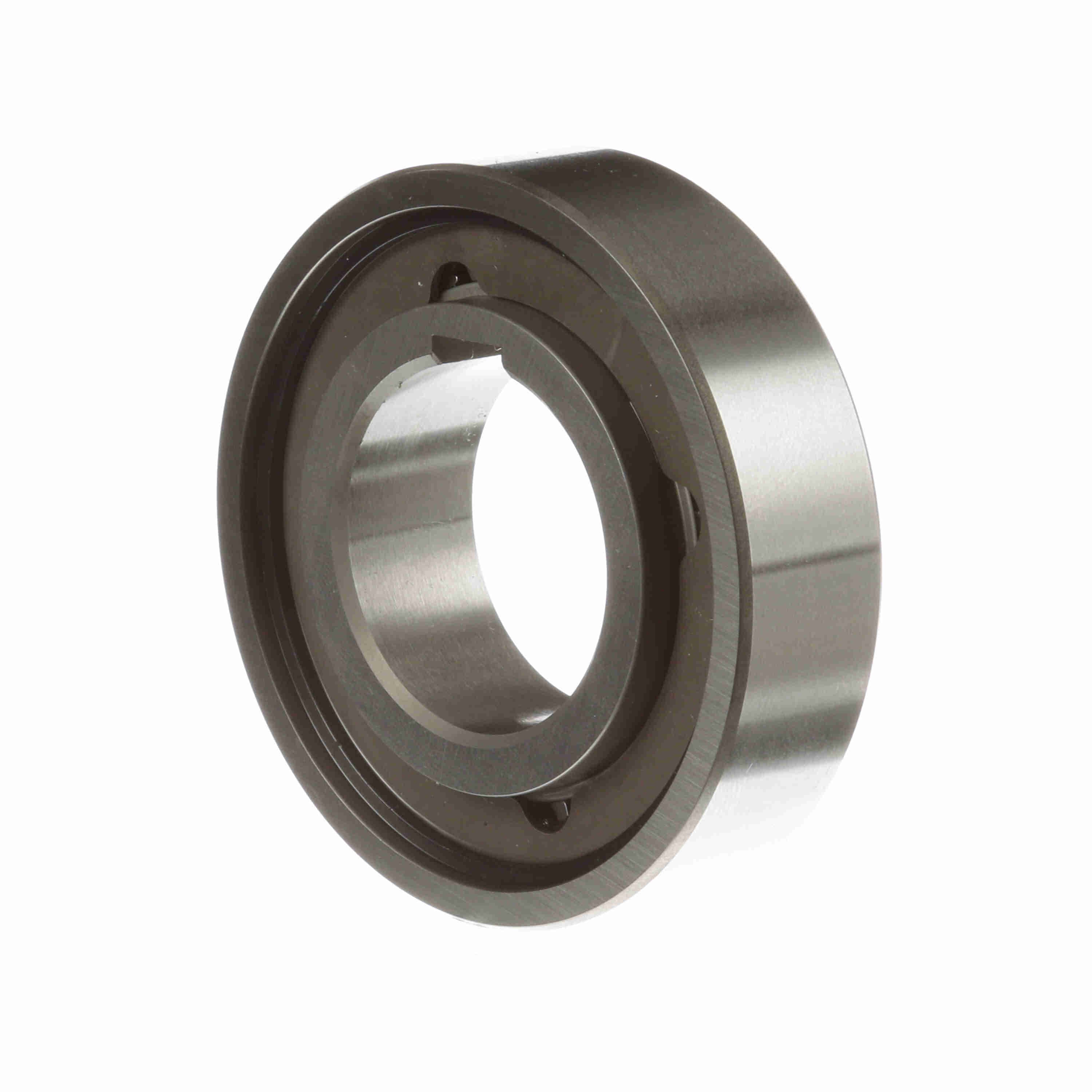

NSS SERIES CLUTCH-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2363257 |
| Product Name | NSS-30 CLUTCH |
| Brand | Morse |
| Weight | 0.495 lb |
| Package Length | 2.6 in |
| Package Width | 2.5 in |
| Package Height | 1.1 in |
| Maximum Overrunning Speed - Outer Race (rpm) | 900 |
| Rated Torque Capacity (N-m) | 105 |
| Keyway (in) | 0.32 x 0.08 in |
| Keyway (mm) | 8 x 2.0 mm |
| Type | CAM Clutches |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $940.96 | — |
| 10+ | $871.79 | 7% off |
| Model |
| NSS 30 |
| Drag Torque (lb-in) | .2652 |
| Lubrication Type | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. |
| Drag Torque (N-m) | .03 |
| Maximum Overrunning Speed - Inner Race (rpm) | 1,800 |
| Rated Torque Capacity (ft.-lbs.) | 77.4 |
| Add'l Bearing Support Requirement | Yes |
| Bore Size (mm) | 30 mm |
| Bore Size (in) | 1.181099 in |
| Product Type | NSS Series |
| Overrunning Clutch | Yes |
| Backstopping Clutch | No |
| Indexing Clutch | Yes |
| RPM Max. -inner Race | 1,800 |
| Overall Diameter (in) | 2.4 in |
| Outer Width (in) | 0.6 in |
| Inner Race Width (in) | 0.6 in |
| Nominal Overrunning Drag (ft-lb) | 0.022 |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-110161 |
| Part NumberiManufacturer catalog number | 2363257 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662460387697 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
