KD1 SERIES
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2434553 |

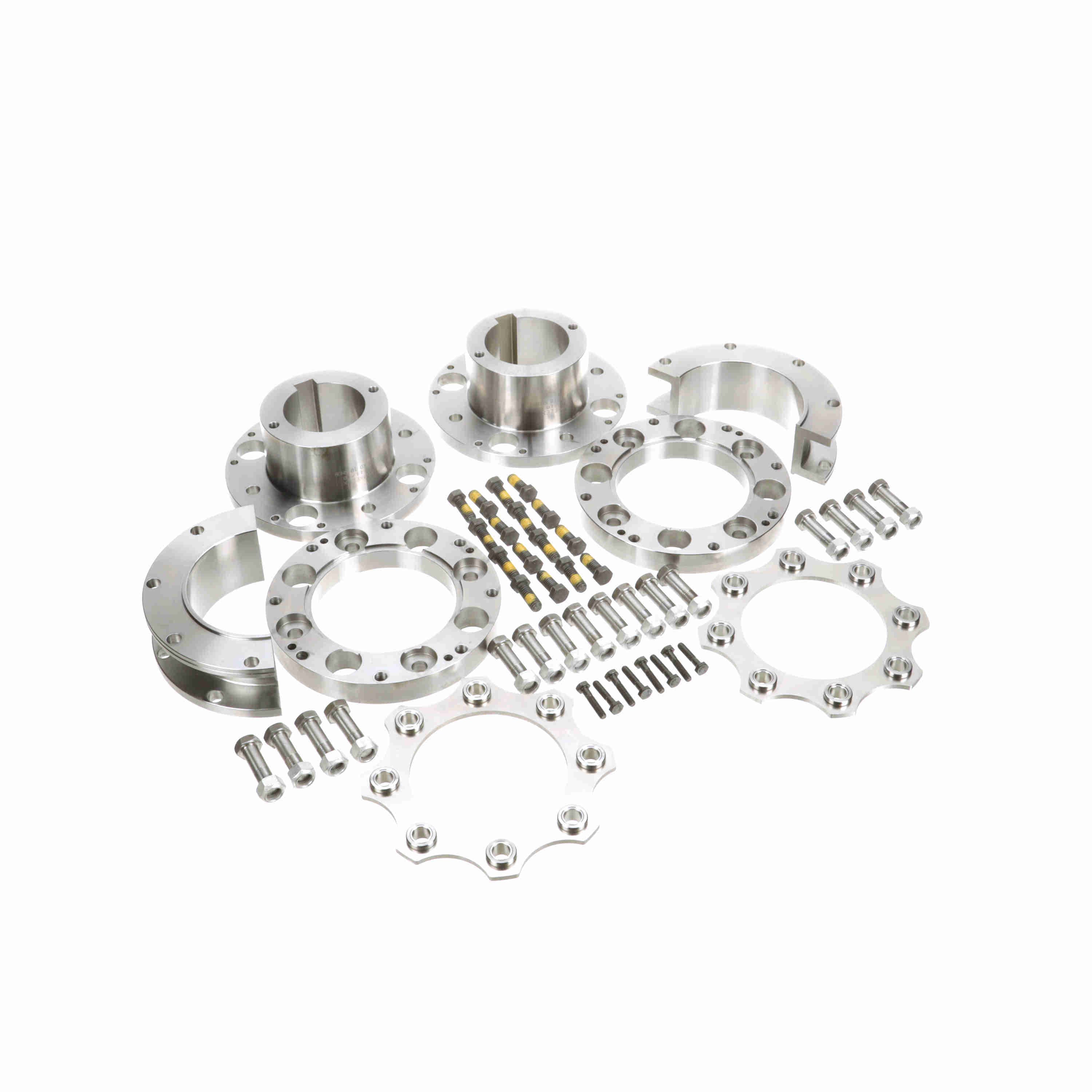

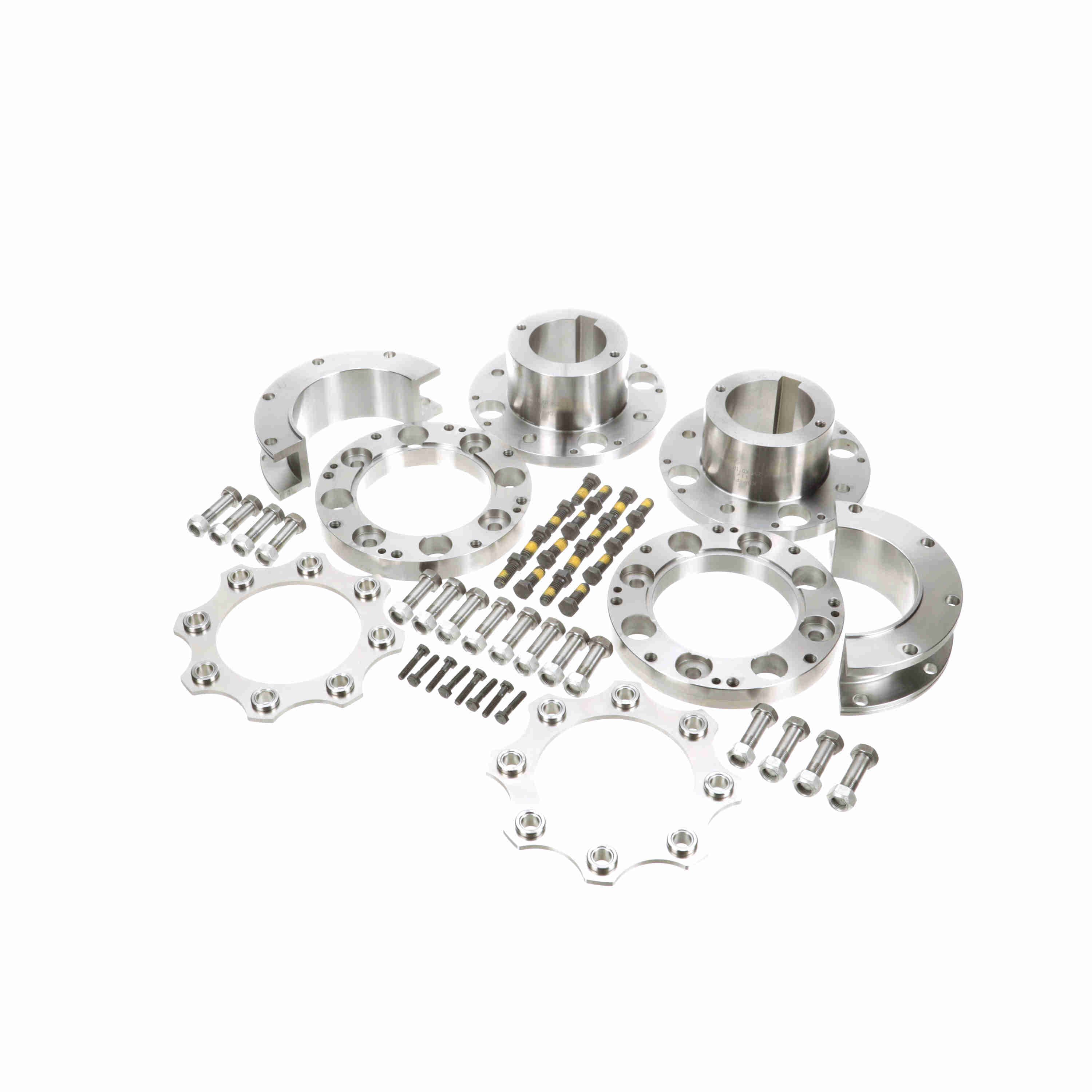

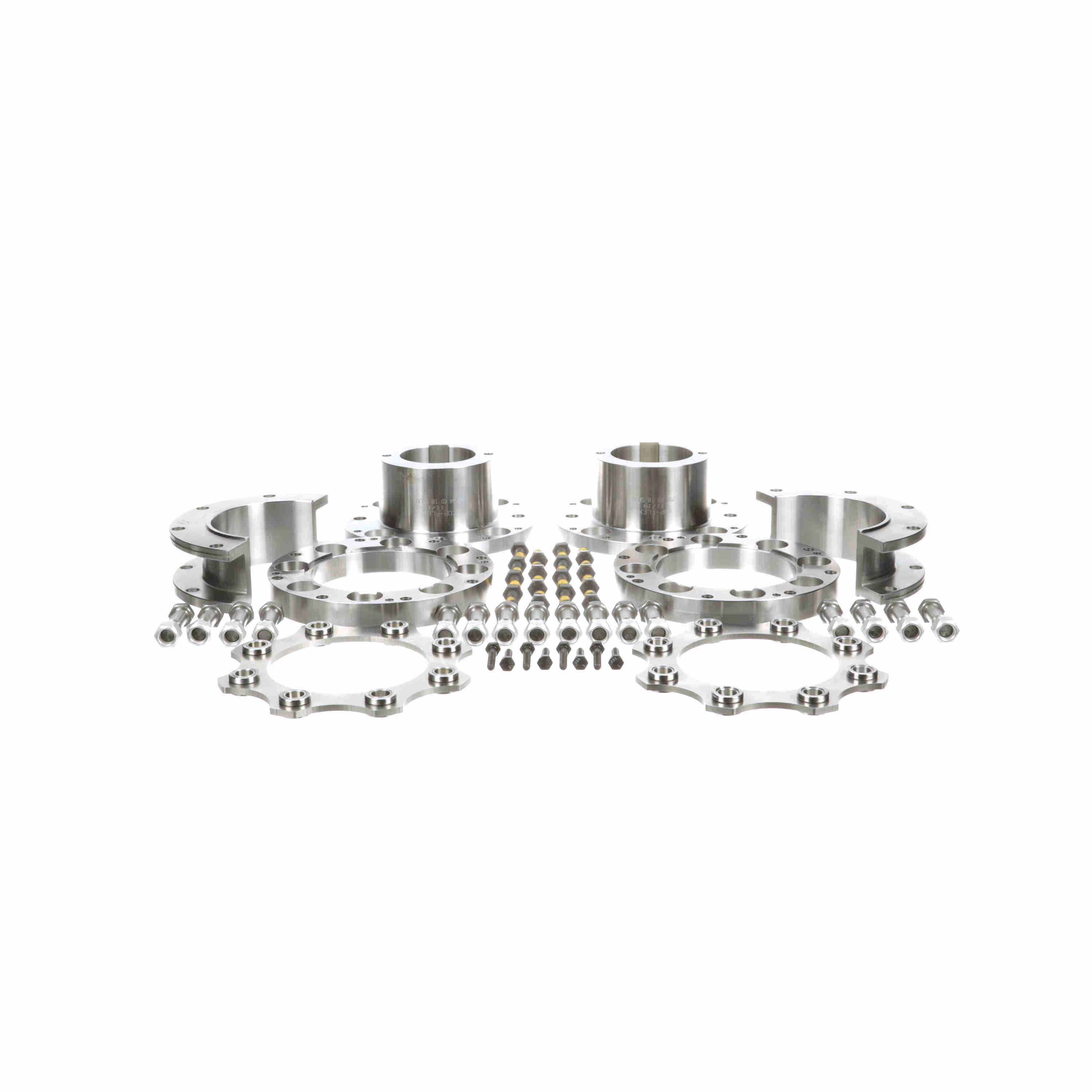

| Product Name | 254 KD 10 SS FB |
| Brand | Kop-Flex |
| Weight | 54.4 lb |
| Axial Capacity (+/-) | 0.14 |
| Bore Size Min (in) | 1 in |
| Bore Type | Finished Bore |
| Configuration | 2 standard hubs |
| Coupling Size | 254 |
| Hub Material | Carbon Steel |
| Length Through Bore standard hub (in) | 3.03 in |
| Outside Diameter (in) | 7.62 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $6716.90 | — |
| Speed Max Balanced (rpm) |
| 5,600 rpm |
| Style | KD10 |
| Torque [Max] (ft-lb) | 8,667 ft/lbs |
| Torque Rating (in-lb) | 52,000 in/lbs |
| Total Length (One Hub Reverse) (in) | 8.72 in |
| Total Length (Std Hub Post) (in) | 6.25 in |
| Total WR2 (lb-in2) | 400 psi |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-110838 |
| Part NumberiManufacturer catalog number | 2434553 |
| BrandiManufacturer or product brand | Kop-Flex |
| UPCiUniversal Product Code | 662384153910 |
| CategoryiCatalog classification | Couplings > Disc Couplings |
