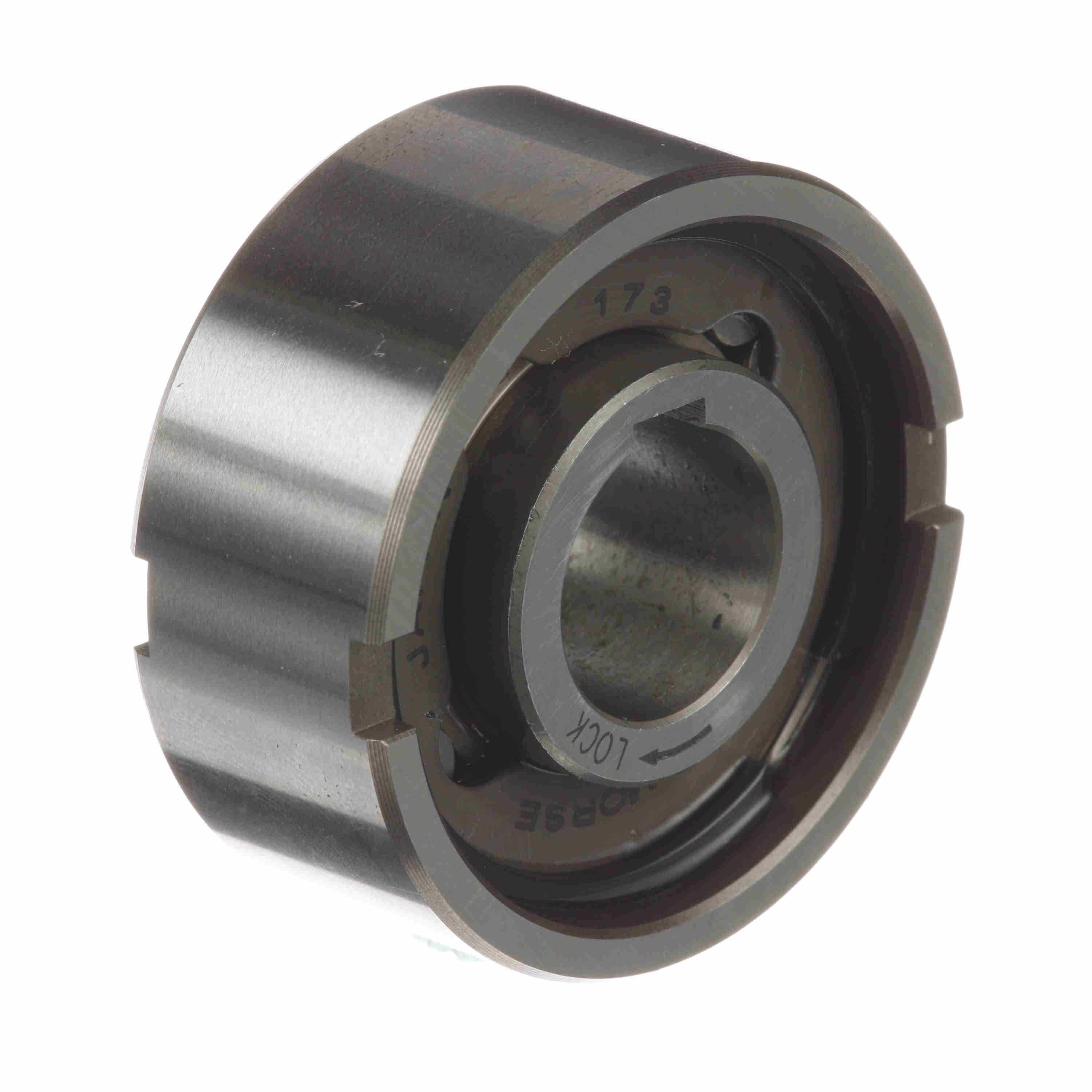

NFS SERIES CLUTCH-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2623486 |
| Product Name | NFS-70 CLUTCH |
| Brand | Morse |
| Weight | 9.7 lb |
| Package Length | 5.91 in |
| Package Width | 2.01 in |
| Package Height | 5.91 in |
| Type | CAM Clutches |
| Drag Torque (N-m) | .91 |
| Maximum Overrunning Speed - Outer Race (rpm) | 380 |
| Keyway (in) | 0.79 x 0.11 in |
| Maximum Overrunning Speed - Inner Race (rpm) | 750 |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $6903.89 | — |
| 10+ | $6396.39 | 7% off |
| Drag Torque (lb-in) | 8.052 |
| Model | NFS 70 |
| Lubrication Type | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. |
| Rated Torque Capacity (N-m) | 2514 |
| Rated Torque Capacity (ft.-lbs.) | 1,854 |
| Keyway (mm) | 20 x 2.7 mm |
| Add'l Bearing Support Requirement | Yes |
| Indexing Clutch | Yes |
| Bore Size (in) | 2.755897 in |
| Overrunning Clutch | Yes |
| Bore Size (mm) | 70 mm |
| Product Type | NFS Series |
| Backstopping Clutch | No |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111007 |
| Part NumberiManufacturer catalog number | 2623486 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288928195 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
