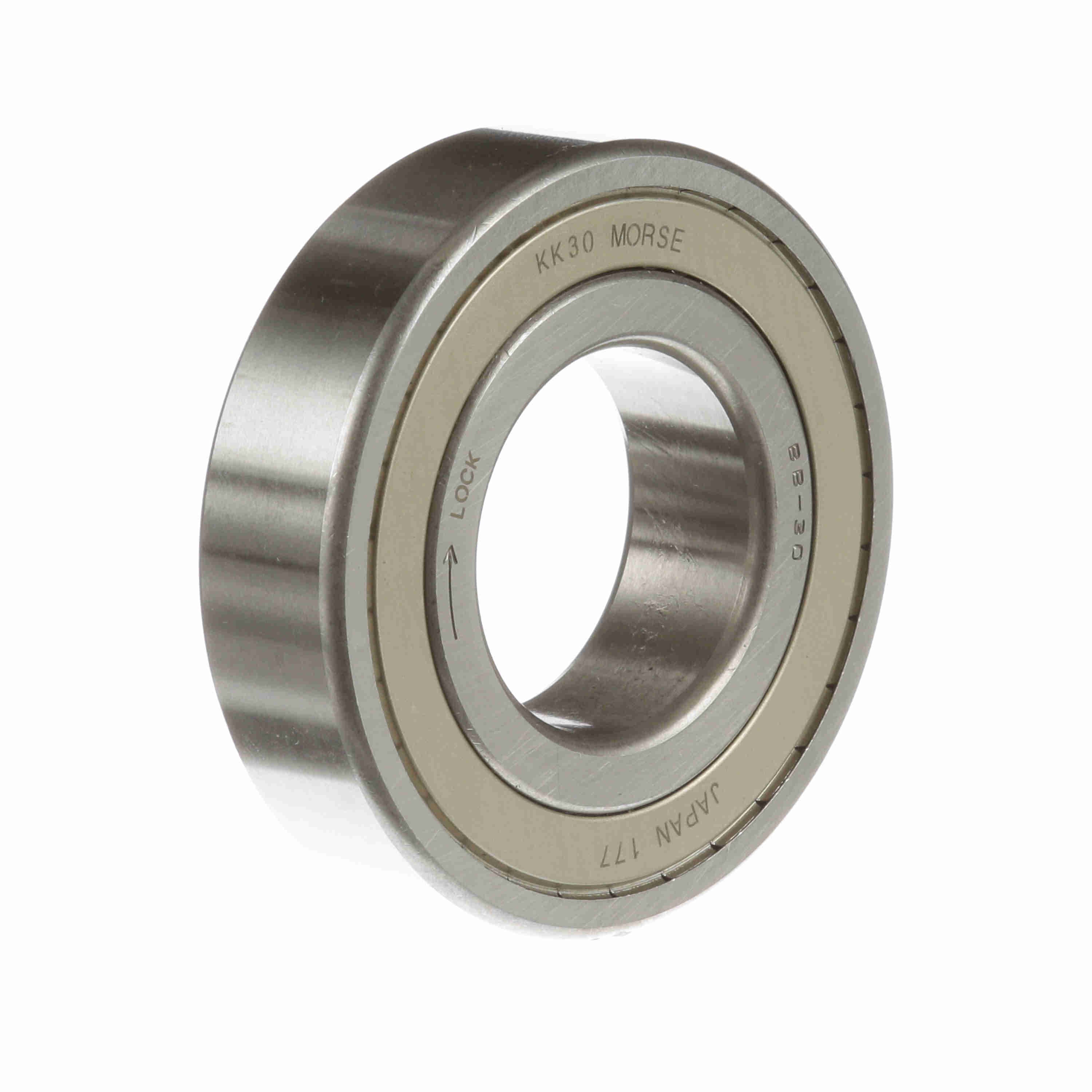

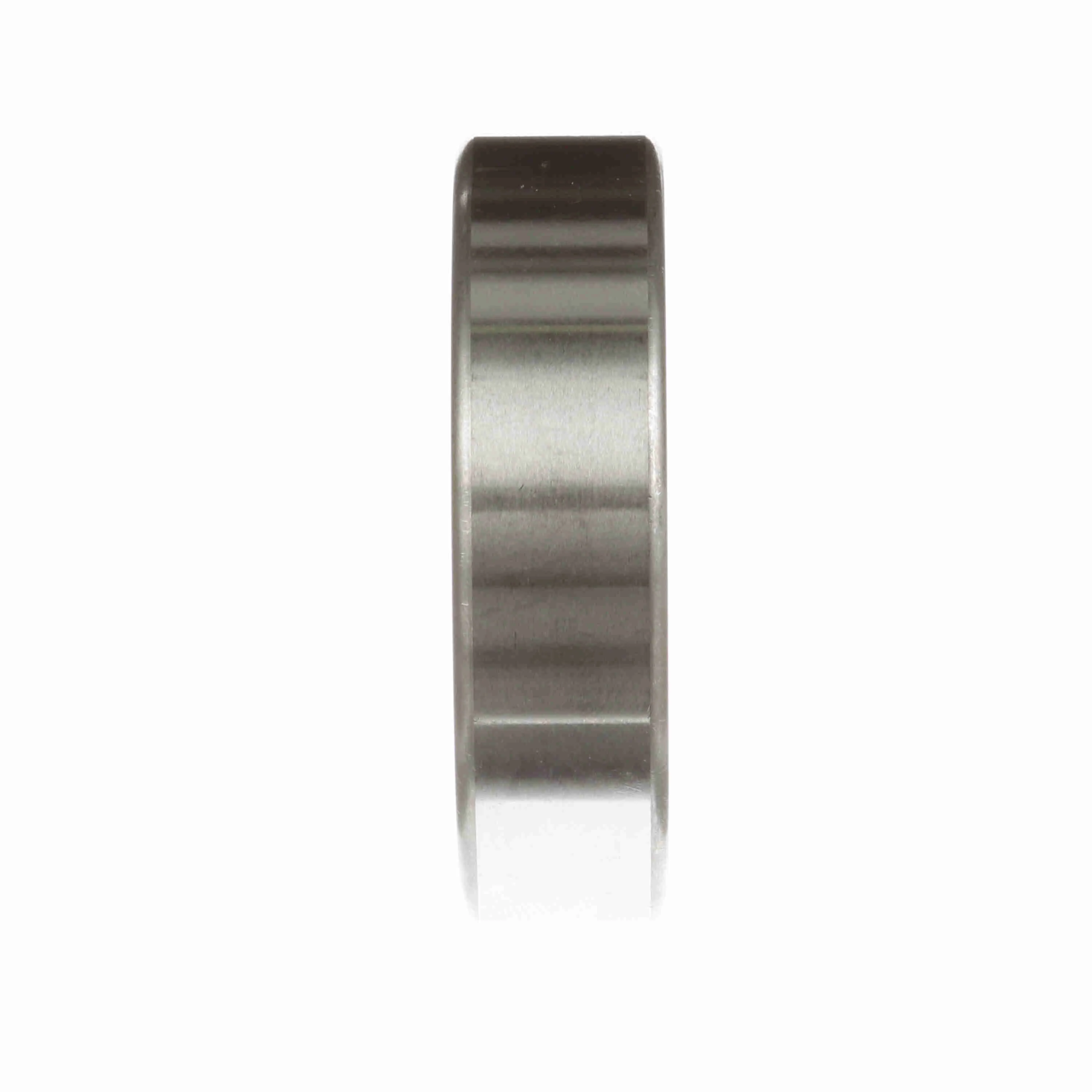

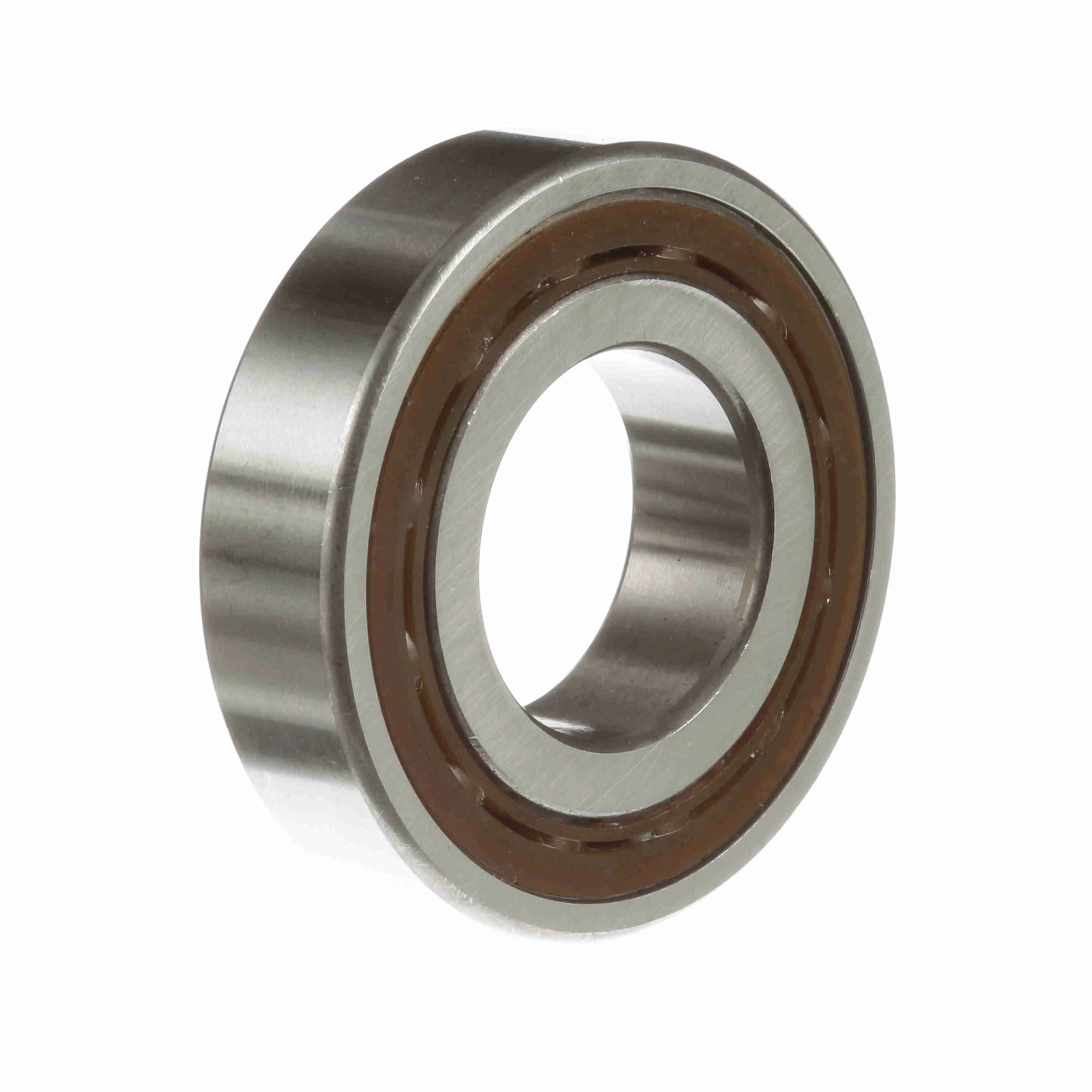

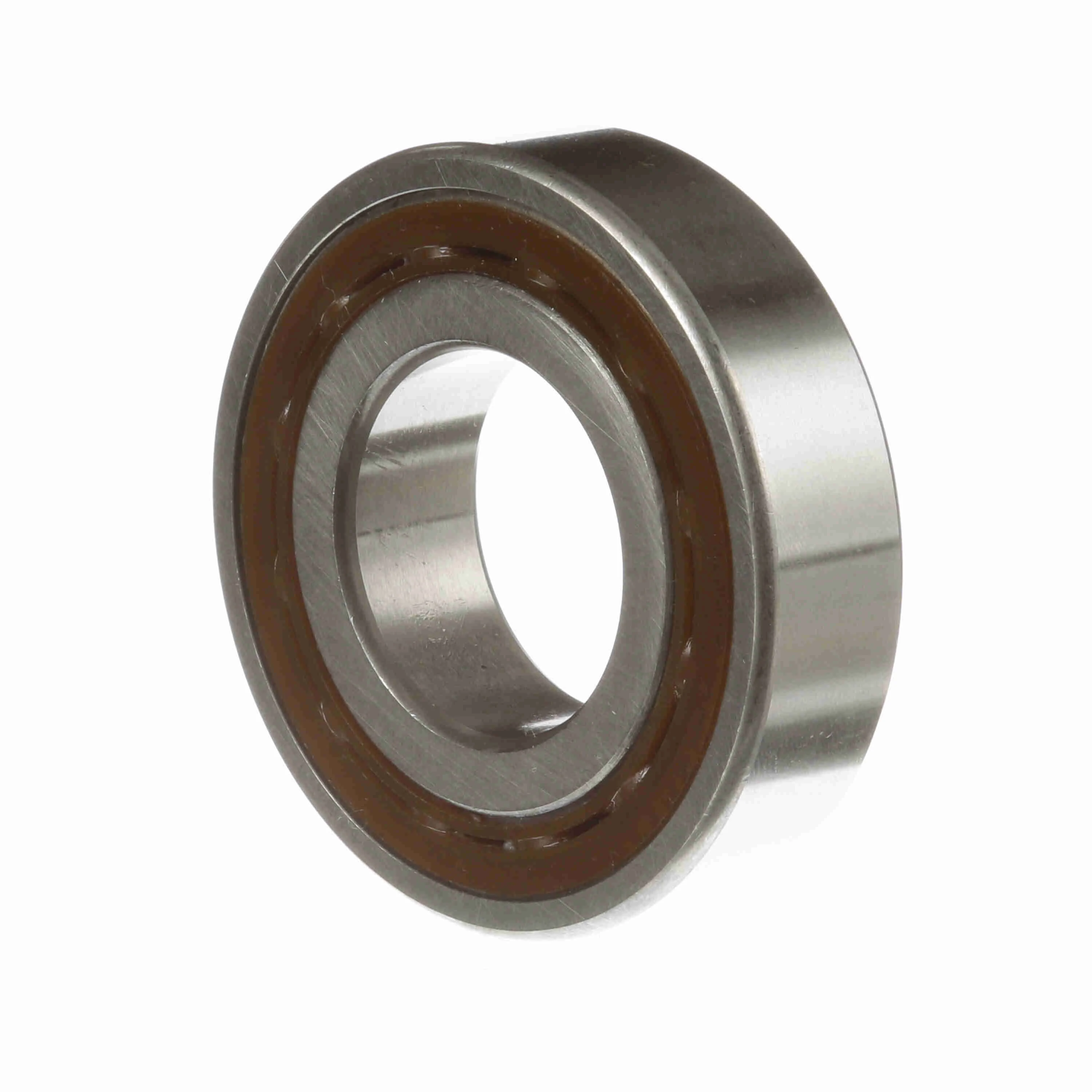

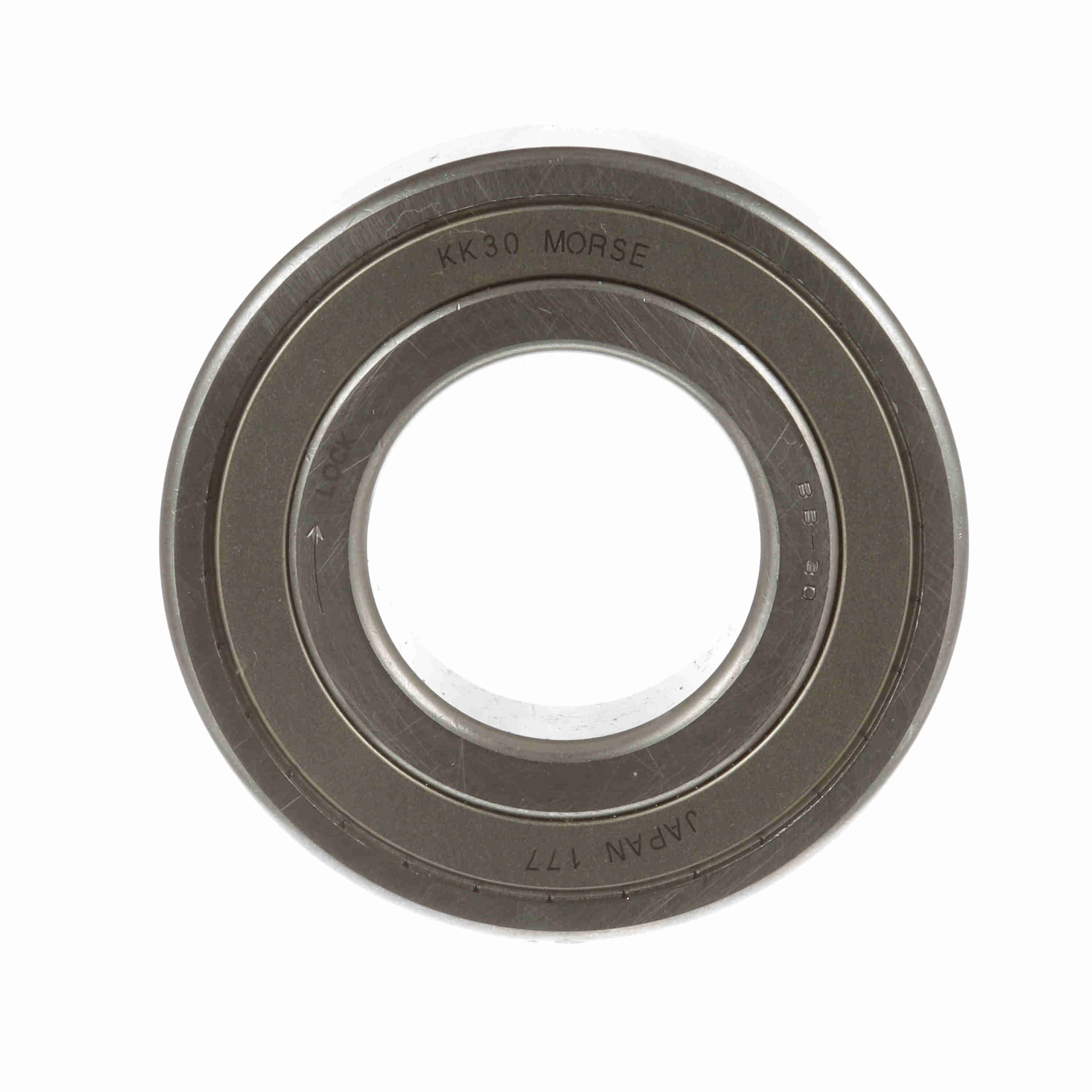

KK CLUTCH-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2657203 |
| Product Name | KK30 |
| Brand | Morse |
| Weight | 0.54 lb |
| Package Length | 3.2 in |
| Package Width | 3.2 in |
| Package Height | 1 in |
| RPM Max. -inner Race | 2,000 |
| Mounting Shaft Diameter | 1.1822/1.1817 |
| Corner Radius | 1 |
| Mounting Housing Diameter | 2.4403/2.4396 |
| Overall Width (in) | 0.63 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $494.98 | — |
| 10+ | $459.30 | 7% off |
| Overall Diameter (in) |
| 2.441 in |
| Dynamic Radial Load Rating (lb) | 2675.2 |
| Lubrication Type | Grease |
| Type | CAM Clutches |
| RPM Max. - Outer Race | 1100 |
| Overall Diameter (mm) | 62 mm |
| Static Radial Load Rating (lb) | 1776 |
| Add'l Bearing Support Requirement | No |
| Backstopping Clutch | Yes |
| Rated Torque Capacity (ft.-lbs.) | 103.3 |
| Indexing Clutch | Yes |
| Product Type | KK Series |
| Bore Size (mm) | 30 mm |
| Overrunning Clutch | Yes |
| Nominal Overrunning Drag (ft-lb) | 0.0221 |
| Inner Race Width (in) | 0.63 in |
| Outer Width (in) | 0.63 in |
| Bore Size (in) | 1.181 in |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111023 |
| Part NumberiManufacturer catalog number | 2657203 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288927495 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
