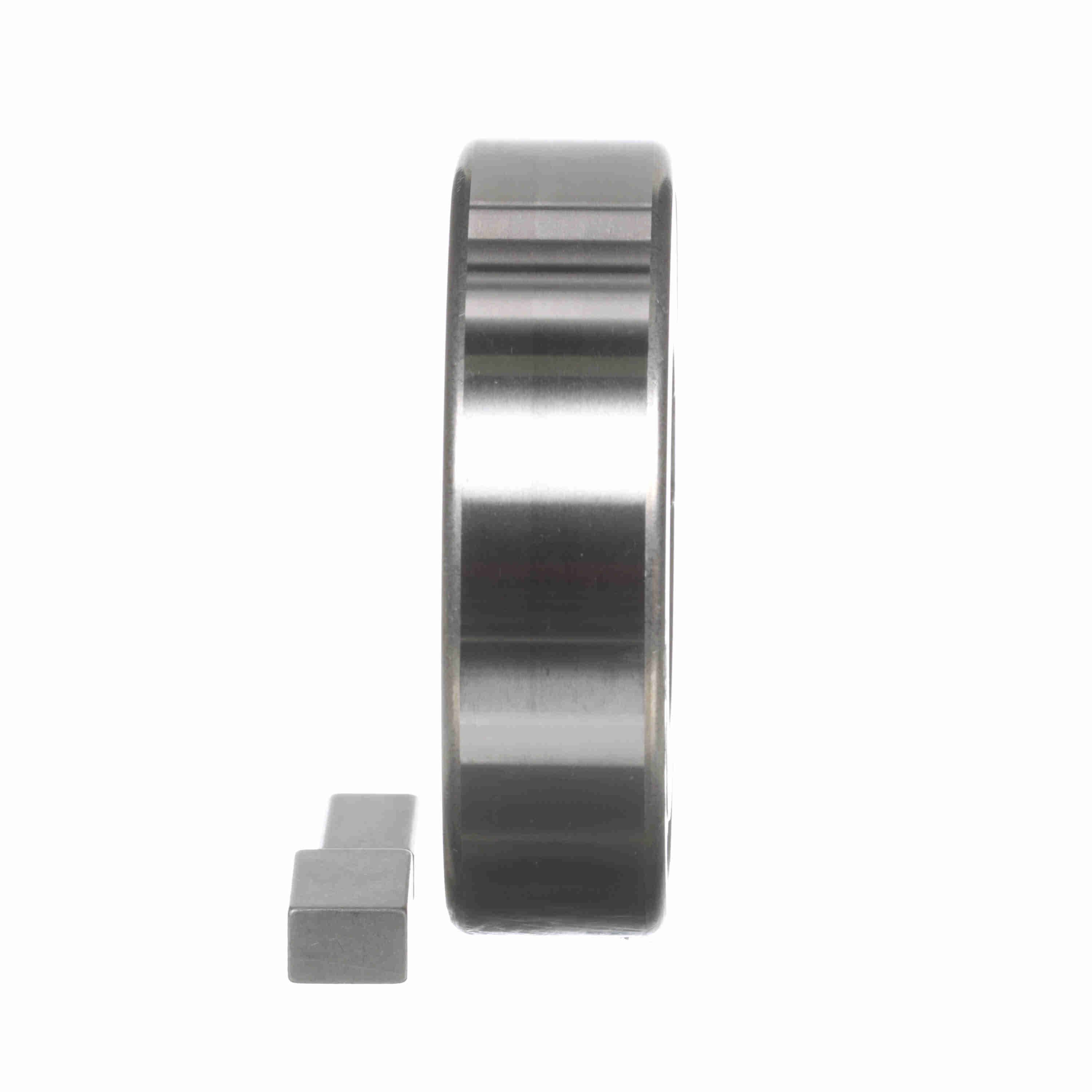

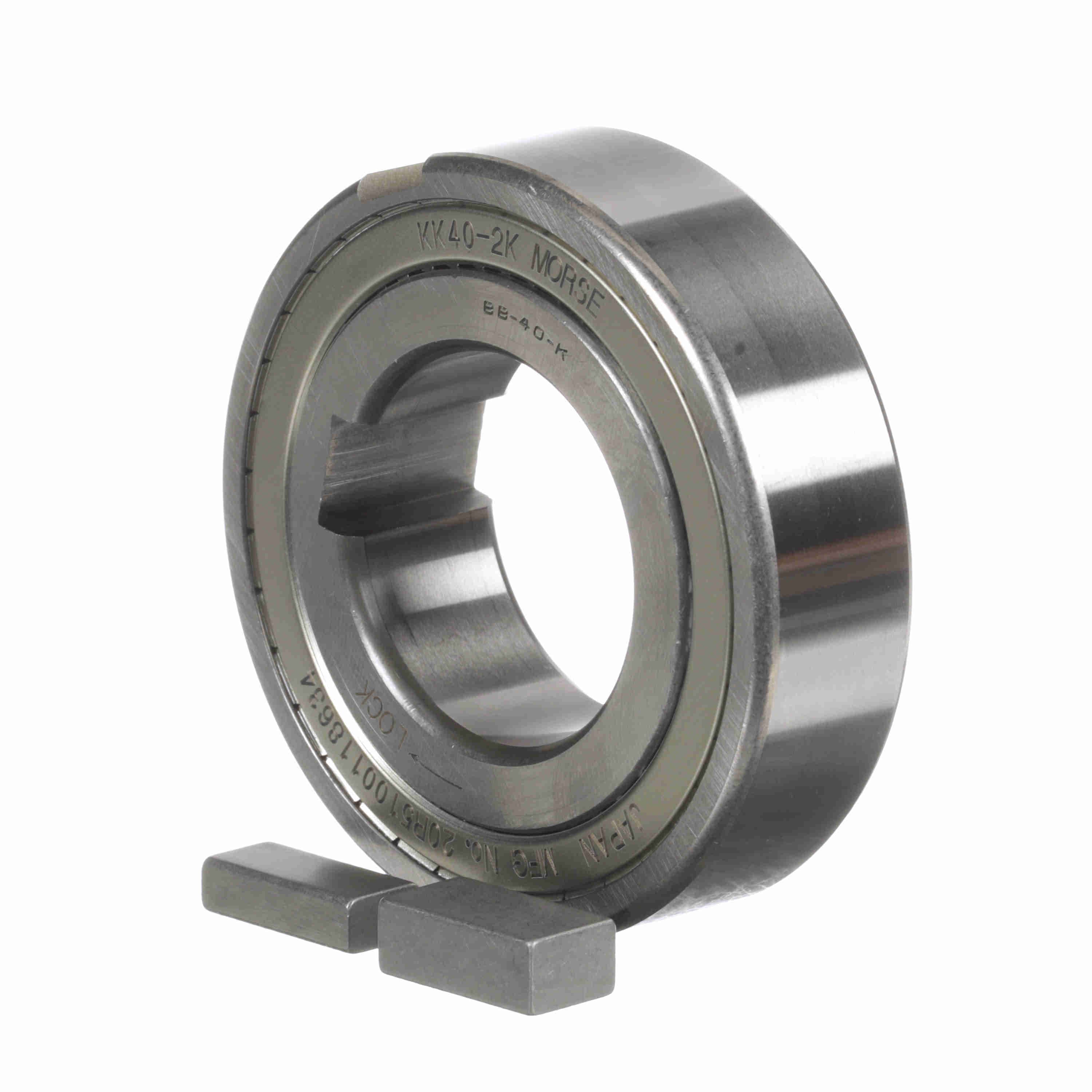

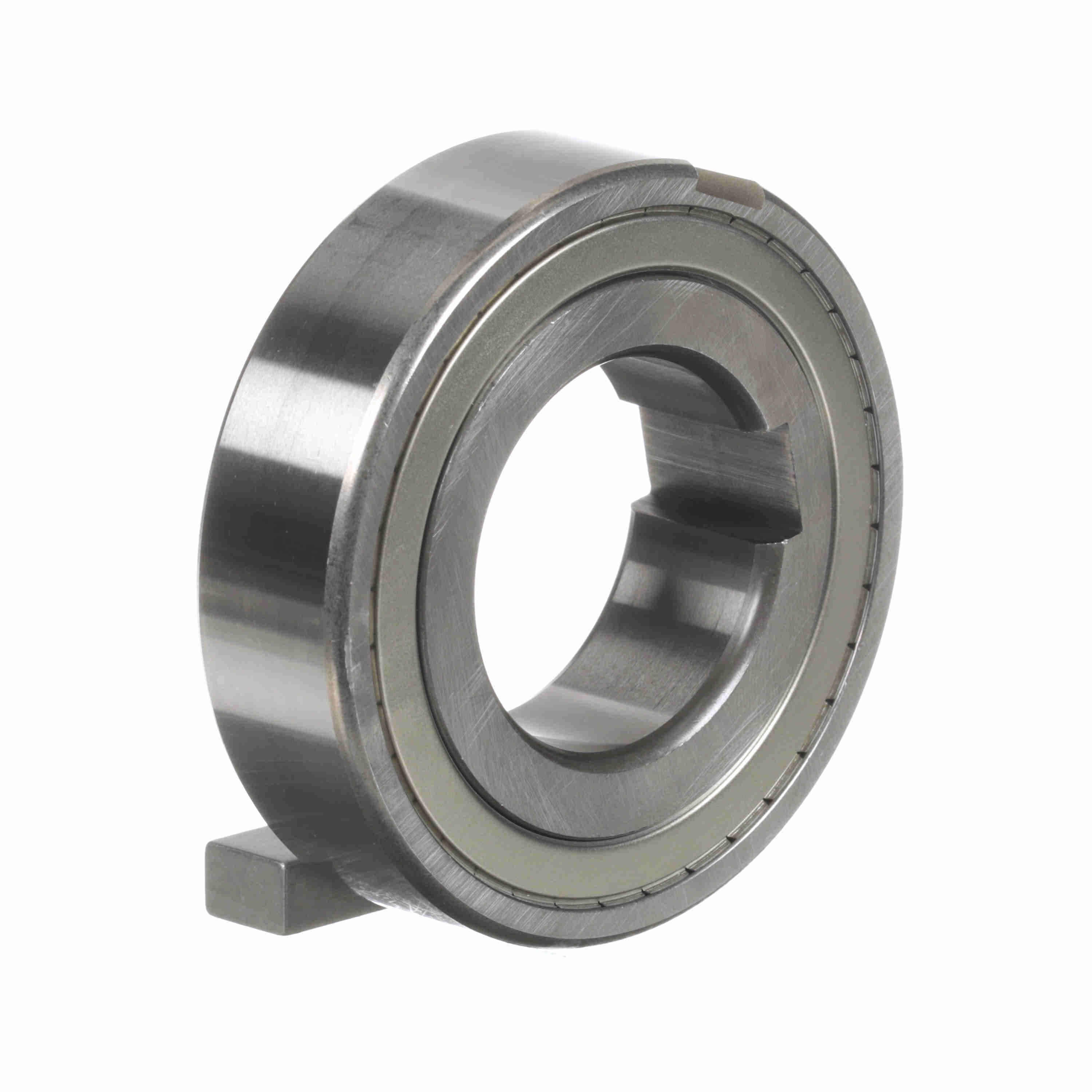

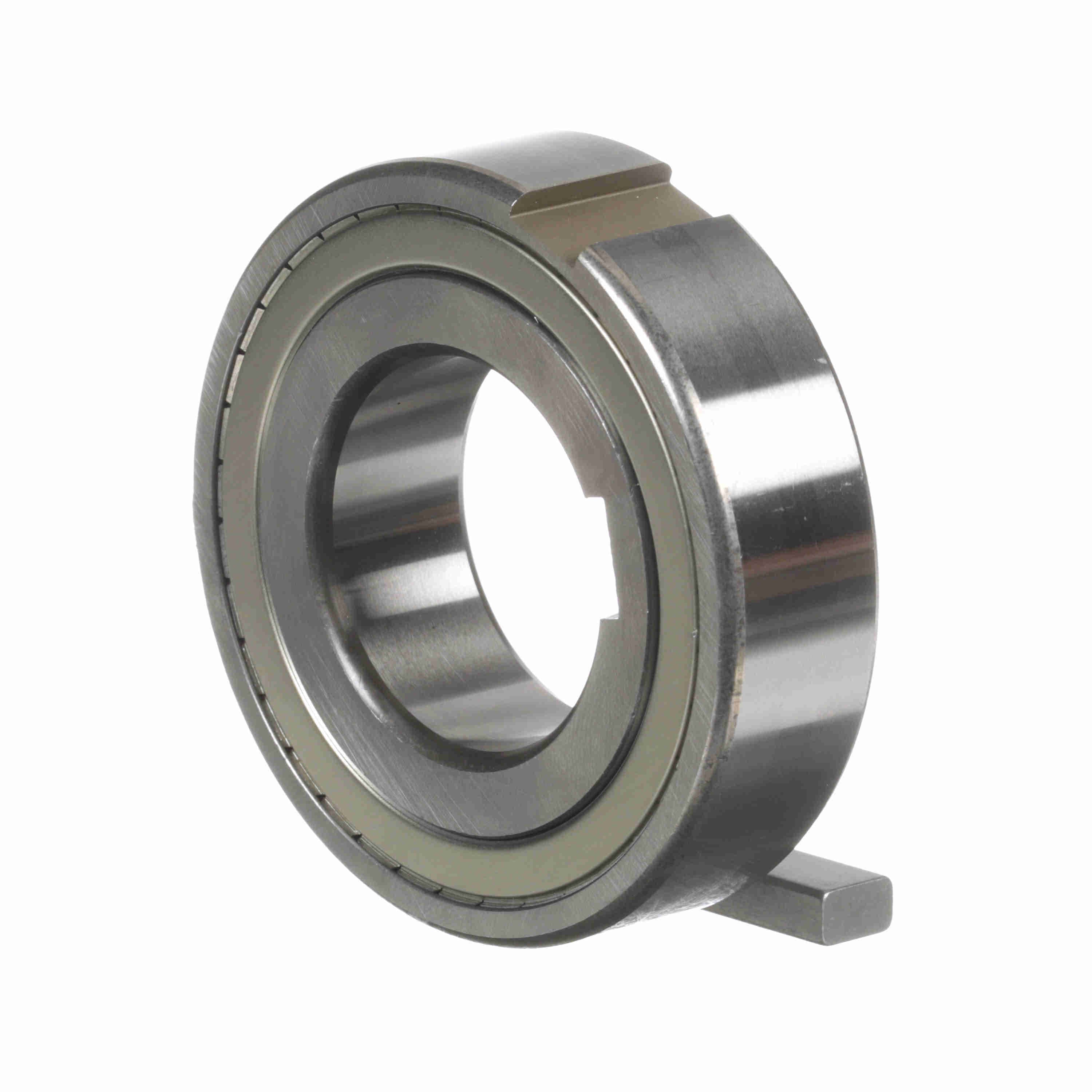

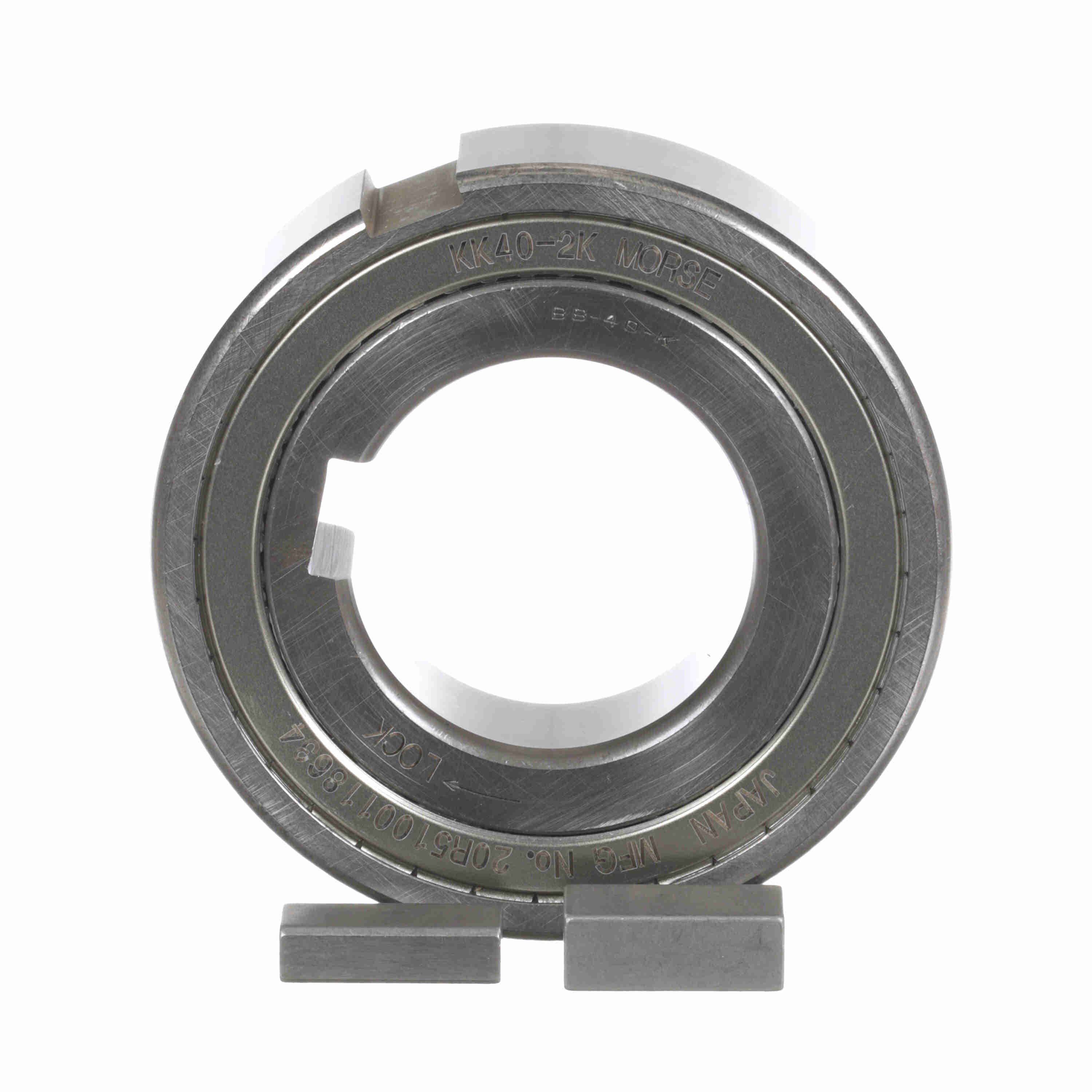

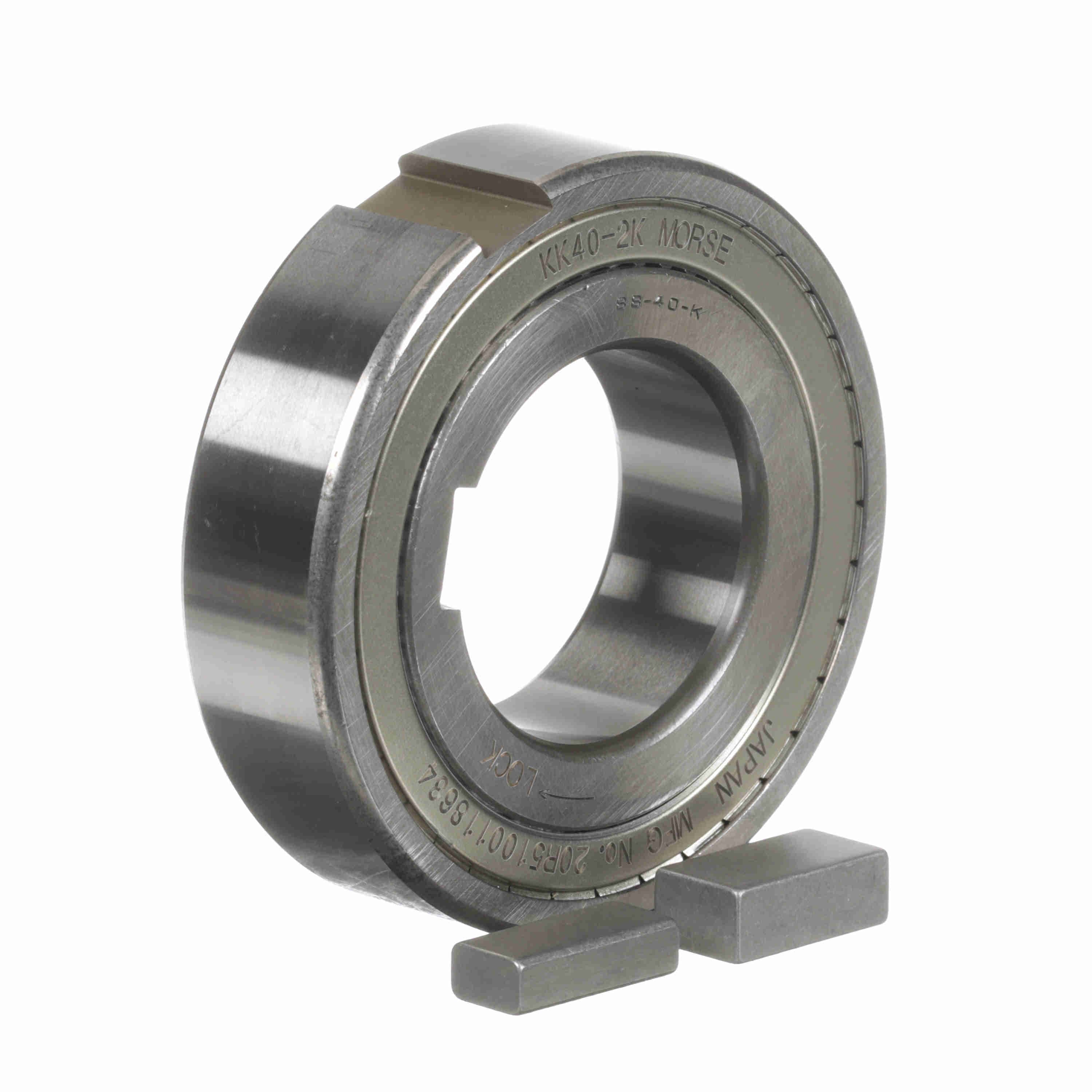

KK CLUTCH-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2657328 |
| Product Name | KK40-2K |
| Brand | Morse |
| Weight | 1.32 lb |
| Overall Width (in) | 0.866 in |
| Dynamic Radial Load Rating (lb) | 3529.7 |
| Static Radial Load Rating (lb) | 2630.3 |
| RPM Max. -inner Race | 1,800 |
| Type | CAM Clutches |
| Mounting Shaft Diameter | 1.5743/1.5733 |
| Overall Diameter (in) | 3.15 in |
| Overall Diameter (mm) | 80 mm |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $923.00 | — |
| 10+ | $856.48 | 7% off |
| RPM Max. - Outer Race | 900 |
| Corner Radius | 1.1 |
| Mounting Housing Diameter | 3.1494/3.1486 |
| Add'l Bearing Support Requirement | No |
| Bore Size (mm) | 40 mm |
| Overrunning Clutch | Yes |
| Product Type | KK Series |
| Rated Torque Capacity (ft.-lbs.) | 191.8 |
| Indexing Clutch | Yes |
| Backstopping Clutch | Yes |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111030 |
| Part NumberiManufacturer catalog number | 2657328 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288927600 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
