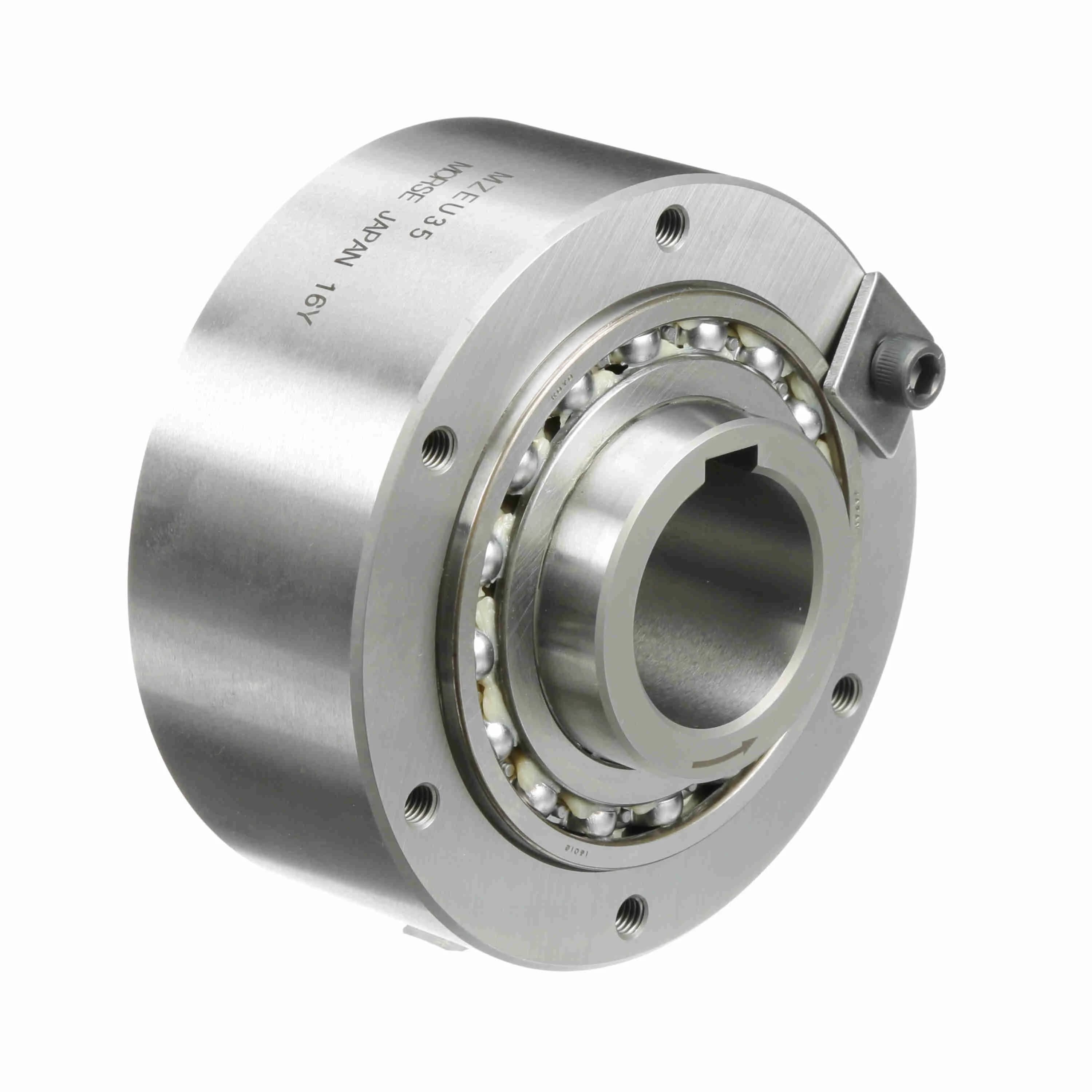

MZEU CLUTCHES-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2663052 |
| Product Name | MZEU35-CLUTCH |
| Brand | Morse |
| Weight | 7.07 lb |
| Package Length | 5.1 in |
| Package Width | 5 in |
| Package Height | 4.5 in |
| Rated Torque Capacity (N-m) | 1015 |
| Drag Torque (lb-ft) | 0.361405 |
| Keyway | 10 X 3.3 |
| Rated Torque Capacity (ft.-lbs.) | 748.6244 |
| Type | CAM Clutches |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $6062.92 | — |
| 10+ | $5617.24 | 7% off |
| Bore Size Tolerances (mm) |
| +0.025/-0.000 mm |
| Bore Size Tolerances (in) | +0.0010/-0.0000 in |
| Drag Torque (N-m) | 0.49 |
| Model | MZEU 35 |
| Add'l Bearing Support Requirement | No |
| Maximum Overrunning Speed - Outer Race (rpm) | 300 |
| Bore Size (mm) | 35 mm |
| Bore Size (in) | 1.377949 in |
| Maximum Overrunning Speed - Inner Race (rpm) | 1,400 |
| Backstopping Clutch | Yes |
| Overrunning Clutch | Yes |
| Indexing Clutch | No |
| Product Type | MZEU Series |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111037 |
| Part NumberiManufacturer catalog number | 2663052 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288930112 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
