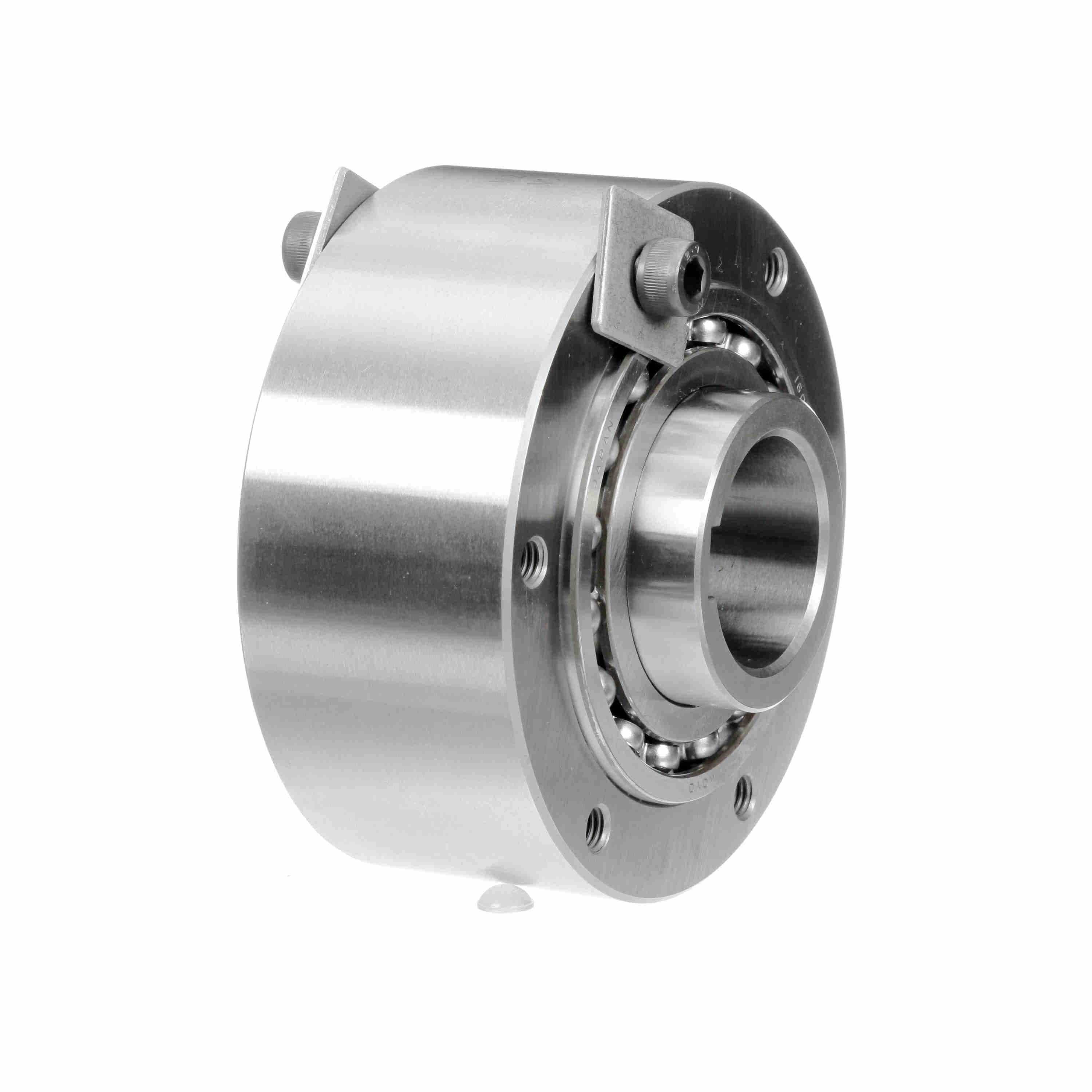

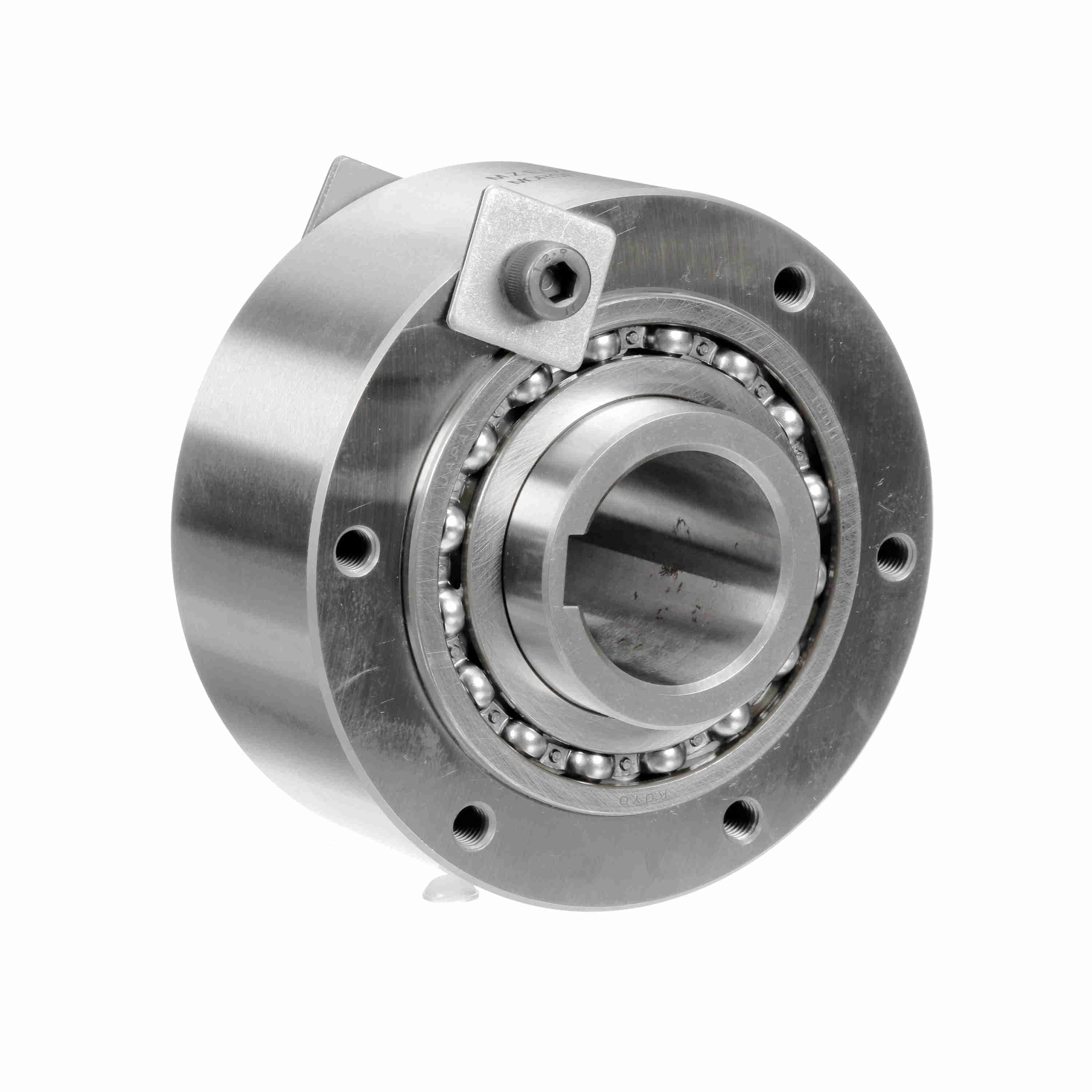

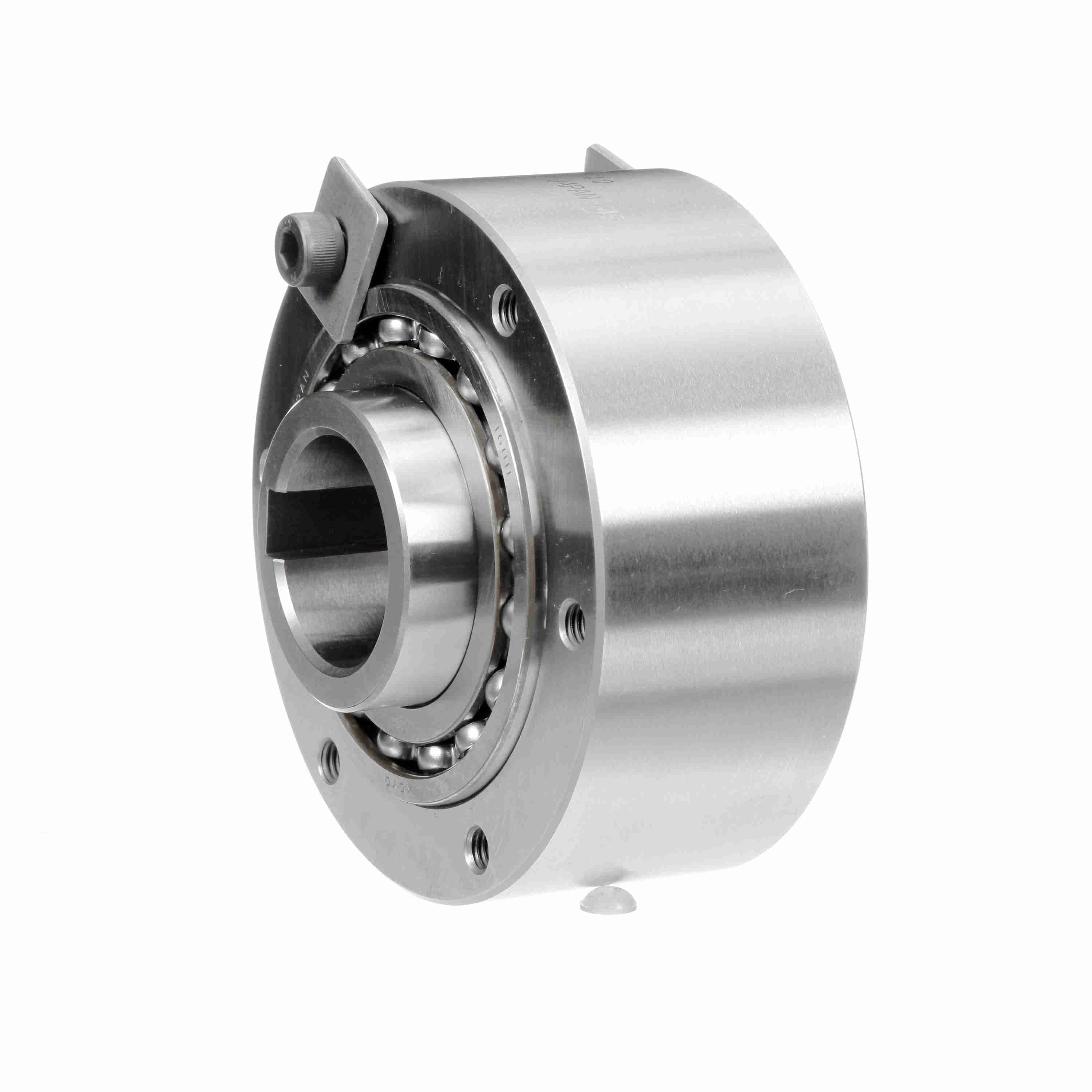

MZEU CLUTCHES-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2663060 |
| Product Name | MZEU40-CLUTCH |
| Brand | Morse |
| Weight | 10.5 lb |
| Package Length | 5.9 in |
| Package Width | 5.7 in |
| Package Height | 5 in |
| Type | CAM Clutches |
| Keyway | 12 X 3.3 |
| Drag Torque (lb-ft) | 0.435161 |
| Bore Size Tolerances (mm) | +0.025/-0.000 mm |
| Rated Torque Capacity (ft.-lbs.) | 995.7074 |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $7317.74 | — |
| 10+ | $6779.82 | 7% off |
| Rated Torque Capacity (N-m) |
| 1350 |
| Bore Size Tolerances (in) | +0.0010/-0.0000 in |
| Model | MZEU 40 |
| Drag Torque (N-m) | 0.59 |
| Add'l Bearing Support Requirement | No |
| Product Type | MZEU Series |
| Maximum Overrunning Speed - Inner Race (rpm) | 1,400 |
| Backstopping Clutch | Yes |
| Indexing Clutch | No |
| Maximum Overrunning Speed - Outer Race (rpm) | 300 |
| Overrunning Clutch | Yes |
| Bore Size (in) | 1.574798 in |
| Bore Size (mm) | 40 mm |
| Outer Width (in) | 2.1 in |
| RPM Max. -inner Race | 1,400 |
| Nominal Overrunning Drag (ft-lb) | 0.435 |
| Overall Diameter (in) | 4.9 in |
| Lubrication Type | Grease |
| Inner Race Width (in) | 3.4 in |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111038 |
| Part NumberiManufacturer catalog number | 2663060 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288930129 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
