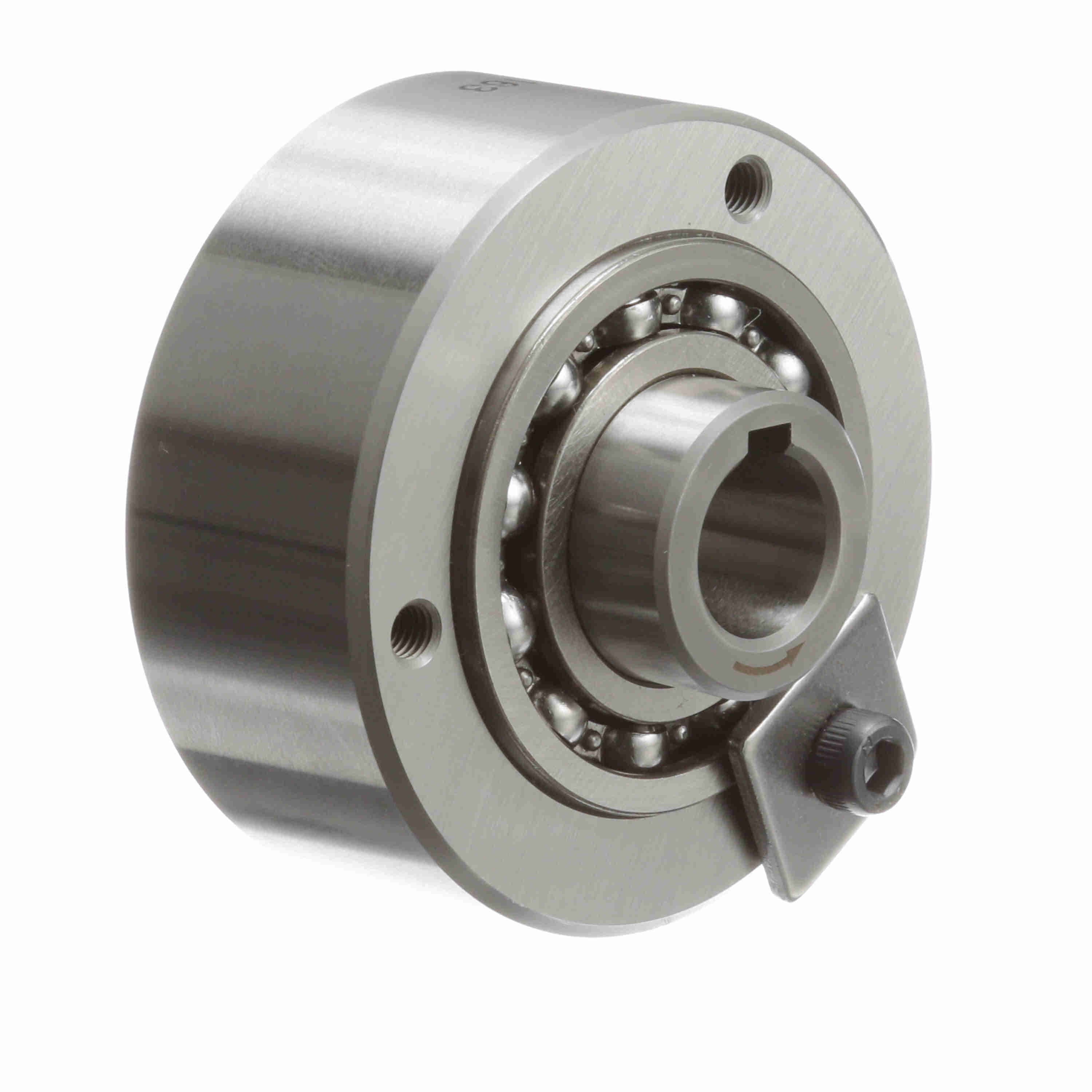

MZEU CLUTCHES-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2663102 |
| Product Name | MZEU60-CLUTCH |
| Brand | Morse |
| Weight | 24.5 lb |
| Package Length | 6.69 in |
| Package Width | 4.49 in |
| Package Height | 6.69 in |
| Keyway | 18 X 4.4 |
| Rated Torque Capacity (N-m) | 2950 |
| Drag Torque (N-m) | 0.98 |
| Bore Size Tolerances (in) | +0.0010/-0.0000 in |
| Model | MZEU 60 |
| Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $31717.41 | — |
| 10+ | $29385.91 | 7% off |
| CAM Clutches |
| Rated Torque Capacity (ft.-lbs.) | 2,175.805 |
| Bore Size Tolerances (mm) | +0.030/-0.000 mm |
| Drag Torque (lb-ft) | 0.72281 |
| Add'l Bearing Support Requirement | No |
| Product Type | MZEU Series |
| Maximum Overrunning Speed - Outer Race (rpm) | 250 |
| Backstopping Clutch | Yes |
| Indexing Clutch | No |
| Bore Size (in) | 2.362198 in |
| Overrunning Clutch | Yes |
| Maximum Overrunning Speed - Inner Race (rpm) | 1,200 |
| Bore Size (mm) | 60 mm |
| HTC | 8483.60.4040 |
| Country of Origin | Japan |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111040 |
| Part NumberiManufacturer catalog number | 2663102 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288930167 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
