V-Belt Sheaves

2VP68X1/2

Name: 2VP68X1/2
Brand: Browning
SKU: 2747707
Availability: OutOfStock

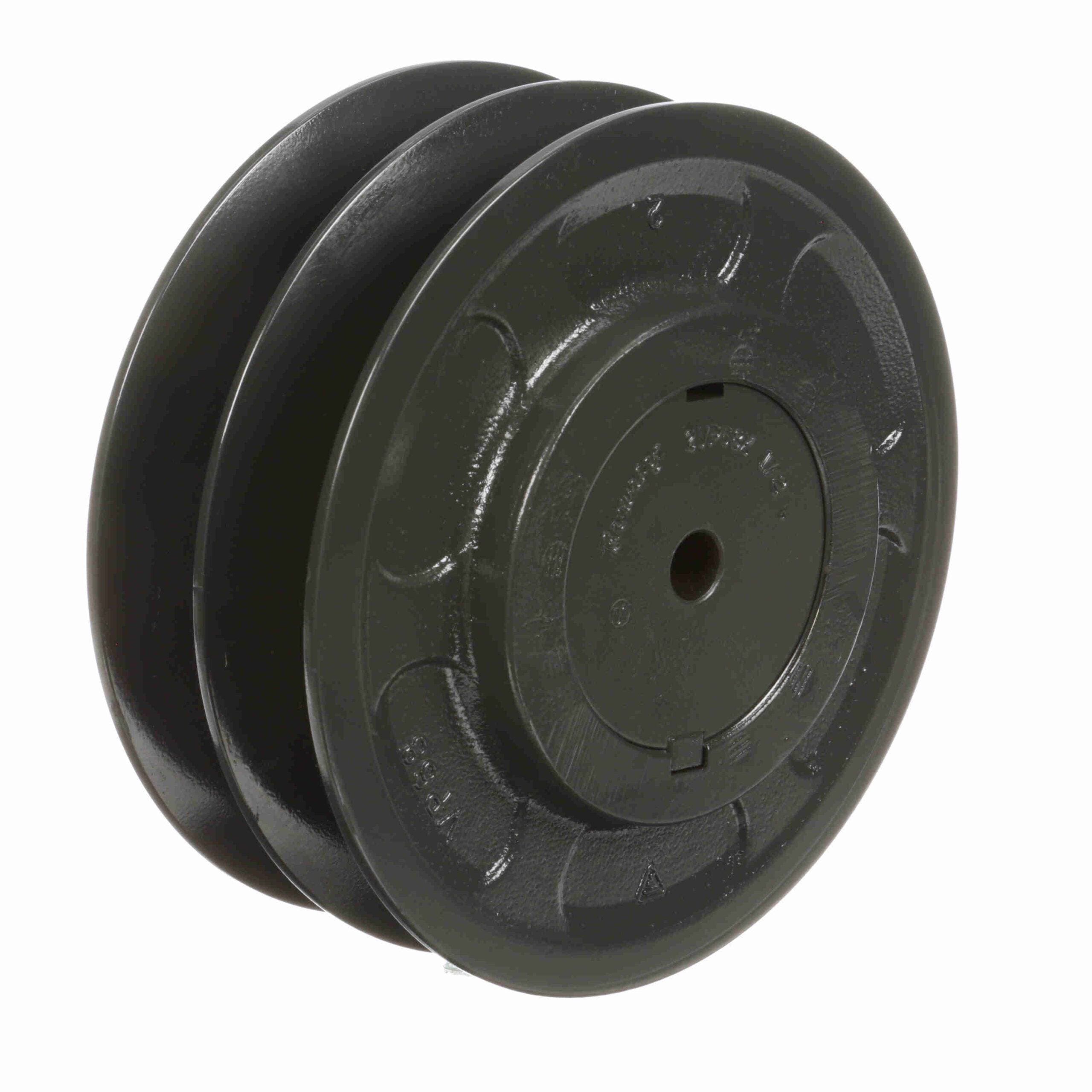

Browning 2 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave - 2VP68X1/2

Part Number2747707

GDS #GDS-111176

Product Type

FHP Variable Pitch Sheaves

Material

Cast Iron

Number of Grooves

Turns Open (B or 5L) (For Min PD)

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.

Datasheets, CAD drawings, and installation instructions are available on request.

GDS #iGDS internal part number	GDS-111176
Part NumberiManufacturer catalog number	2747707
BrandiManufacturer or product brand	Browning
CategoryiCatalog classification	Power Transmission > V-Belt Sheaves
