FHP Sheaves

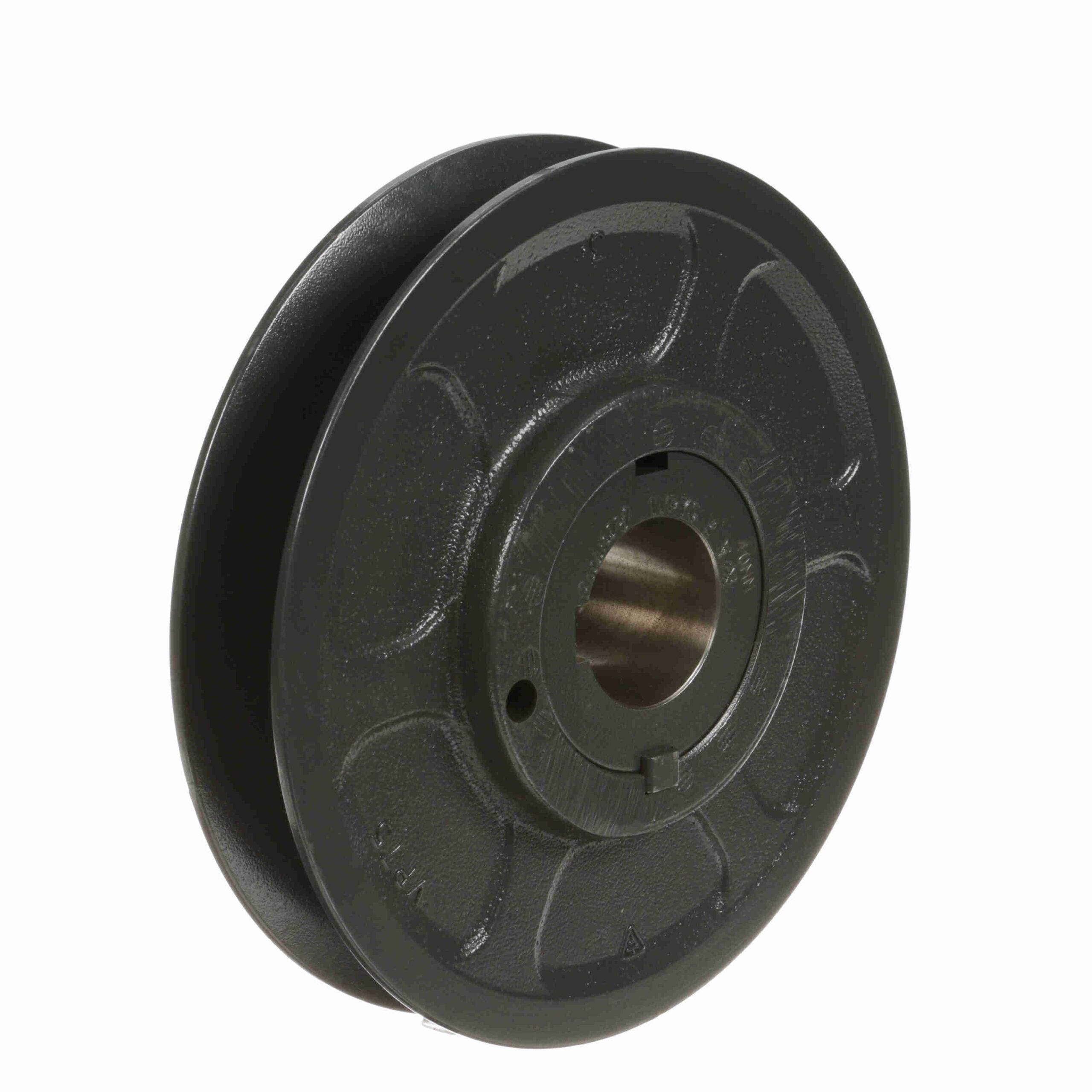

1VP75X40MM

Name: 1VP75X40MM
Brand: Browning
SKU: 2749323
Price: 837.84 USD
Availability: OutOfStock

VL VM VP SHEAVES-600

Part Number2749323

GDS #GDS-111212

This part has been discontinued.

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.

Always verify dimensions, load ratings, material, and seal type before ordering.

GDS #iGDS internal part number	GDS-111212
Part Numberi

Quantity	Price Each	Save
1+	$837.84	—

Datasheets, CAD drawings, and installation instructions are available on request.
