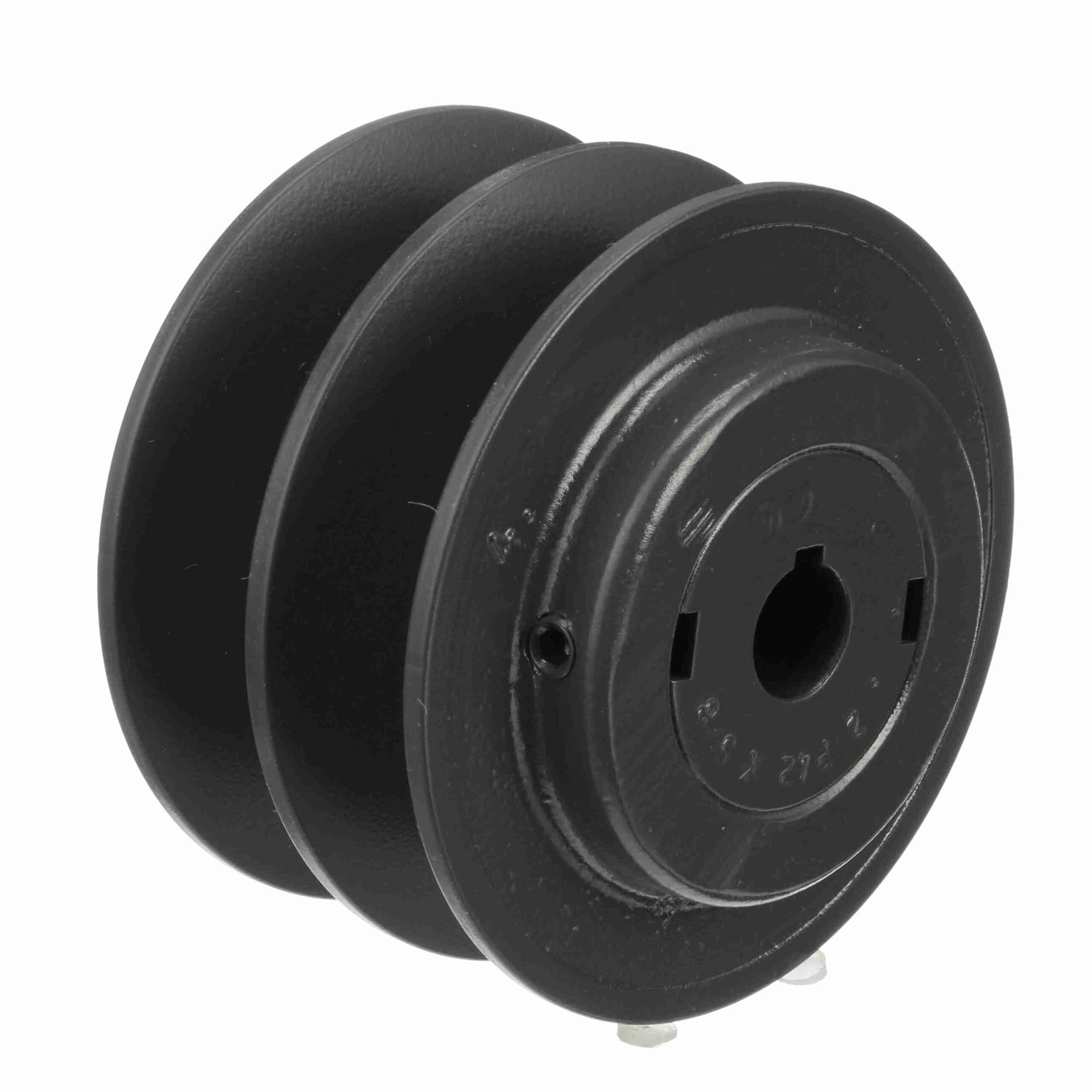

Browning 2 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave - 2VP42X19MM
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2749356 |
| Product Name | 2VP42X19MM |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 2.6 lb |
| Package Length | 3.95 in |
| Package Width | 3.95 in |
| Package Height | 3 in |
| Outside Diameter (in) | 3.95 in |
| Outside Diameter (mm) | 100.33 mm |
| Type of Bore | Finished |
| Bore (mm) | 19 mm |
| Number of Grooves |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 2 |
| Turns Open (B or 5L) (For Min PD) | 6 |
| Turns Open (A or 4L) (For Min PD) | 5 |
| Turns Open (3L) (For Min PD) | 4 |
| Turns Open (B or 5L) (For Max PD) | 1 |
| Belt Section | 3L, 4L or A, 5L or B |
| Product Type | FHP Variable Pitch Sheaves |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111215 |
| Part NumberiManufacturer catalog number | 2749356 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
