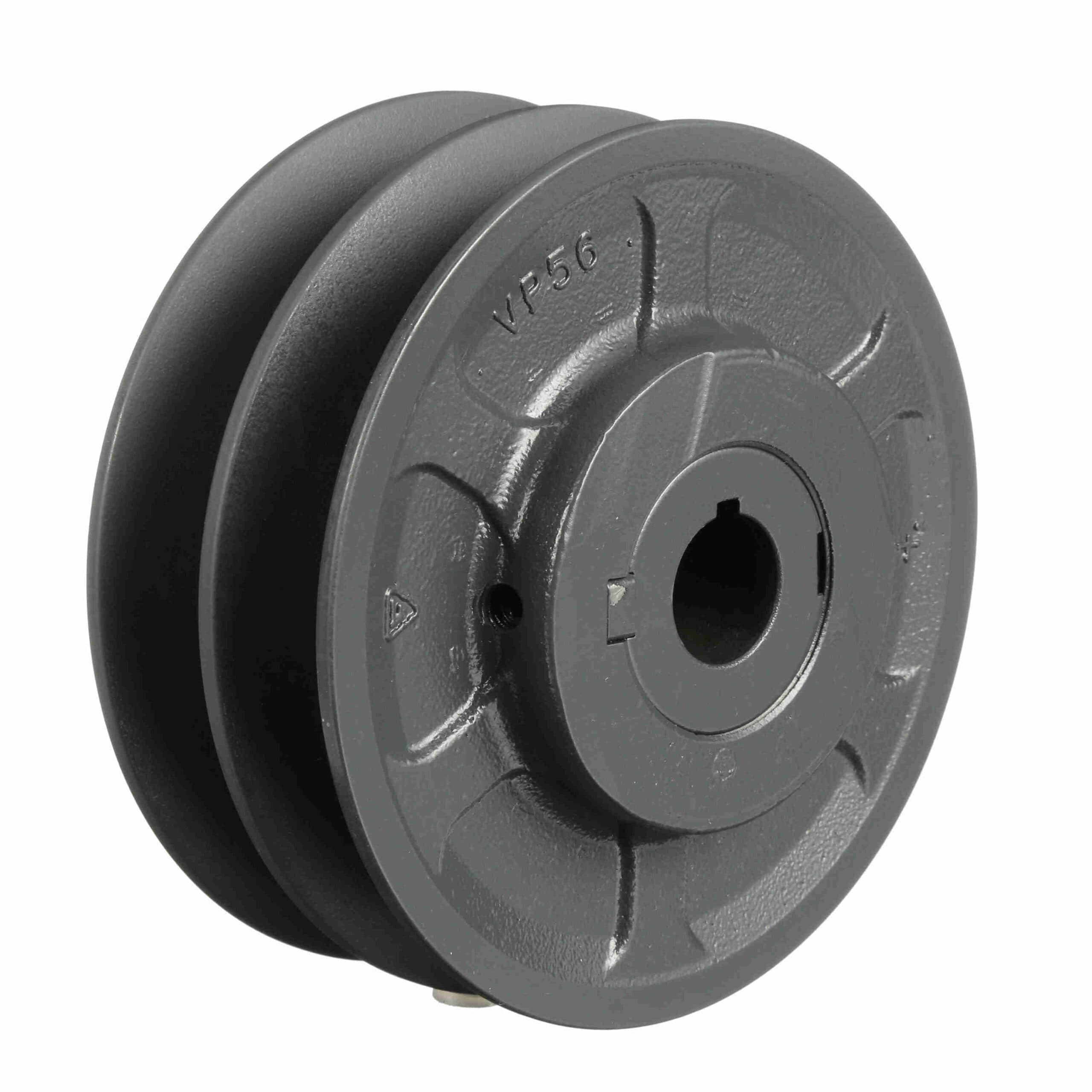

Browning 2 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave - 2VP56X19MM
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 2749398 |
| Product Name | 2VP56X19MM |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 4.1 lb |
| Package Length | 5.35 in |
| Package Width | 5.35 in |
| Package Height | 3.05 in |
| Outside Diameter (in) | 5.35 in |
| Number of Grooves | 2 |
| Turns Open (3L) (For Min PD) | 4 |
| Turns Open (A or 4L) (For Min PD) | 5 |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Outside Diameter (mm) |
| 135.89 mm |
| Turns Open (B or 5L) (For Min PD) | 6 |
| Type of Bore | Finished |
| Turns Open (B or 5L) (For Max PD) | 1 |
| Bore (mm) | 19 mm |
| Product Type | FHP Variable Pitch Sheaves |
| Belt Section | 3L, 4L or A, 5L or B |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111219 |
| Part NumberiManufacturer catalog number | 2749398 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
