358 BELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3001062 |

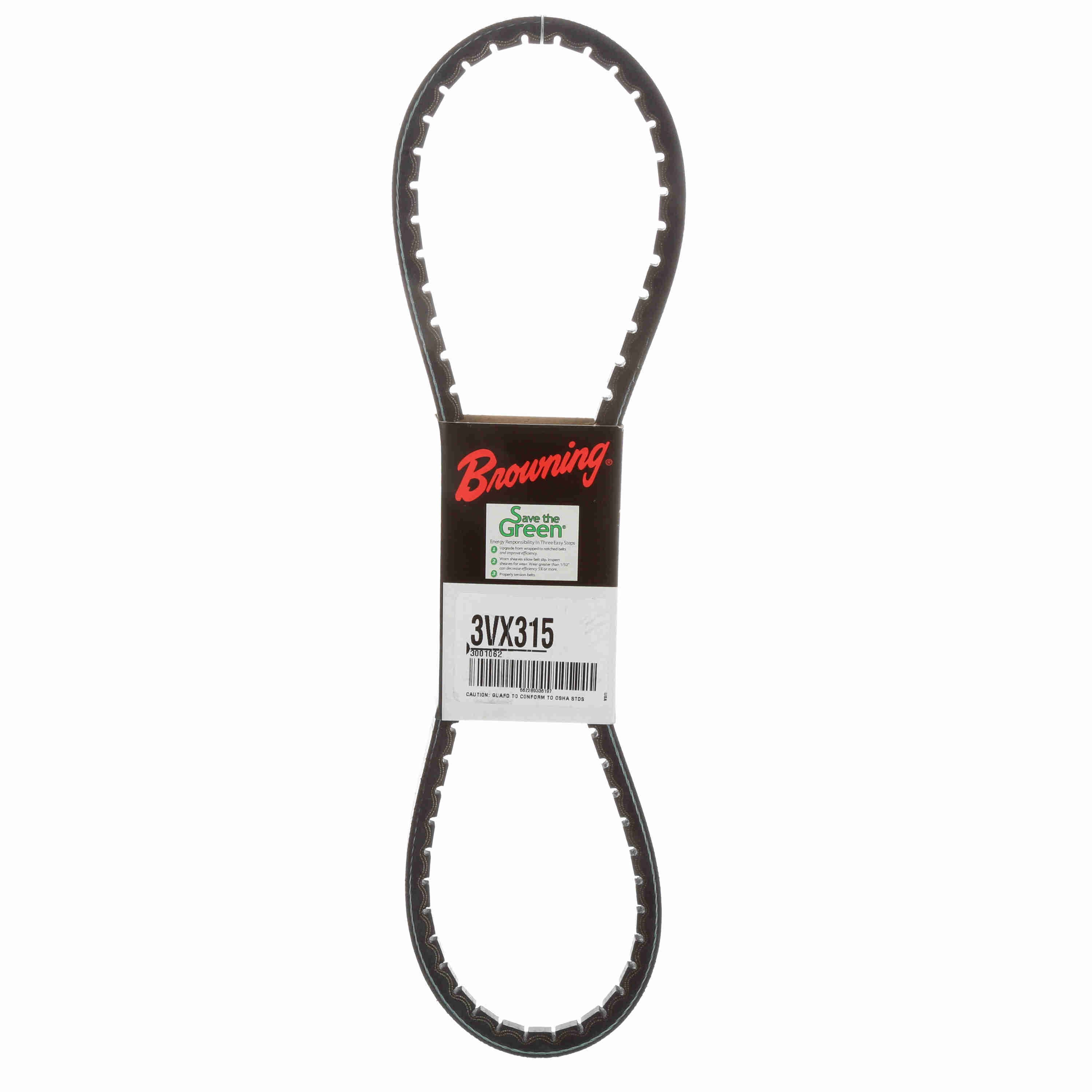

| Product Name | 3VX315 |
| Brand | Browning |
| Material | EPDM |
| Weight | 0.138 lb |
| Package Length | 3.65 in |
| Package Width | 13.95 in |
| Package Height | 0.75 in |
| Type | TorqTitan Notched V-Belts |
| Belt Section | 3VX |
| Outside Diameter (in) | 31.5 in |
| Operating Temperature [Max] ºF | 251 °F |
| Operating Temperature [Max] ºC |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $48.28 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 120 °C |
| Outside Length/Diameter (in) | 31.5 in |
| Efficiency (%) | 0.98 |
| Product Type | Notched Belt |
| Height | 0.31 |
| Width (in) | 0.375 in |
| Standards met | MPTA IP-20;RMA |
| Number of Ribs | 1 |
| Pitch Length | 31.5 |
| Reinforcing cord material | Polyester |
| Construction Type | Cogged |
| Belt Series | TorqTitan |
| Section Size | 3VX |
| Resistance Features | Oil & Chemical per ARPM IP-3-2, Static Dissipating per ISO1813 |
| Operating Temperature Range | -40 to +251 °F |
| HTC | 4010.32.3000 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111428 |
| Part NumberiManufacturer catalog number | 3001062 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289336197 |
| CategoryiCatalog classification | Belts |
