358 BELTS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3001542 |

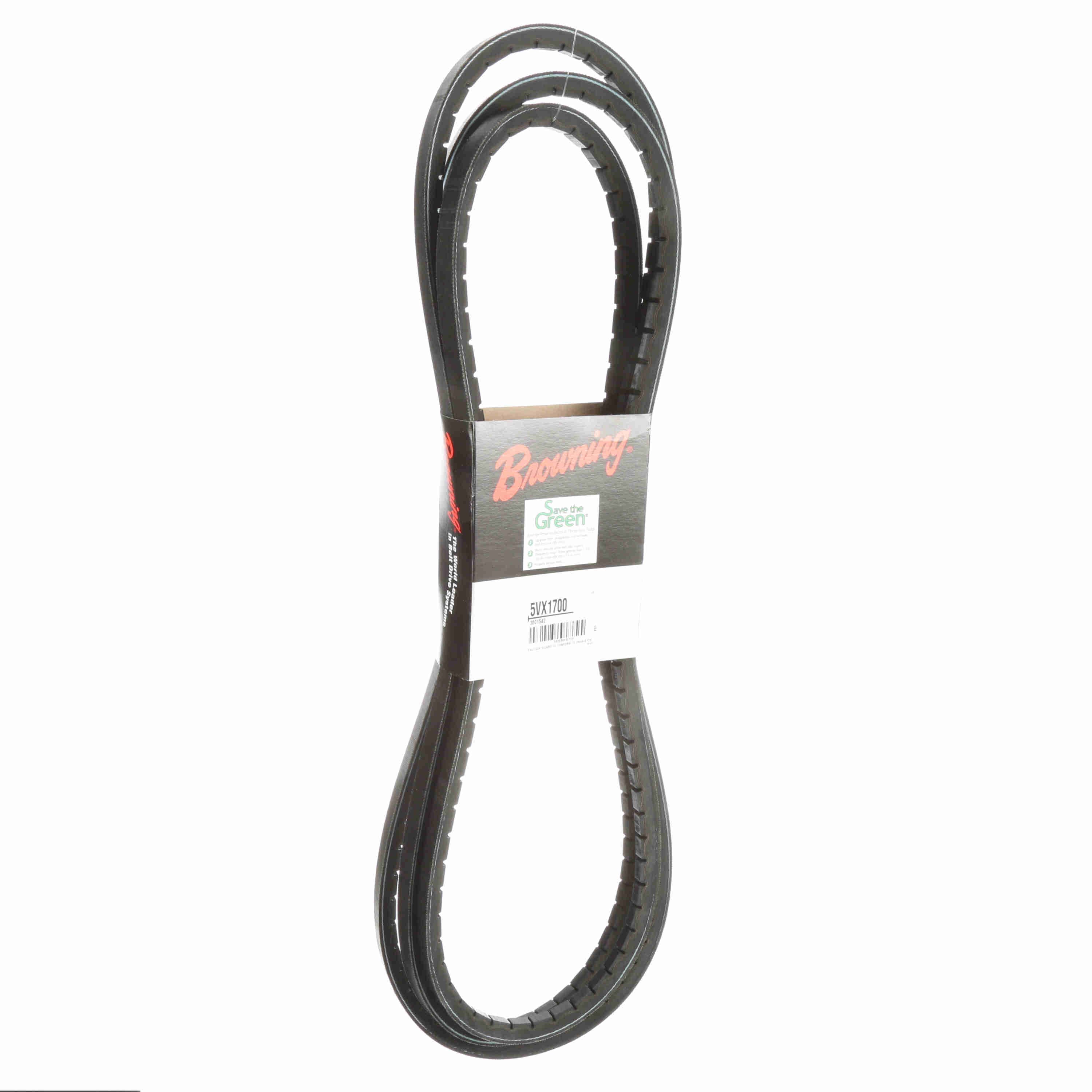

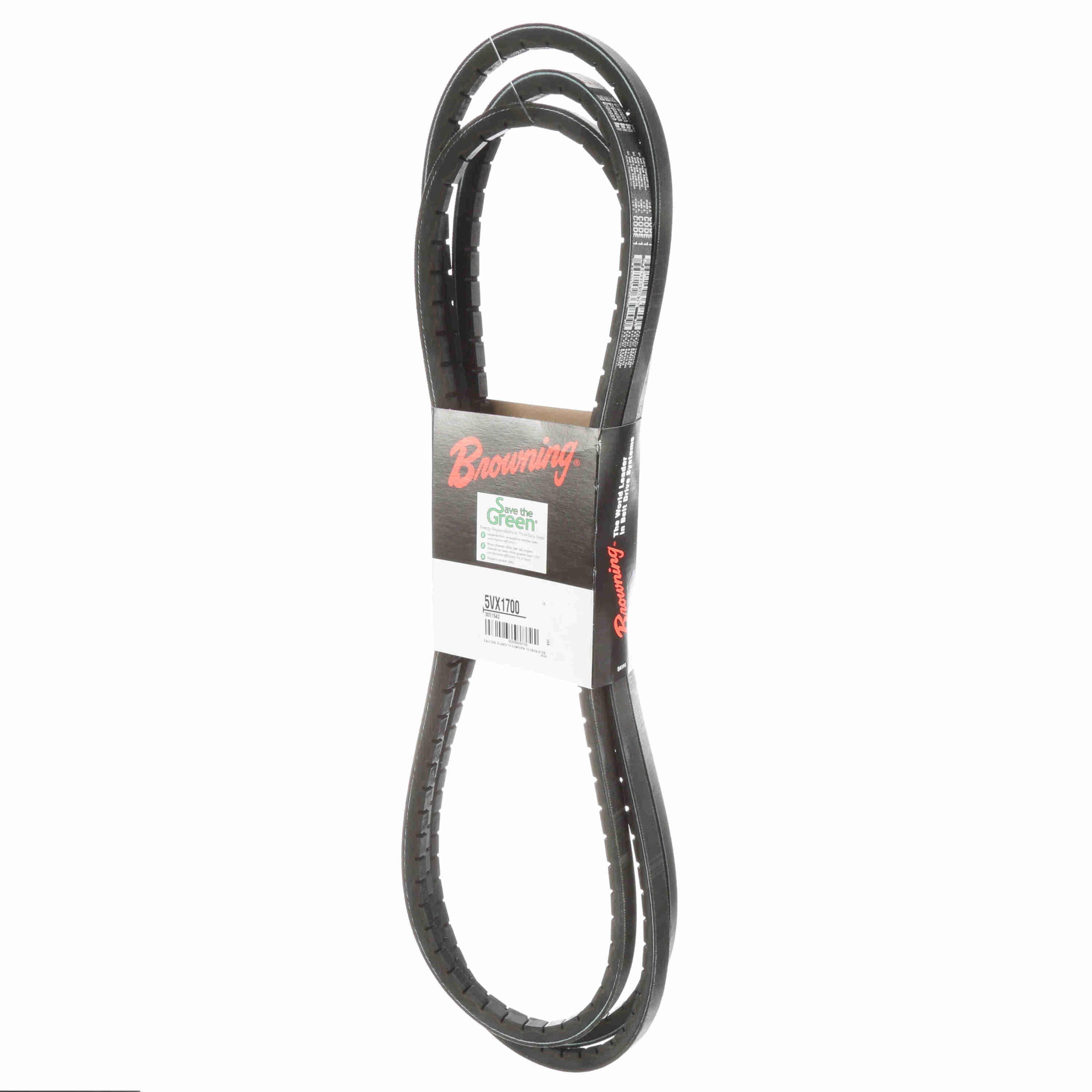

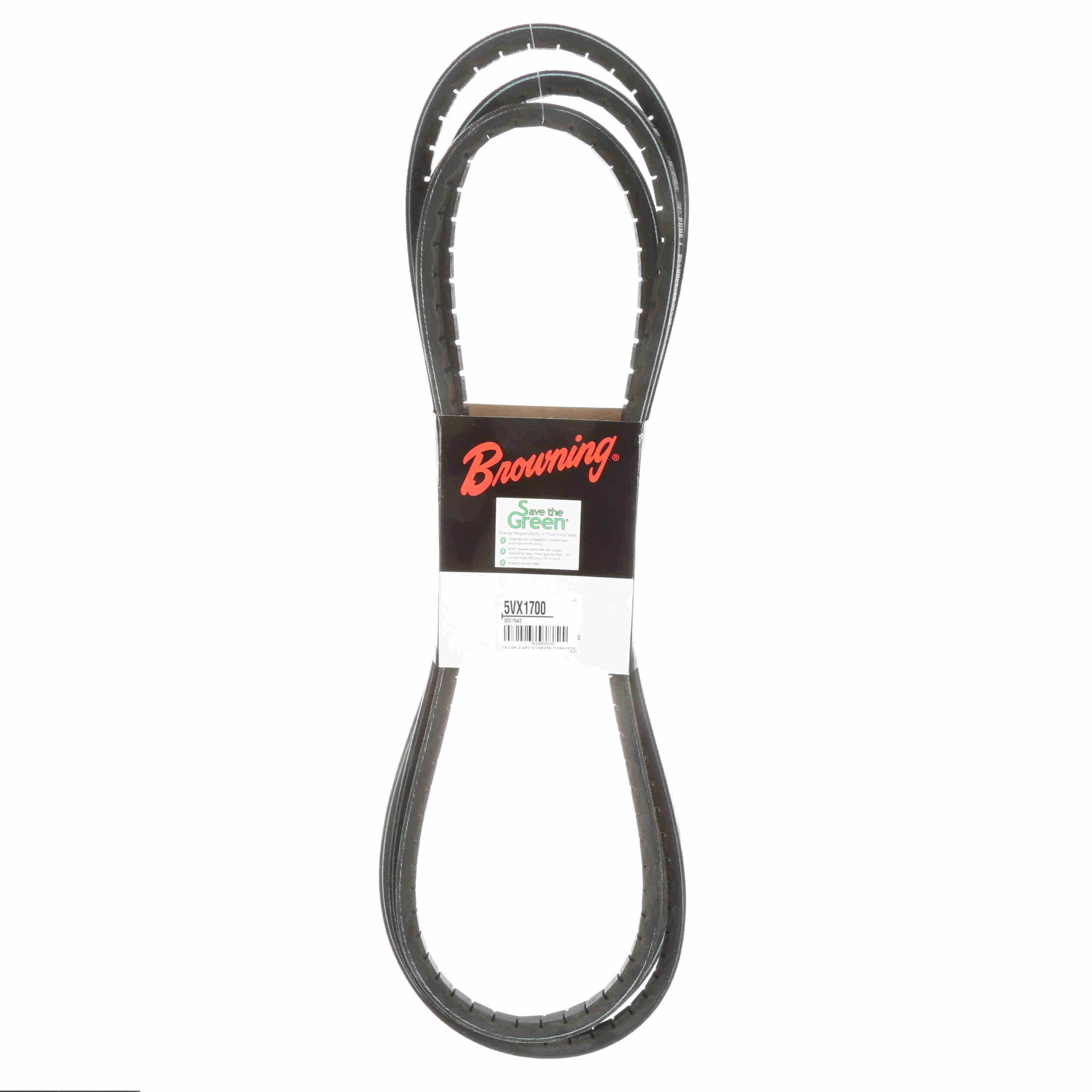

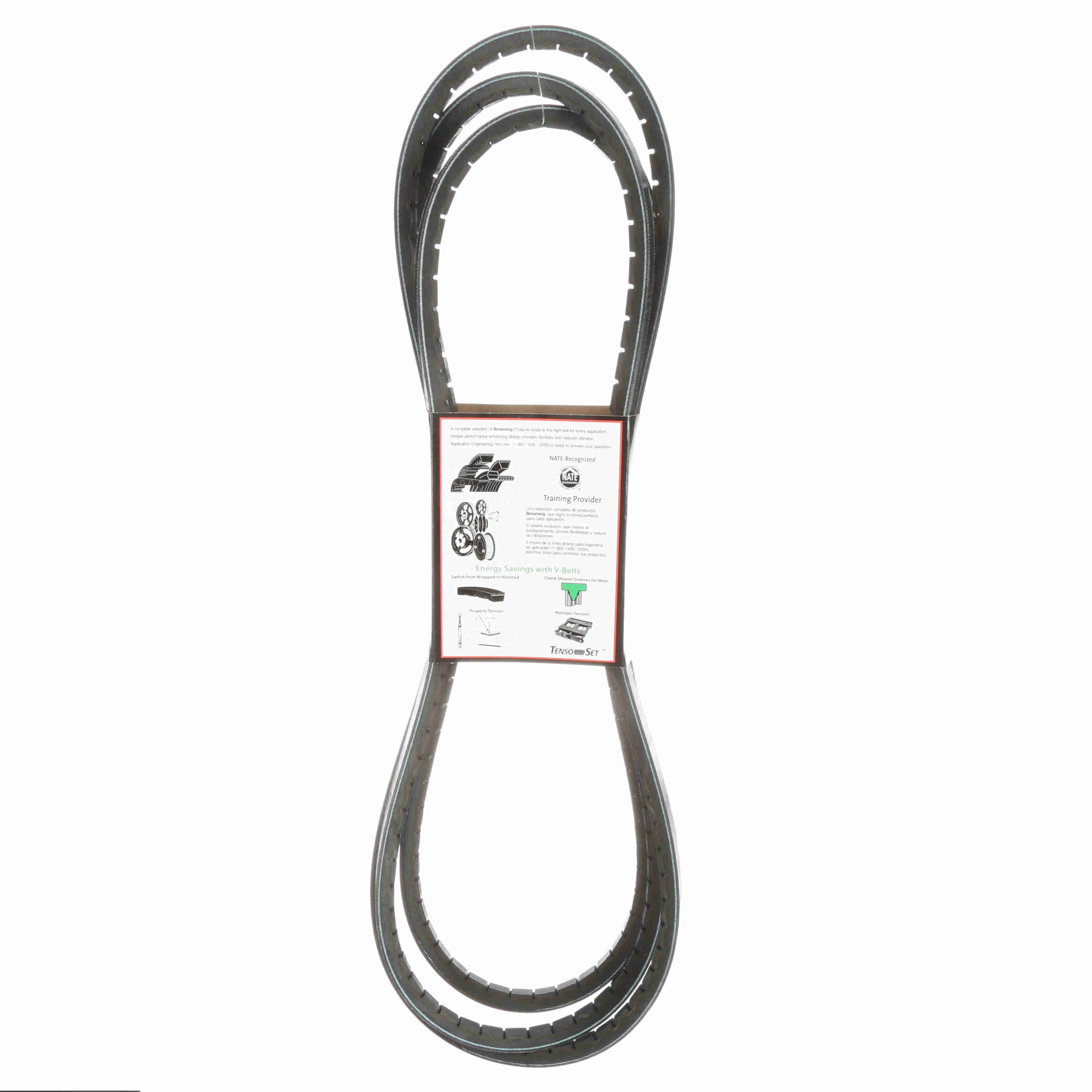

| Product Name | 5VX1700 |
| Brand | Browning |
| Material | EPDM |
| Weight | 1.5 lb |
| Package Length | 7.2 in |
| Package Width | 25.35 in |
| Package Height | 2 in |
| Belt Section | 5VX |
| Type | Gripnotch Notched V-Belts |
| Outside Diameter (in) | 170 in |
| Outside Length/Diameter (in) | 170 in |
| Operating Temperature [Max] ºF |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $284.01 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 250 °F |
| Efficiency (%) | 0.98 |
| Operating Temperature [Max] ºC | 121 °C |
| Product Type | Notched Belt |
| Construction Type | Cogged |
| Section Size | 5V |
| Band Type | Belt with Ends Joined |
| Height | 0.5313 |
| Width (in) | 0.625 in |
| Standards met | MPTA IP-20;RMA |
| Pitch Length | 170 |
| Operating Temperature Range | -60 to +230 °F |
| HTC | 4010.39.1000 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111476 |
| Part NumberiManufacturer catalog number | 3001542 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289339709 |
| CategoryiCatalog classification | Belts |
