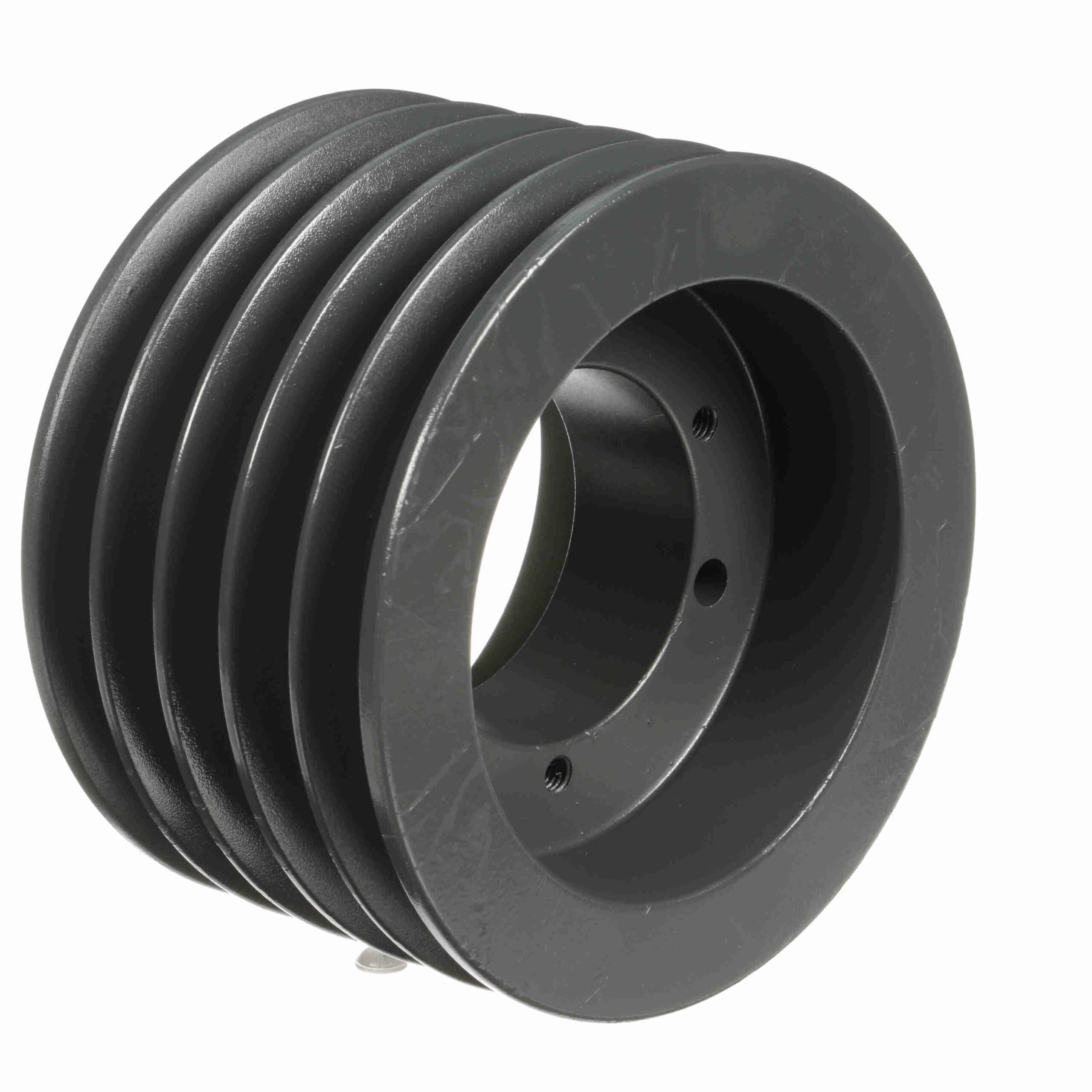

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave - 55V490SD
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3049962 |
| Product Name | 55V490SD |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 7.84 lb |
| Package Length | 5.44 in |
| Package Width | 5.44 in |
| Package Height | 4 in |
| Outside Diameter (in) | 4.9 in |
| Pitch Diameter (5V) | 4.8 |
| Pulley Material | Cast Iron |
| Bushing Used | SD |
| Number of Grooves |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 5 |
| Product Type | Multiple Sheaves |
| Bore (Min) (in) | 0.5 in |
| Belt Section | 5V |
| Bore Type | QD Bushed |
| Pulley Construction | Solid |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111553 |
| Part NumberiManufacturer catalog number | 3049962 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
