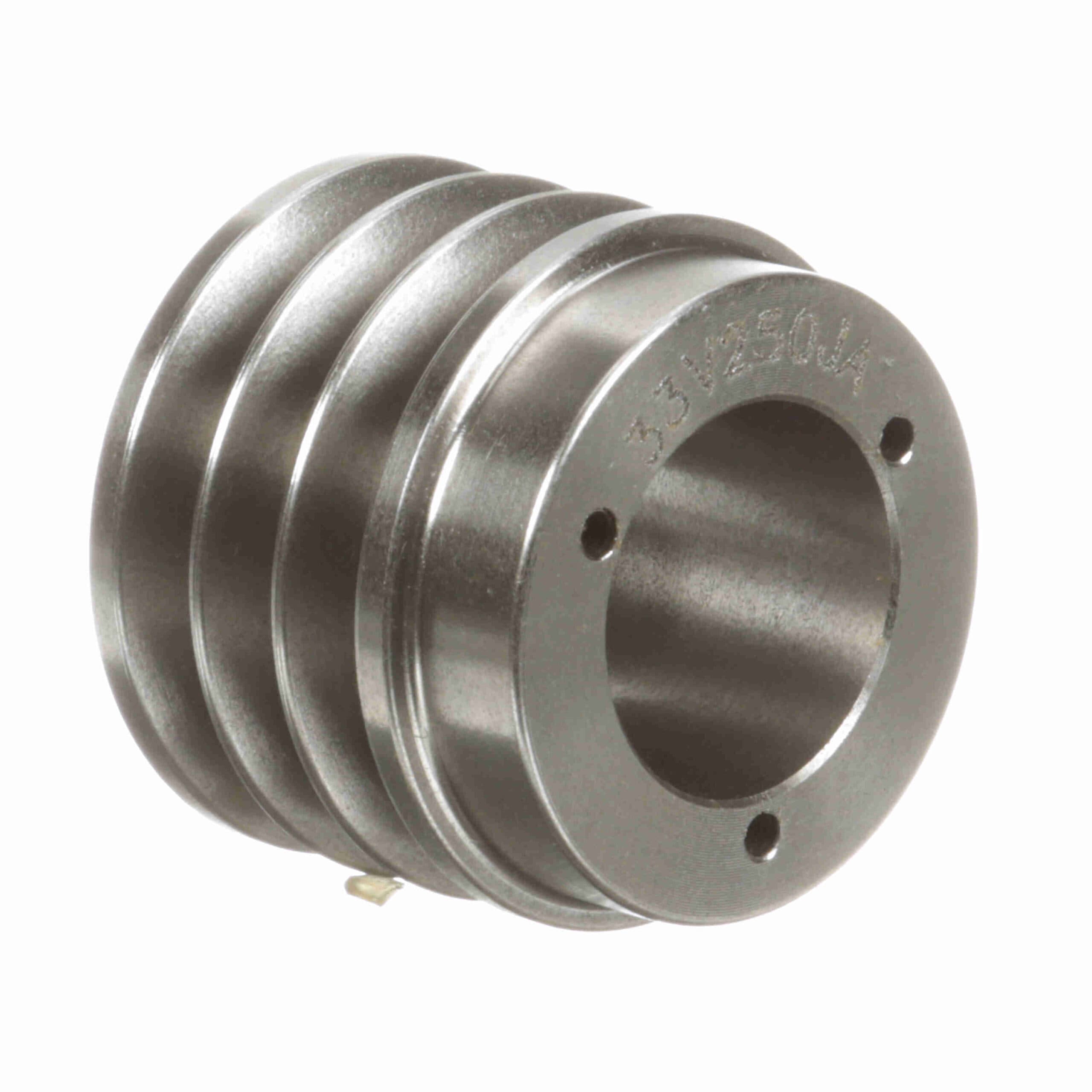

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave - 33V250JA
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3050150 |
| Product Name | 33V250JA |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 1.44 lb |
| Package Length | 3.1 in |
| Package Width | 3.2 in |
| Package Height | 2 in |
| Number of Grooves | 3 |
| Pulley Material | Cast Iron |
| Outside Diameter (in) | 2.5 in |
| Pitch Diameter (3V) | 2.45 |
| Bushing Used |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| JA |
| Belt Section | 3V |
| Bore (Min) (in) | 0.5 in |
| Product Type | Multiple Sheaves |
| Bore Type | QD Bushed |
| Bushing Bore Range | 0.500 - 1.250 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111575 |
| Part NumberiManufacturer catalog number | 3050150 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
