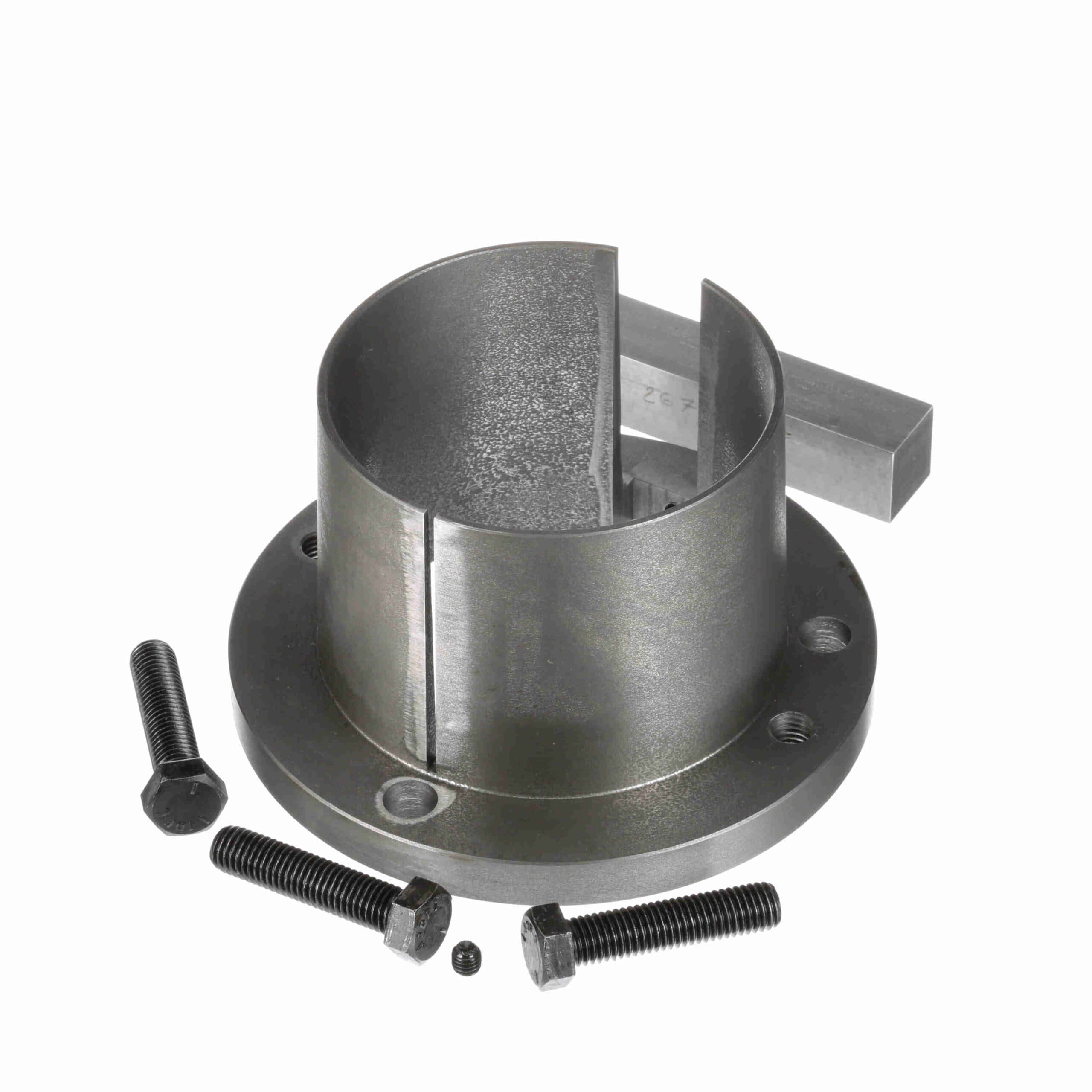

Browning Split Taper Bushing - Inch Bore Type - U0 5 1/2
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3170743 |
| Product Name | U0 5 1/2 |
| Brand | Browning |
| Material | Ductile Iron or Gray Iron |
| Weight | 13.15 lb |
| Package Length | 12.1 in |
| Package Width | 10.6 in |
| Package Height | 10.1 in |
| Outside Diameter (in) | 8.375 in |
| Total Length (in) | 4.9375 in |
| Product Type | Split Taper Bushing |
| Compatible Bore Size [Max] (in) | 5.5 in |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Cap Screws (Size) |
| 5/8 x 2 3/4 |
| Wrench Torque (in-lb) | 1, 680 |
| Bushing Type | U0 |
| Keyseat | 1 1/4 x 5/8 |
| Bore Size (in) | 5.5 in |
| Length Through Bore (in) | 4.9375 in |
| Bore Type | Inch |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-111901 |
| Part NumberiManufacturer catalog number | 3170743 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
