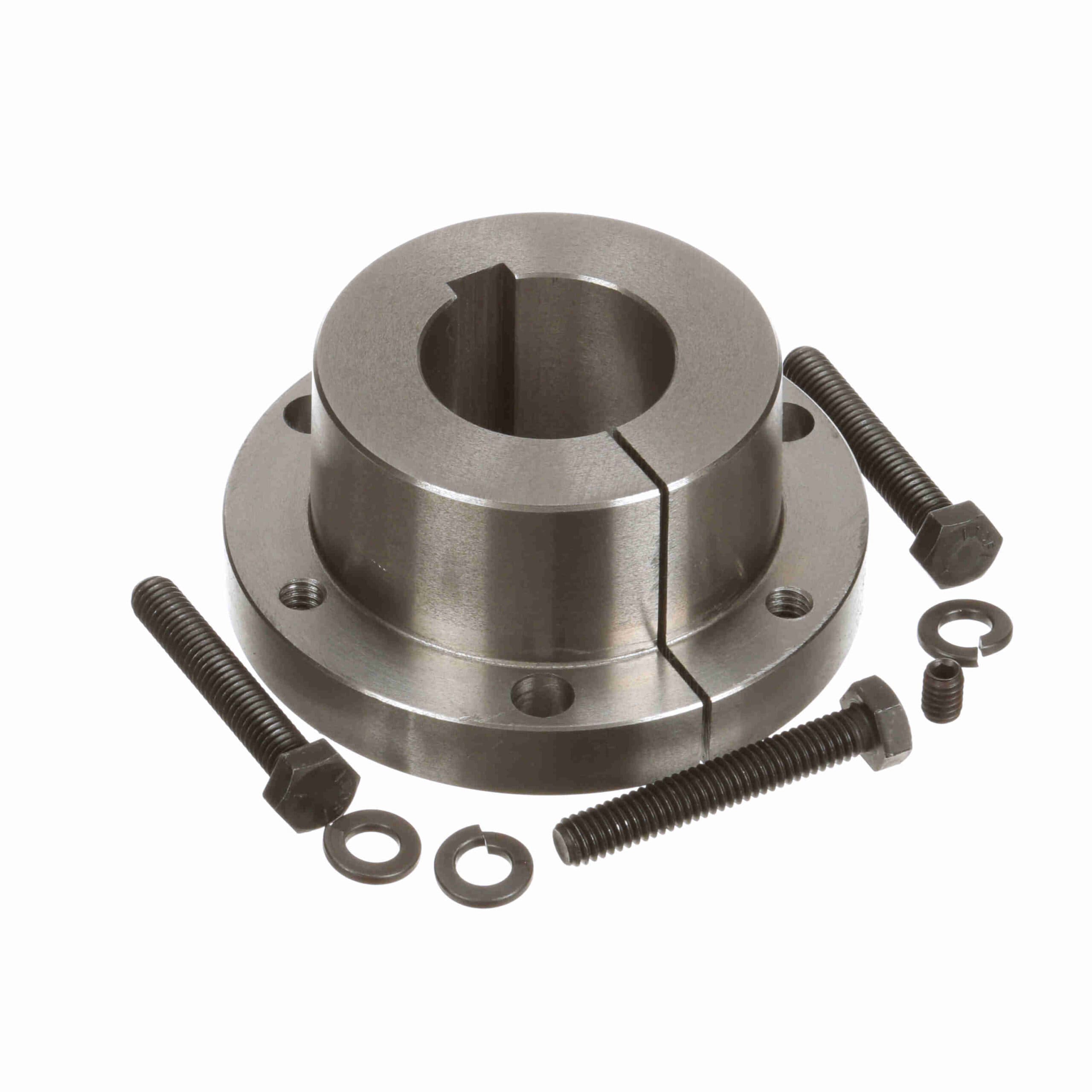

Browning Q-D Bushing - Metric Bore Type - SK 38 MM
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3208279 |
| Product Name | SK 38 MM |
| Brand | Browning |
| Weight | 2.9 lb |
| Package Length | 4.3 in |
| Package Width | 4.3 in |
| Package Height | 2.5 in |
| Keyway | 10mm x 4mm |
| Total Length (mm) | 44.45 mm |
| Bore Type | Metric |
| Product Type | Q-D Bushing |
| Mounting Type | Conventional |
| Outside Diameter (mm) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 98.425 mm |
| Outside Diameter (in) | 3.875 in |
| Length Through Bore (mm) | 44.45 mm |
| Cap Screws (Bolt Circle) | 3.3125 |
| Bushing Type | SK |
| Torque Capacity (in-lb) | 7, 000 |
| Wrench Torque (ft.-lbs.) | 15 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112119 |
| Part NumberiManufacturer catalog number | 3208279 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > Bushings |
