R2 PKG CHAIN 80 & ABOVE
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 322077 |

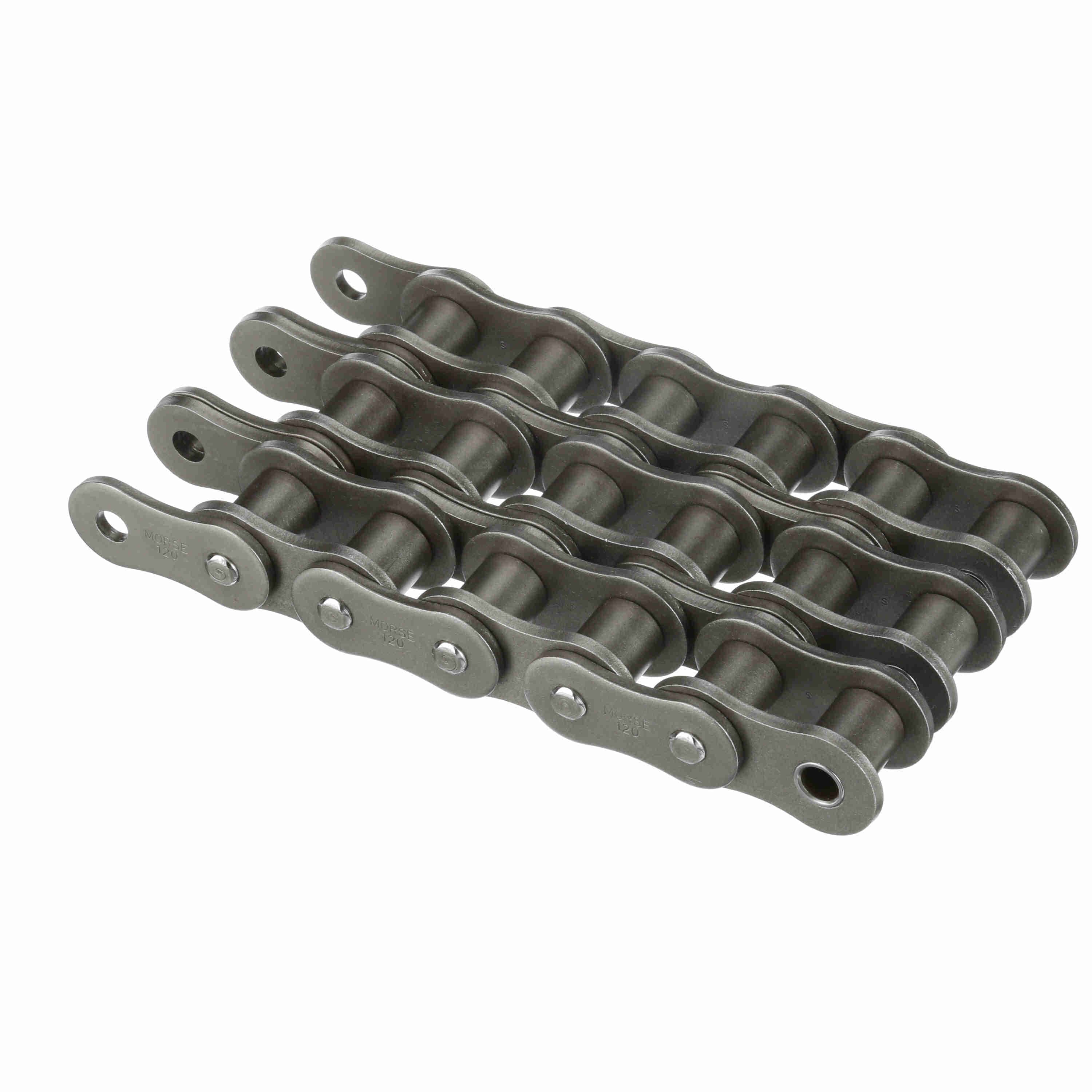

| Product Name | 140-3R 10.21FT |
| Brand | Morse |
| Material | Steel |
| Weight | 14.5053 lb |
| Roller Diameter (in) | 1 in |
| Chain Family | 140 |
| Chain Construction | Riveted |
| Pin Diameter (in) | 0.5 in |
| Number of Strands/Width | 3 |
| Number of Connecting Links Included | 1 |
| Roller Width (in) | 1 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1102.31 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Chain Pitch (in) |
| 1.75 in |
| Product Type | Roller Chain |
| Chain Type | Standard |
| Coating | Uncoated |
| Measurement System | Imperial |
| Standard Met | ANSI B29.1 |
| Pin Length (in) | 5.965 in |
| Base Catalog No | 140-3 |
| Plate Thickness (in) | 0.219 in |
| Total Length (ft) | 10.21 ft |
| Transverse Pitch (in) | 1.924 in |
| Inside Plate Height (in) | 1.56 in |
| Minimum Tensile Strength (lbs) | 114,840 lb |
| Side Plate Configuration | Hourglass |
| Width Over Pins/Total Width (in) | 5.965 in |
| HTC | 7315.11.0060 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112229 |
| Part NumberiManufacturer catalog number | 322077 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288455554 |
| CategoryiCatalog classification | Roller Chain |
