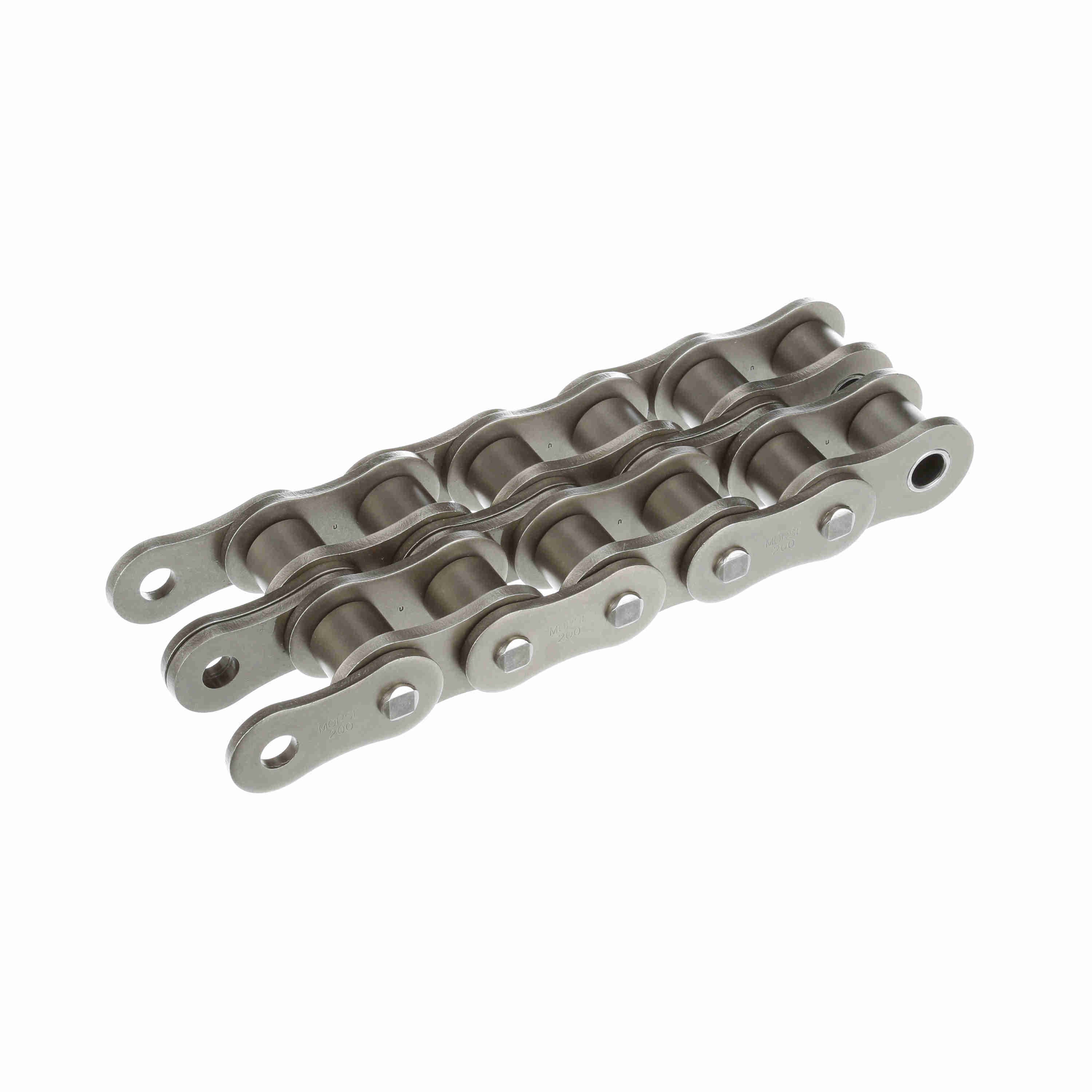

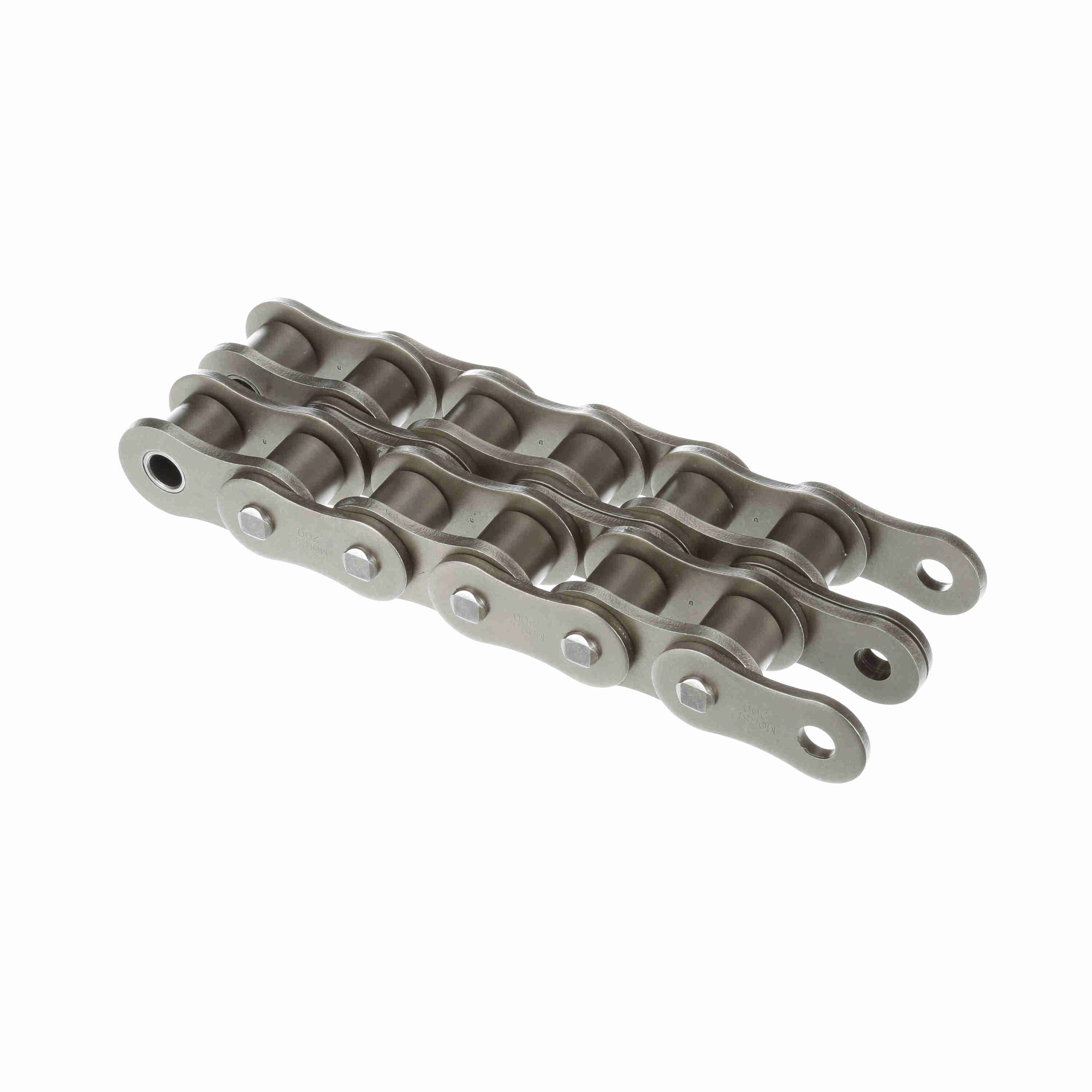

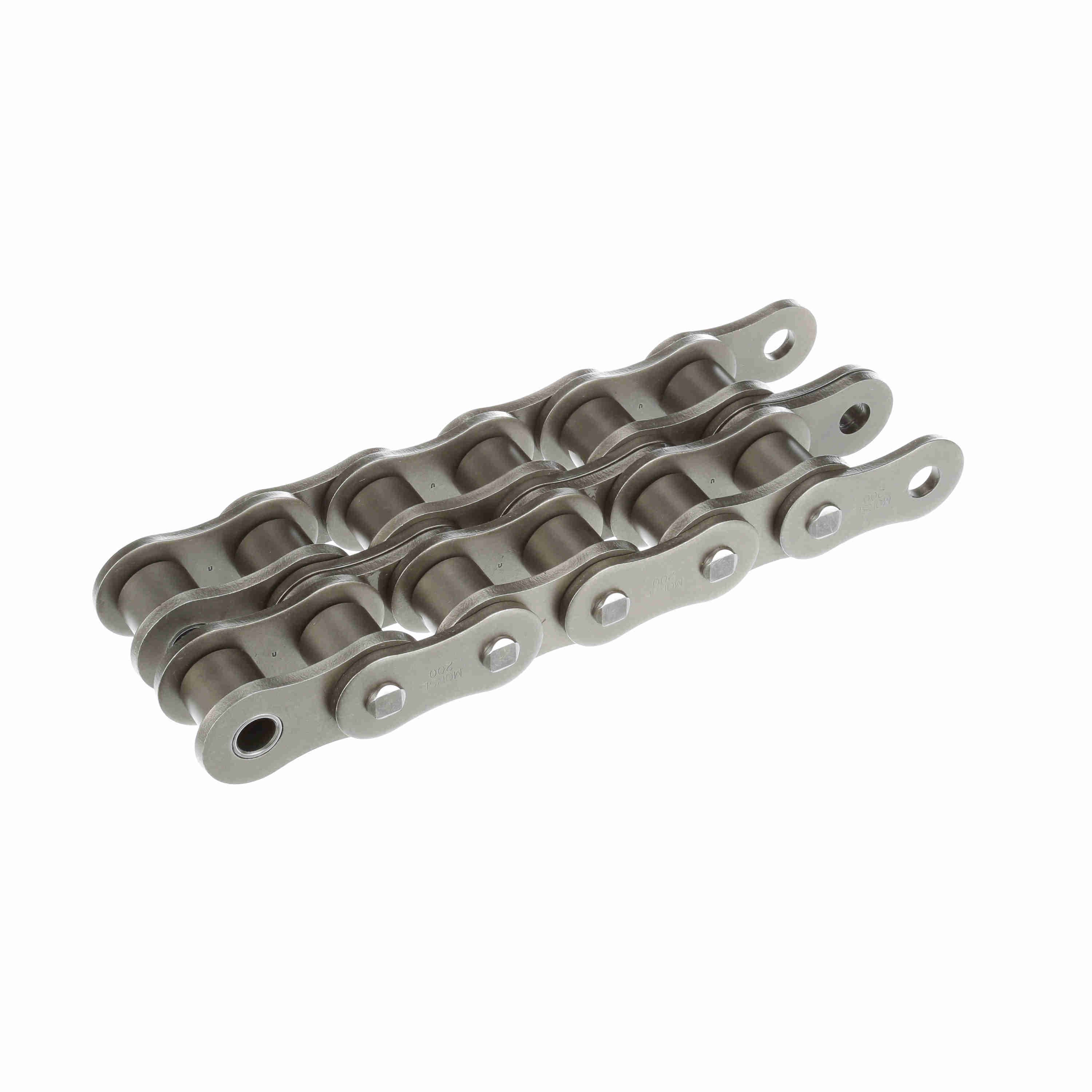

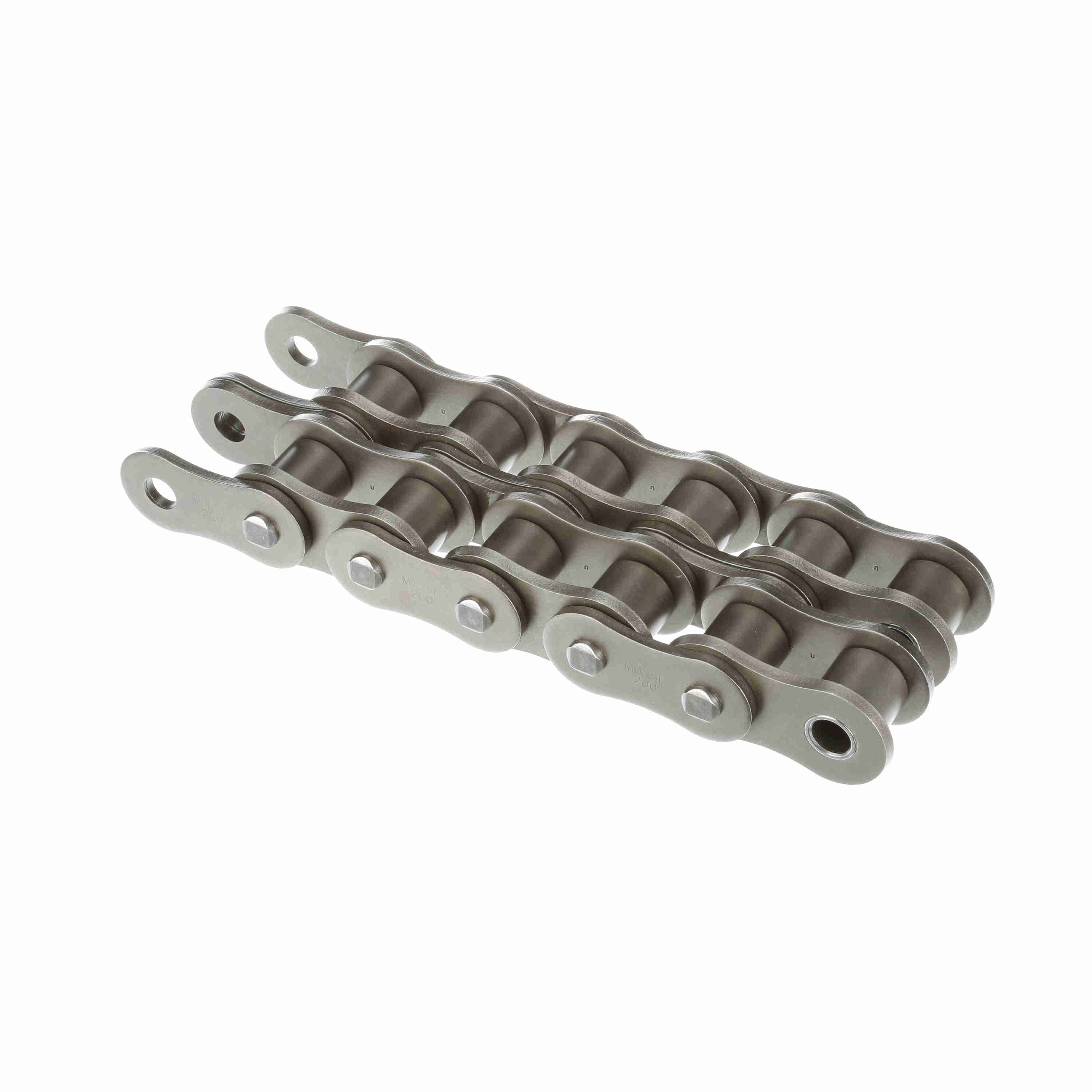

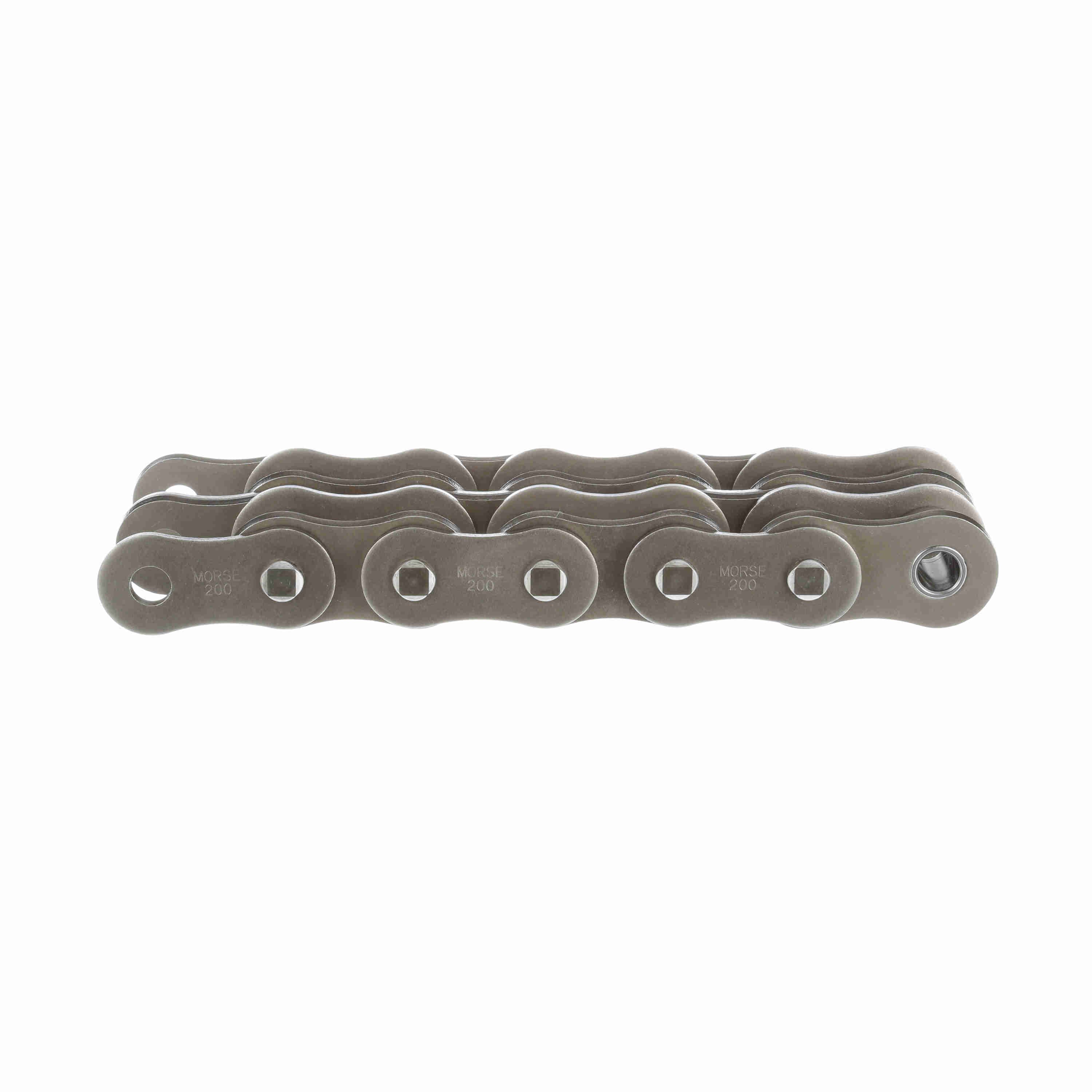

R2 PKG CHAIN 80 & ABOVE
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 322088 |
| Product Name | 200-2R 10FT |
| Brand | Morse |
| Material | Steel |
| Weight | 21.5085 lb |
| Package Length | 19 in |
| Package Width | 19 in |
| Package Height | 6.5 in |
| Number of Strands/Width | 2 |
| Roller Diameter (in) | 1.562 in |
| Chain Family | 200 |
| Roller Width (in) | 1.5 in |
| Chain Construction |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $1441.30 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Riveted |
| Number of Connecting Links Included | 1 |
| Pin Diameter (in) | 0.781 in |
| Chain Pitch (in) | 2.5 in |
| Product Type | Roller Chain |
| Chain Type | Standard |
| Coating | Uncoated |
| Standard Met | ANSI B29.1 |
| Measurement System | Imperial |
| Minimum Tensile Strength (lbs) | 156,250 lb |
| Transverse Pitch (in) | 2.817 in |
| Pin Length (in) | 5.937 in |
| Width Over Pins/Total Width (in) | 5.937 in |
| Inside Plate Height (in) | 2.25 in |
| Total Length (ft) | 10 ft |
| Plate Thickness (in) | 0.312 in |
| Side Plate Configuration | Hourglass |
| Base Catalog No | 200-2 |
| HTC | 7315.11.0060 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112237 |
| Part NumberiManufacturer catalog number | 322088 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288455622 |
| CategoryiCatalog classification | Roller Chain |
