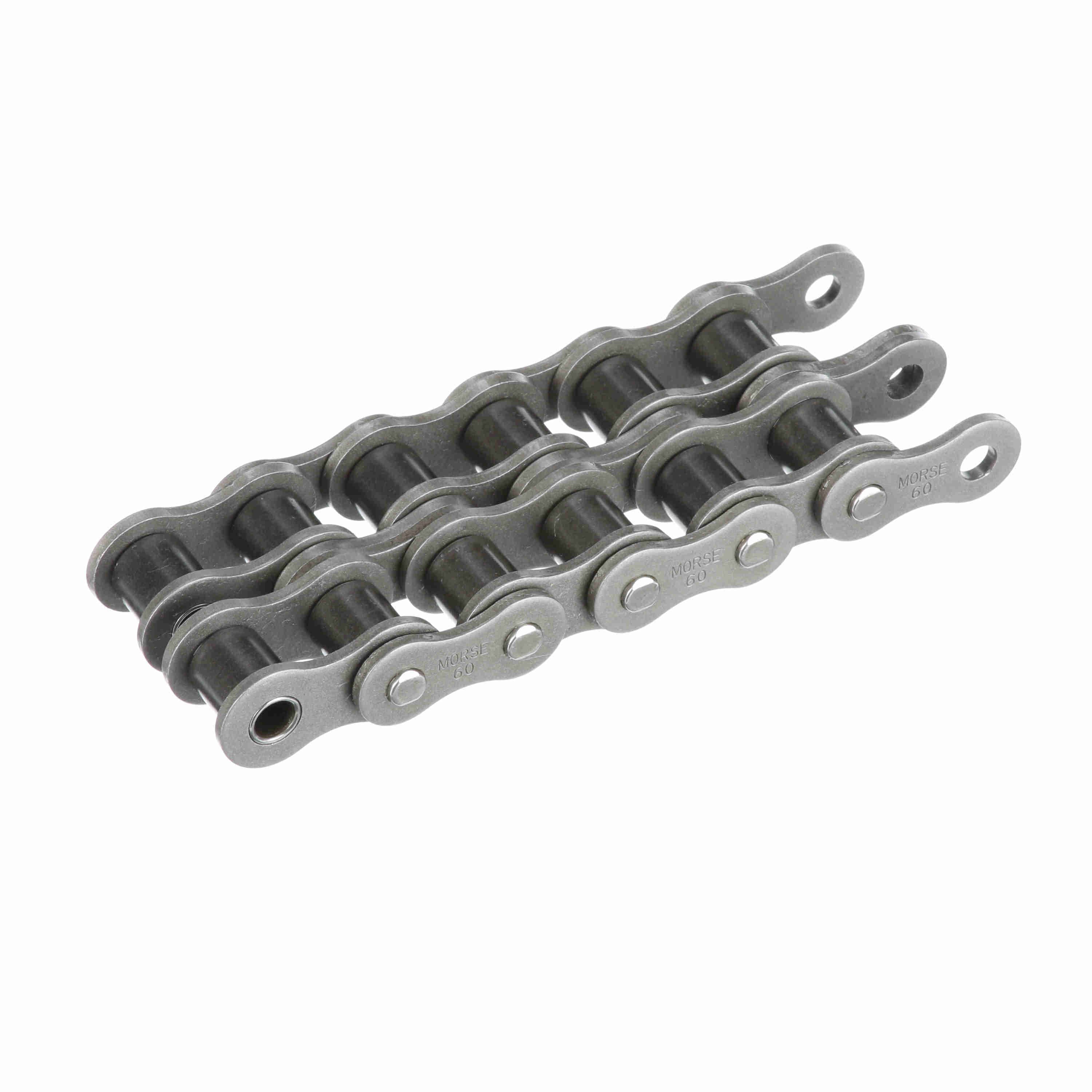

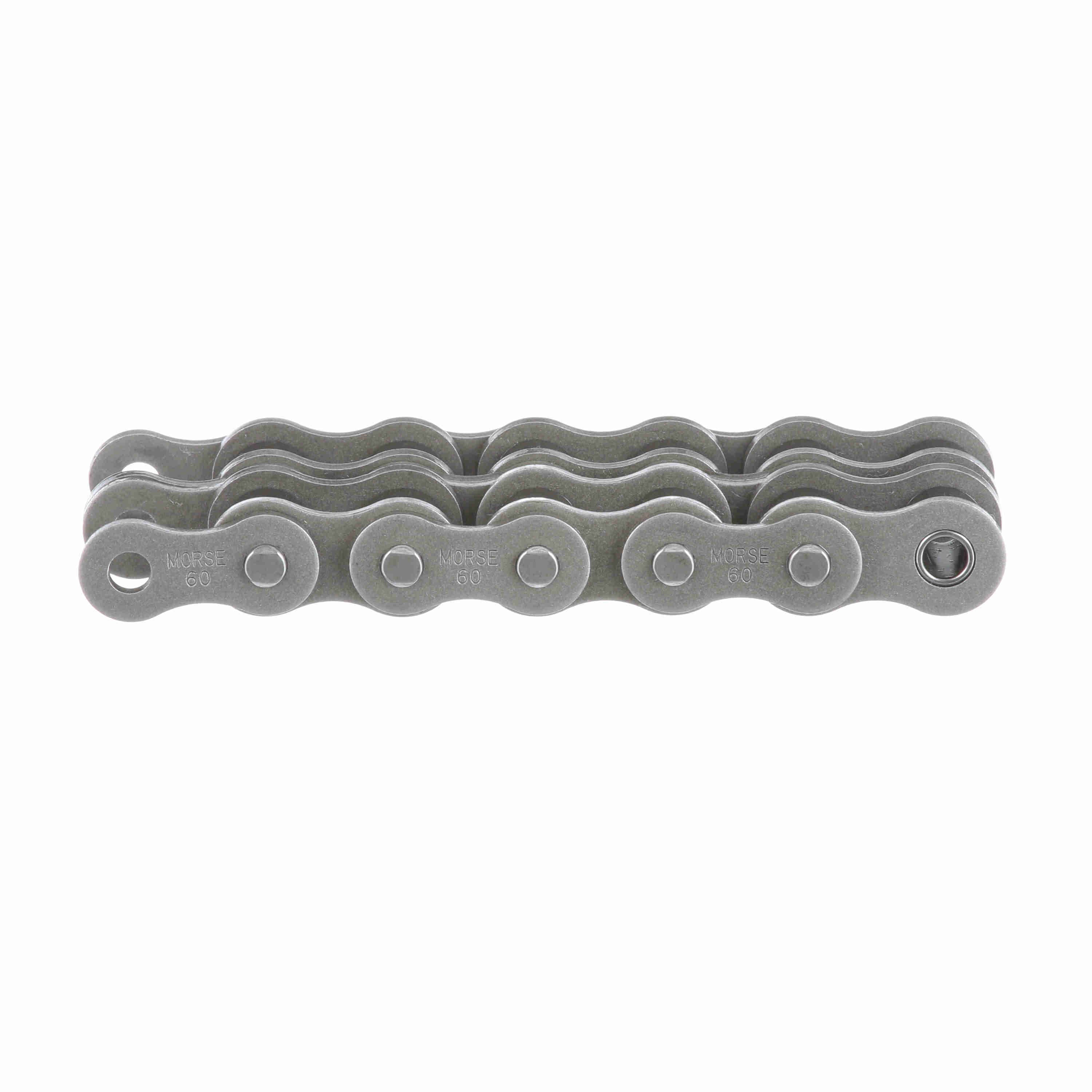

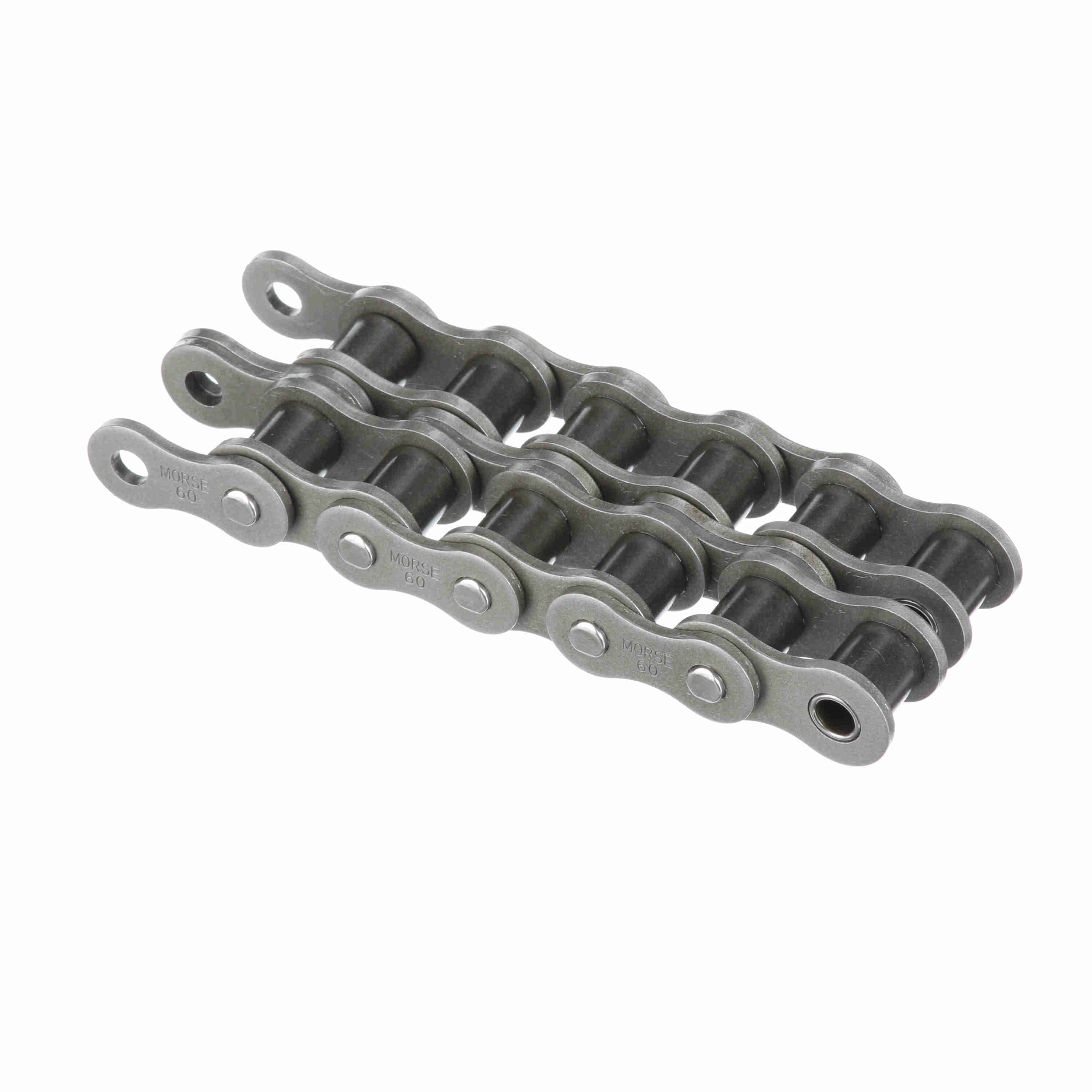

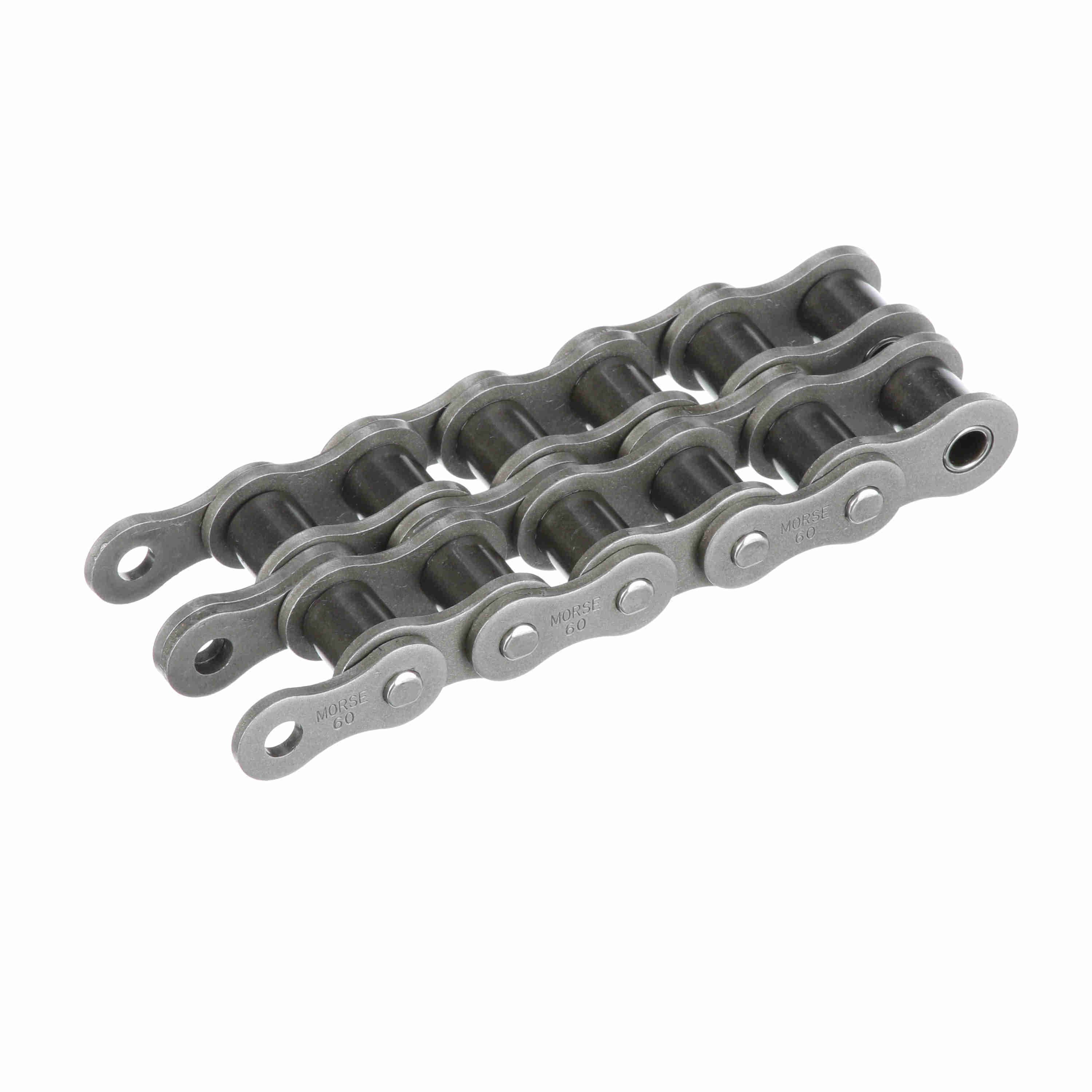

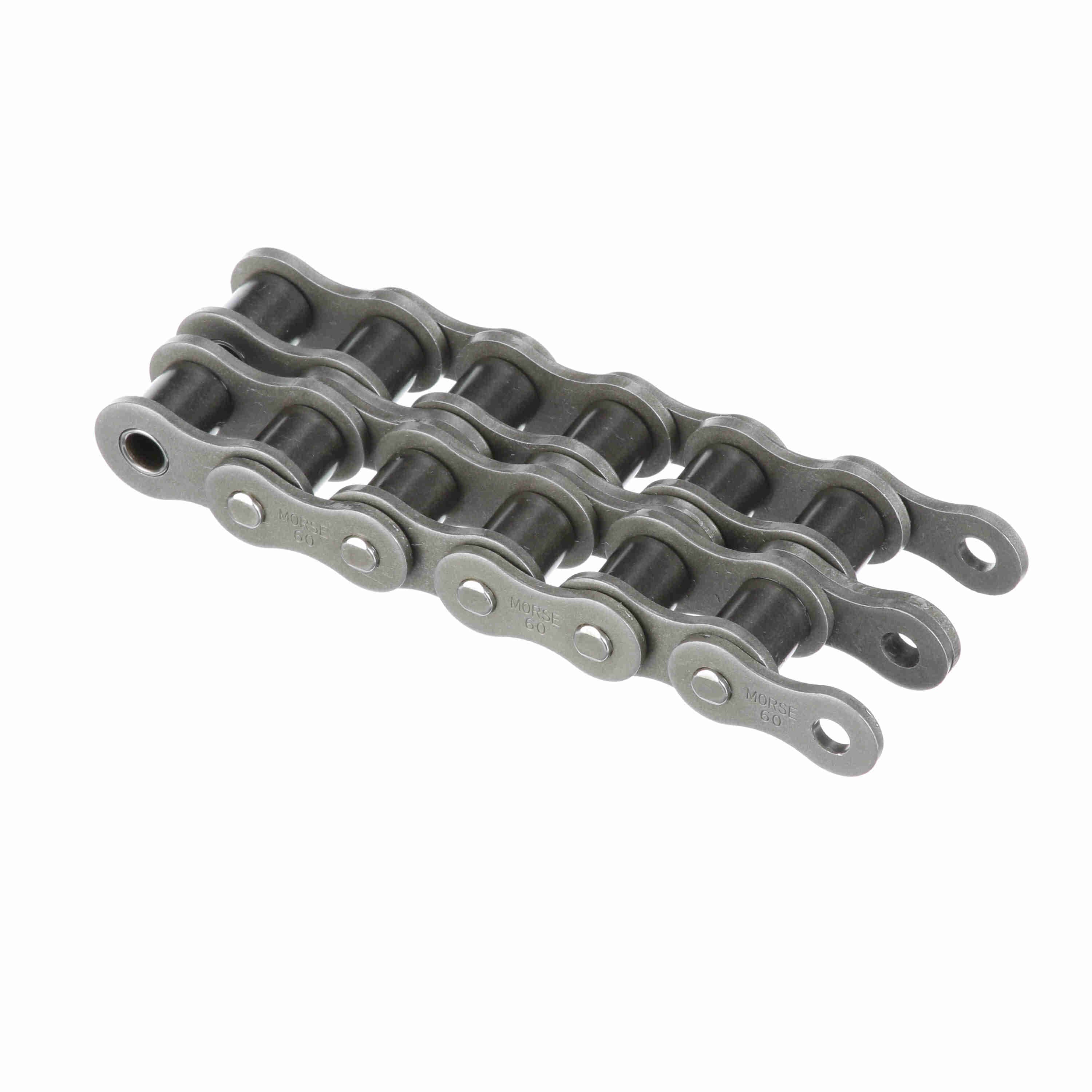

R1 PKG CHAIN 35-60
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 330876 |
| Product Name | 60-2R 50FT |
| Brand | Morse |
| Material | Steel |
| Weight | 1.98 lb |
| Roller Diameter (in) | 0.468 in |
| Number of Strands/Width | 2 |
| Roller Width (in) | 0.5 in |
| Pin Diameter (in) | 0.234 in |
| Number of Connecting Links Included | 5 |
| Chain Construction | Riveted |
| Chain Family | 60 |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $193.11 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Chain Pitch (in) |
| 0.75 in |
| Chain Type | Standard |
| Product Type | Roller Chain |
| Coating | Uncoated |
| Measurement System | Imperial |
| Standard Met | ANSI B29.1 |
| Base Catalog No | 60-2 |
| Plate Thickness (in) | 0.094 in |
| Transverse Pitch (in) | 0.897 in |
| Width Over Pins/Total Width (in) | 1.893 in |
| Inside Plate Height (in) | 0.7 in |
| Pin Length (in) | 1.893 in |
| Minimum Tensile Strength (lbs) | 14,060 lb |
| Side Plate Configuration | Hourglass |
| Total Length (ft) | 50 ft |
| HTC | 7315.11.0060 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112420 |
| Part NumberiManufacturer catalog number | 330876 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288467779 |
| CategoryiCatalog classification | Roller Chain |
