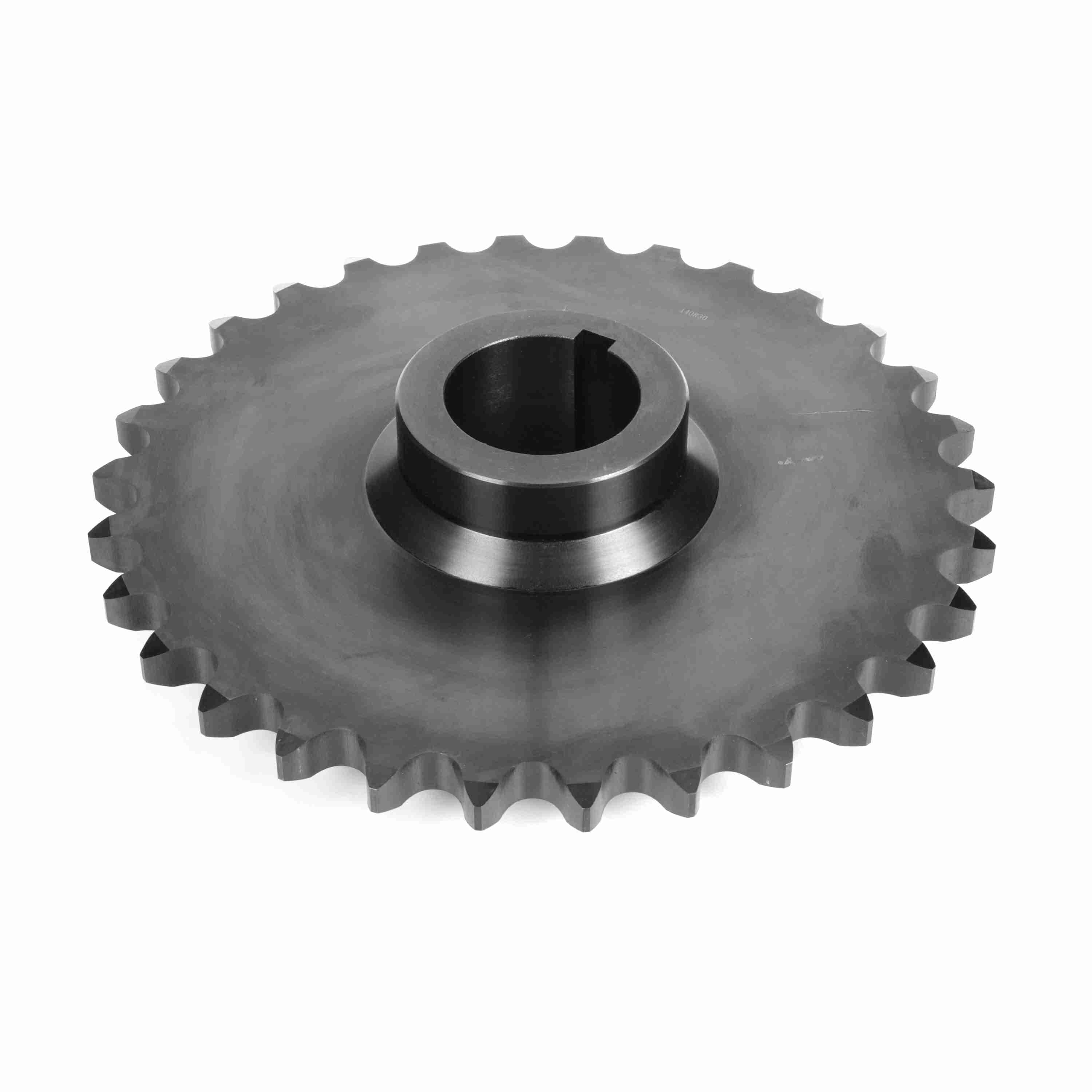

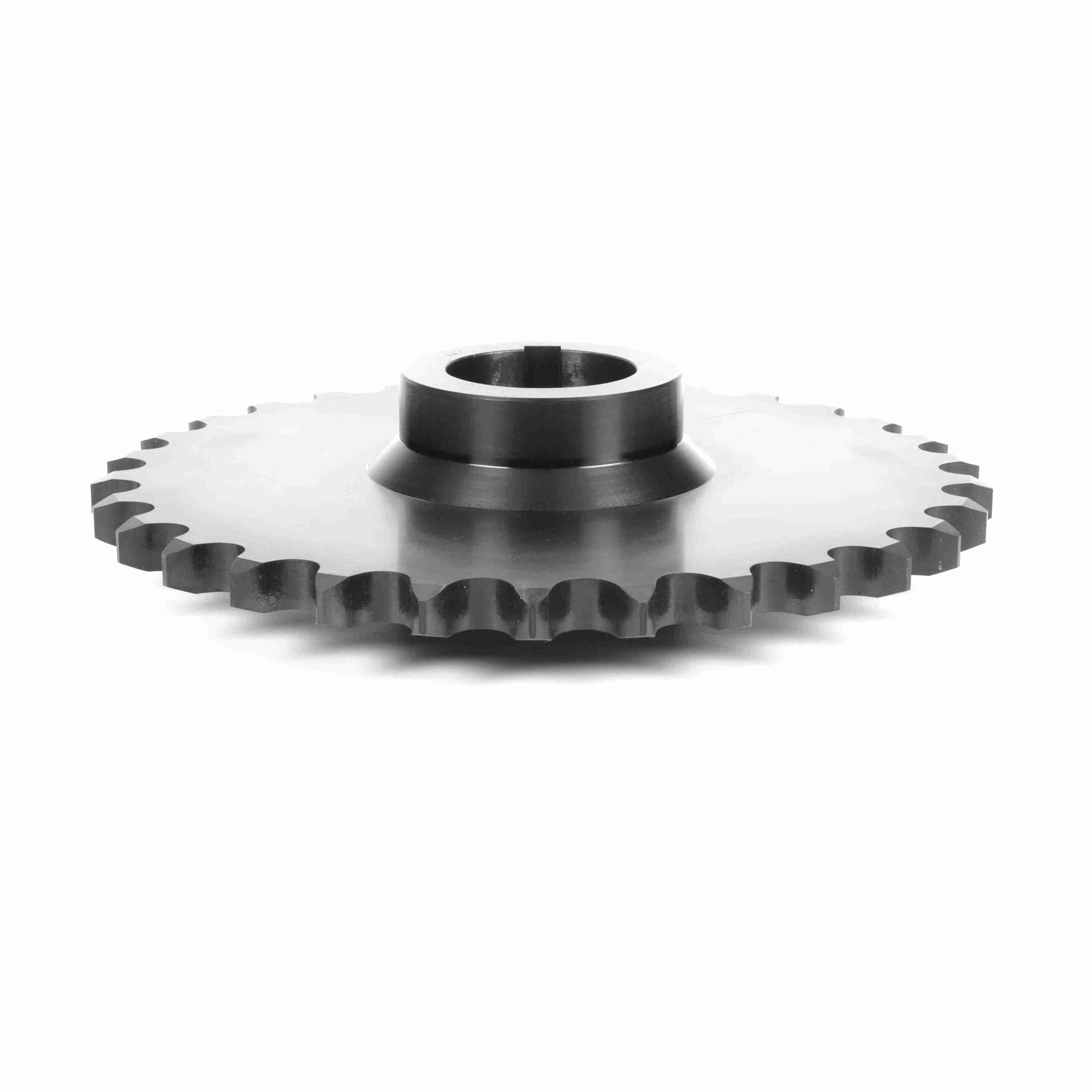

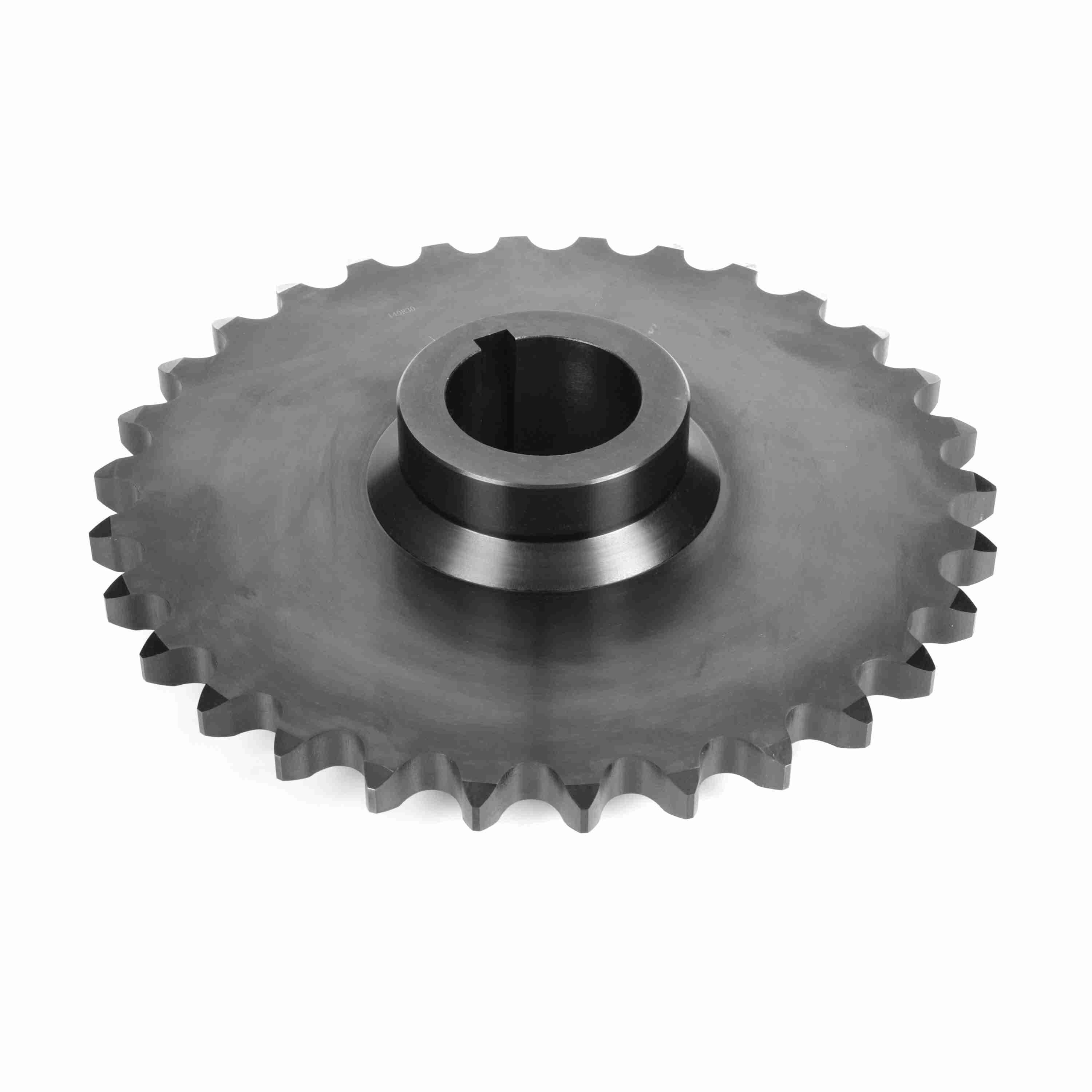

SPLIT TAPER BUSH SPKTS-900
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3358397 |
| Product Name | H140R30 |
| Brand | Browning |
| Material | Steel, Hardened Teeth |
| Weight | 65 lb |
| Package Length | 17.7 in |
| Package Width | 17.7 in |
| Package Height | 4.02 in |
| Product Type | Bushed Roller Chain Sprocket |
| Min Bore (in) | 1.375 in |
| Max Bore (in) | 3.625 in |
| Bushing Used | Split Taper |
| Pitch Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $3684.38 | — |
| 5 – 9 | $3251.44 | 12% off |
| 10+ | $2507.37 | 32% off |
| 16.742 in |
| Number of Teeth | 30 |
| Chain Used | No. 140, 1-3/4 in. Pitch ANSI Chain |
| Chain Pitch (in) | 1.75 in |
| Outside Diameter (in) | 17.7 in |
| Bore Type | Bushed Bore |
| Overall Length (in) | 5.219375 in |
| Number of Strands/Width | 1 |
| Hub Diameter (in) | 5.375 in |
| Maximum Bore (in) | 3.625 in |
| Minimum Bore (mm) | 35 mm |
| Maximum Bore (mm) | 90 mm |
| Pitch Type | Single |
| Number of Hubs | 2 |
| HTC | 8483.90.1050 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112486 |
| Part NumberiManufacturer catalog number | 3358397 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289026494 |
| CategoryiCatalog classification | Sprockets |
