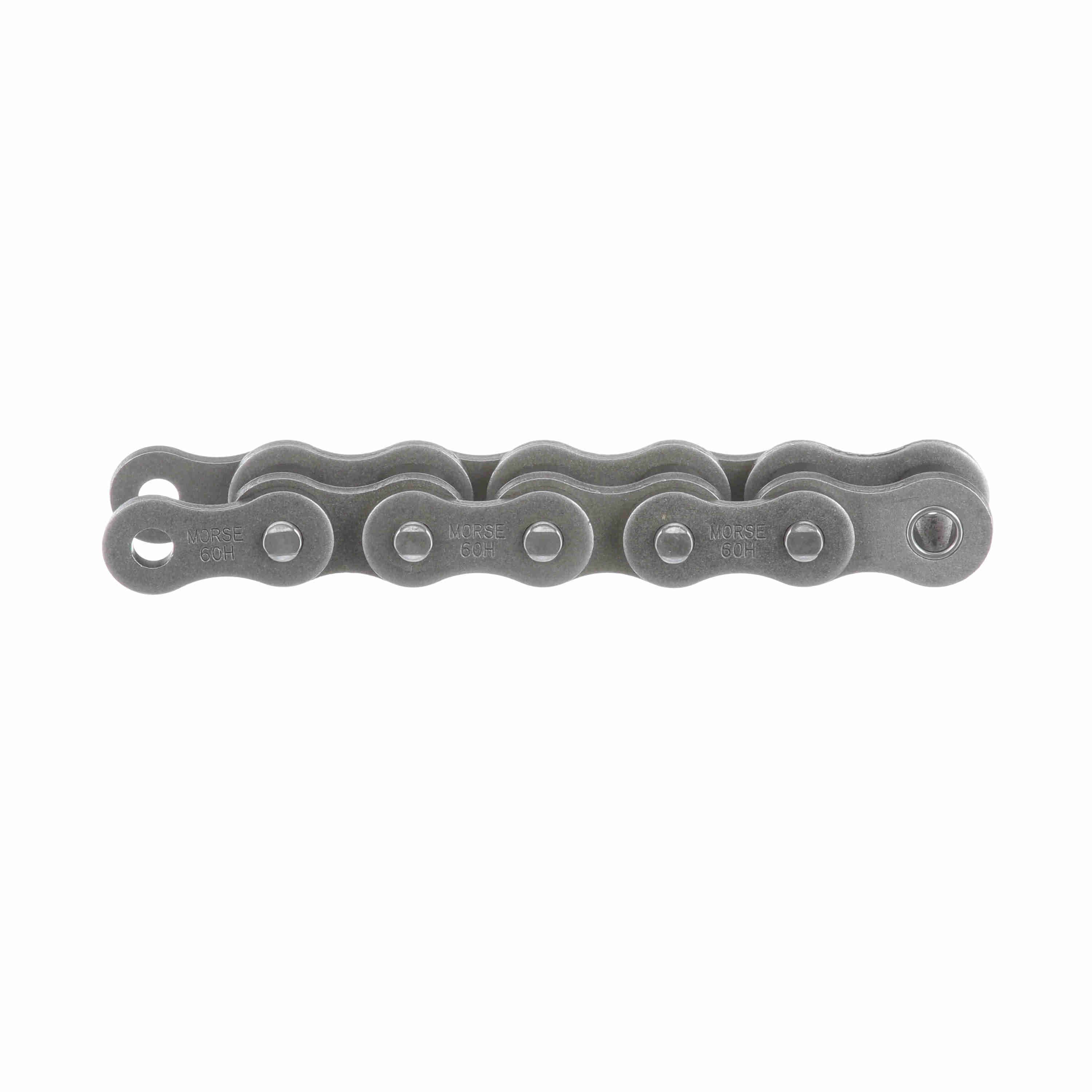

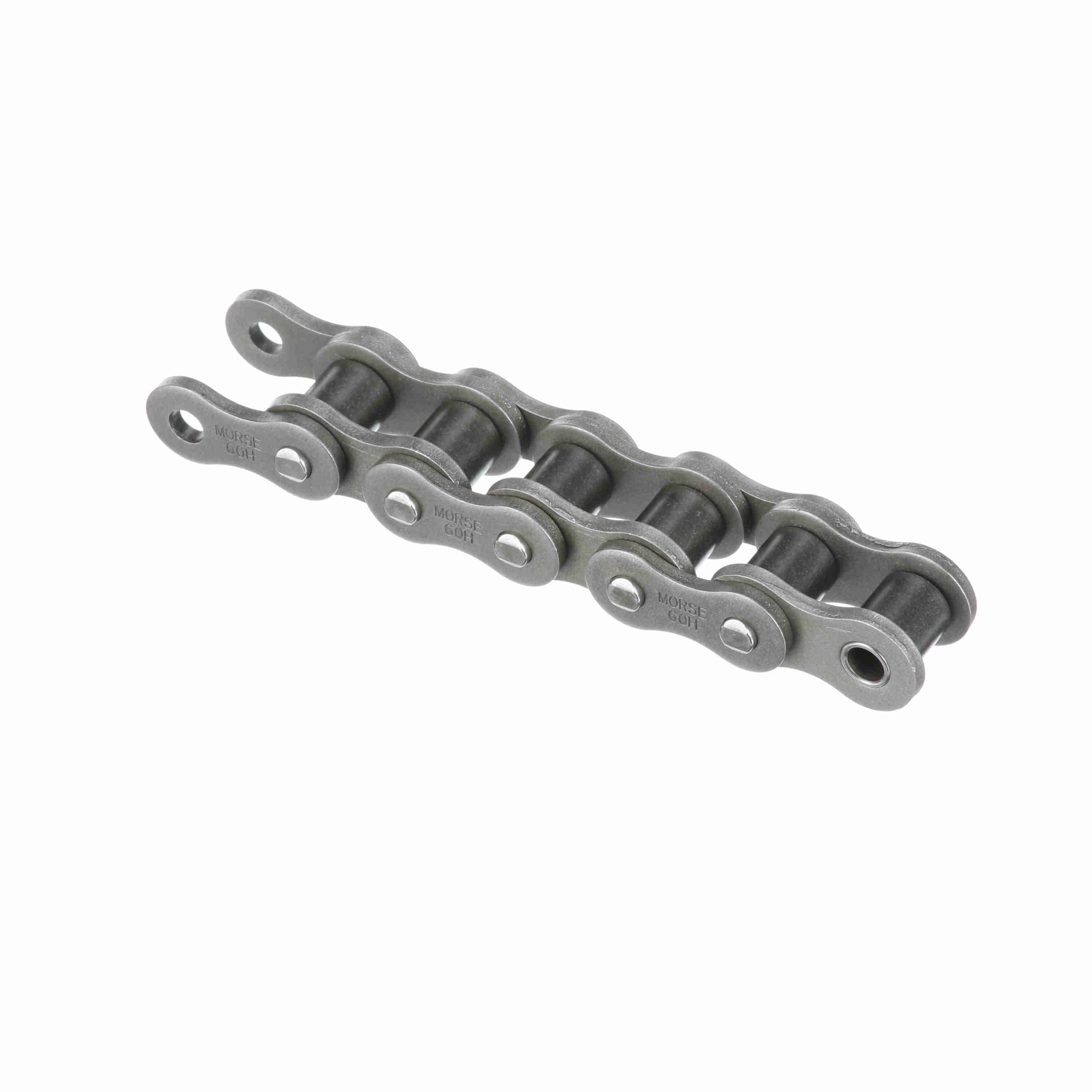

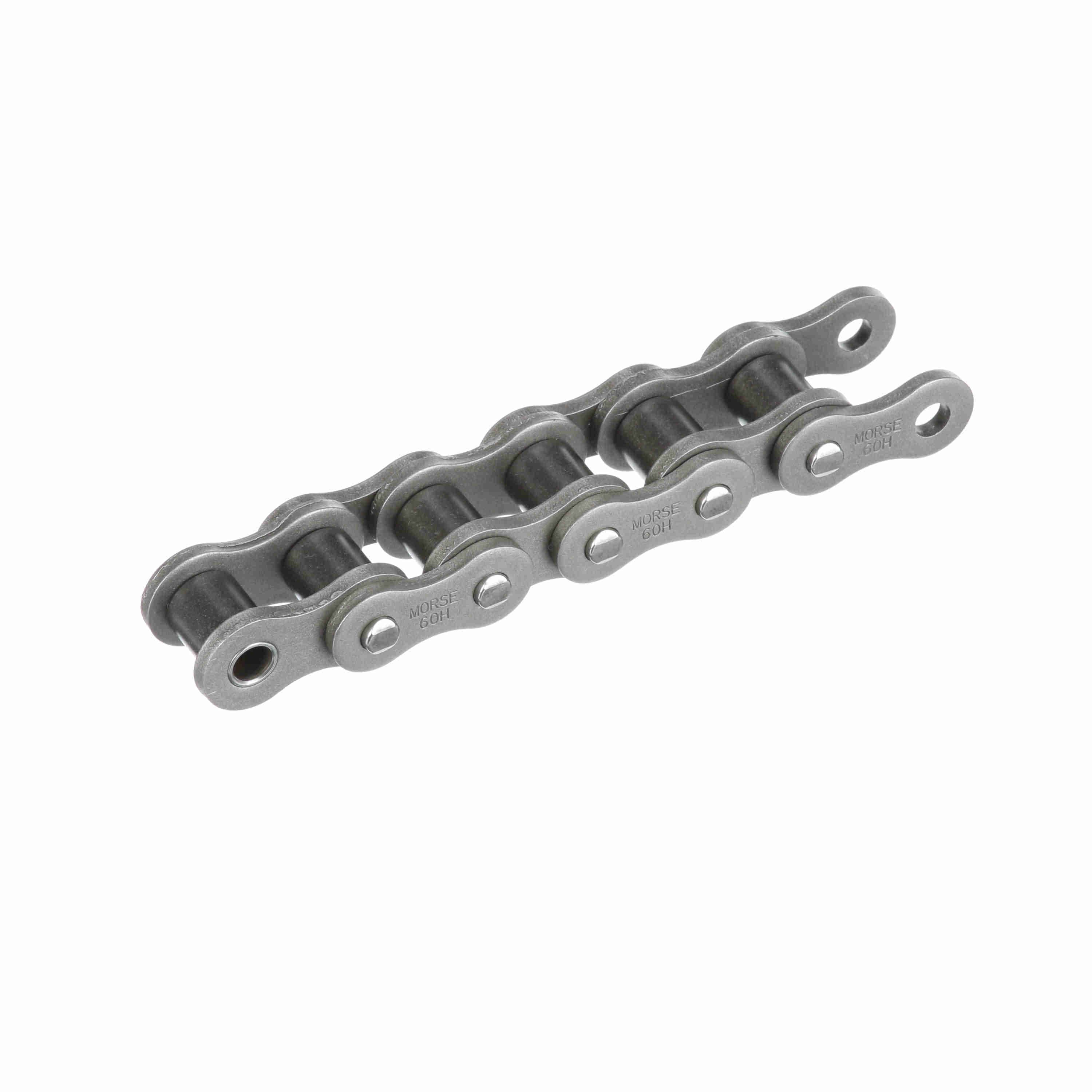

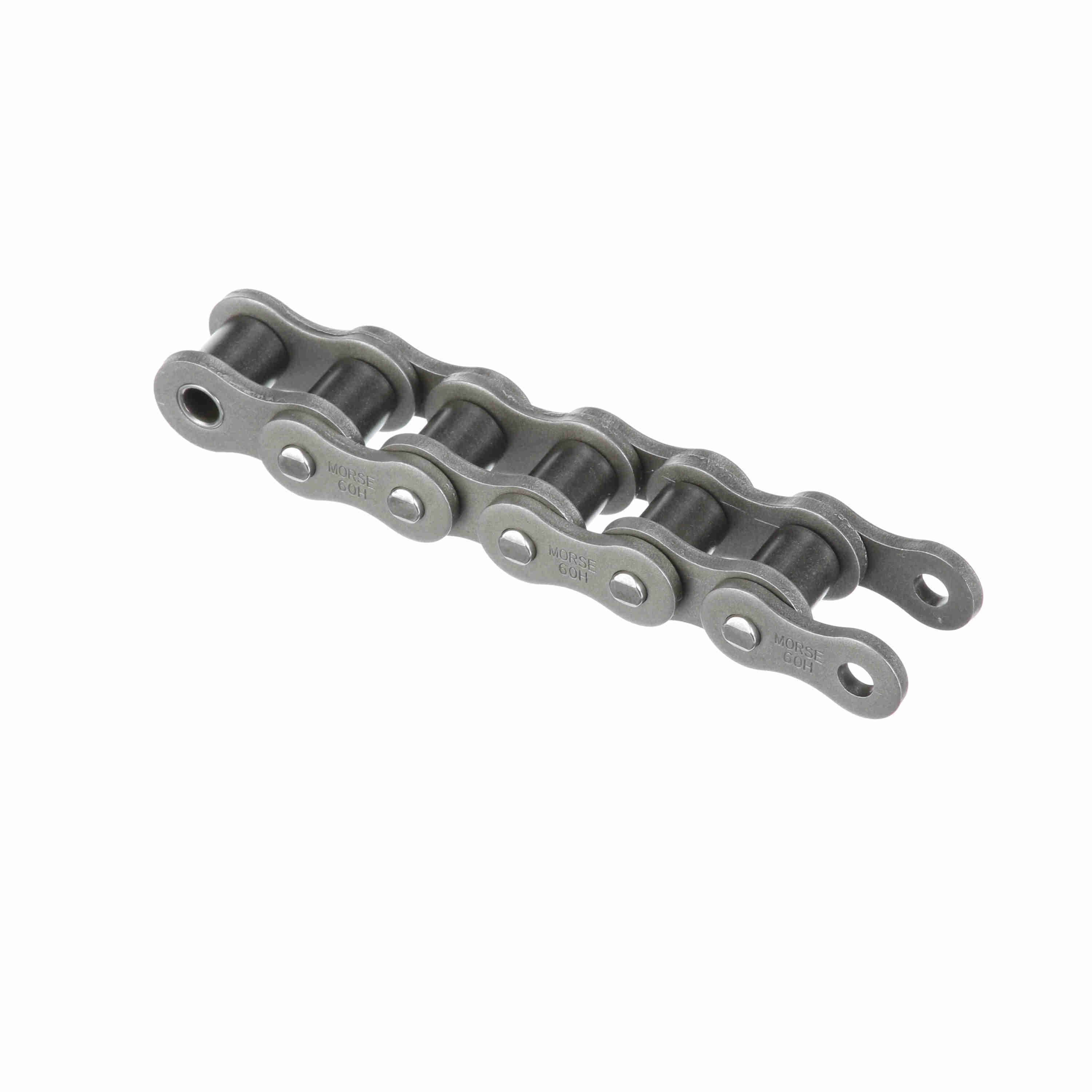

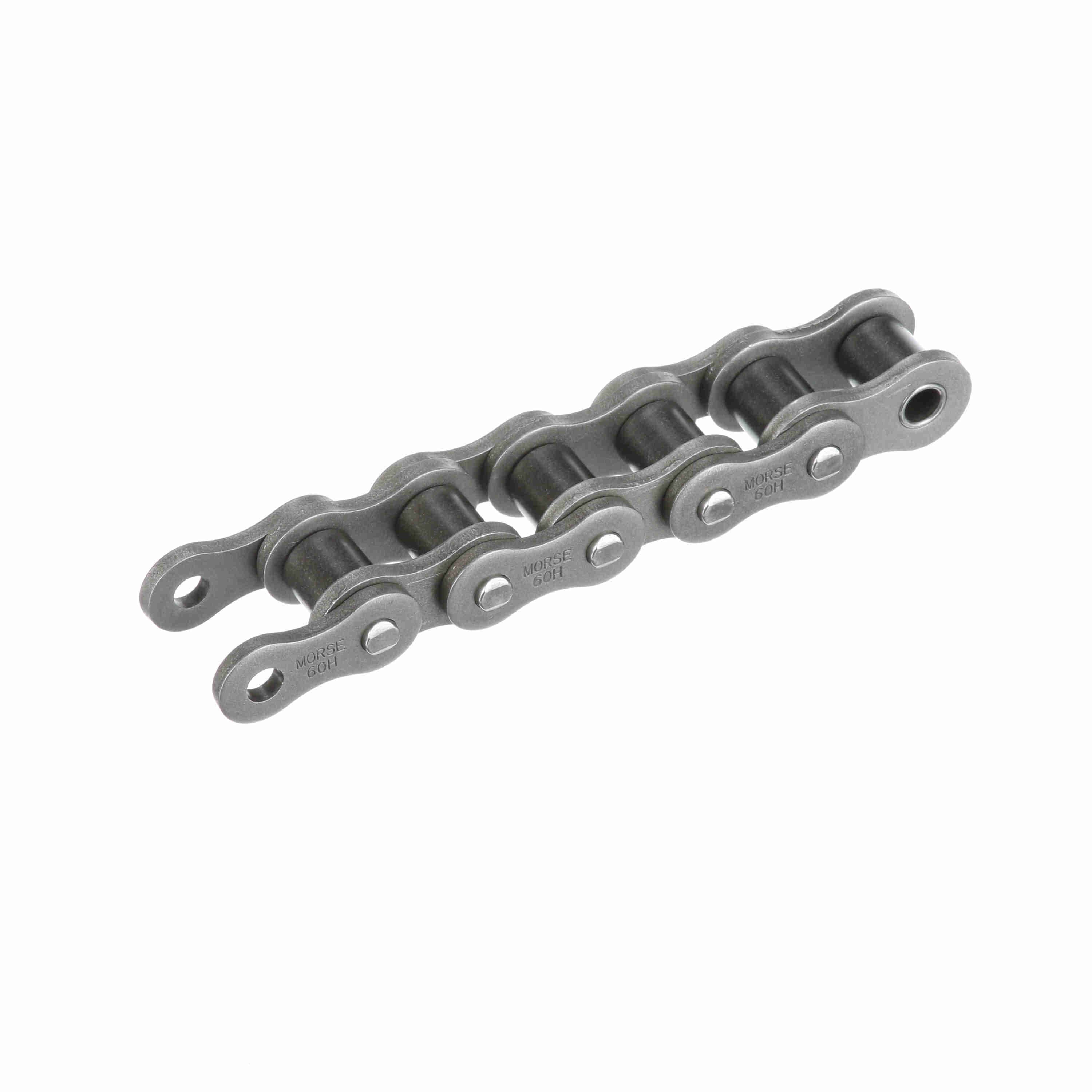

R1 PKG CHAIN 35-60
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 338960 |
| Product Name | 60HR 50FT |
| Brand | Morse |
| Material | Steel |
| Weight | 1.182 lb |
| Package Length | 14 in |
| Package Width | 14 in |
| Package Height | 14 in |
| Roller Diameter (in) | 0.468 in |
| Chain Family | 60 |
| Number of Connecting Links Included | 5 |
| Number of Strands/Width | 1 |
| Roller Width (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $68.44 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 0.5 in |
| Pin Diameter (in) | 0.234 in |
| Chain Construction | Riveted |
| Chain Type | Heavy |
| Chain Pitch (in) | 0.75 in |
| Product Type | Roller Chain |
| Coating | Uncoated |
| Standard Met | ANSI B29.1 |
| Measurement System | Imperial |
| Width Over Pins/Total Width (in) | 1.115 in |
| Base Catalog No | 60H |
| Total Length (ft) | 50 ft |
| Plate Thickness (in) | 0.125 in |
| Side Plate Configuration | Hourglass |
| Pin Length (in) | 1.115 in |
| Inside Plate Height (in) | 0.7 in |
| HTC | 7315.11.0060 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112496 |
| Part NumberiManufacturer catalog number | 338960 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288753179 |
| CategoryiCatalog classification | Roller Chain |
