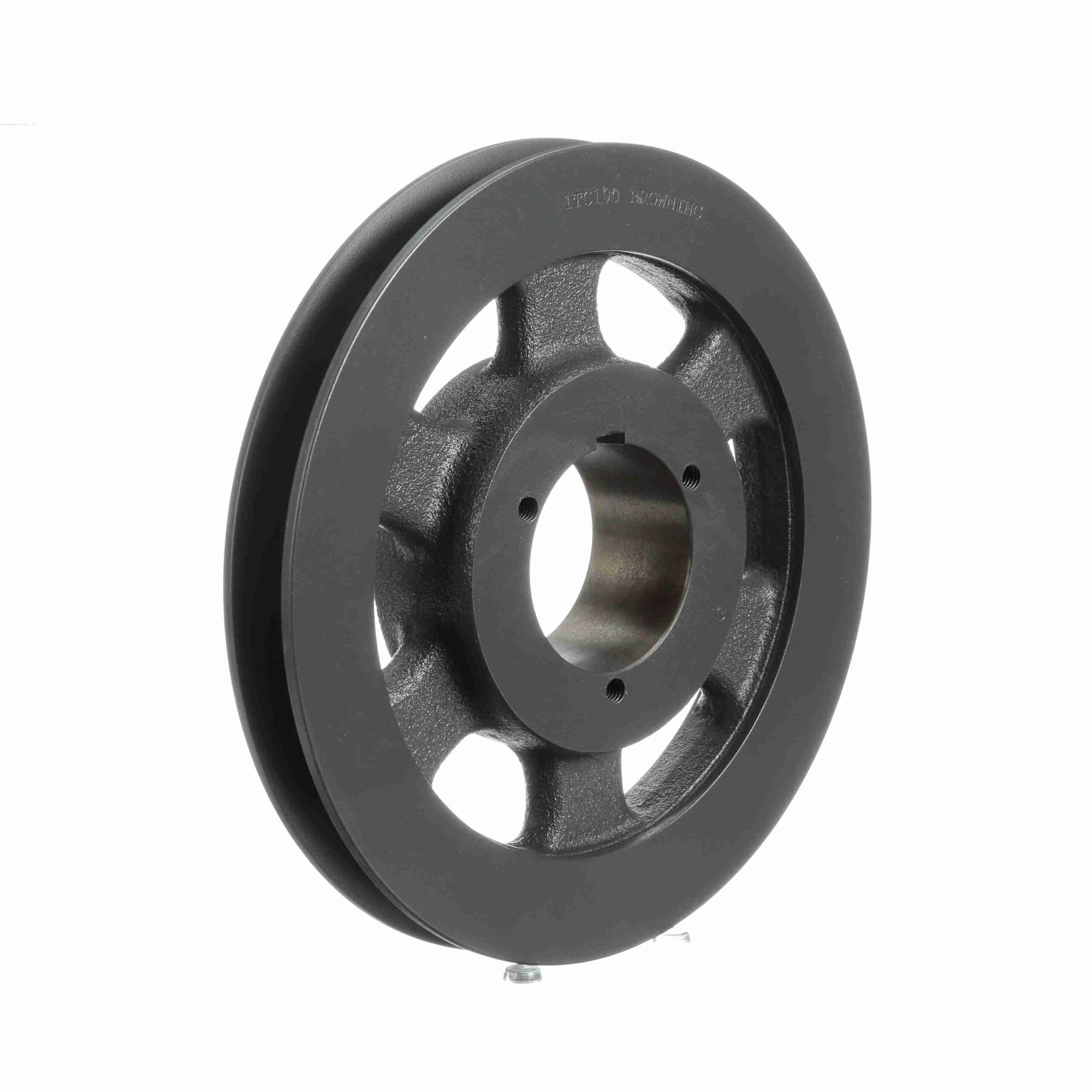

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave - 1TC94
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3465085 |
| Product Name | 1TC94 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 15.56 lb |
| Package Length | 10.06 in |
| Package Width | 10.06 in |
| Package Height | 1.75 in |
| Overall Length (in) | 2.828125 in |
| Number of Grooves | 1 |
| Datum Diameter (C) | 9.4 |
| Pitch Diameter (C) | 9.8 |
| Outside Diameter (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 9.8 in |
| Pulley Material | Cast Iron |
| Bushing Used | Q1 |
| Bore (Min) (in) | 0.75 in |
| Product Type | Multiple Sheaves |
| Belt Section | C |
| Bore Type | Split Taper Bushed |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112555 |
| Part NumberiManufacturer catalog number | 3465085 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
