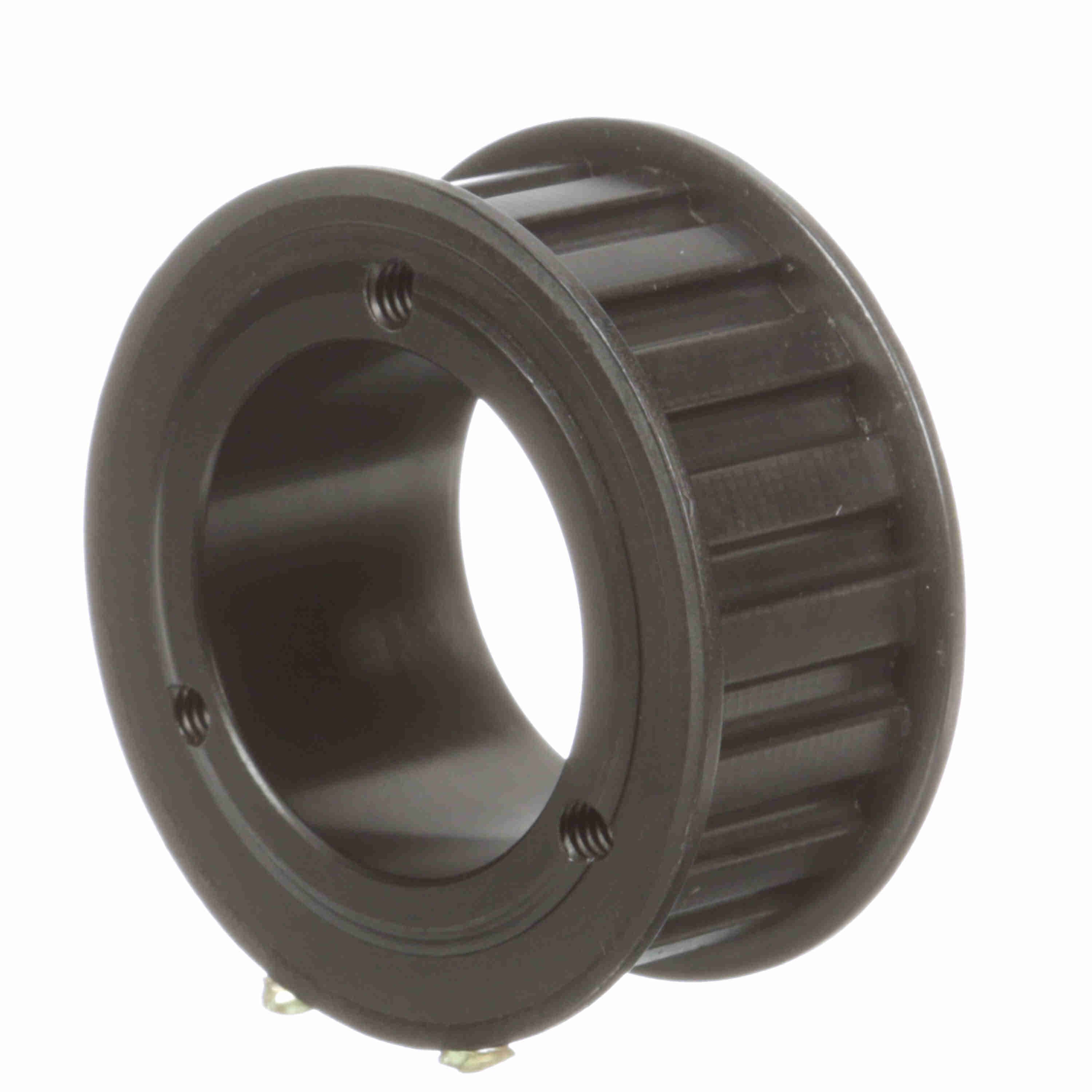

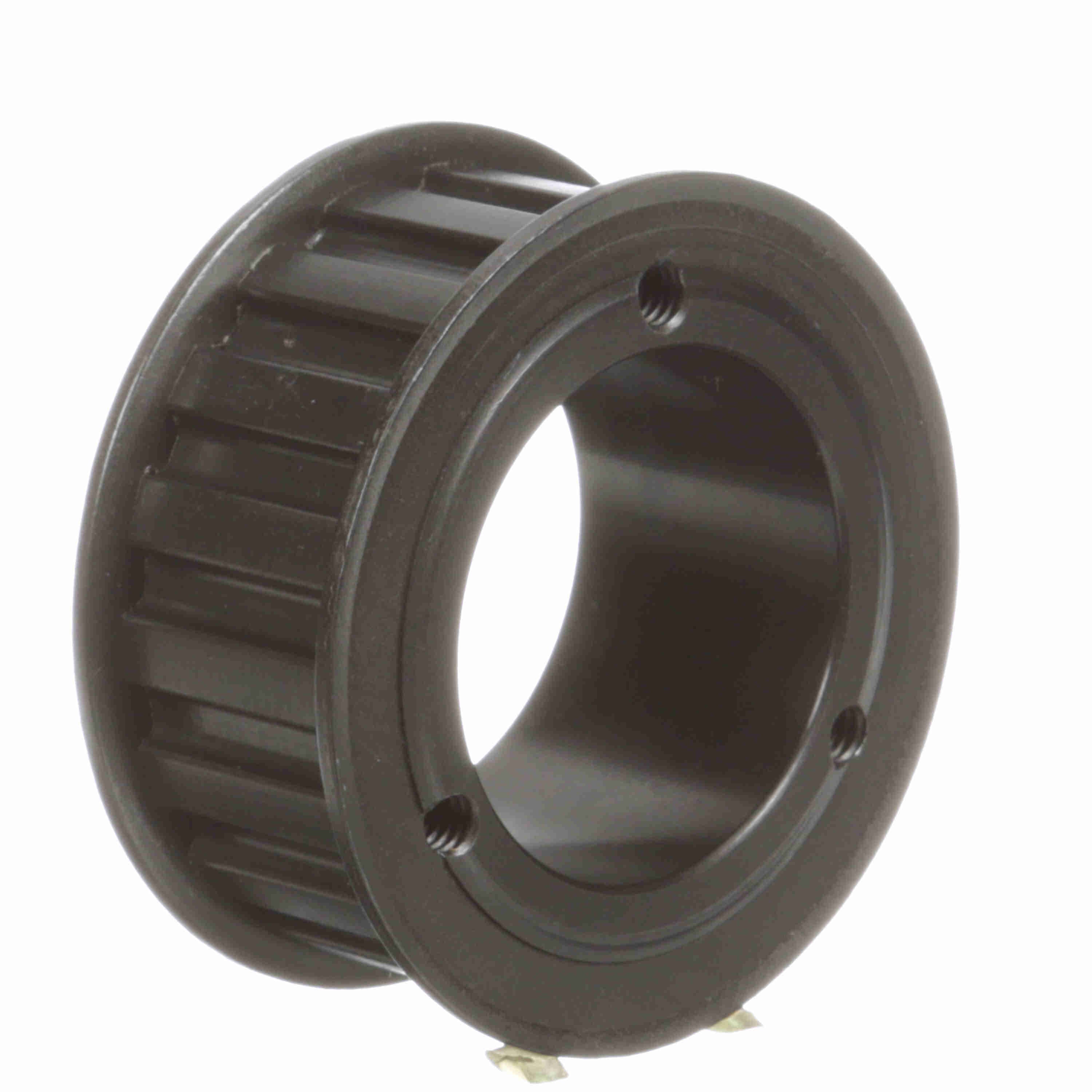

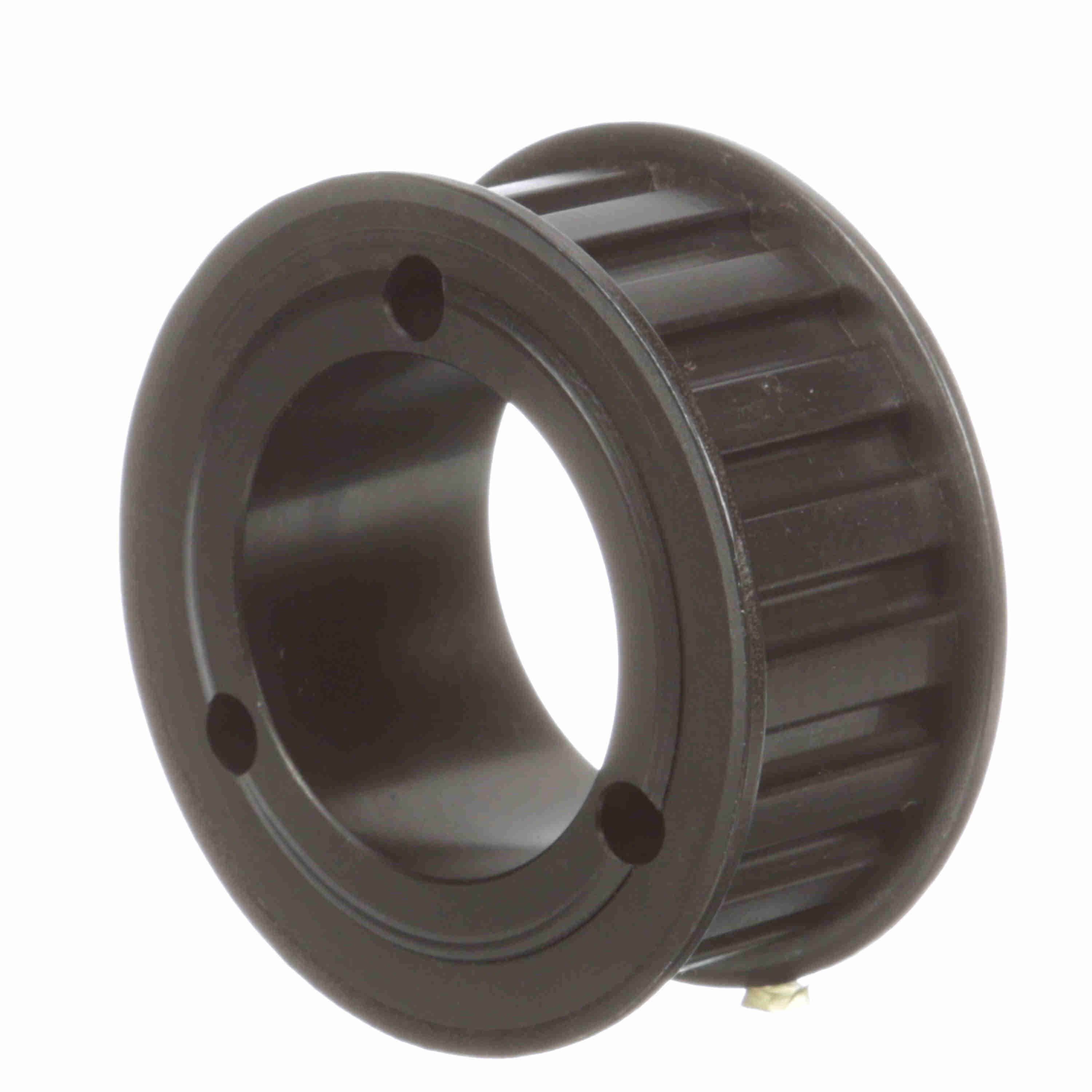

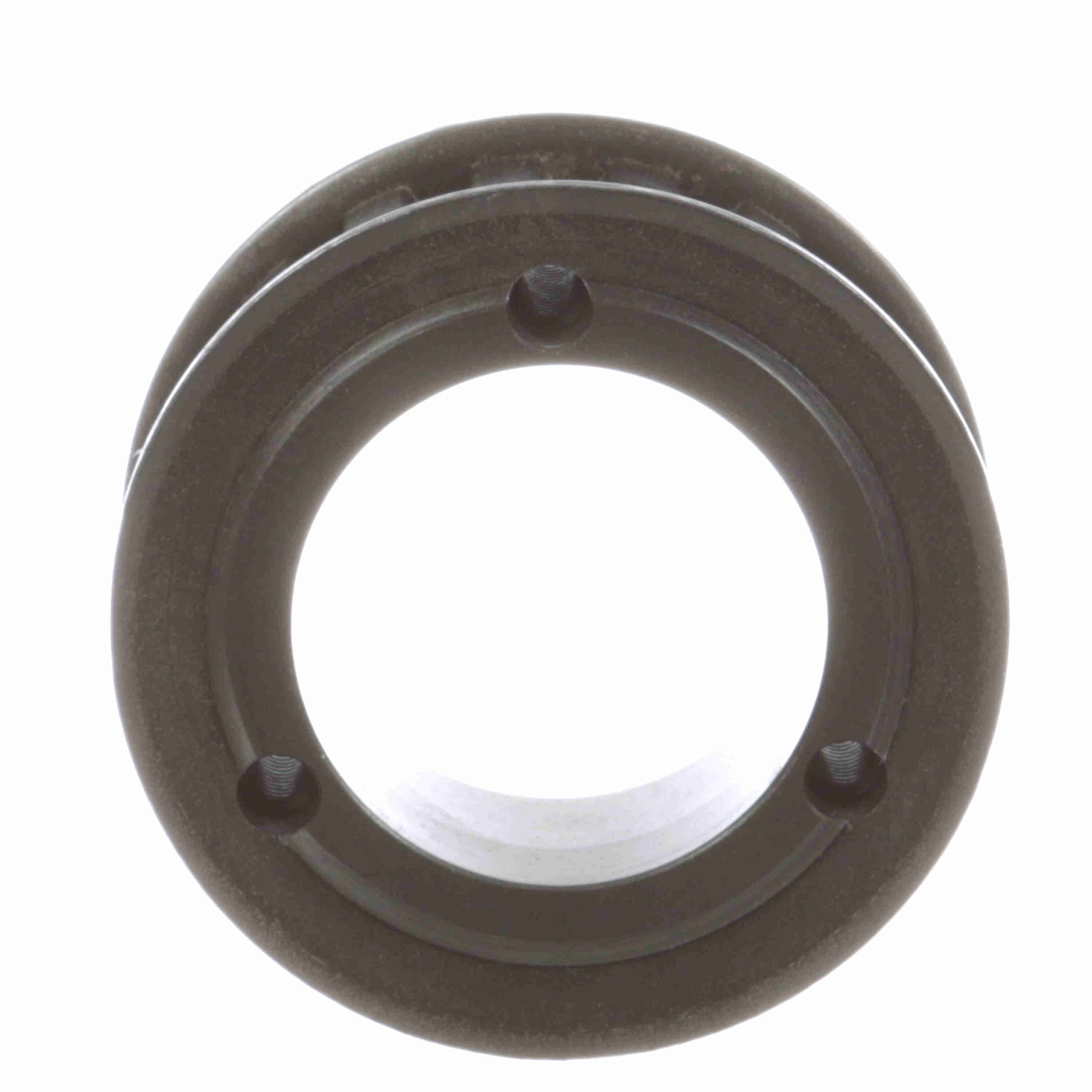

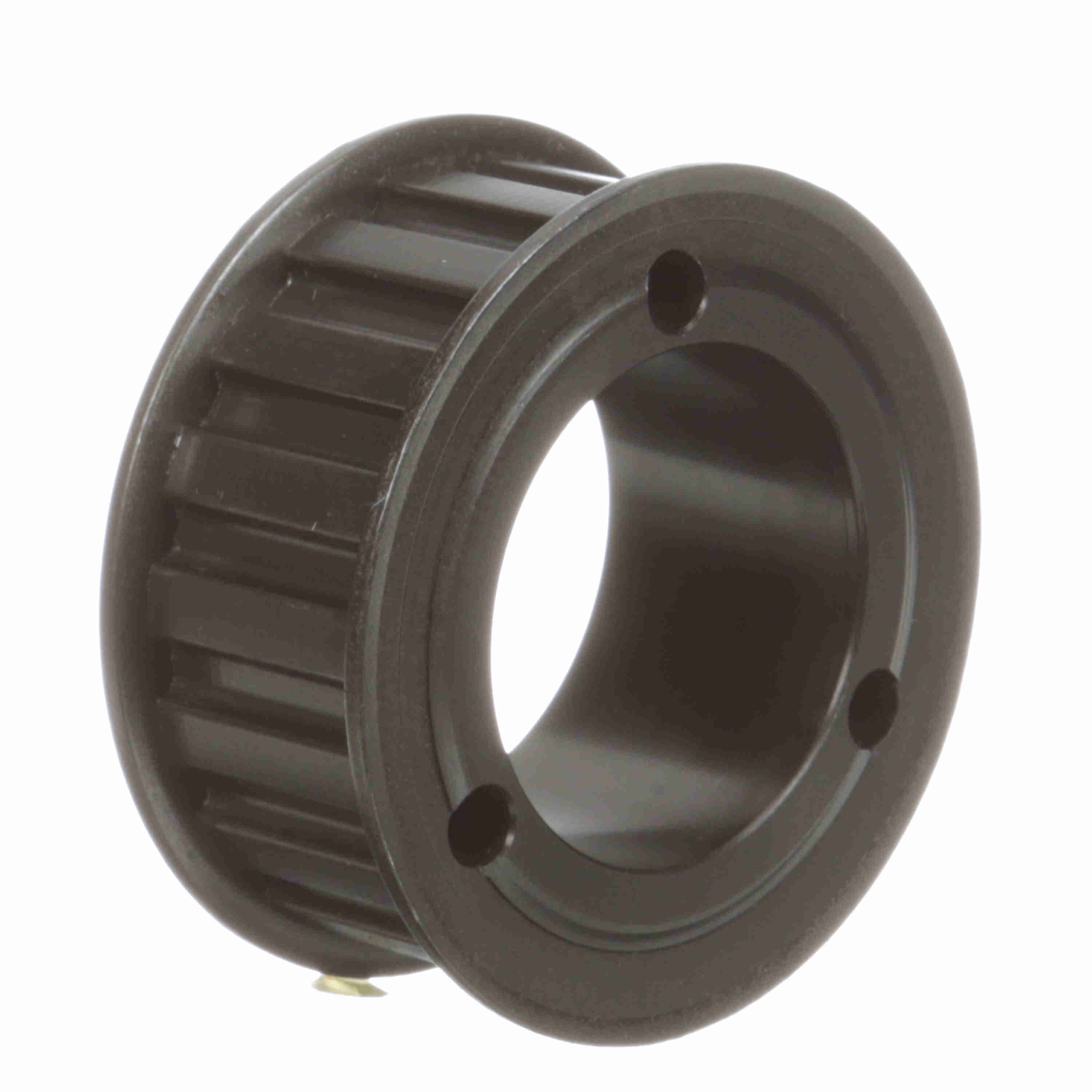

QD GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3513538 |
| Product Name | 18H100SH |
| Brand | Browning |
| Material | Steel |
| Weight | 1.24 lb |
| Package Length | 3.56 in |
| Package Width | 3.56 in |
| Package Height | 1.44 in |
| Bore Range | 1/2 to 1 5/8 |
| Number of teeth | 18 |
| Model Name | GBPulley_Master6 |
| Width (mm) | 25.4 mm |
| Product Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $261.63 | — |
| 5 – 9 | $245.39 | 6% off |
| 10+ | $236.82 | 9% off |
| Gearbelt Pulley |
| Bore Type | Bushed Bore |
| Pitch Diameter (in) | 2.865 in |
| Outside Diameter (mm) | 71.3994 mm |
| Width (in) | 1 in |
| Outside Diameter (in) | 2.811 in |
| Belt Section | H |
| Flange (in) | 3.10 in |
| Inside Diameter (in) | 2 in |
| Face Width | 1.3125 |
| Hub Projection | 0.95025 |
| With Flanges | With Flanges |
| Hub Diameter (in) | 2.7 in |
| Overall Length (in) | 2.26225 in |
| Number of Hubs | 1 |
| Pulley Construction | Solid |
| Length Through Bore | 1.2 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112585 |
| Part NumberiManufacturer catalog number | 3513538 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289345915 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
