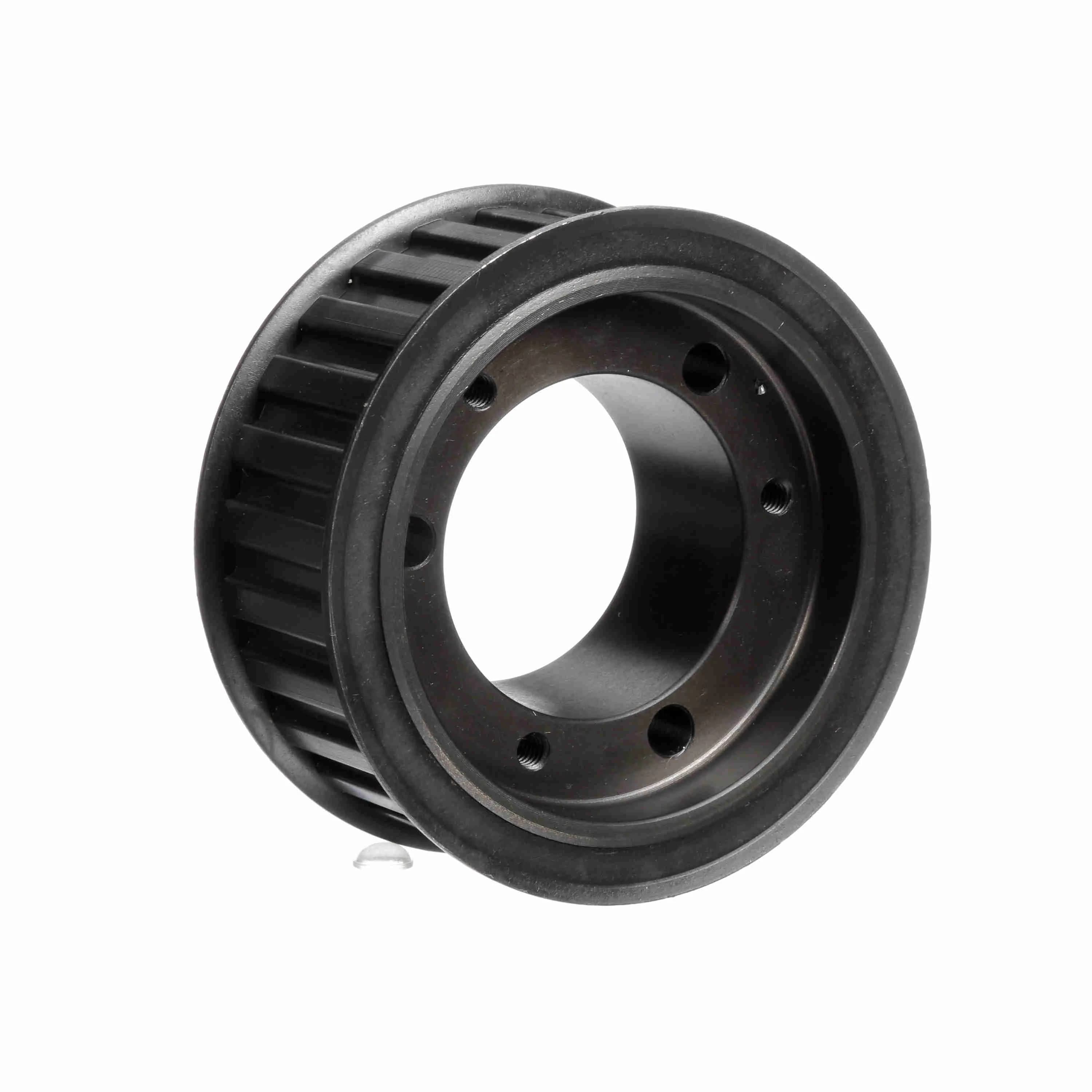

QD GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3514122 |
| Product Name | 22H200SD |
| Brand | Browning |
| Material | Steel |
| Weight | 3.6 lb |
| Package Length | 3.88 in |
| Package Width | 2.56 in |
| Package Height | 3.88 in |
| Width (mm) | 50.8 mm |
| Number of teeth | 22 |
| Bore Range | 1/2 to 2 |
| Product Type | Gearbelt Pulley |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $705.19 | — |
| 5 – 9 | $661.43 | 6% off |
| 10+ | $638.33 | 9% off |
| Bushed Bore |
| Flange (in) | 3.735 in |
| Outside Diameter (in) | 3.447 in |
| Pitch Diameter (in) | 3.501 in |
| Outside Diameter (mm) | 87.5538 mm |
| Width (in) | 2 in |
| Inside Diameter (in) | 2.125 in |
| Belt Section | H |
| Face Width | 2.344 |
| Number of Hubs | 1 |
| Overall Length (in) | 3.293 in |
| Hub Projection | 0.95 |
| Pulley Construction | Solid |
| Hub Diameter (in) | 3.13 in |
| Length Through Bore | 1.83 |
| With Flanges | With Flanges |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112625 |
| Part NumberiManufacturer catalog number | 3514122 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289347186 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
