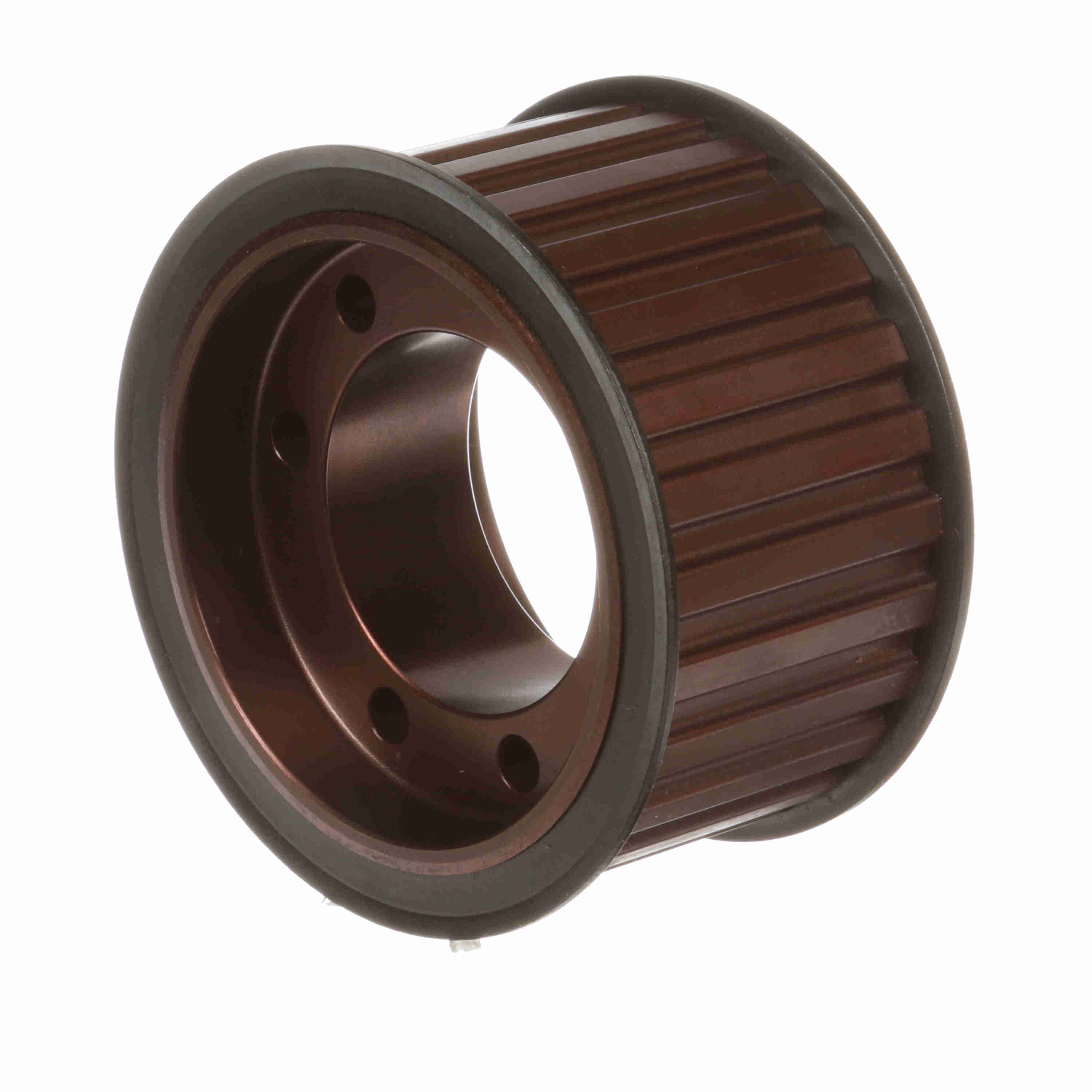

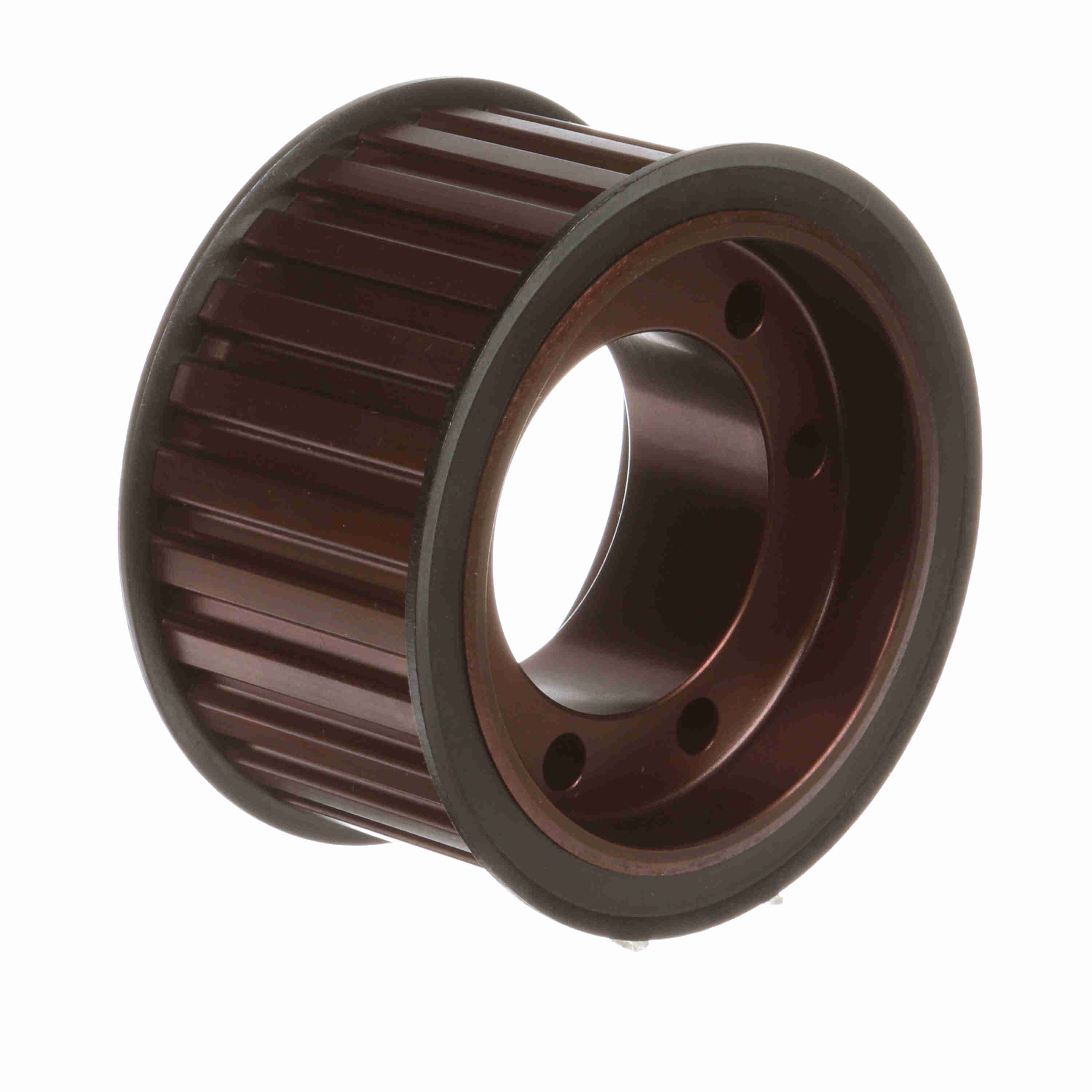

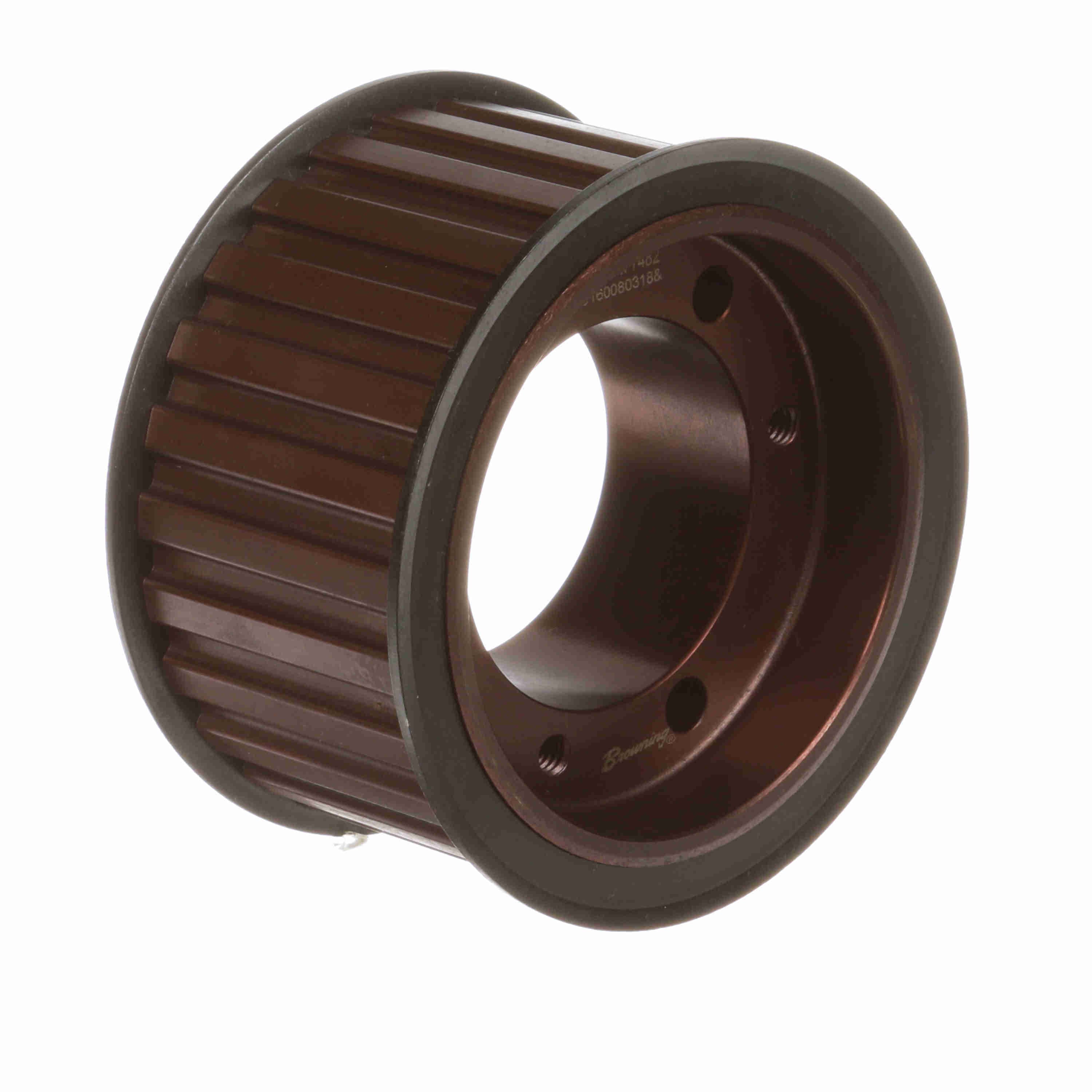

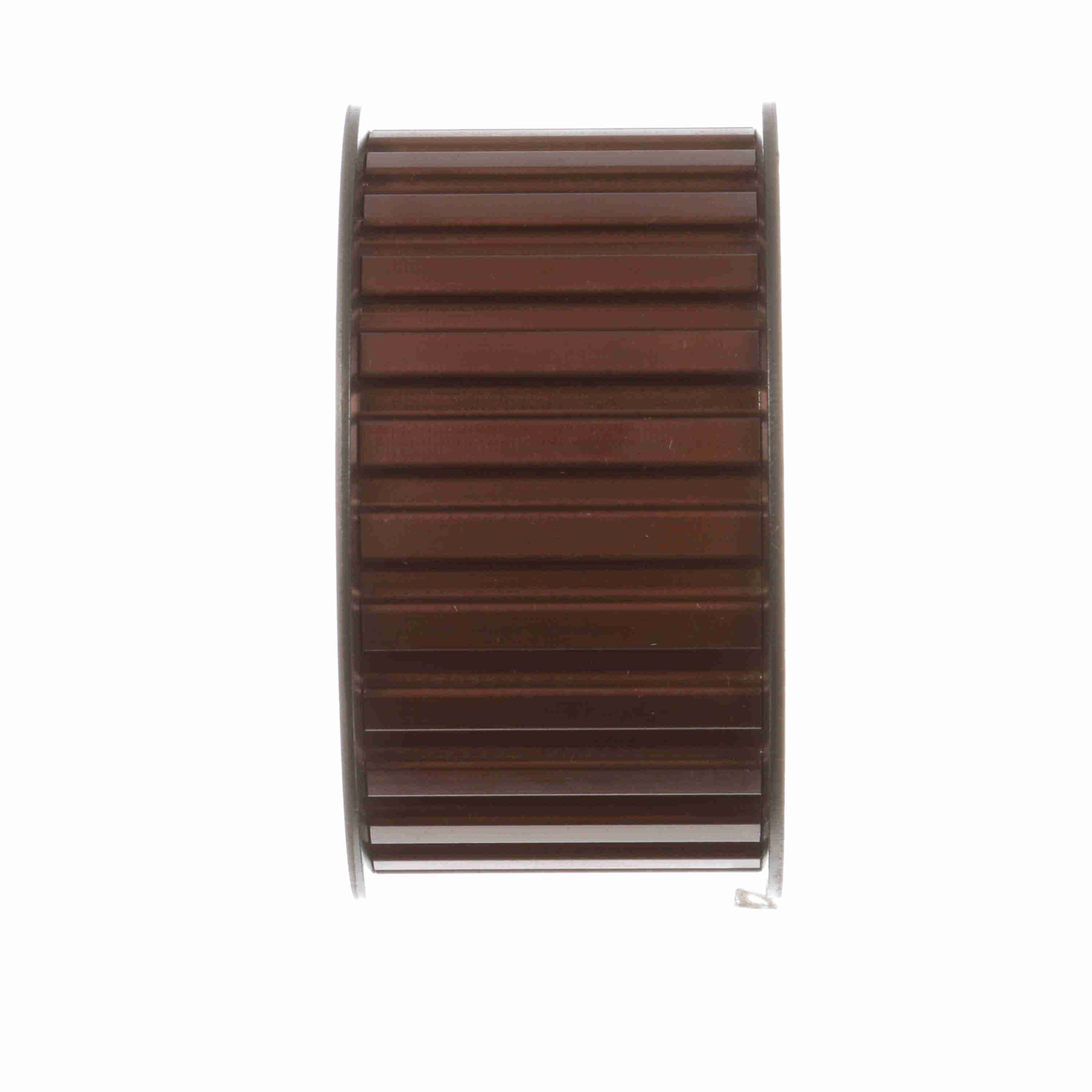

QD GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3514148 |
| Product Name | 26H200SD |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 3.97 lb |
| Package Length | 5.4 in |
| Package Width | 5.4 in |
| Package Height | 3.7 in |
| Bore Range | 1/2 to 2 |
| Product Type | Gearbelt Pulley |
| Model Name | GBPulley_Master6 |
| Width (mm) | 50.8 mm |
| Number of teeth |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $406.76 | — |
| 5 – 9 | $381.52 | 6% off |
| 10+ | $368.19 | 9% off |
| 26 |
| Bore Type | Bushed Bore |
| Inside Diameter (in) | 3.3125 in |
| Outside Diameter (mm) | 105.1052 mm |
| Outside Diameter (in) | 4.084 in |
| Width (in) | 2 in |
| Belt Section | H |
| Flange (in) | 4.370 in |
| Pitch Diameter (in) | 4.138 in |
| Face Width | 2.344 |
| Pulley Construction | Solid |
| Hub Projection | 0.325 |
| Hub Diameter (in) | 3.13 in |
| With Flanges | With Flanges |
| Number of Hubs | 1 |
| Length Through Bore | 1.83 |
| Overall Length (in) | 2.669 in |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112627 |
| Part NumberiManufacturer catalog number | 3514148 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289348541 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
