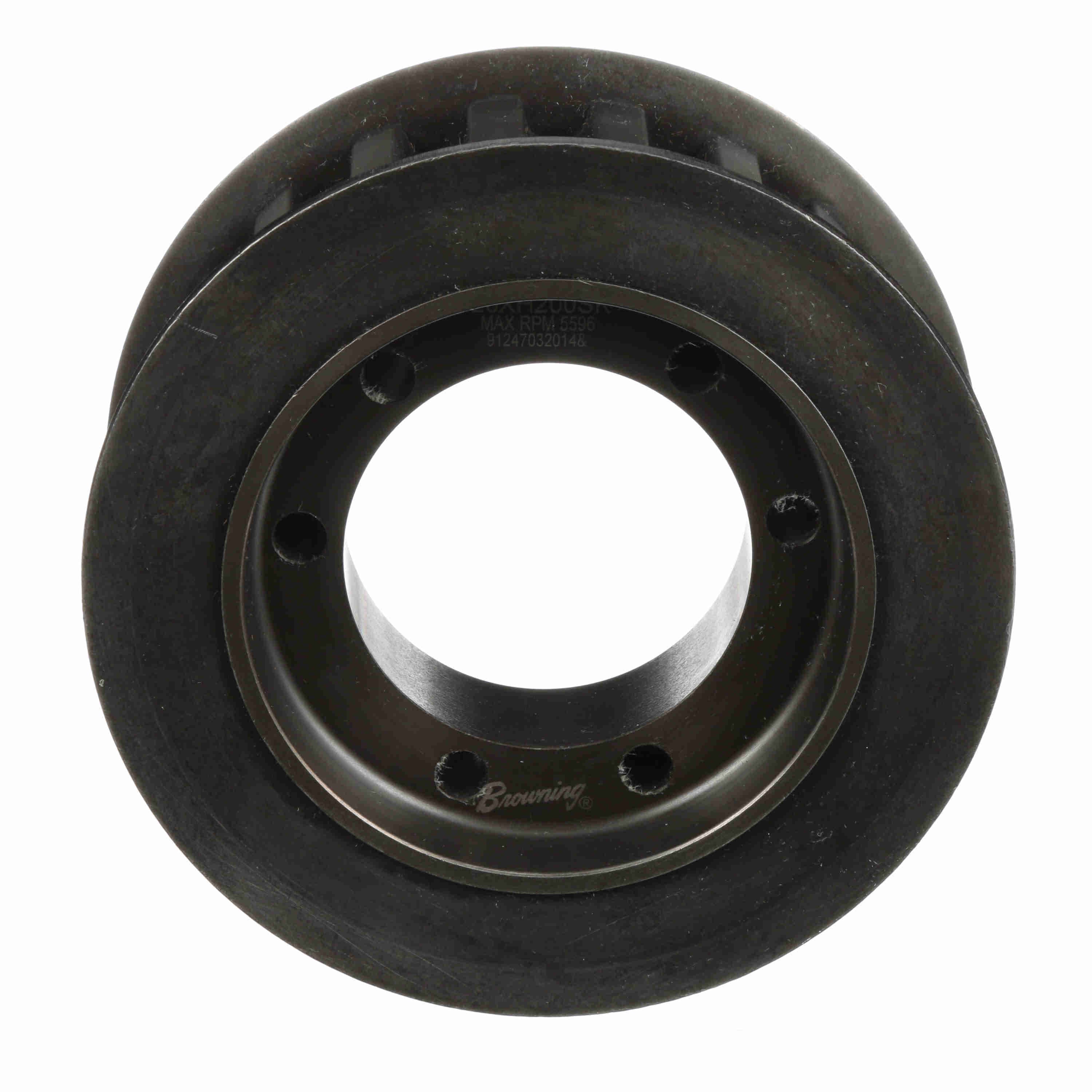

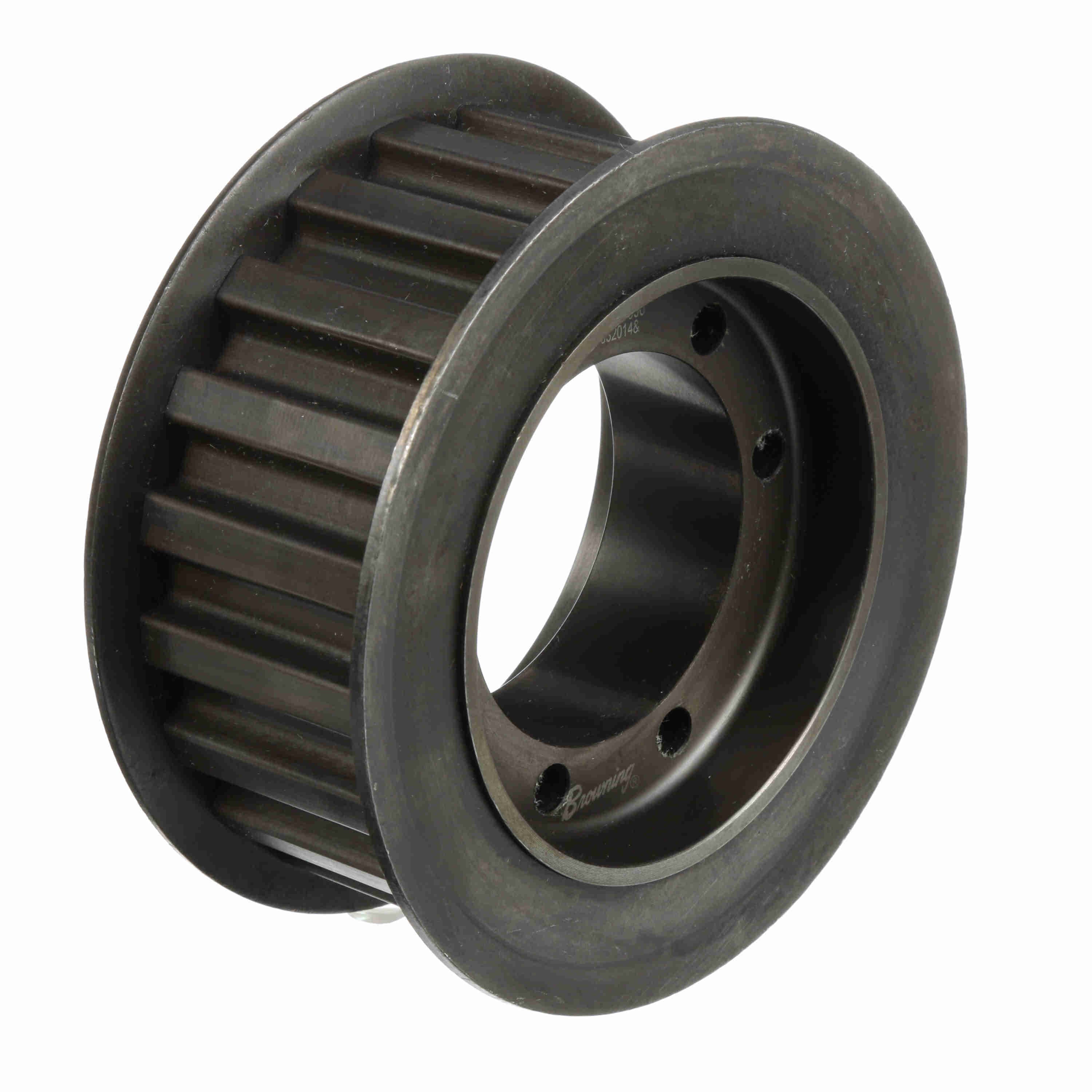

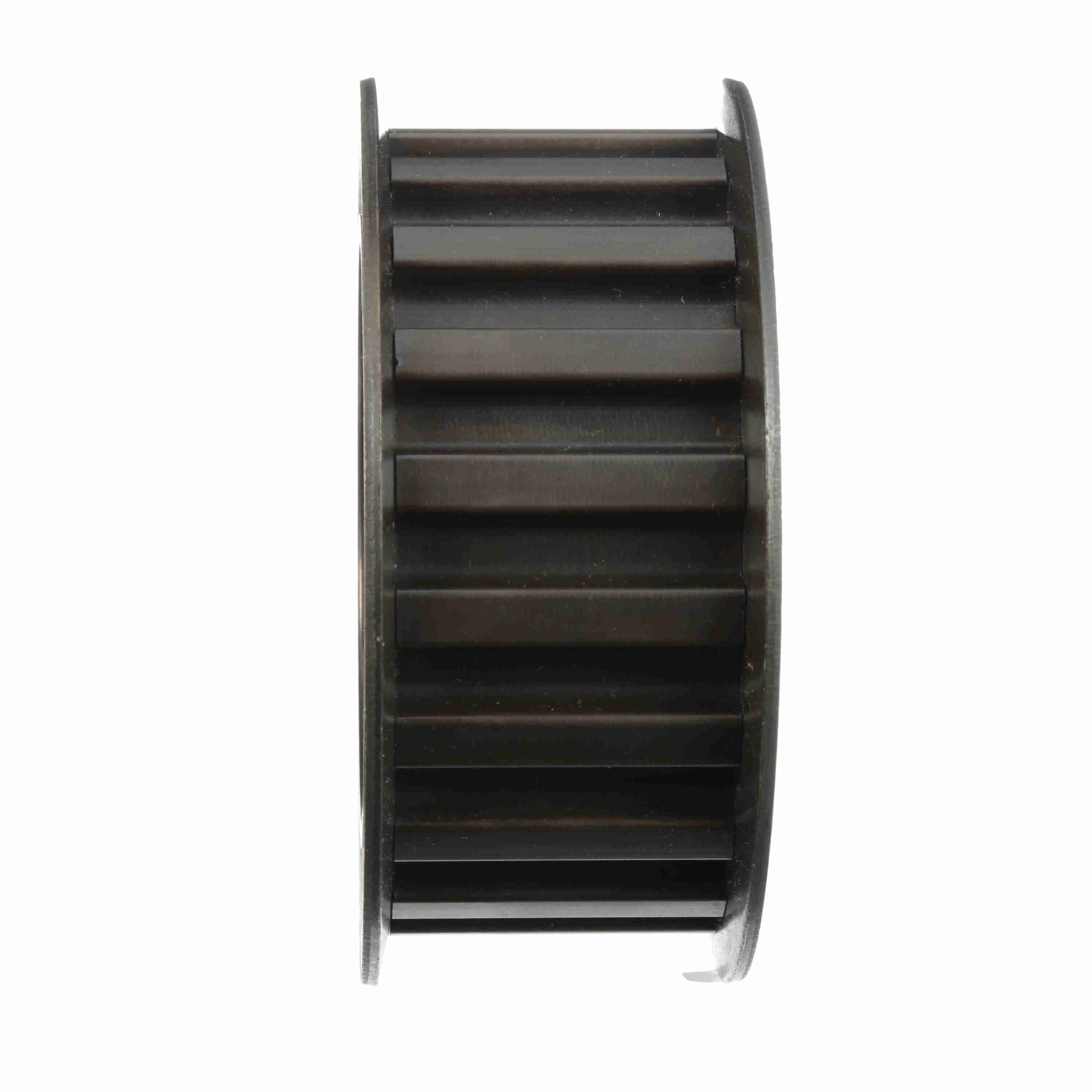

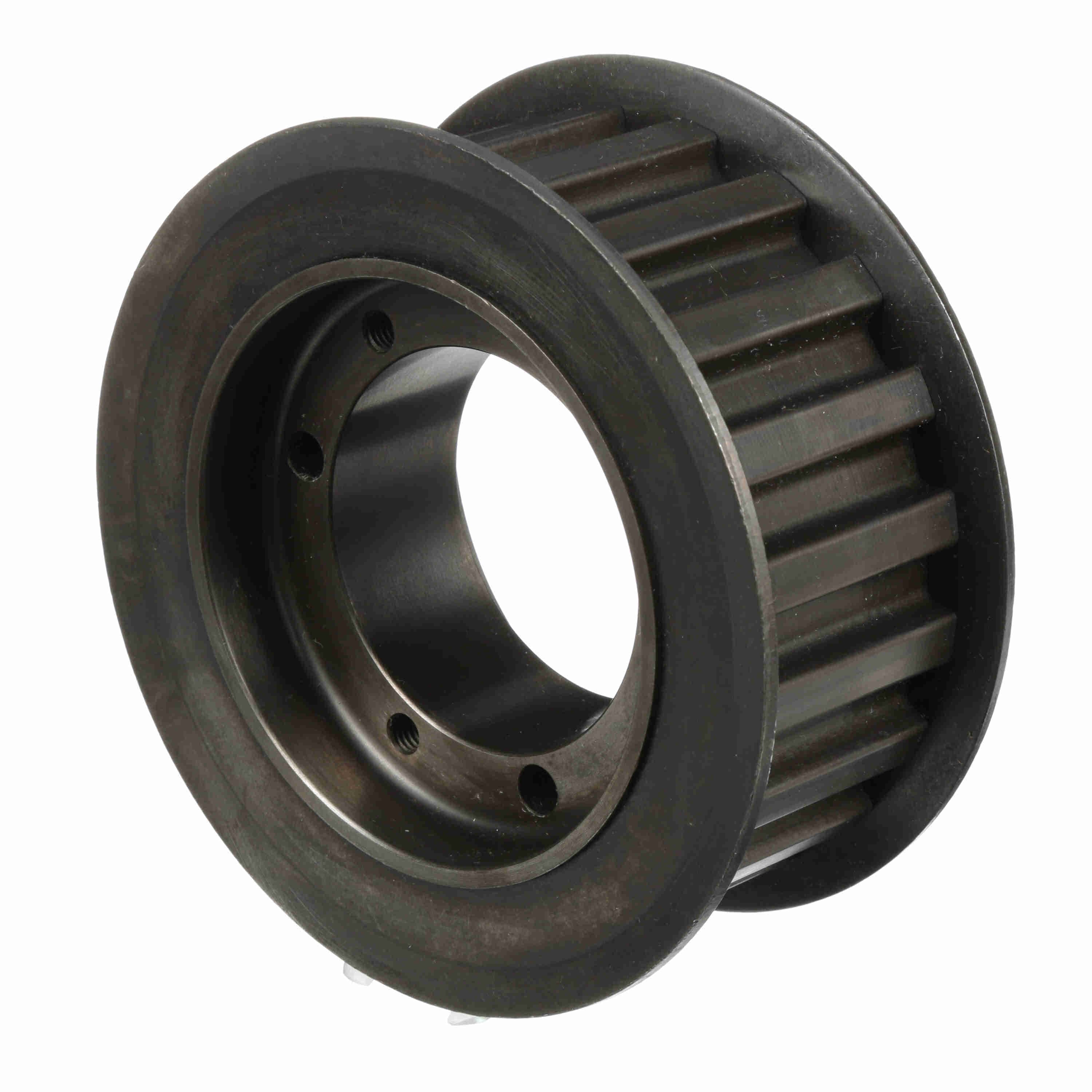

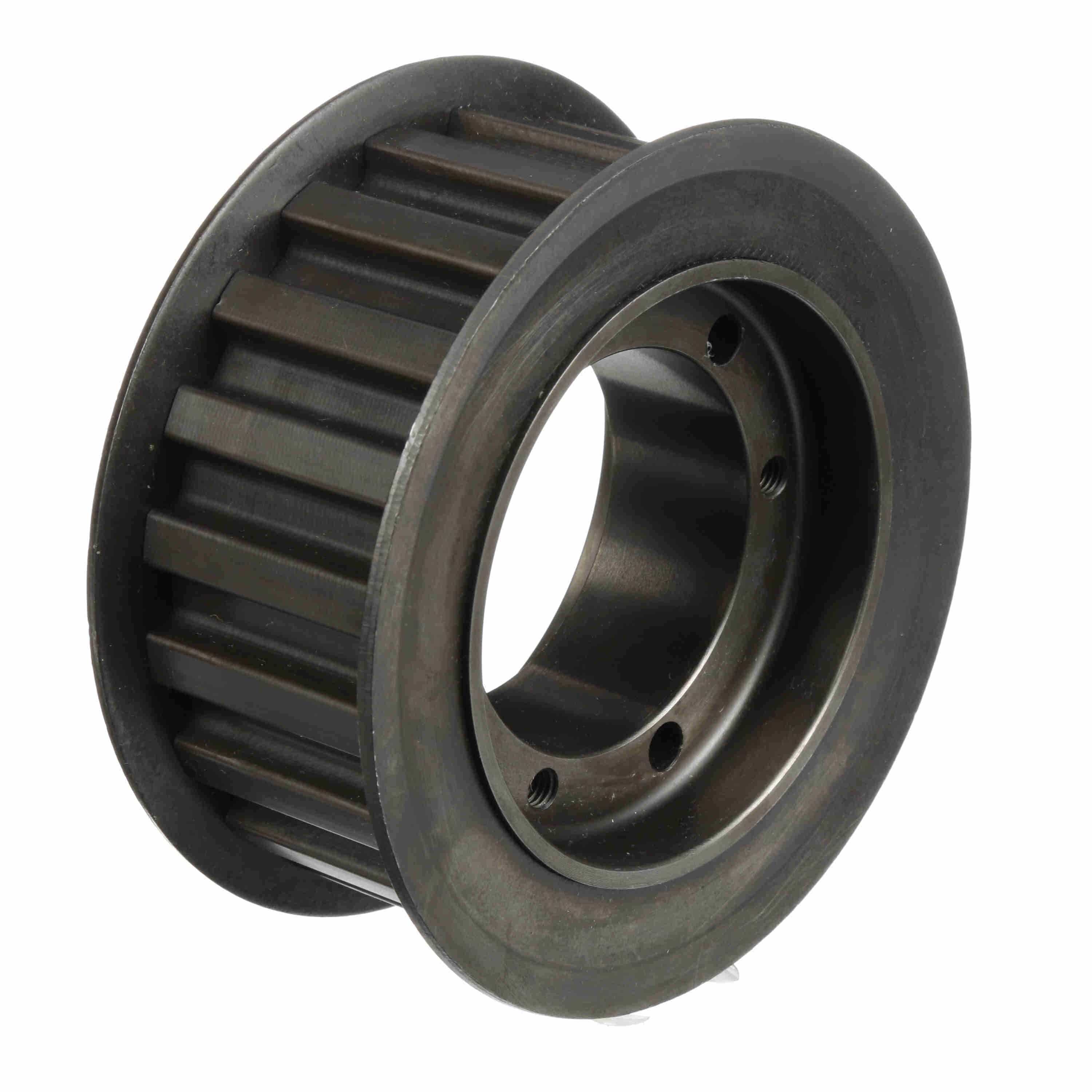

QD GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 3514452 |
| Product Name | 20XH200SK |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 8.175 lb |
| Package Length | 6.4 in |
| Package Width | 6.3 in |
| Package Height | 4.2 in |
| Bore Range | 1/2 to 2 5/8 |
| Width (mm) | 50.8 mm |
| Product Type | Gearbelt Pulley |
| Number of teeth | 20 |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1097.19 | — |
| 5 – 9 | $1029.10 | 6% off |
| 10+ | $993.16 | 9% off |
| Bushed Bore |
| Flange (in) | 6.070 in |
| Outside Diameter (mm) | 138.684 mm |
| Belt Section | XH |
| Pitch Diameter (in) | 5.7 in |
| Inside Diameter (in) | 4.125 in |
| Width (in) | 2 in |
| Outside Diameter (in) | 5.46 in |
| Face Width | 2.5625 |
| Hub Diameter (in) | 3.88 in |
| Number of Hubs | 1 |
| Overall Length (in) | 2.966 in |
| With Flanges | With Flanges |
| Hub Projection | 0.403 |
| Length Through Bore | 1.75 |
| Pulley Construction | Solid |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-112642 |
| Part NumberiManufacturer catalog number | 3514452 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289346707 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
